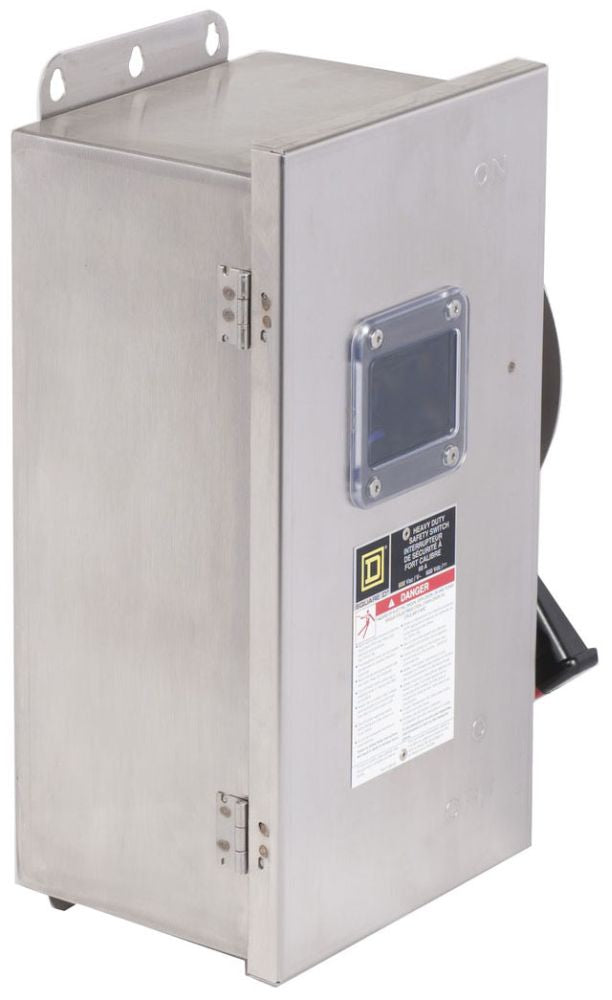

CH362DS - Square D 60A 600V 3-Pole Fusible Heavy Duty Safety Disconnect Switch NEMA 4/4X

CH362DS

CH362DS is a Square D heavy duty fusible safety disconnect switch designed for reliable power distribution and protection.This 3-pole switch is rated for 60 amps and 600 volts AC/DC, suitable for three-phase applications. It features a CH type frame with a NEMA 4/4X stainless steel enclosure, providing robust protection against environmental elements. The switch supports fusible operation with Class R fuses and has an interrupt rating of 200kA at 600V, ensuring high fault current interruption capability. It is rated for up to 50 horsepower motor loads.

Key Specifications
• Amperage: 60A
• Voltage: 600V AC/DC
• Poles: 3
• Type/Series: CH
• Mounting: Heavy duty safety switch
• Interrupt Rating: 200kA at 600V
• Enclosure: NEMA 4/4X stainless steel
• Fusible: Yes, accepts Class R fuses
• Horsepower Rating: 50HP
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CH362DS
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : CH
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : J,R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 4/4X
• Compatible Frames : RJF



Product Data

• UPC : 078590199525
• GTIN : 00785901995258
• Dimensions : 16.87 in (428.50 mm) x 10.81 in (274.57 mm) x 6.97 in (177.04 mm) (Height x Width x Depth)
• Weight : 19.65
