Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
CH361RB

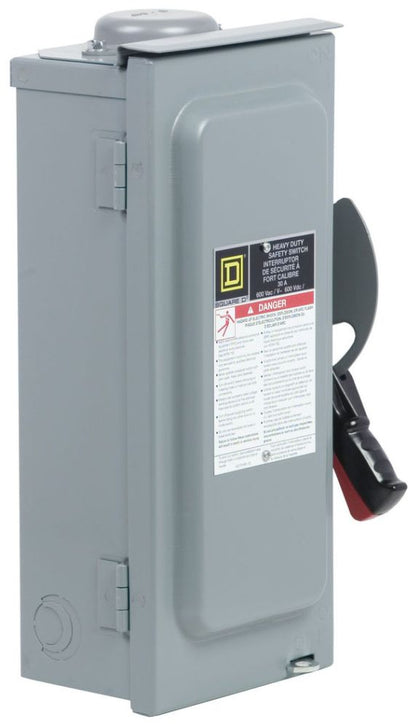

CH361RB is a Square D 30 Amp, 600 Volt, 3 Pole Fusible Heavy Duty Safety Switch designed for reliable power distribution control.This CH type disconnect switch features a 3-phase, 3-pole configuration with a NEMA 3R enclosure rating suitable for outdoor use. It supports voltages up to 600 VAC and includes fusible protection for enhanced safety. The switch is bolt-on mounted and rated for heavy-duty applications with a horsepower rating of up to 20 HP at 600 VAC.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 600 Volts AC
- Poles: 3 Pole
- Phase: 3-Phase
- Type: Fusible Disconnect Switch
- Enclosure Rating: NEMA 3R
- Mounting Type: Bolt-On
- Heavy Duty Safety Switch
- Horsepower Rating: 20 HP at 600 VAC
- Part Number: CH361RB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series F
- Type : CH
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : J,R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 3R
- Compatible Frames : RJF
- UPC : 078590199521
- GTIN : 00786679775240
- Dimensions : 14.88 in (377.95 mm) x 7.55 in (191.77 mm) x 4.86 in (123.44 mm) (Height x Width x Depth)
- Weight : 8.589
