Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
CH361AWK

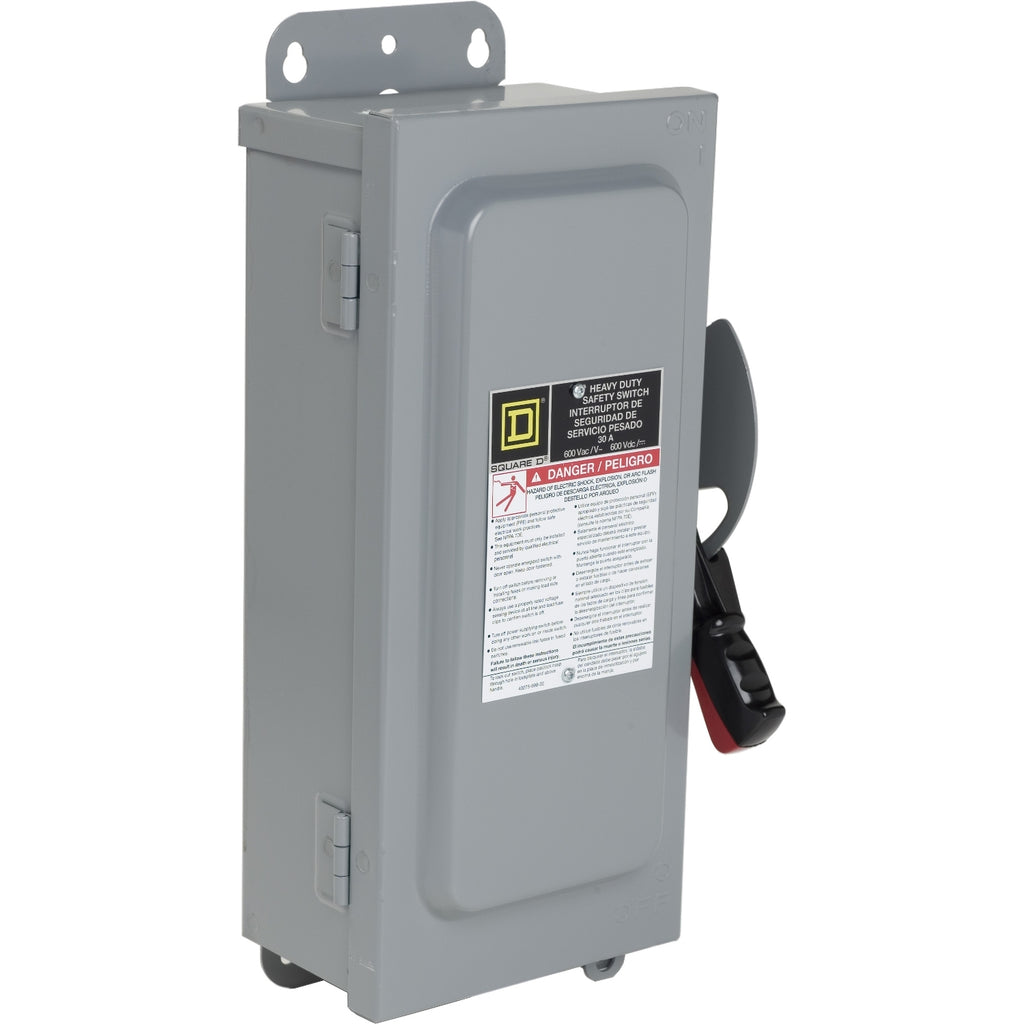

CH361AWK is a heavy-duty fusible safety switch designed for reliable circuit protection in industrial and commercial applications. This Square D disconnect switch features a 3-pole configuration and is rated for 30A at 600V AC/DC, making it suitable for a wide range of power distribution needs. Engineered for durability, the CH361AWK offers a robust design with a NEMA 3R/12 enclosure for protection against environmental hazards. It is a single-throw fusible switch, ideal for use where frequent switching is not required but safety and reliability are critical. The switch is rated for up to 20 hp at 600V AC and supports both AC and DC applications.
- Part Number: CH361AWK
- Manufacturer: Square D
- Amperage: 30A
- Voltage Rating: 600V AC/DC
- Number of Poles: 3
- Motor Power: Up to 20 hp at 600V AC
- Interrupt Rating: 200kA at 600V
- NEMA Rating: 3R/12
- Mounting Type: Wall Mount
- Series/Frame: CH
- Disconnect Type: Fusible
- Application: Industrial, Commercial
Specifications
- Part Number: CH361AWK
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series F
- Type : CH
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : J,R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 3R/12
- Compatible Frames : RJF
Product Data
- UPC : 785901995159
- GTIN : 00783643151932
- Country of Origin : United States
- Dimensions : 14.6 in (370.8 mm) x 7.55 in (191.77 mm) x 4.96 in (125.98 mm) (Height x Width x Depth)
- Weight : 10.39
