CH340 - Cutler Hammer 40A 240V 3-Pole Plug-On Circuit Breaker Type CH 10kAIC

CH340

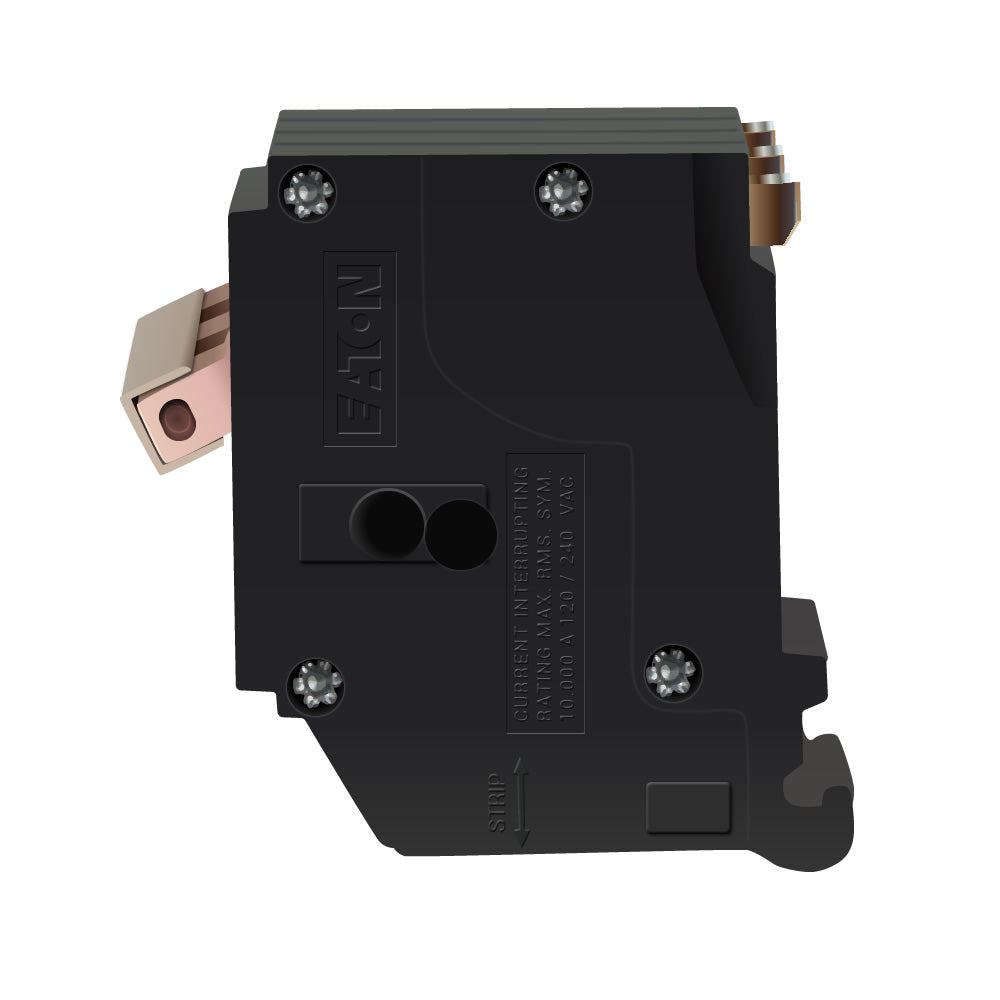

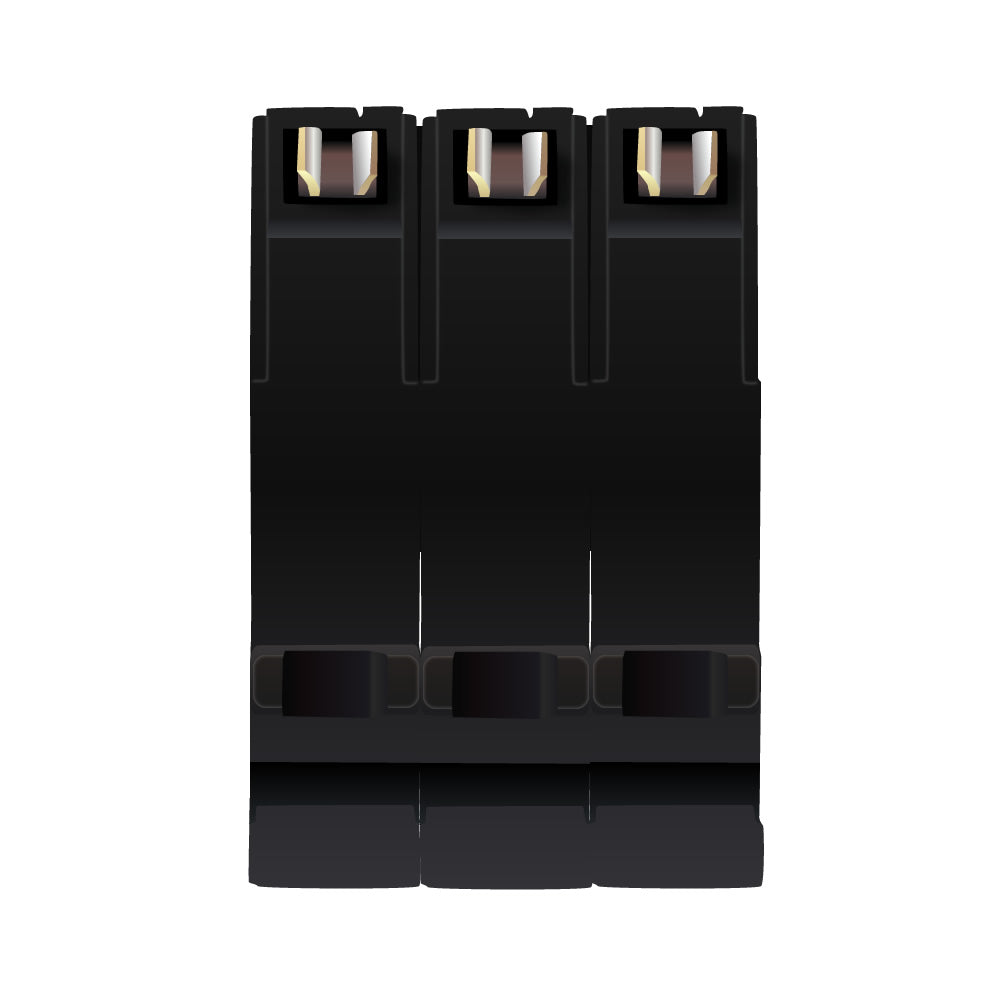

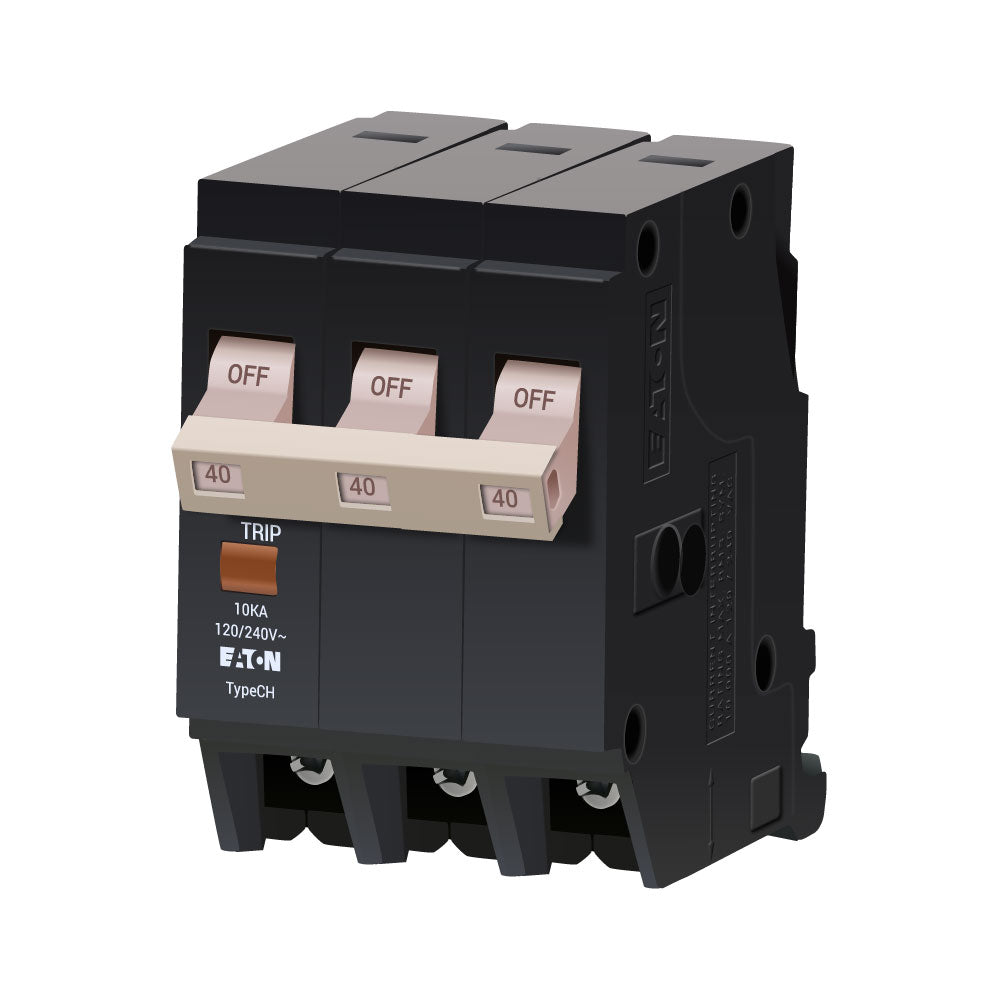

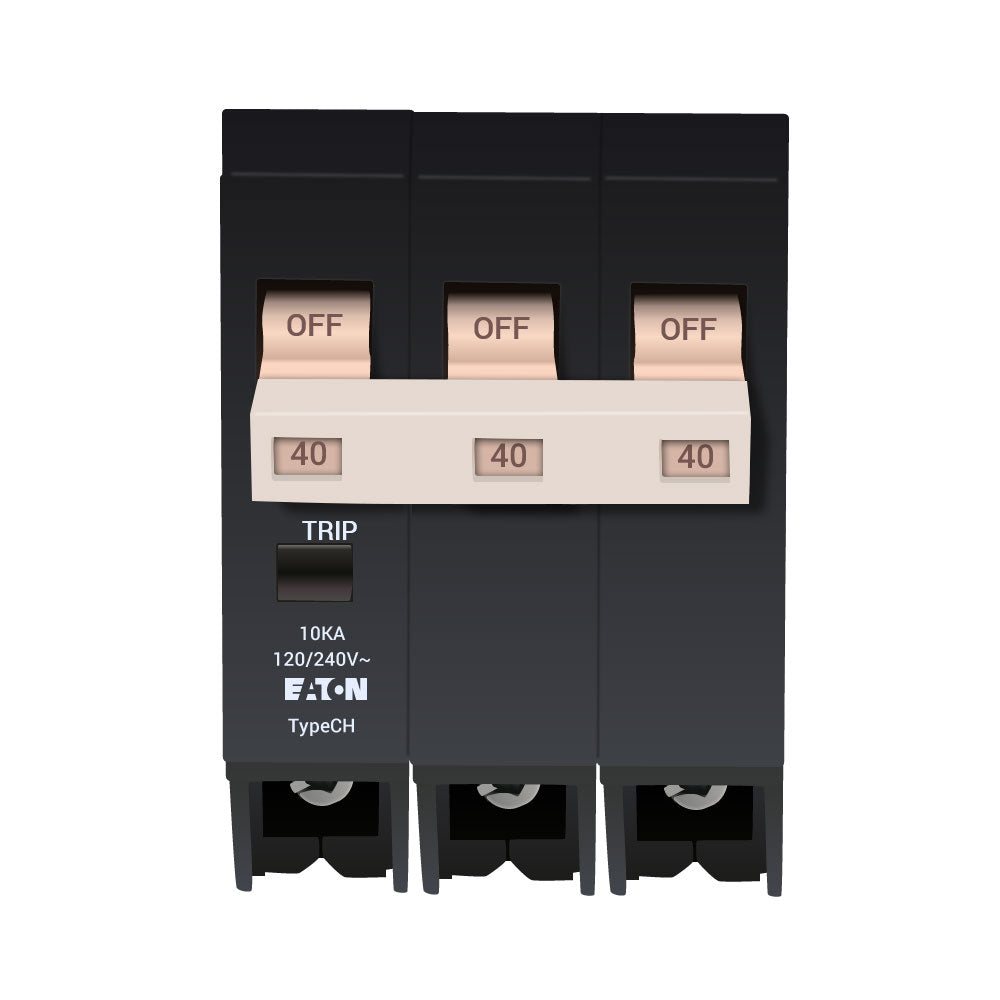

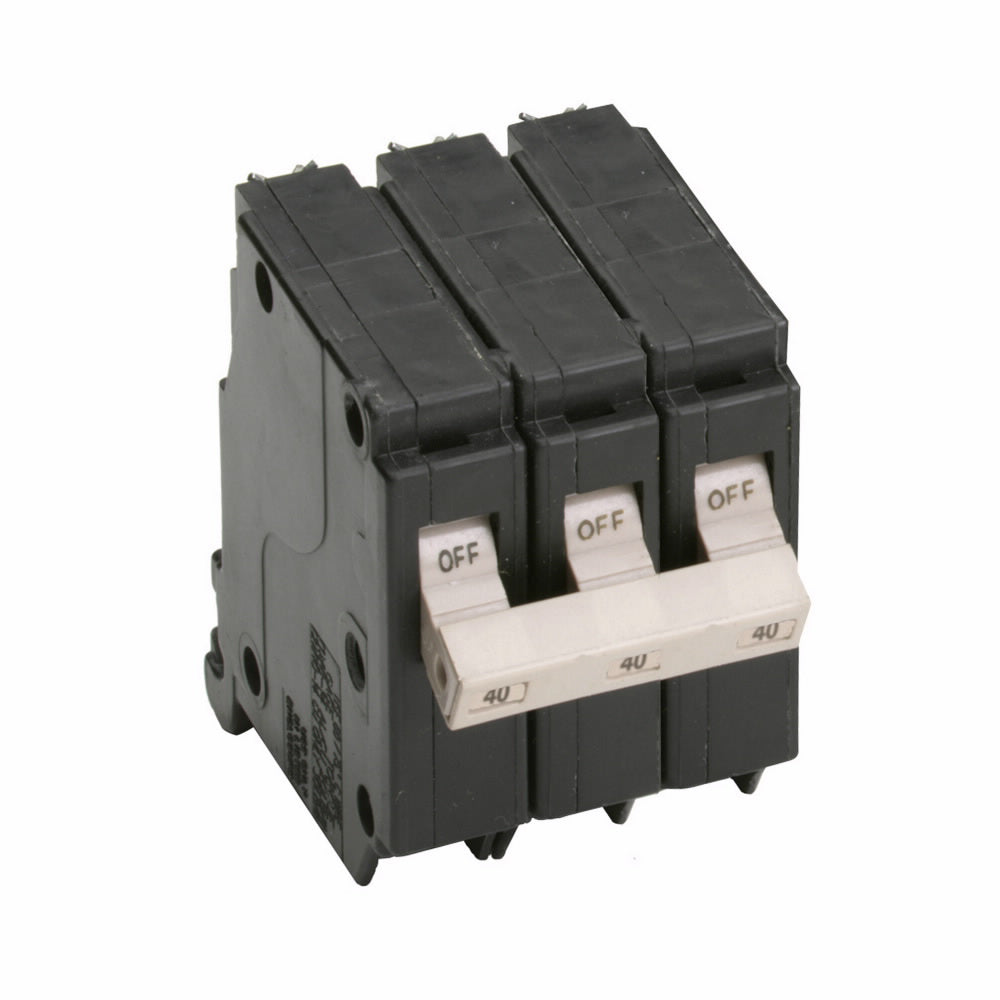

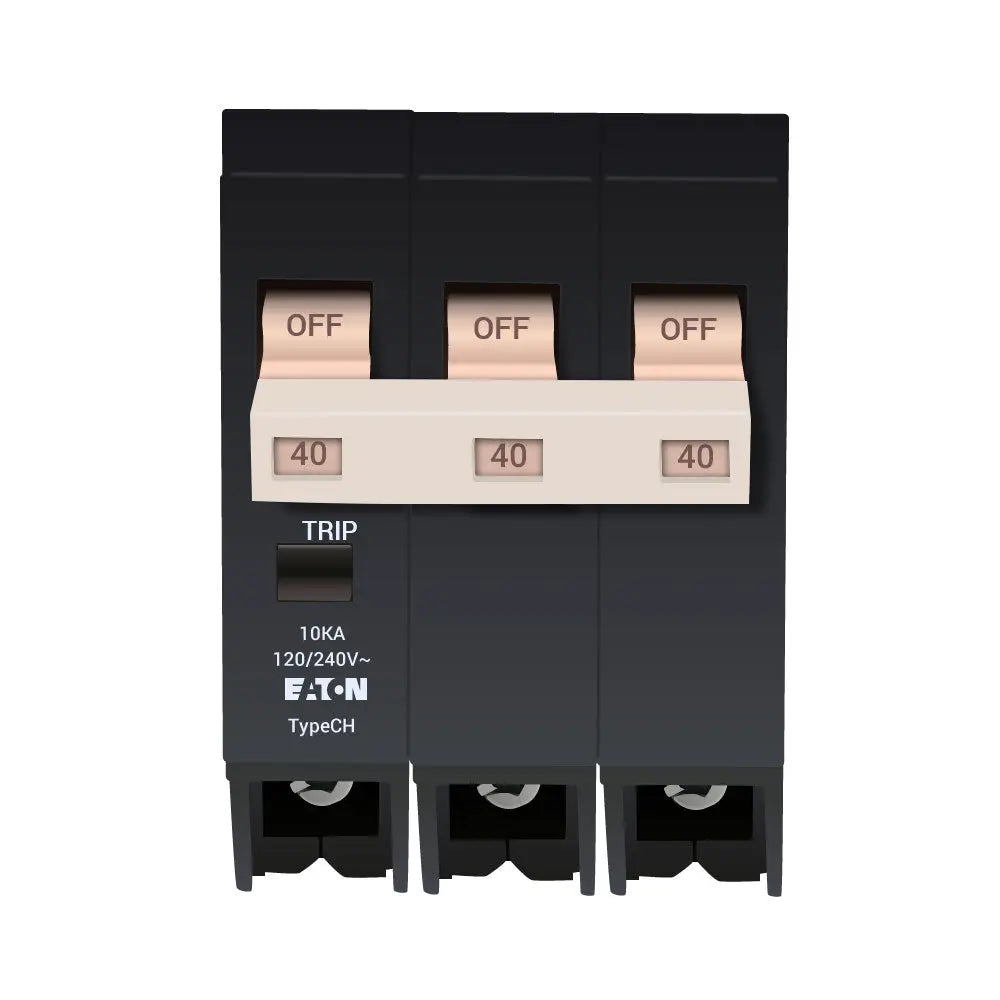

CH340 is a Cutler Hammer 3-pole plug-on circuit breaker with a 40 amp rating and 240 volt capacity designed for Type CH loadcenters.This thermal magnetic circuit breaker features a common trip unit, 10,000 amp interrupt rating (10 kAIC), and supports copper/aluminum wire sizes from #10 to 1/0 AWG. It is UL 489 and CSA listed, HACR rated, and requires three 3/4-inch spaces for installation.

• Amperage: 40 A
• Voltage: 240 V
• Poles: 3
• Mounting Type: Plug-On
• Interrupt Rating: 10 kAIC
• Series/Frame: Type CH
• Trip Unit: Common trip, thermal magnetic
• Wire Size Range: #10 to 1/0 AWG Cu/Al
• Certifications: UL 489, CSA Listed
• HACR Rated
• Used with Type CH Loadcenters
• Dimensions: 2.7" H x 3.1" W x 2.2" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CH340
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CH
• Voltage : 240
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 78211310207
• GTIN : 00782113102078
• Country of Origin : Dominican Republic
• Dimensions : 2.2 in x 2.7 in x 3.1 in (Length/Depth x Height x Width)
• Weight : 0.95 lb
• Certification : UL 489
• Wire Size : 10 To 1/0 AWG (Aluminum/Copper)
