Product Info
- Manufacturer: Cutler Hammer
- Sub-Category: Molded Case
Description
CH335

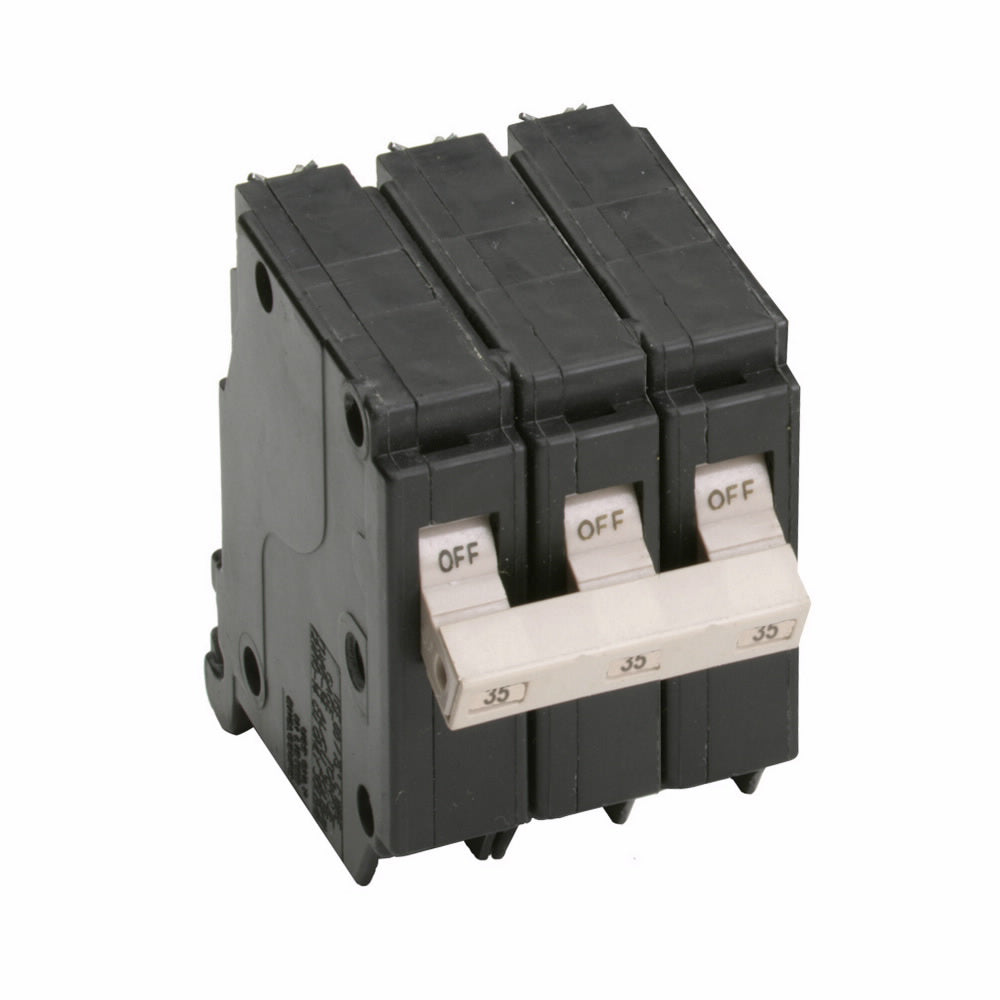

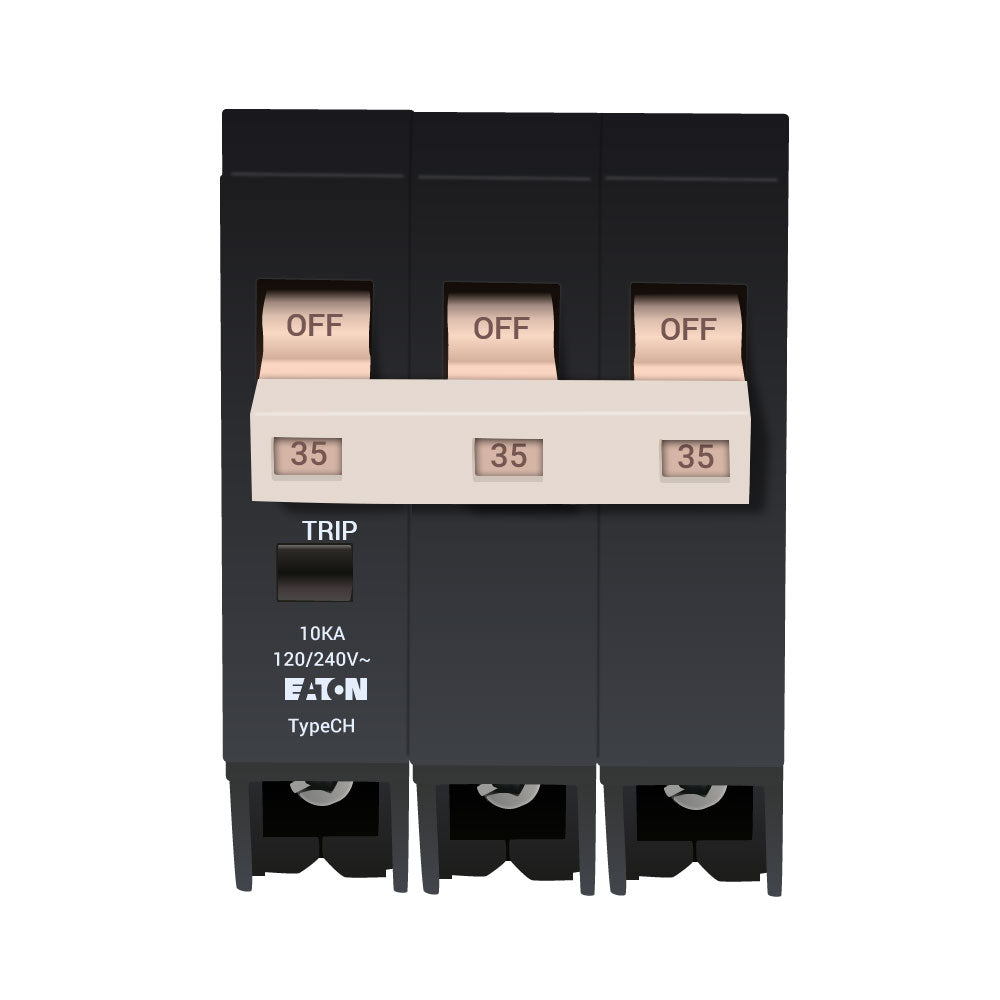

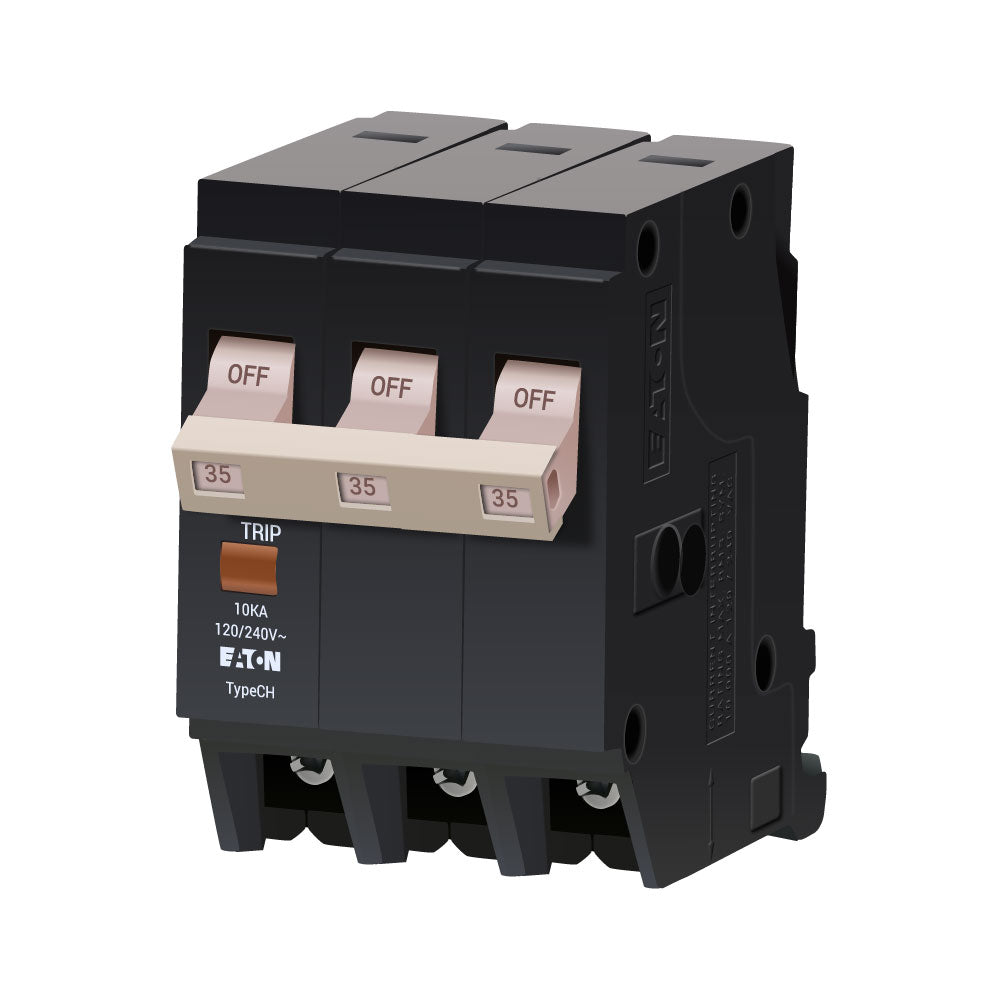

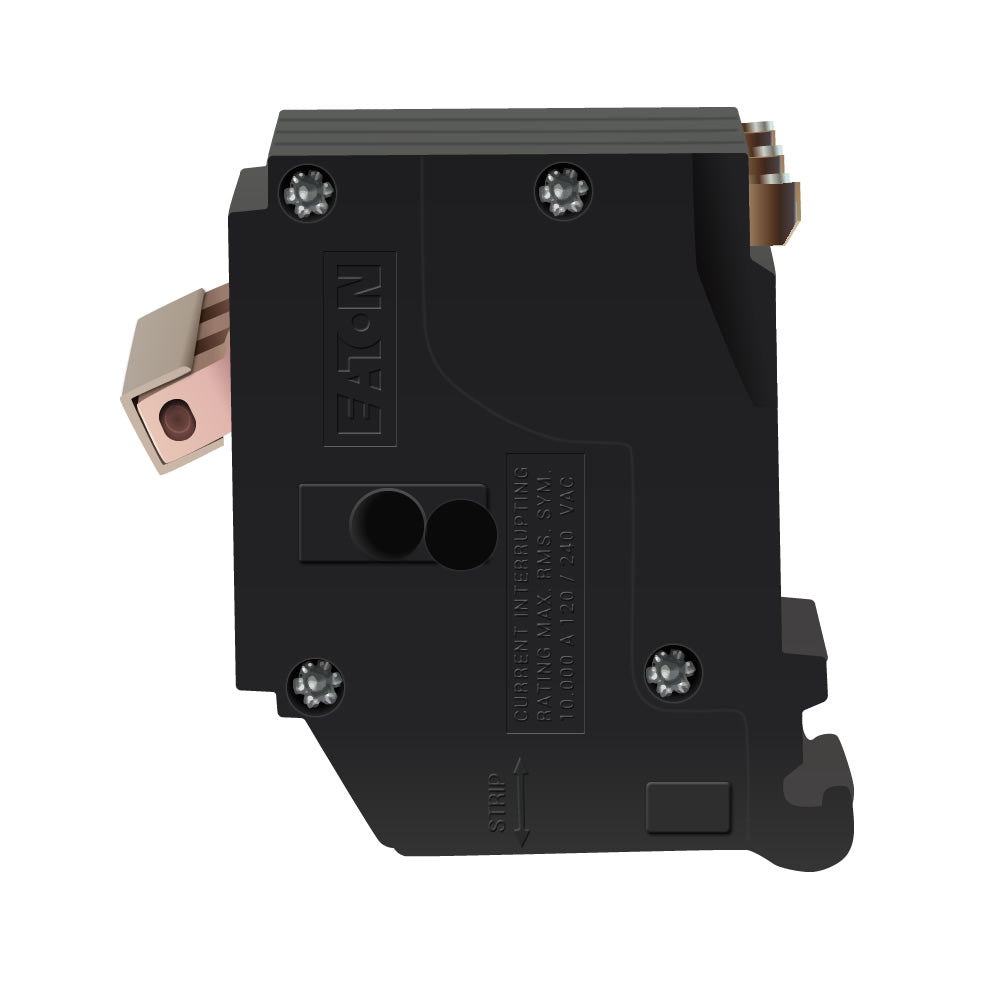

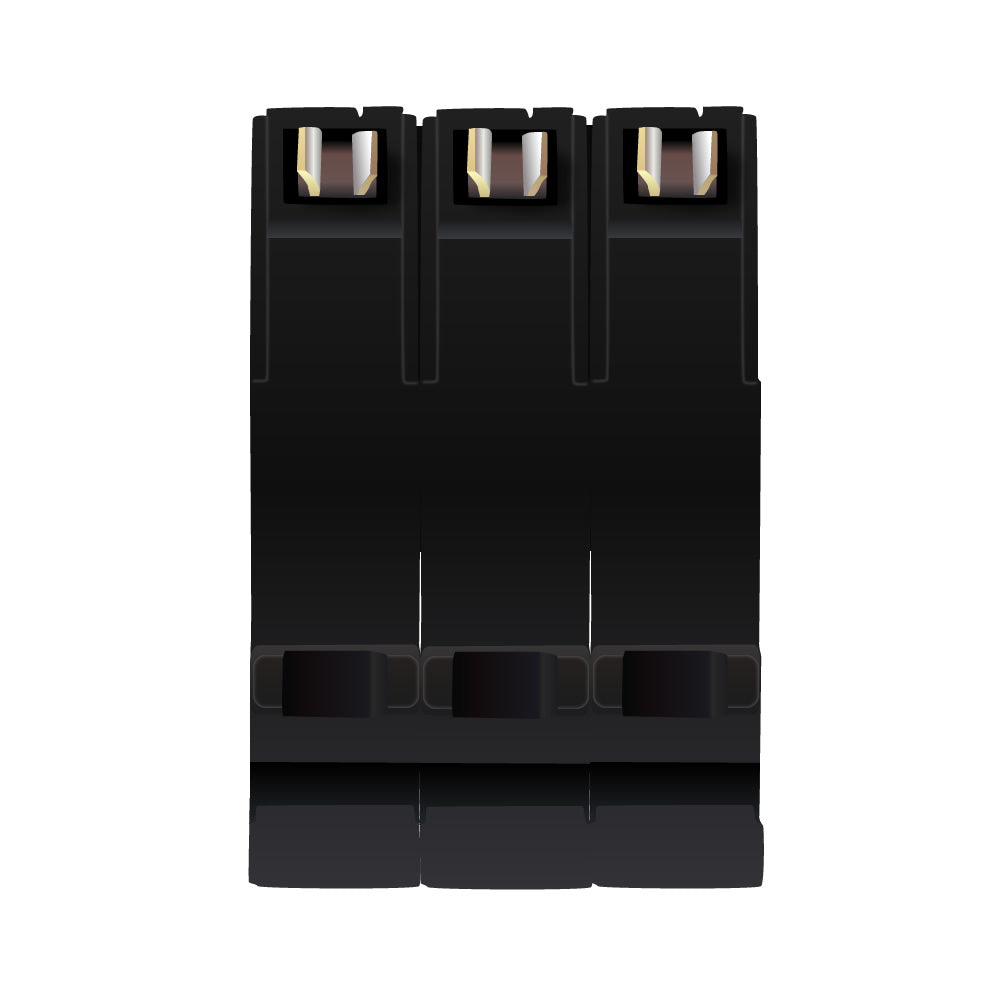

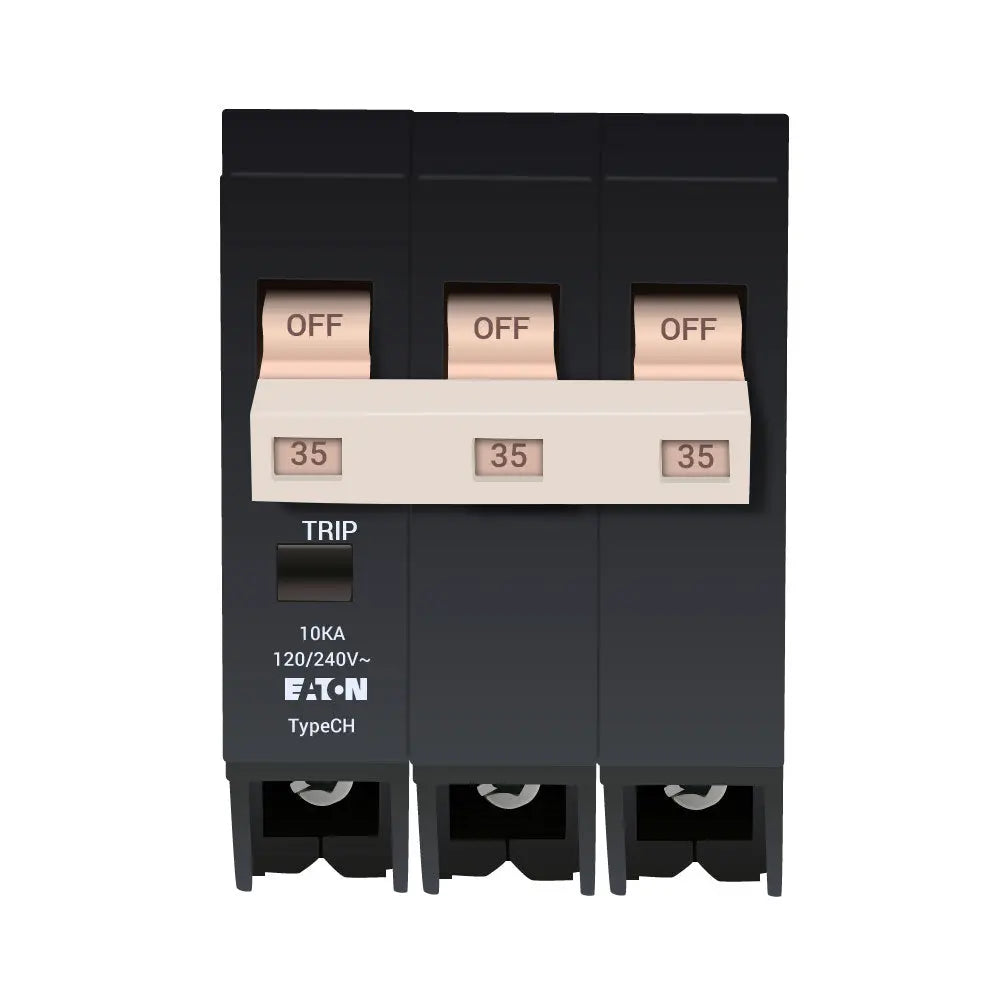

The Cutler Hammer CH335 is a molded case circuit breaker. This type CH circuit breaker is a member of The CH series family. The CH335 is a 3 pole, 240 Volt, 35 amp rated circuit breaker, with an AIC rating of 10kA@240V and is manufactured by Cutler Hammer. The CH335 uses a Plug-In connection and includes thermal magnetic protection. The trip unit features LI - Long-Time and Instantaneous functions.ÊÊEvery part Essential Electric sells is also backed by our industry leading gold standard 2-year warranty.
Specifications
- Part Number: CH335
- Manufacturers: Cutler Hammer
- Sub-Category: Molded Case
- UPC: 782113316994
- GTIN: 00782113316994
- Poles: 3
- Phase: 3
- Voltage: 240
- Amperage: 35
- AIC Rating: 10kA@240V
- Connection: Plug-In
- Protection: Thermal Magnetic
- Functions: LI - Long-Time and Instantaneous
- Wire size: (1) 14 To 6 Awg (Aluminum/Copper)
- Family: CH Series
- Type: CH
- Certification: Ul Listed Csa Certified
- Dimensions: Length 3.5in Height 3.5in Width 2.25in
- Weight: 1.8
