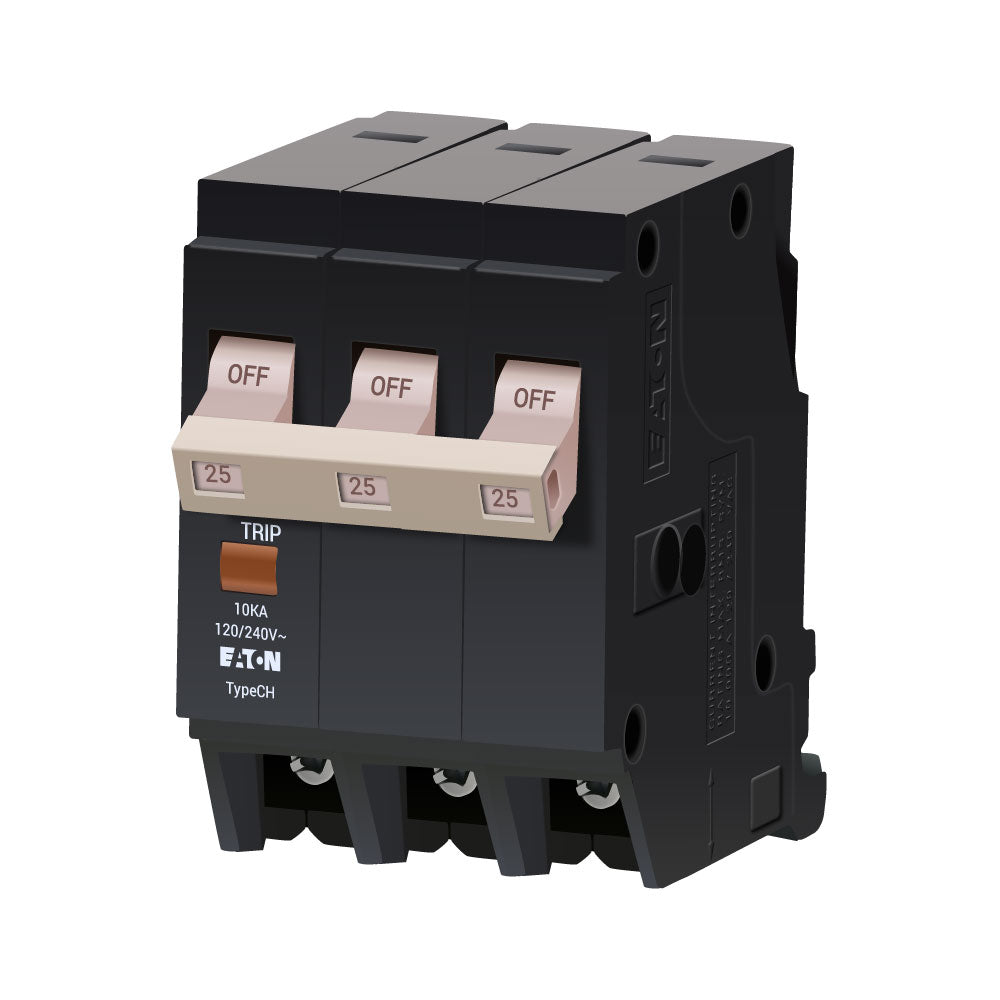

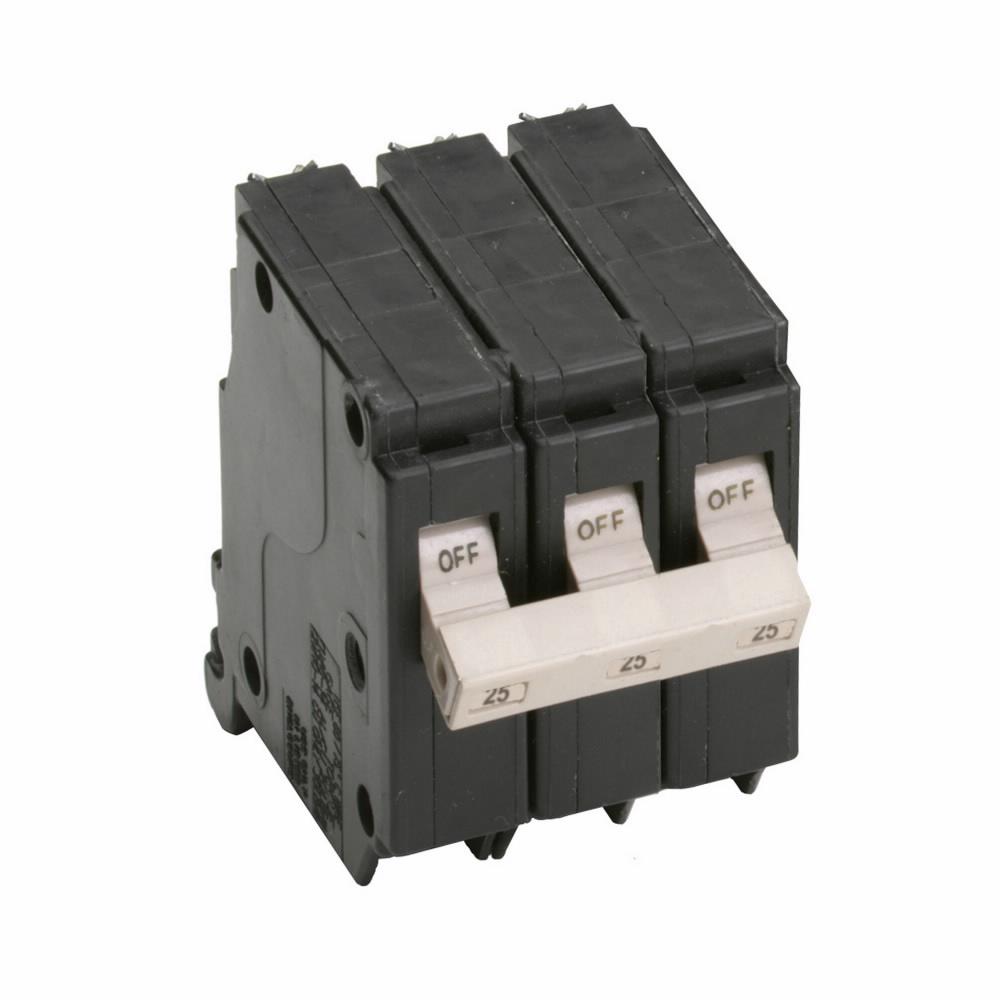

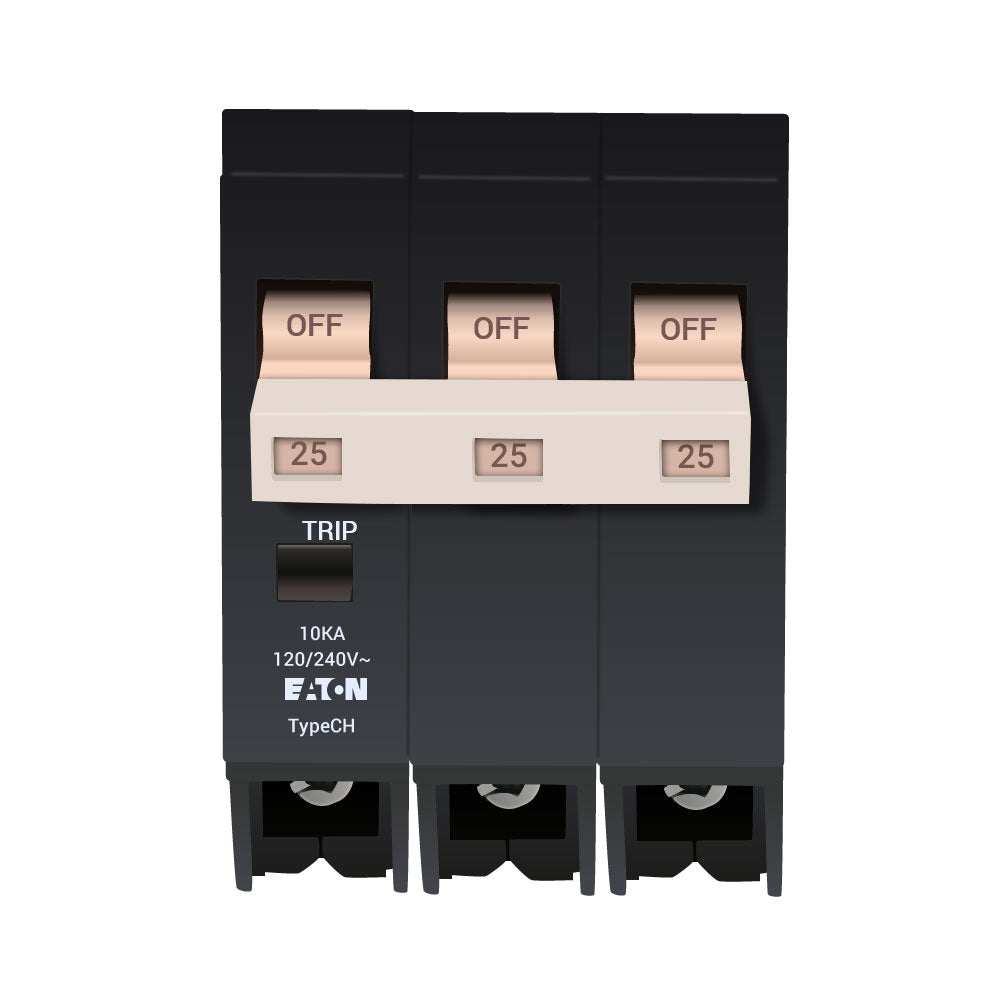

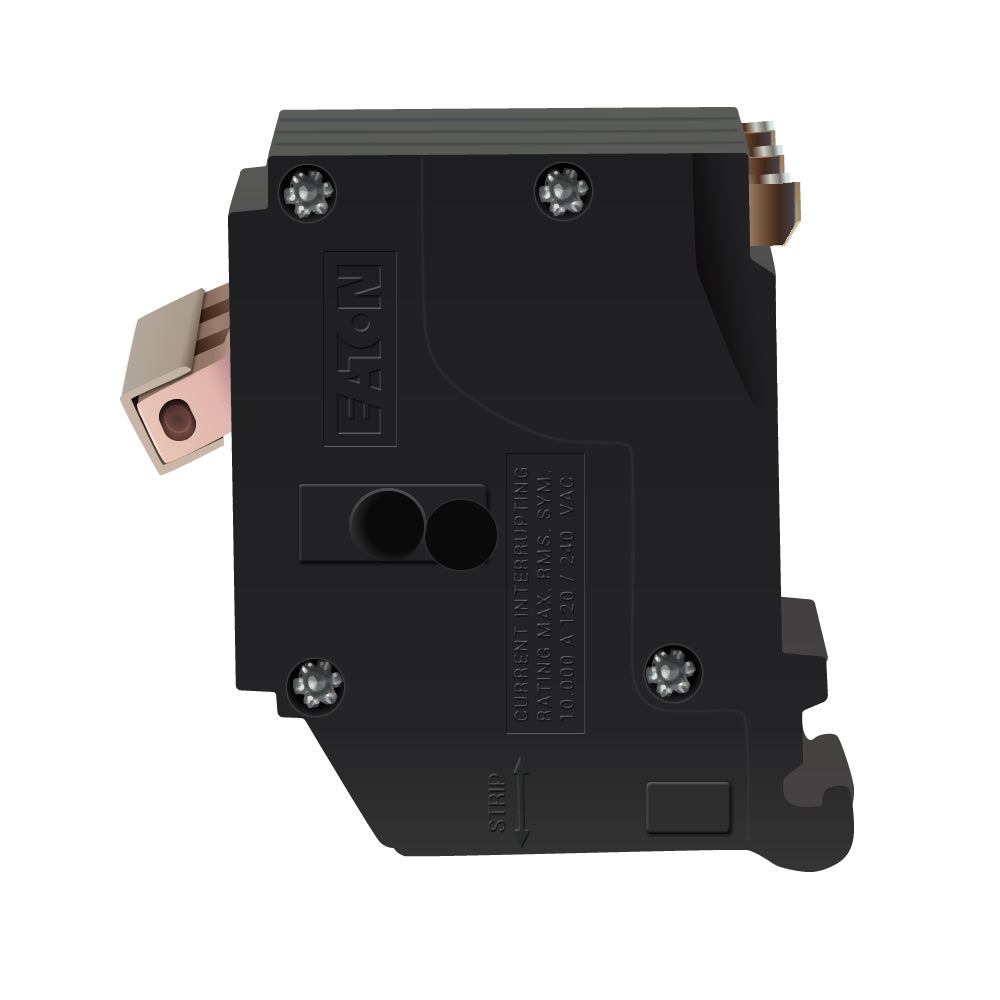

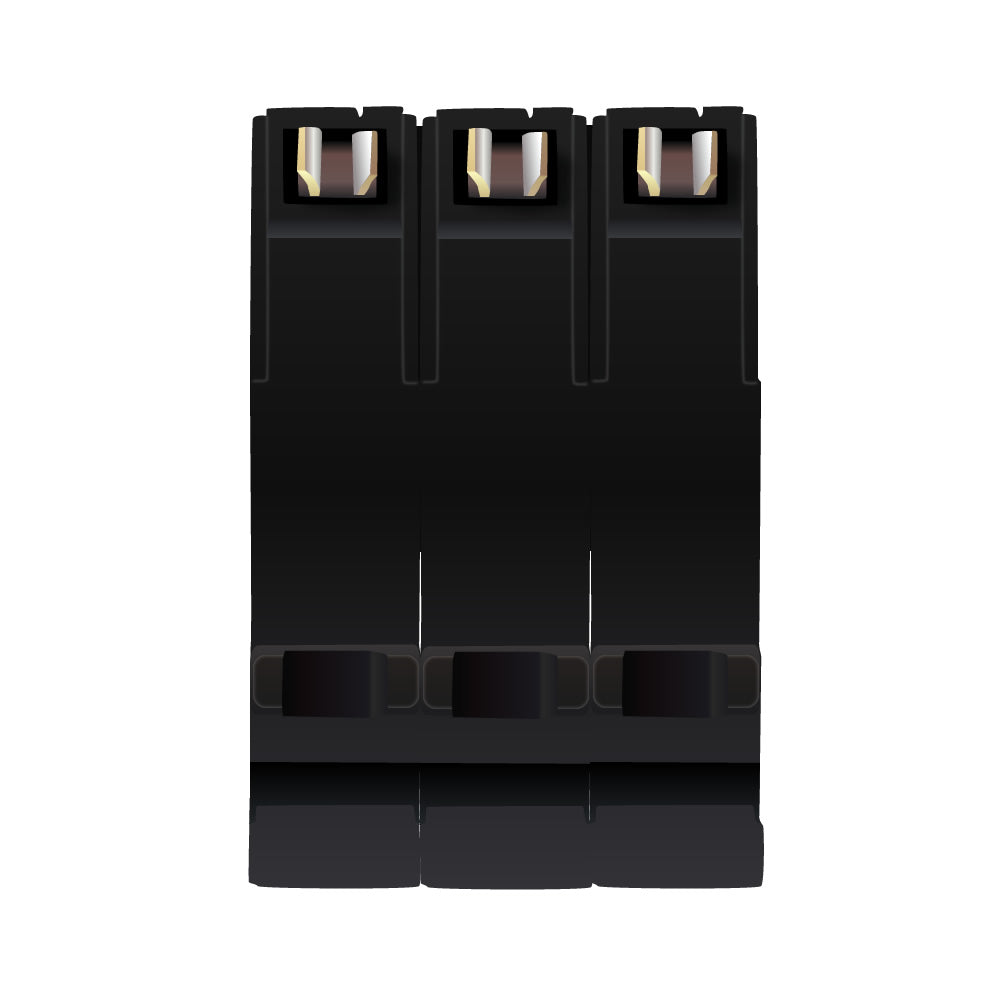

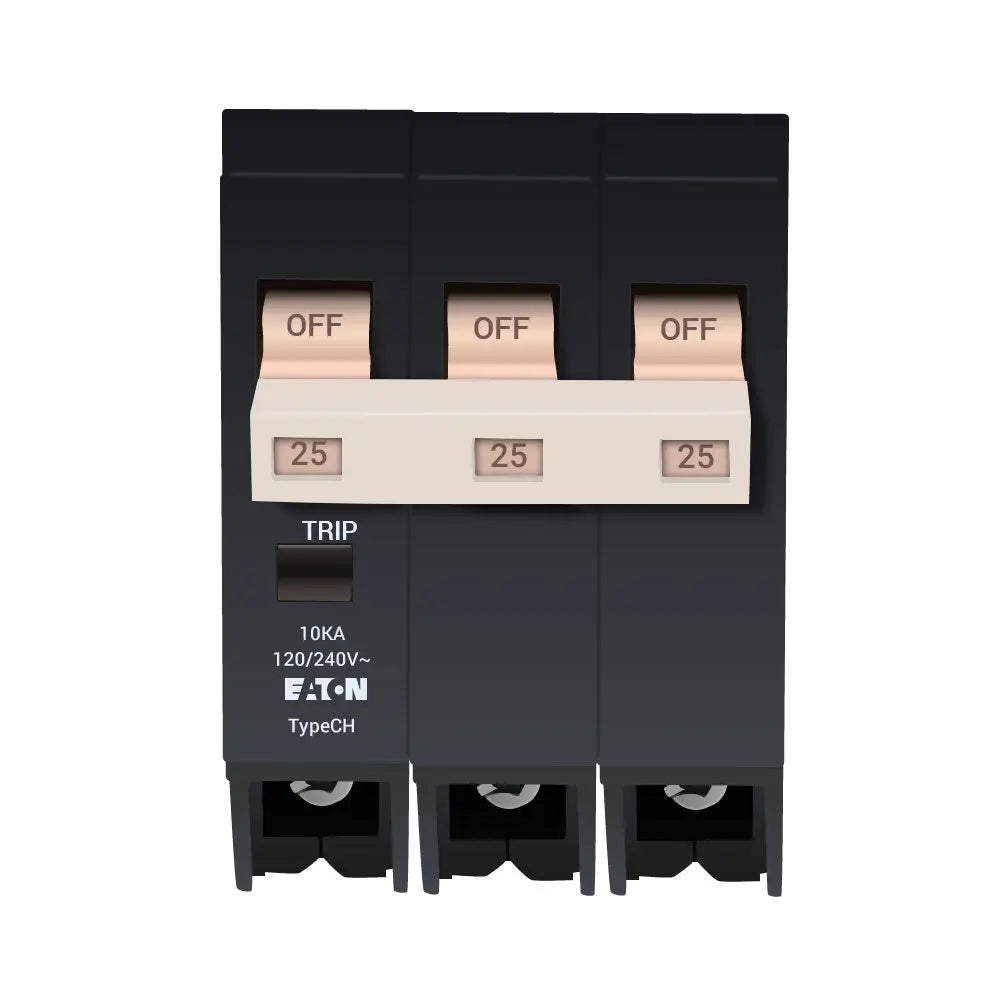

CH325 - Cutler Hammer 25A 240V 3 Pole Plug-On Circuit Breaker Type CH 10kAIC

CH325

CH325 is a Cutler Hammer 3 pole, 25 amp, 240 volt plug-on circuit breaker with a 10 kA interrupt rating designed for Type CH loadcenters.This Eaton CH thermal magnetic circuit breaker features a common breaker trip, supports wire sizes #14-6 AWG Cu/Al, and is HACR rated. It requires three 3/4-inch spaces and is UL 489 certified for safety and reliability.

• Amperage: 25 A
• Voltage: 240 V AC
• Poles: 3
• Mounting Type: Plug-On
• Interrupt Rating: 10 kAIC
• Series/Frame: Type CH 3/4-Inch
• Trip Unit: Common breaker trip
• Wire Size: #14-6 AWG Cu/Al
• Certifications: UL 489
• HACR Rated
• Used with Type CH Loadcenters
• Product Weight: 0.86 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CH325
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CH
• Voltage : 240
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 782113121482
• GTIN : 00782113121482
• Country of Origin : Dominican Republic
• Dimensions : 3.5 in x 3.5 in x 2.25 in (Length/Depth x Height x Width)
• Weight : 0.86
• Certification : UL 489
