CH321N - Schneider Electric 30A 240VAC/250VDC 3-Pole Fusible Heavy Duty Single Throw Safety Switch NEMA 1 Neutral

CH321N

CH321N is a Schneider Electric fusible heavy duty single throw safety switch designed for reliable power disconnection in industrial applications.This switch features a 30 ampere rating and operates at 240 VAC/250 VDC with 3 poles. It includes a factory-installed neutral and is rated for motor horsepower up to 7.5 hp. The device has a quick-make/quick-break mechanism, visible blades for positive off indication, and lugs suitable for aluminum or copper conductors. It is surface mountable with a NEMA 1 enclosure and includes multiple padlock provisions for safety. The switch is constructed with galvanized steel and has spring-reinforced, plated copper fuse clips.

Key Specifications
• Amperage: 30 A
• Voltage: 240 VAC / 250 VDC
• Poles: 3
• Mounting Type: Surface Mount
• Enclosure Type: NEMA 1
• Fusible: Yes
• Neutral: Factory-installed
• Interrupt Rating: 10 kA
• Contact Form: TPST (Triple Pole Single Throw)
• Material: Galvannealed Steel
• Operating Mechanism: Quick-make/quick-break
• Padlock Provisions: Multiple in Off position
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CH321N
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Parts & Accessories
• Compatible Frames : NSE



Product Data

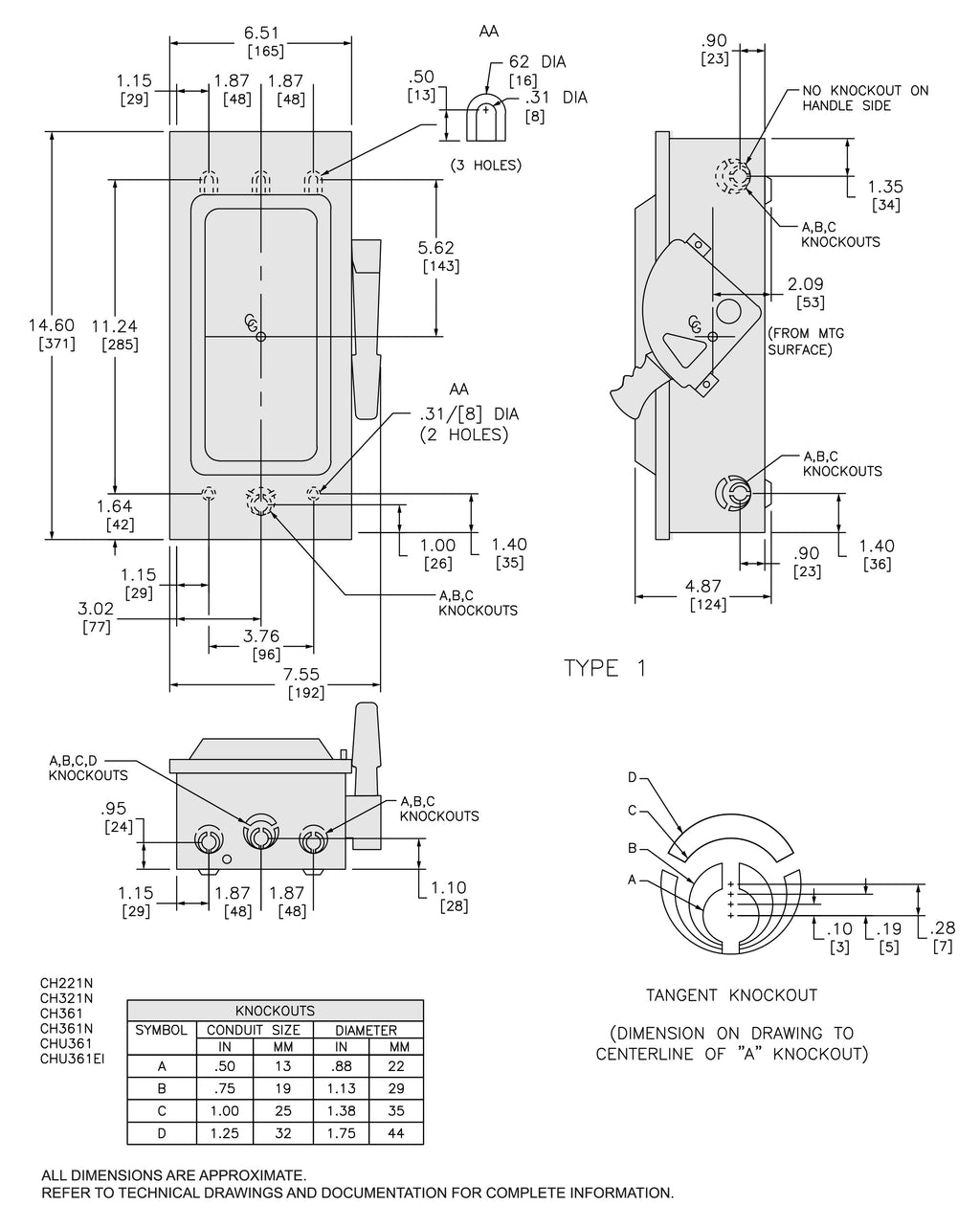

• Dimensions : 14.6 in (370.8 mm) x 6.5 in (165.1 mm) x 4.88 in (123.95 mm) (Height x Width x Depth)
• Weight : 8.139
