Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
CH320ST

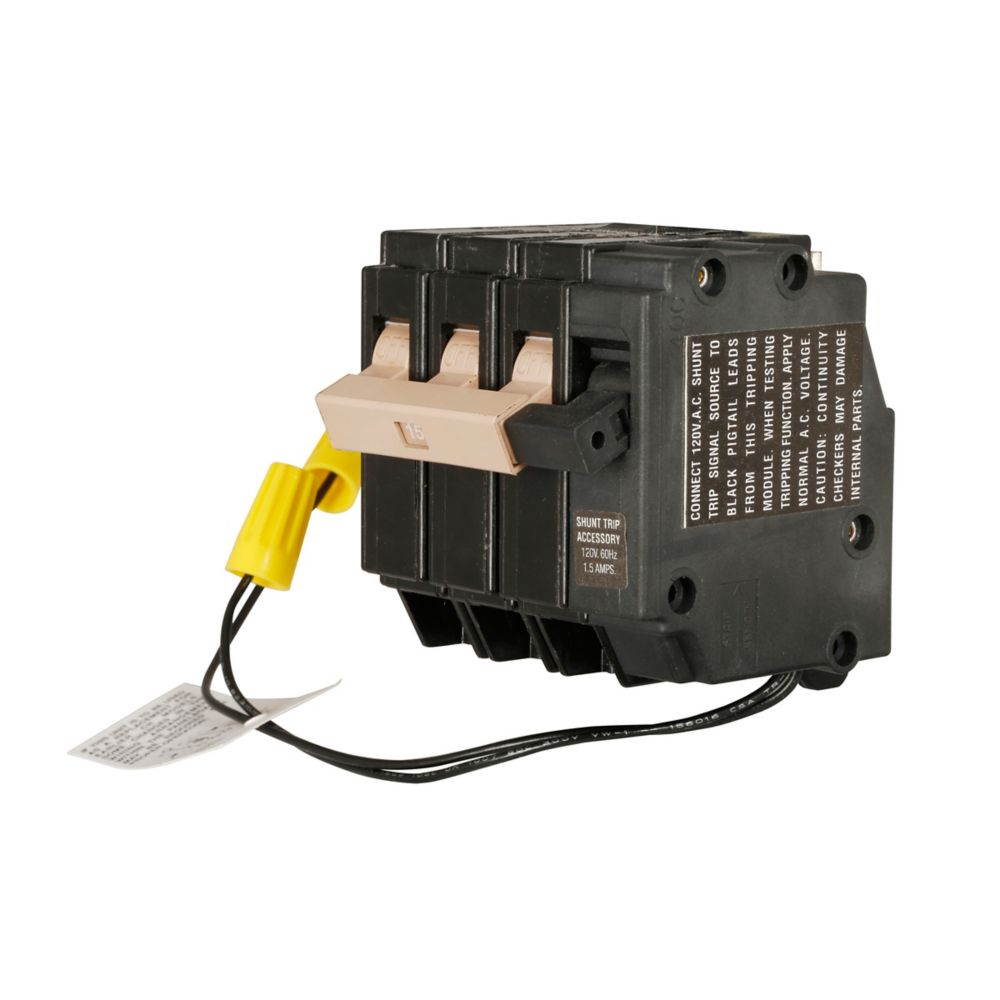

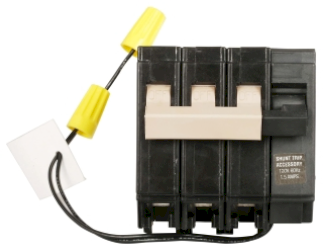

CH320ST is a Cutler Hammer 3-pole circuit breaker designed for 240V applications with a 20 amp rating and CH frame size.This thermal magnetic circuit breaker features a 10 kA interrupt rating, common breaker trip, and is compatible with #14-6 AWG copper or aluminum wiring. It includes a shunt trip and is designed for plug-in mounting in CH type loadcenters, providing reliable protection for commercial and industrial electrical systems.
- Key Specifications
- Amperage: 20 Amps
- Voltage: 240 VAC
- Poles: 3
- Frame Type: CH
- Interrupt Rating: 10 kAIC
- Trip Unit: Thermal Magnetic with Shunt Trip
- Mounting Type: Plug-In
- Wire Range: #14-6 AWG Cu/Al
- Certifications: UL 489
Specifications
- Part Number: CH320ST
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CH Series
- Type : CH
- Voltage : 240
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous
- Frame Size : CH
- Protection : Thermal Magnetic
Product Data
- UPC : 782113339658
- GTIN : 00782113339658
- Country of Origin : Dominican Republic
- Dimensions : 4.8 in x 3.5 in x 3.5 in (Length/Depth x Height x Width)
- Weight : 1.15
- Certification : UL 489
- Wire Size : 14 - 6 AWG Cu/Al
