Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
CH315

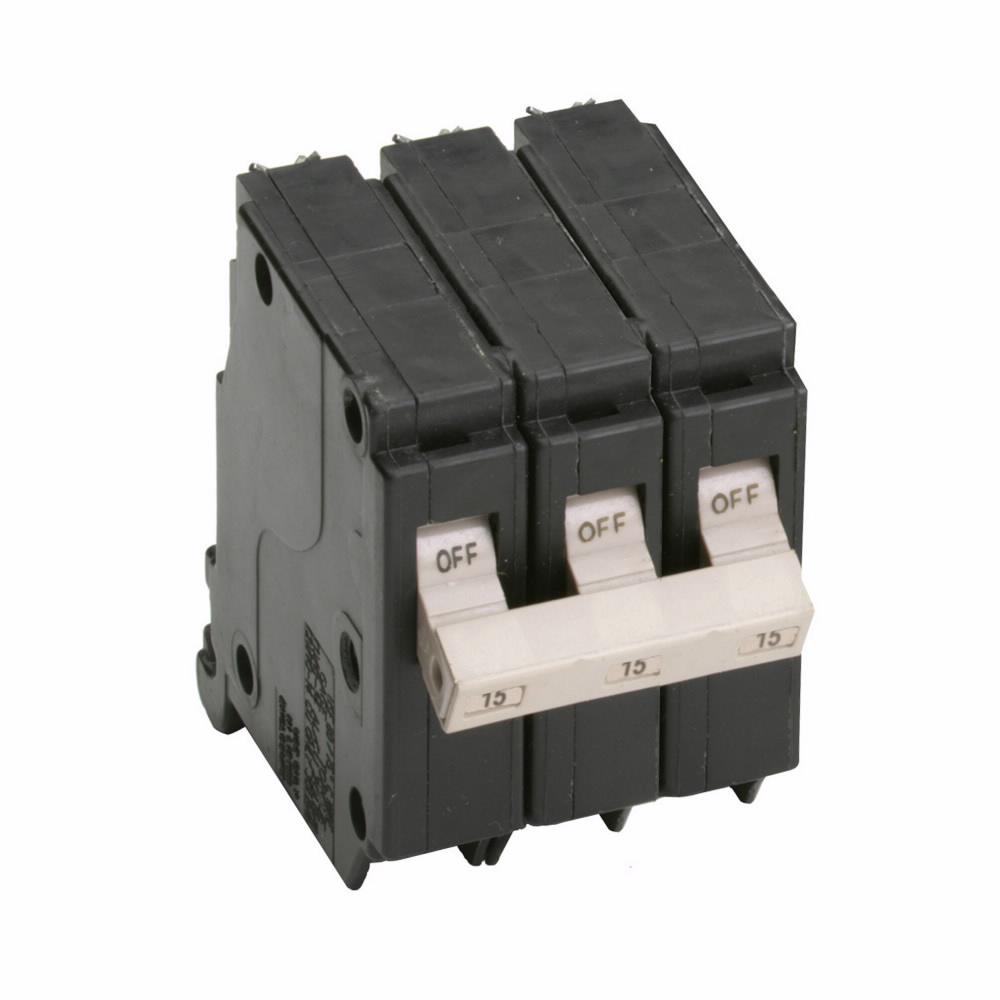

CH315 is a Cutler Hammer 3-pole, 15A, 240V plug-on circuit breaker designed for Type CH loadcenters.
This thermal magnetic, common trip circuit breaker features a 10,000 AIC interrupting rating and is suitable for copper or aluminum wire sizes #14-6 AWG. It is compact, easy to install, and provides reliable protection for three-phase electrical systems.
-
Key Specifications
- Part Number: CH315
- Manufacturer: Cutler Hammer (Eaton)
- Amperage: 15A
- Voltage: 240V
- Poles: 3
- Mounting Type: Plug-On
- Interrupt Rating: 10,000 AIC
- Series/Frame: Type CH
- Trip Unit: Thermal Magnetic, Common Trip
- Certifications: UL 489, CSA Listed
- Wire Size: #14-6 AWG Cu/Al
- HACR Rated: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CH315
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CH Series
- Type : CH
- Voltage : 240
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 782113101996
- GTIN : 00782113101996
- Country of Origin : United States
- Dimensions : 3 in x 3 in x 3 in (Length/Depth x Height x Width)
- Weight : 0.87
- Certification : UL 489
- Wire Size : (1) 14-8 AWG (2) 14-10 AWG (Aluminum/Copper)
