2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
CH3100ST

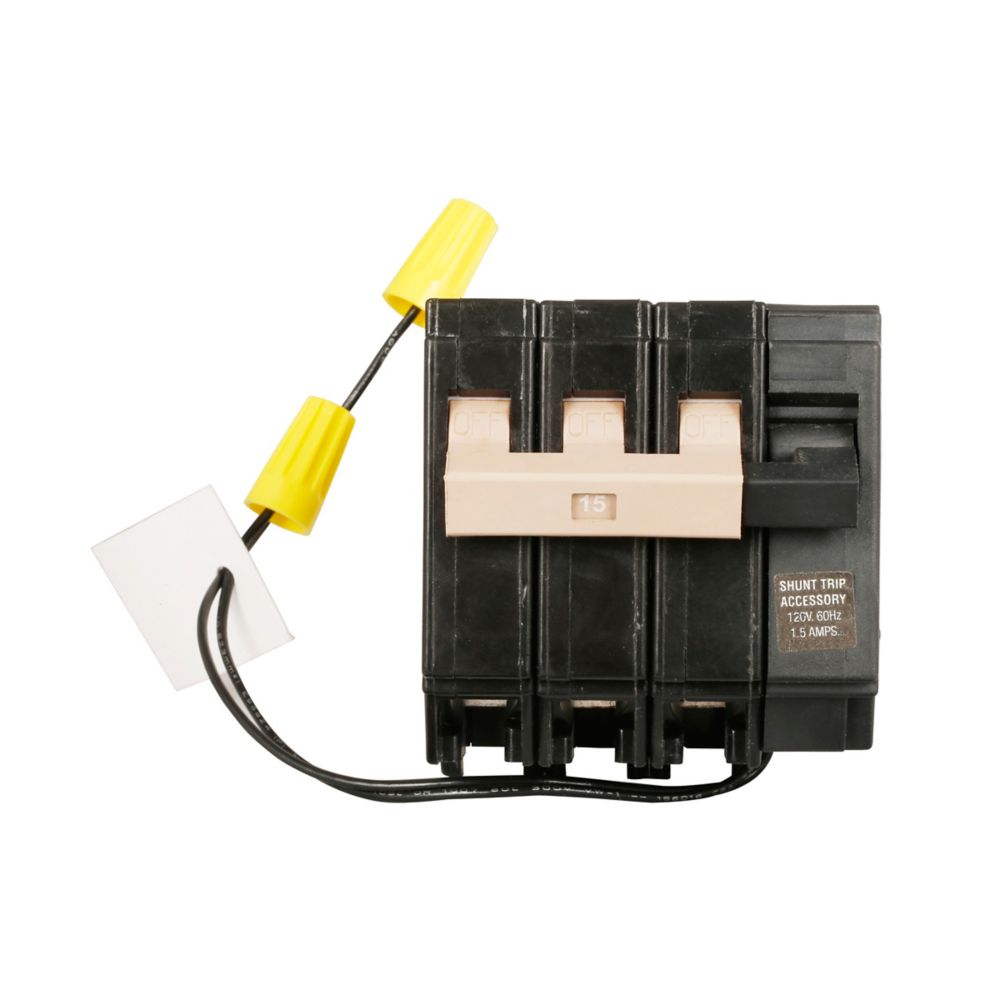

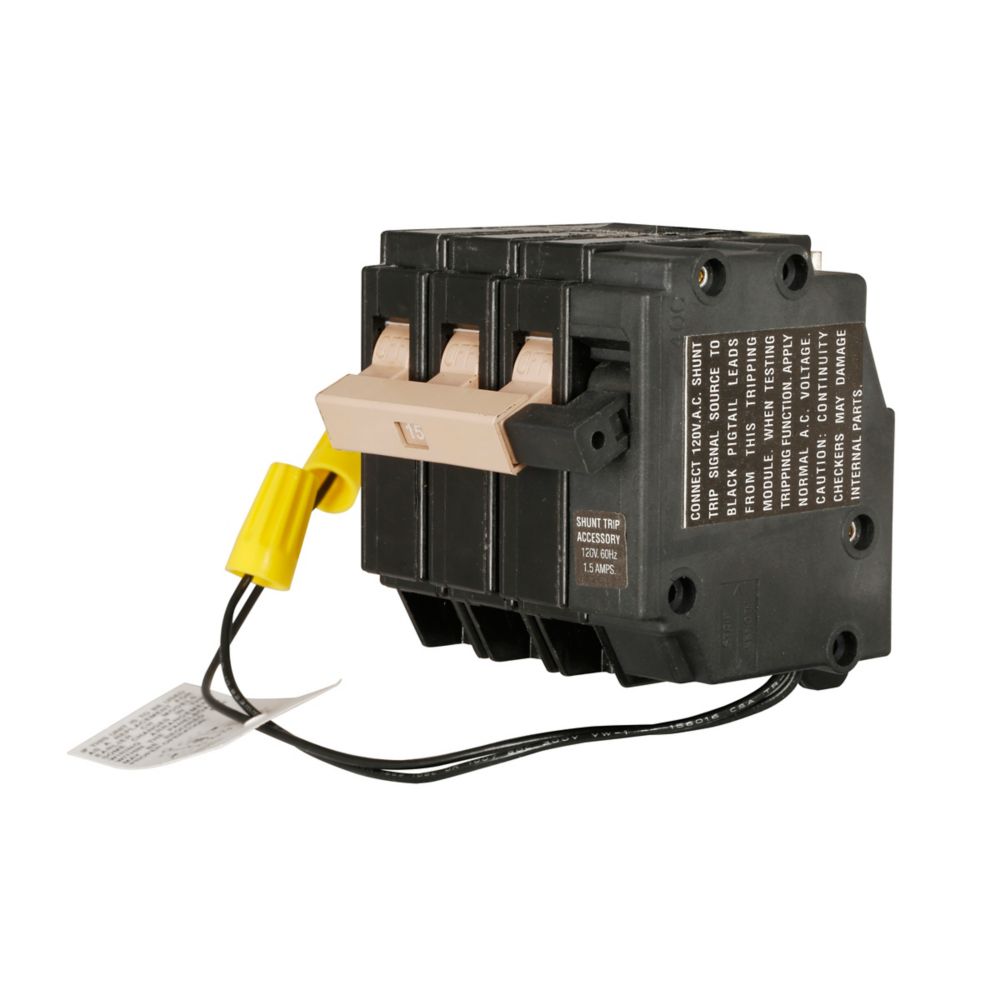

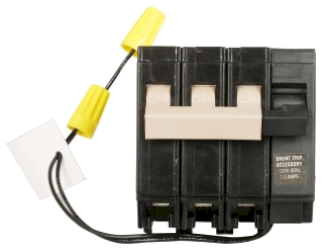

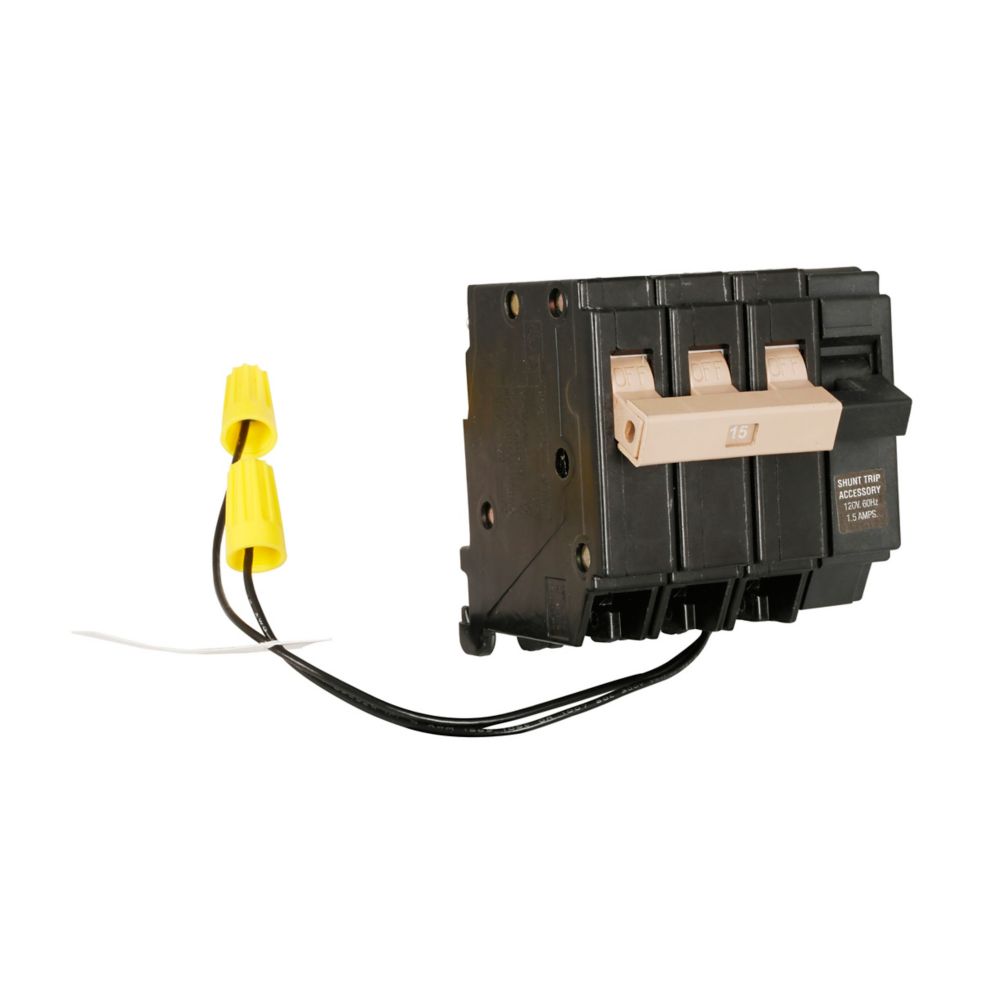

CH3100ST is a Cutler Hammer Type CH circuit breaker designed for reliable electrical protection in commercial and industrial applications.This 3-pole circuit breaker features a 100 ampere rating, 240 volt capacity, and a 10 kA interrupt rating. It includes a common/shunt trip unit and is designed for plug-on mounting in a 3/4-inch frame. The breaker meets UL 489 certification standards and is suitable for NEMA 1/3R environments.
- Manufacturer: Cutler Hammer (Eaton)
- Type: CH Standard Thermal Magnetic
- Amperage: 100 A
- Voltage: 240 VAC
- Poles: 3
- Interrupt Rating: 10 kAIC
- Trip Unit: Common/Shunt Trip
- Mounting Type: Plug-On
- Frame Size: 3/4 Inch
- Certifications: UL 489
- Dimensions: Approx. 3-1/2 in H x 3/4 in W x 3-1/2 in D
Specifications
- Part Number: CH3100ST
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CH Series
- Type : CH
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Frame Size : CH
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 782113364353
- GTIN : 00782113364353
- Country of Origin : Dominican Republic
- Dimensions : 4.25 in x 3.75 in x 4.25 in (Length/Depth x Height x Width)
- Weight : 1.15
- Certification : UL 489
- Wire Size : #10 to 1/0 AWG, Cu/Al
