Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
CH310

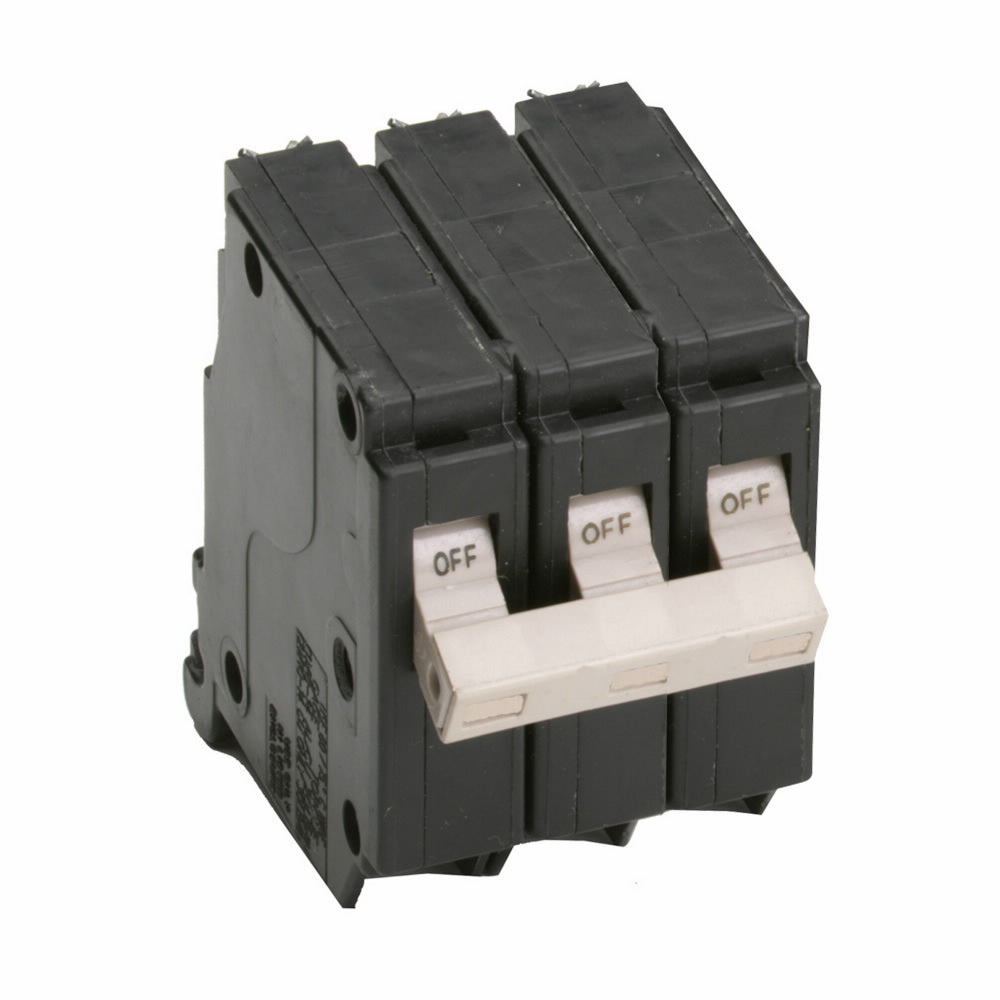

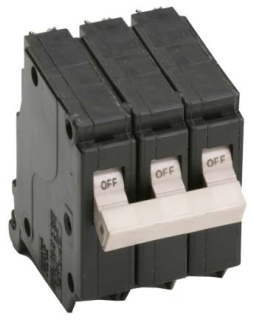

CH310 is a Cutler Hammer 3-pole molded case circuit breaker from the CH Series rated for 10 amps and 240 volts.
This CH310 circuit breaker features a thermal magnetic trip unit with a common trip mechanism, a 10 kA interrupt rating at 240V, and supports #14-6 AWG copper/aluminum wiring. It has a 3/4-inch frame width and is designed for standard mounting in electrical panels requiring reliable overcurrent protection.
- Key Specifications
- Amperage: 10A
- Voltage Rating: 240V AC
- Poles: 3
- Interrupt Rating: 10 kAIC at 240V
- Trip Unit: Thermal Magnetic, Common Trip
- Frame/Series: CH Series
- Mounting Type: Standard panel mount
- Wire Size: #14-6 AWG Cu/Al
- Material: Bakelite
- Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CH310
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CH Series
- Type : CH
- Voltage : 240
- Amperage : 10
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 078211390676
- GTIN : 00782113906768
- Country of Origin : Dominican Republic
- Dimensions : 3 in x 3 in x 0.75 in (Length/Depth x Height x Width)
- Weight : 0.28
- Certification : UL 489
- Wire Size : AWG 14 to AWG 6, Cu/Al
