Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Block
Description
CH30J3

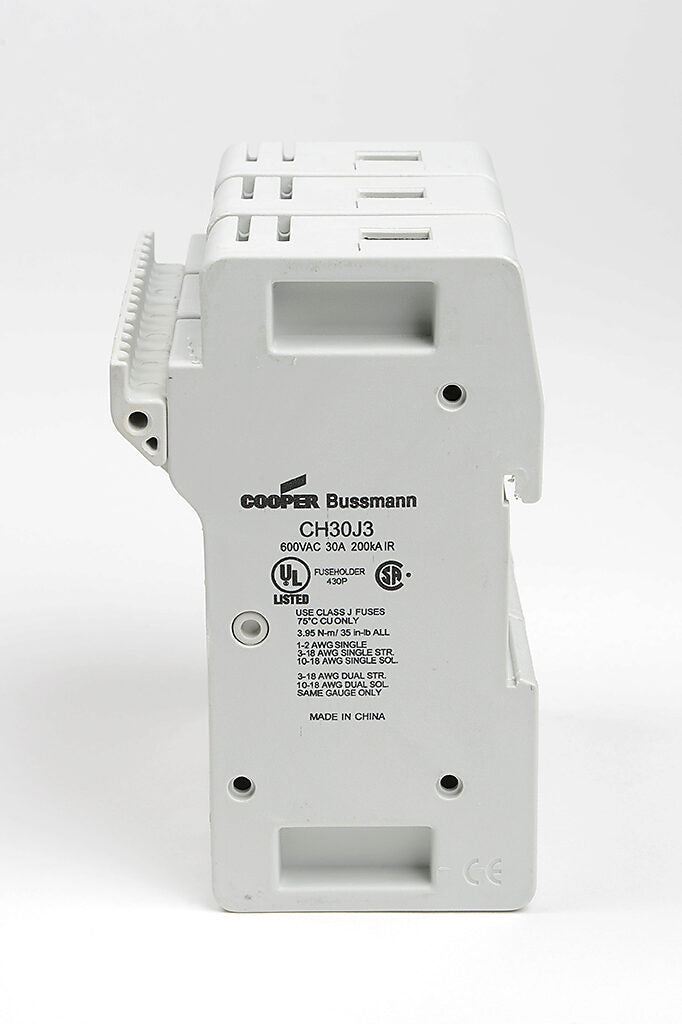

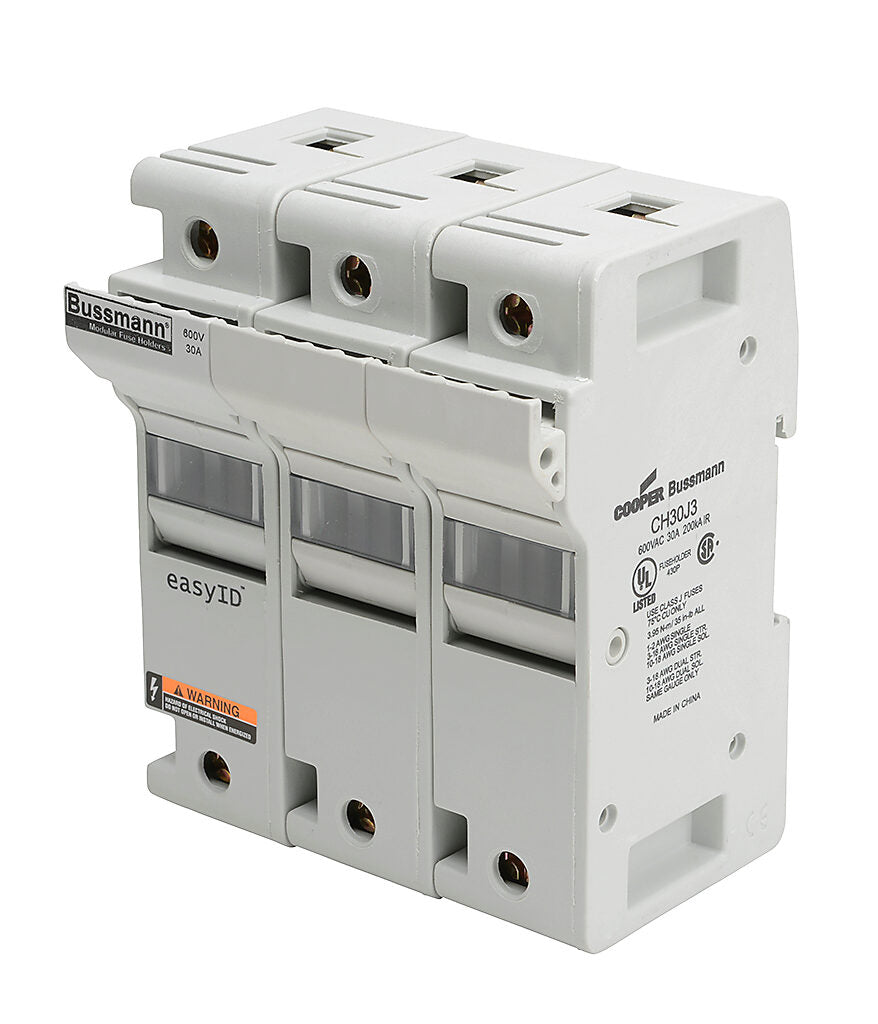

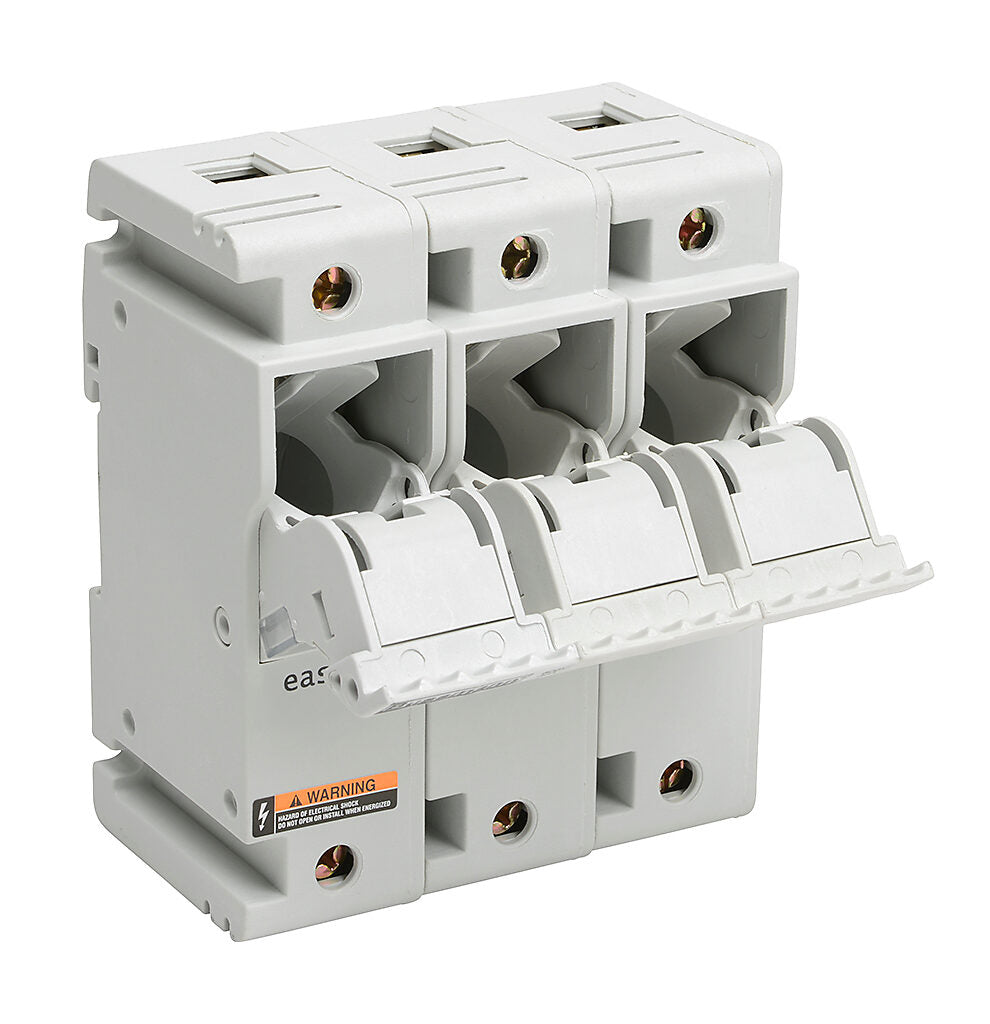

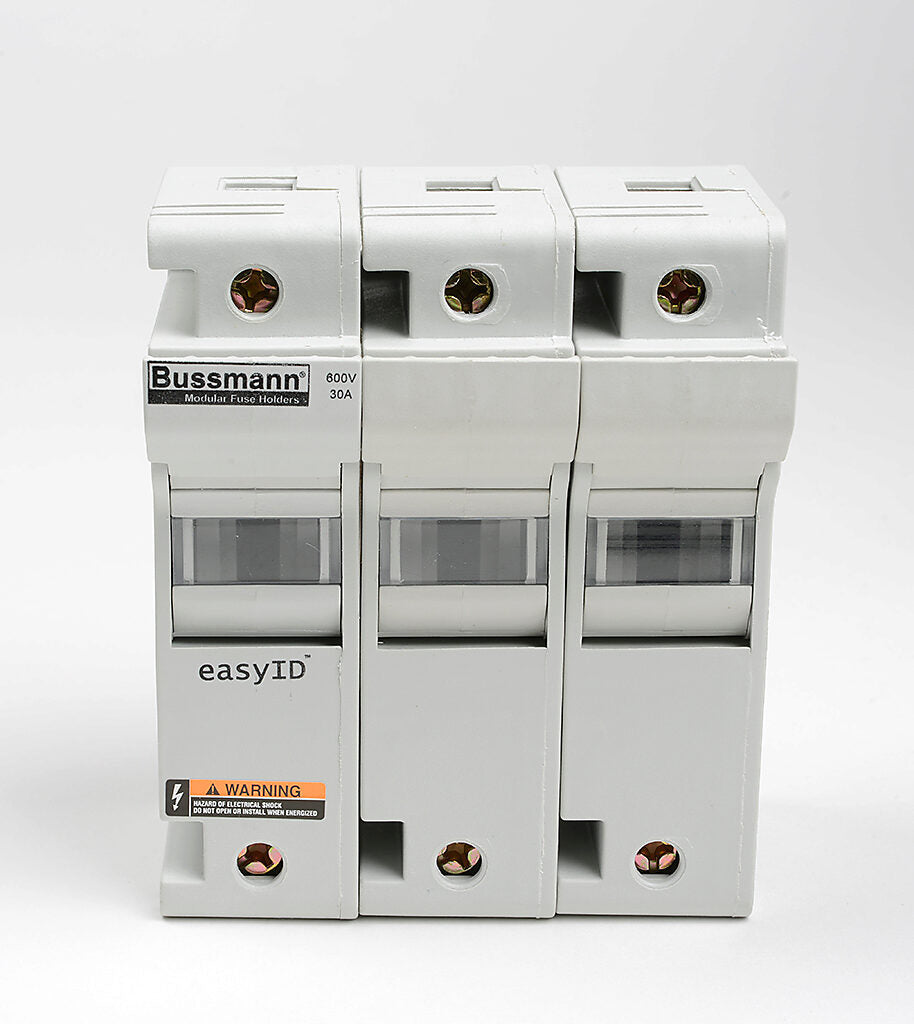

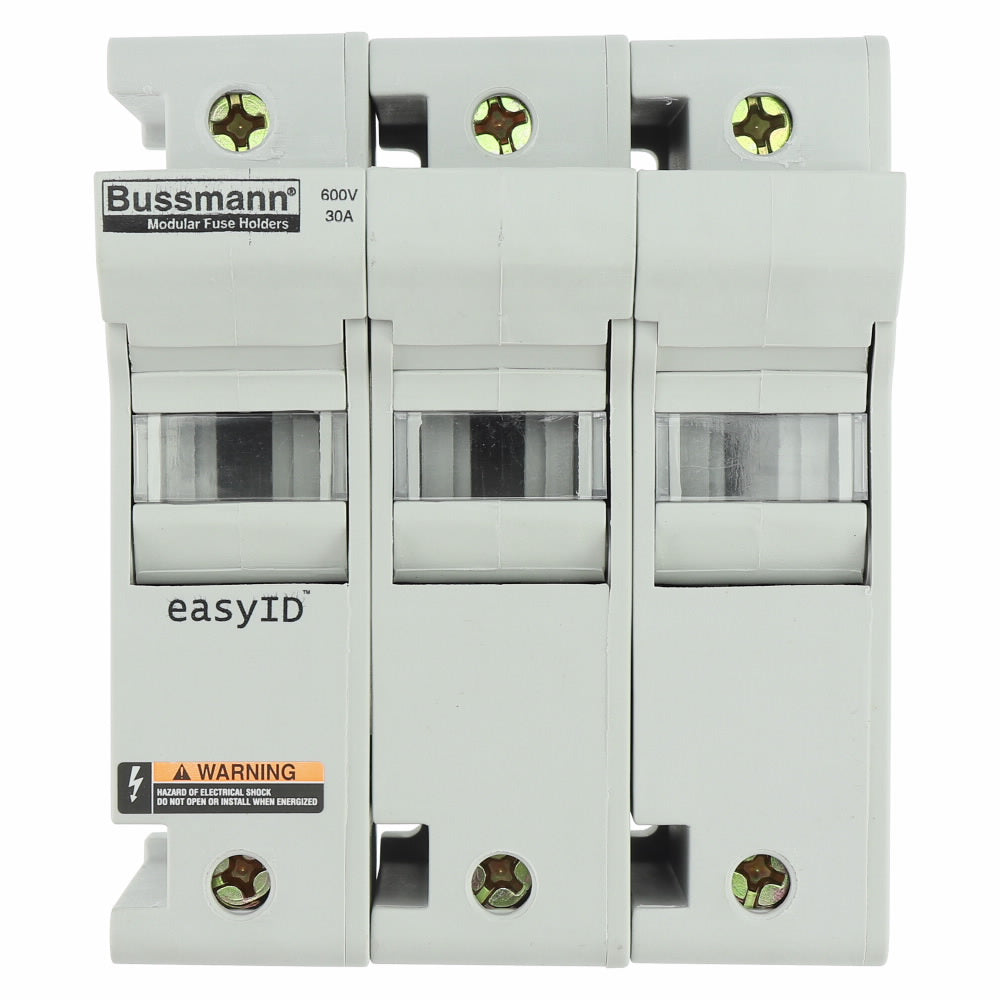

CH30J3 is a three-pole, 30A modular fuse holder from the Eaton Bussmann Series CH, designed for reliable circuit protection in industrial and commercial applications.
This Class J fuse holder features a thermoplastic housing, tin-plated copper clips, and finger-safe design for enhanced safety. It is rated for 600V AC/DC, mounts on 35mm DIN rail or panel, and accepts 18–1 AWG wire. The CH30J3 is ideal for demanding environments requiring robust, modular fuse protection.
-
Key Specifications
- Amperage: 30A
- Voltage: 600V AC/DC
- Poles: 3
- Mounting Type: 35mm DIN Rail or Panel
- Interrupt Rating: 200kA RMS Symmetrical
- Series/Frame: CH Series, Class J
- Trip Unit: Not applicable (fuse holder only)
- Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
- Wire Range: 18–1 AWG (single), 18–3 AWG (dual)
- Operating Temperature: Up to 85°C
- Material: Thermoplastic housing, tin-plated copper clips
- Dimensions: 3.84" L x 2.83" W x 4.59" H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CH30J3
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Block
- Family : CH Series
- Type : CH
- Voltage : 600
- Amperage : 30
- Temp Rating : -13–158 °F (-25–70 °C)
Product Data

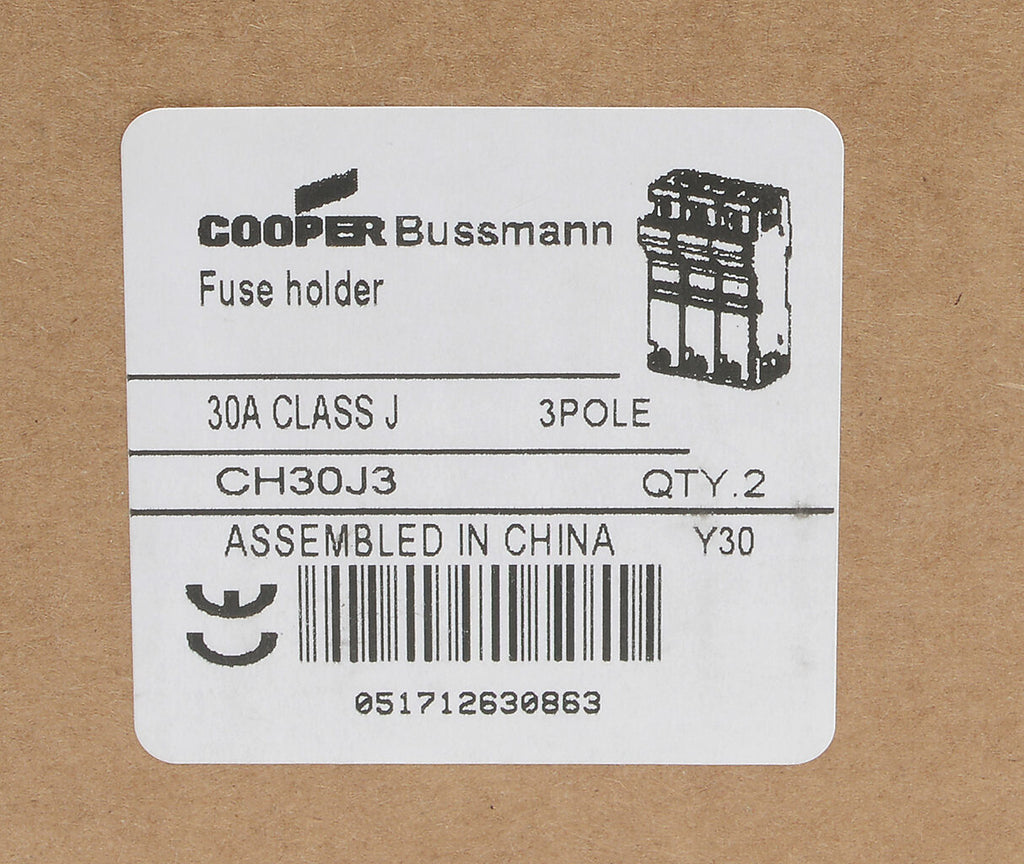

- UPC : 051712630863
- GTIN : 00051712630863
- Country of Origin : China
- Dimensions : 3.84 in x 4.59 in x 2.83 in
- Weight : 0.001
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : CE, CSA Certified, UL Listed
