CH30J2I - Eaton Bussmann 30A 2-Pole Class J Modular Fuse Holder 600V

CH30J2I

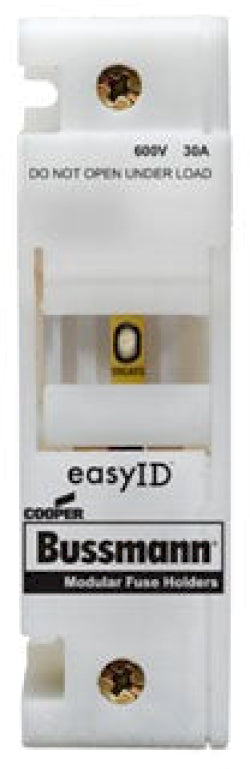

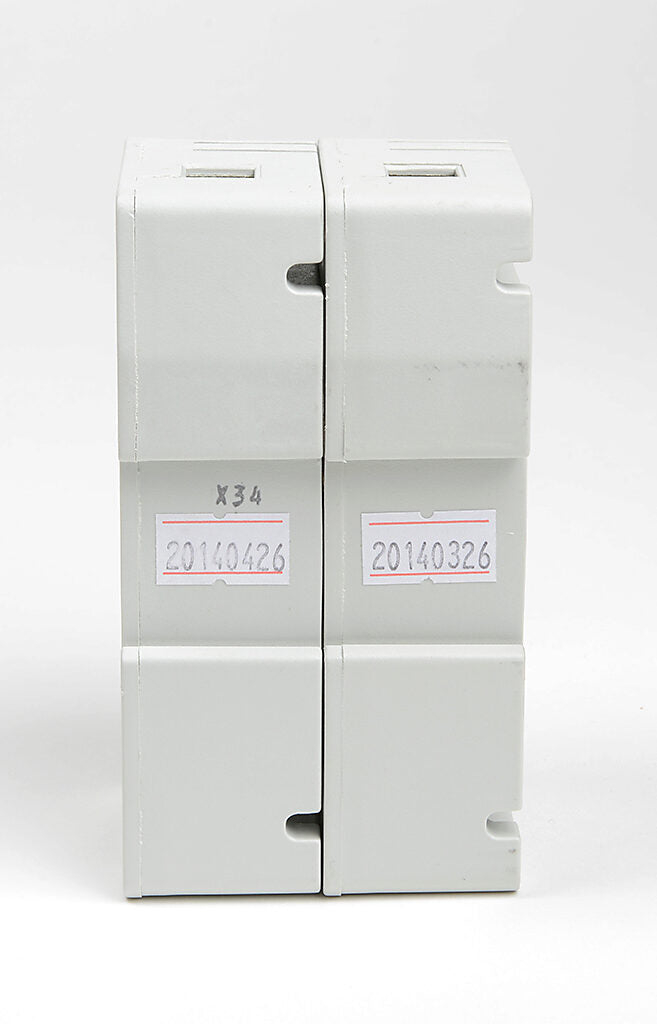

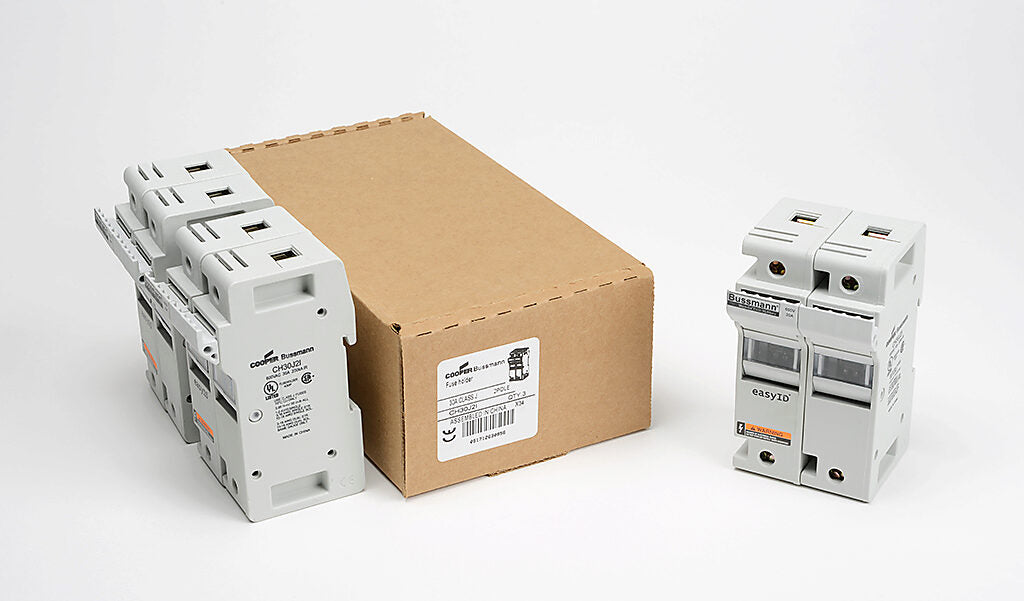

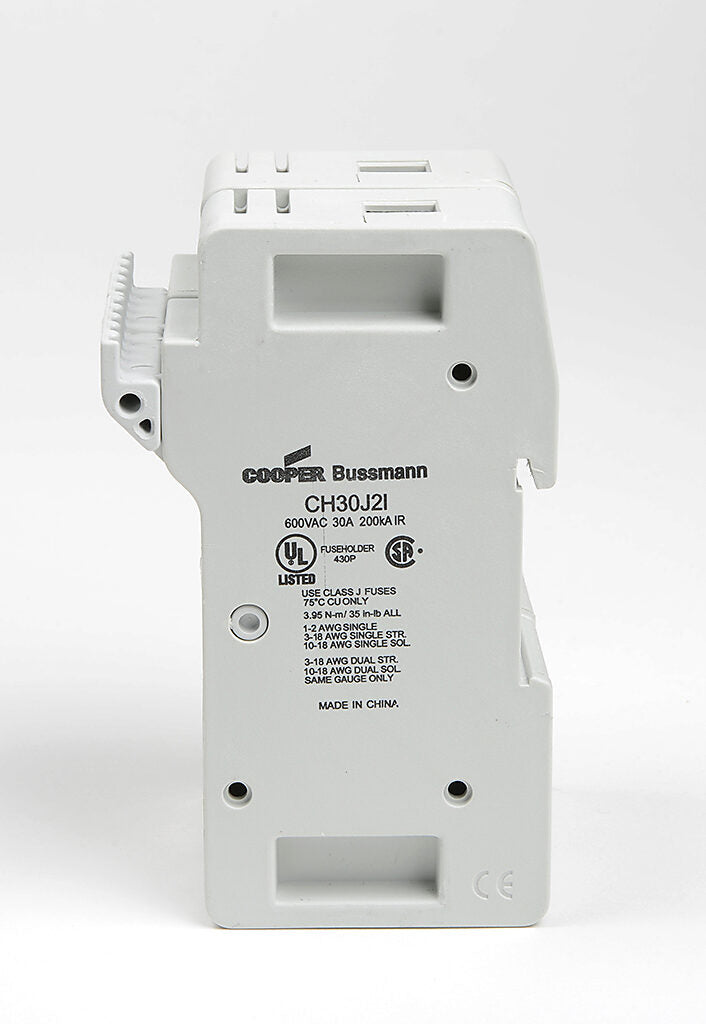

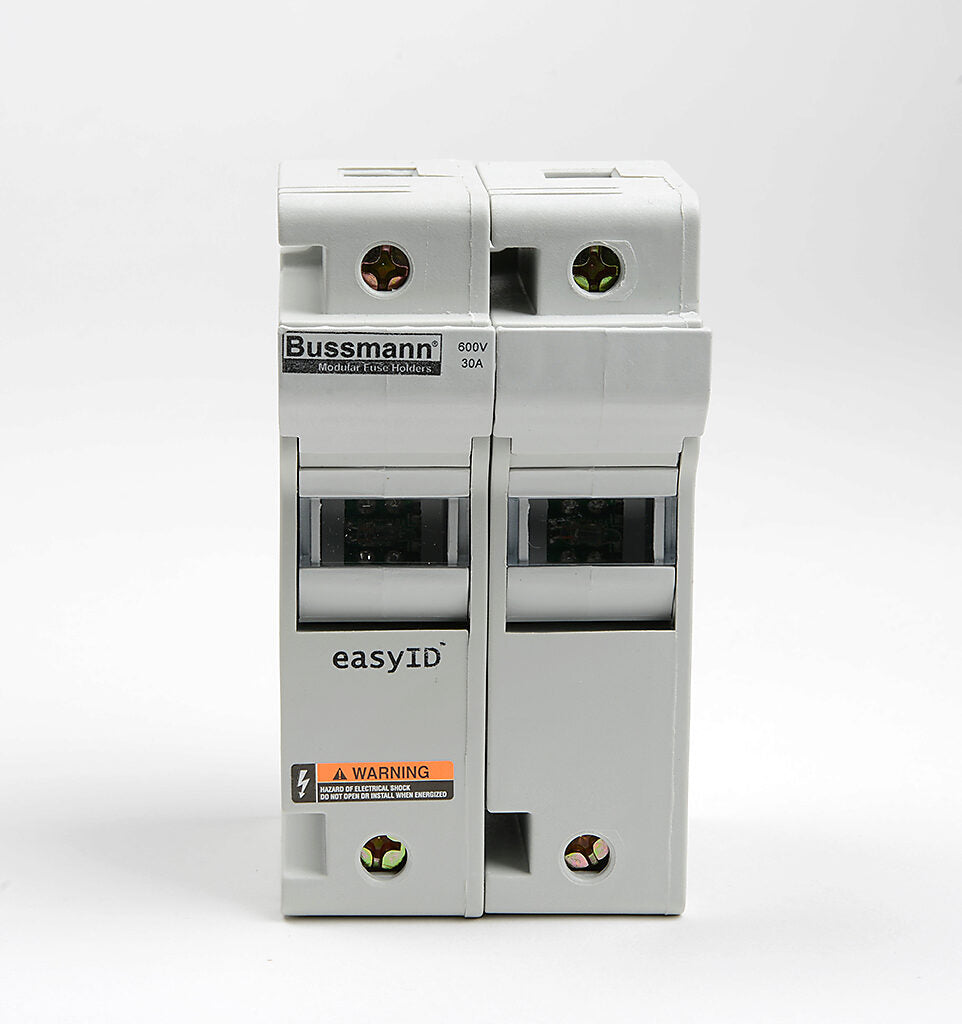

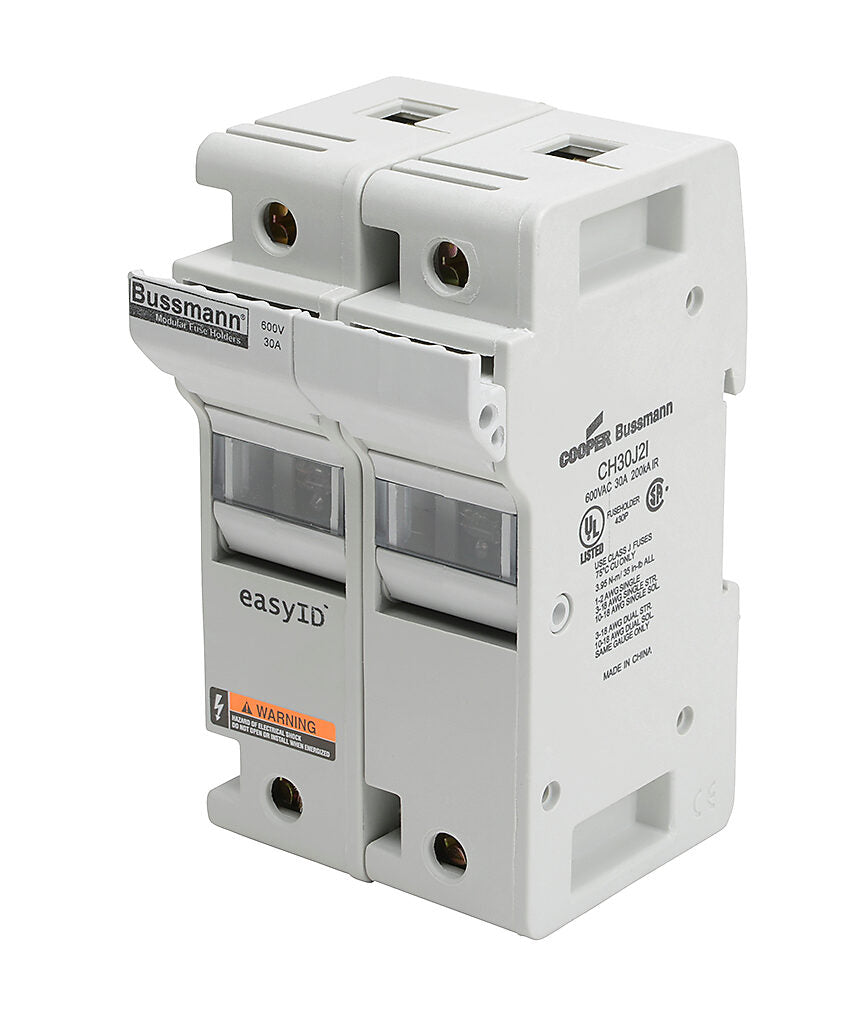

CH30J2I is an Eaton Bussmann Series Class J modular fuse holder designed for 30-ampere circuits with dual-pole configuration and 600-volt AC/DC rating.

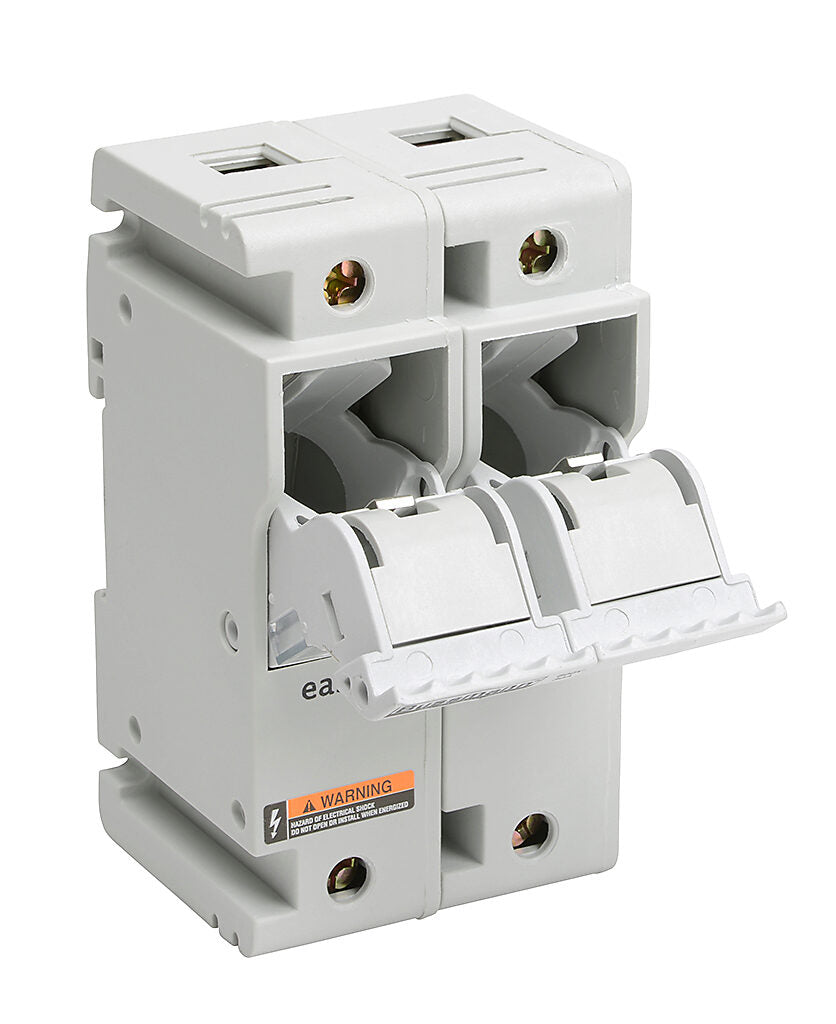

This two-pole fuse holder features 35mm DIN rail and panel mounting capability with thermoplastic housing and tin-plated copper clips for reliable electrical connection. The unit accepts Class J fuses and includes an integral indicator, integral pressure plate, and supports wire ranges from 18 to 1 AWG (single conductor) or 18 to 3 AWG (dual conductor). Operating temperature rating is 85 degrees Celsius with a short-circuit current rating (SCCR) of 200kA RMS symmetrical. The holder meets IP20 finger-safe requirements and is suitable for industrial and commercial power distribution applications.

• Amperage Rating: 30A
• Voltage Rating: 600 Vac/Vdc
• Number of Poles: 2-Pole
• Fuse Class: Class J
• Mounting: 35mm DIN Rail and Panel
• Housing Material: Thermoplastic
• Contacts: Tin-plated Copper Clips
• Wire Range: 18-1 AWG Single, 18-3 AWG Dual
• Operating Temperature: 85 degrees C
• Short-Circuit Rating (SCCR): 200kA RMS Symmetrical
• Certifications: UL 512, CE, CSA C22.2
• Finger-Safe Rating: IP20

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CH30J2I
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Fuse Block
• Section : Fuse Holder
• Family : CH Series
• Type : CH
• Voltage : 600
• Amperage : 30

Product Data

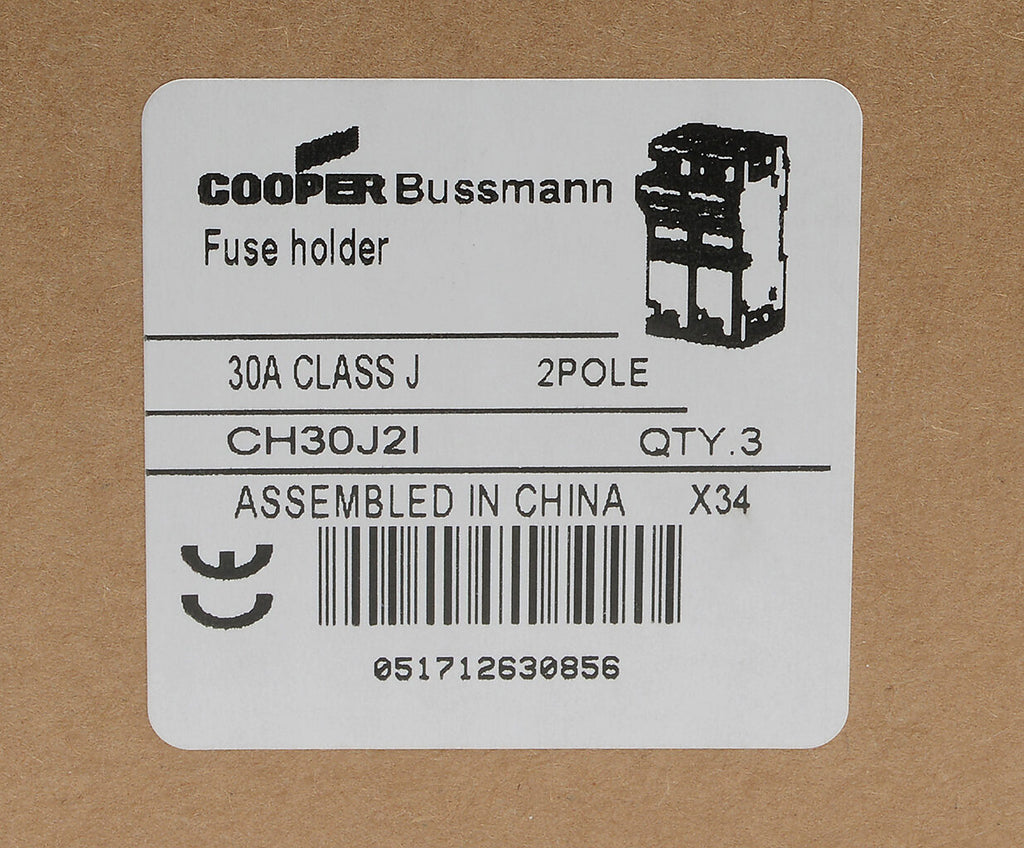

• UPC : 051712630856
• GTIN : 00051712630856
• Country of Origin : China
• Dimensions : 2.56 in x 4.59 in x 2.83 in (Length/Depth x Height x Width)
• Weight : 0.933
• Certification : CE, CSA Certified, UL Listed
