Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
CH290ST

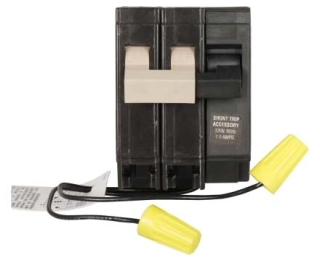

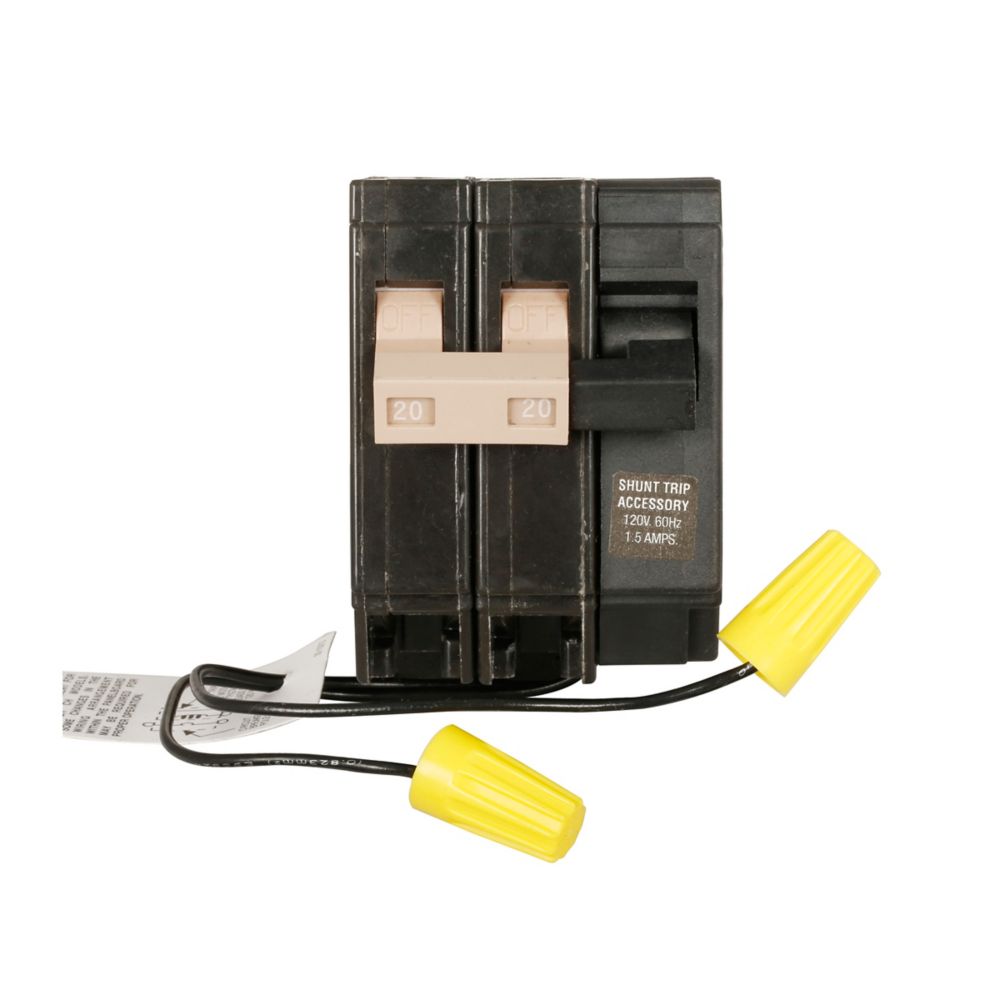

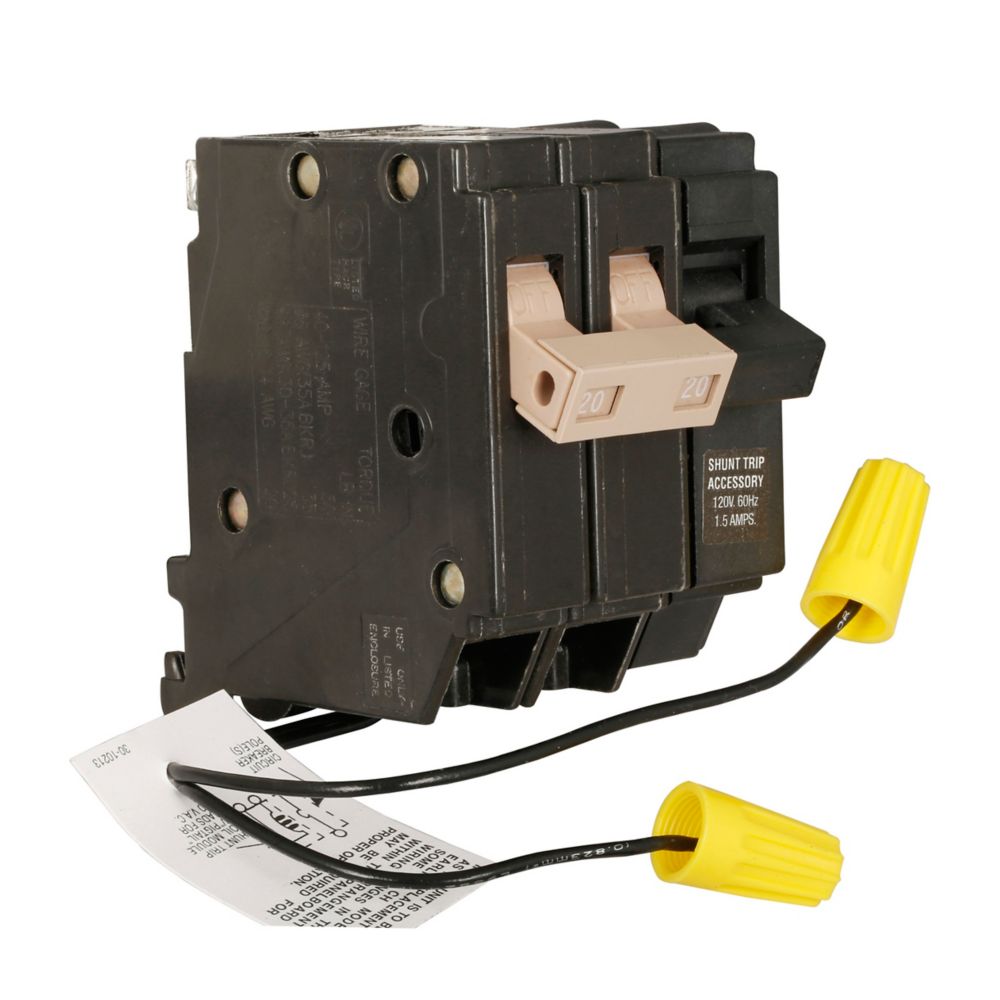

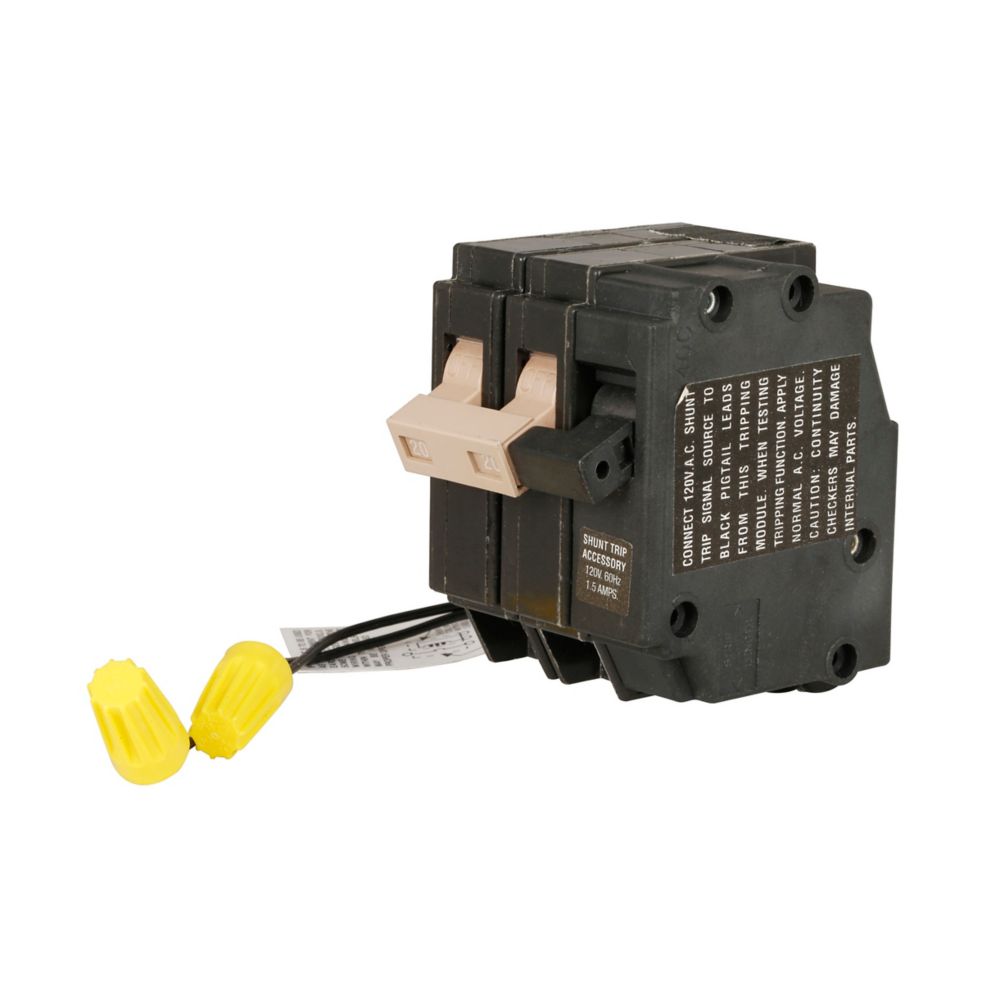

CH290ST is a 2 Pole 90A 120/240VAC circuit breaker with shunt trip, designed for reliable protection in commercial and industrial applications. This Cutler Hammer breaker features a CH frame, thermal magnetic trip unit, and a 10kA interrupt rating for robust performance. The breaker is plug-in mount and compatible with standard CH series panels. It supports wire sizes from #10 to 1/0 AWG copper or aluminum, and is suitable for use in 120/240VAC single-phase systems. The shunt trip feature allows for remote tripping, enhancing safety and control. This breaker is UL listed and meets industry standards for safety and reliability.
- Part Number: CH290ST
- Manufacturer: Cutler Hammer
- Series/Frame: CH
- Poles: 2
- Amperage: 90A
- Voltage: 120/240VAC
- Interrupt Rating: 10kA
- Mounting Type: Plug-In
- Wire Size: #10-1/0 AWG Cu/Al
- Trip Unit: Thermal Magnetic w/ Shunt Trip
- Certifications: UL Listed
Specifications
- Part Number: CH290ST
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CH Series
- Type : CH
- Voltage : 240
- Amperage : 90
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Frame Size : CH
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 782113364278
- GTIN : 00782113364278
- Country of Origin : Dominican Republic
- Dimensions : 4.8 in x 3.5 in x 3.5 in (Length/Depth x Height x Width)
- Weight : 1
- Certification : UL 489
- Wire Size : 10 AWG to 1/0 AWG, Cu/Al
