Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
CH290

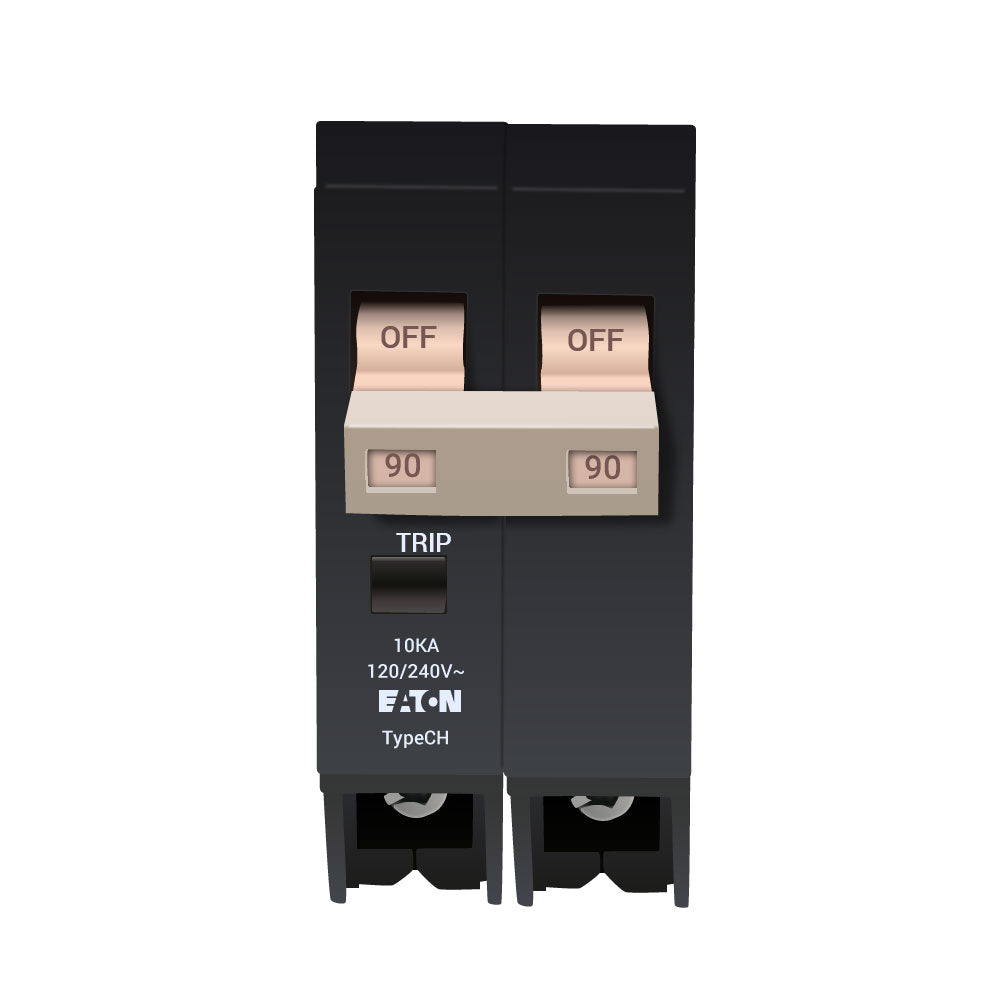

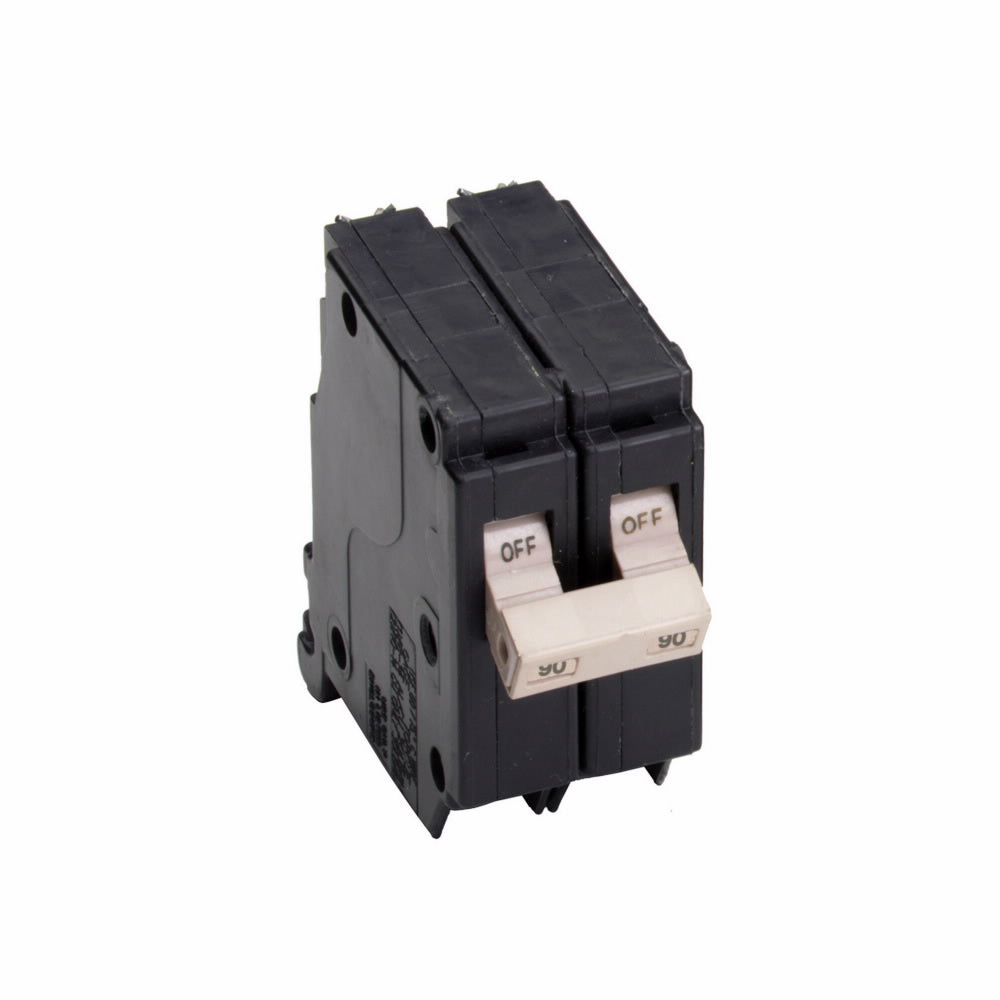

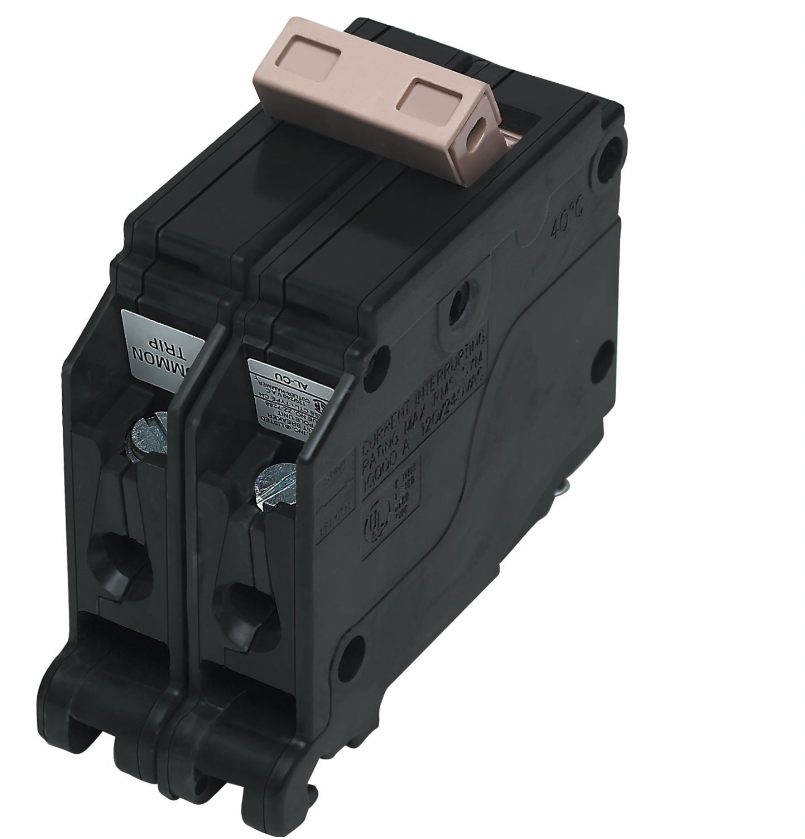

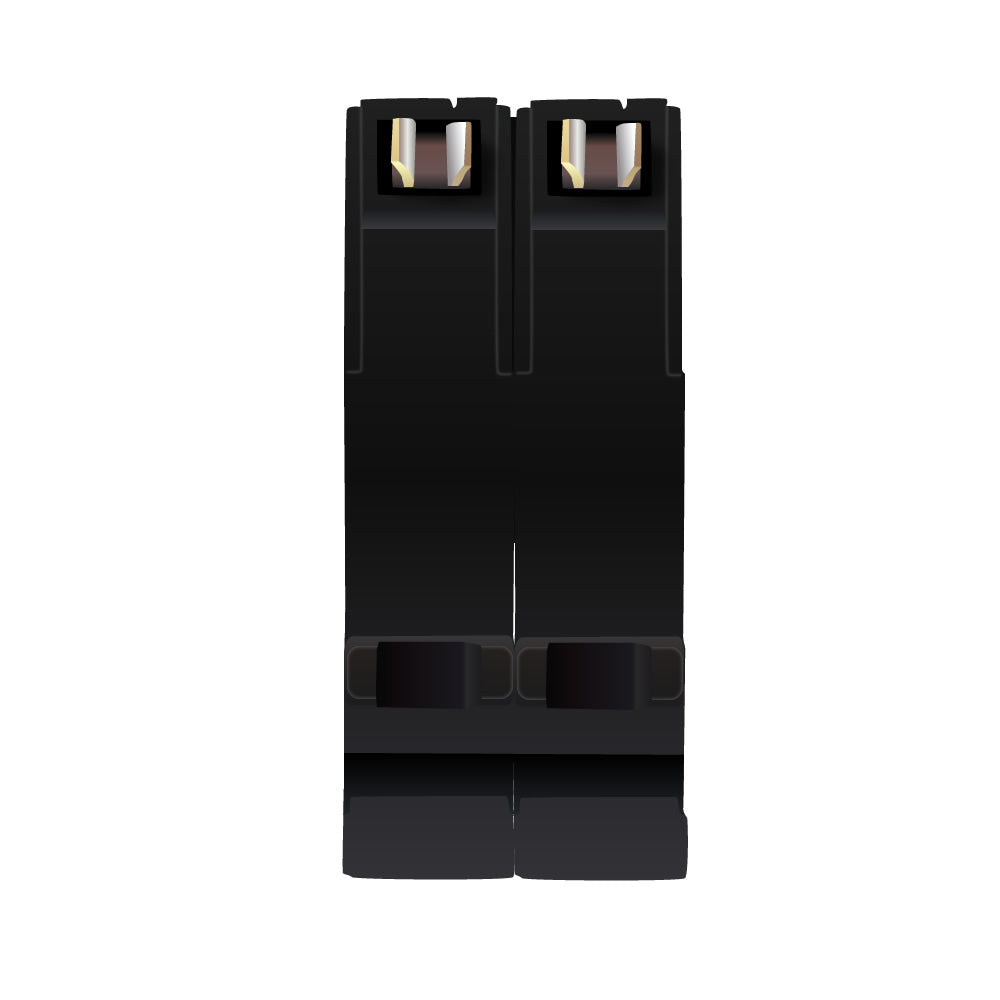

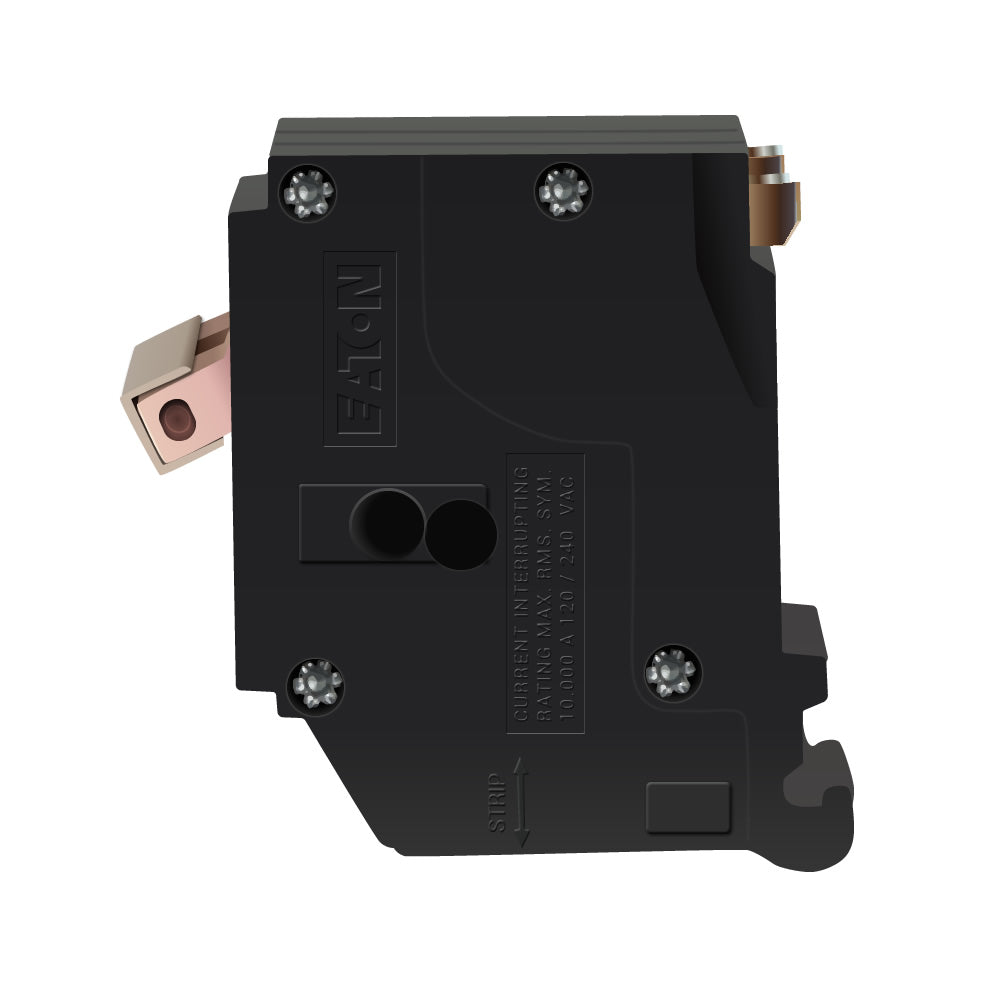

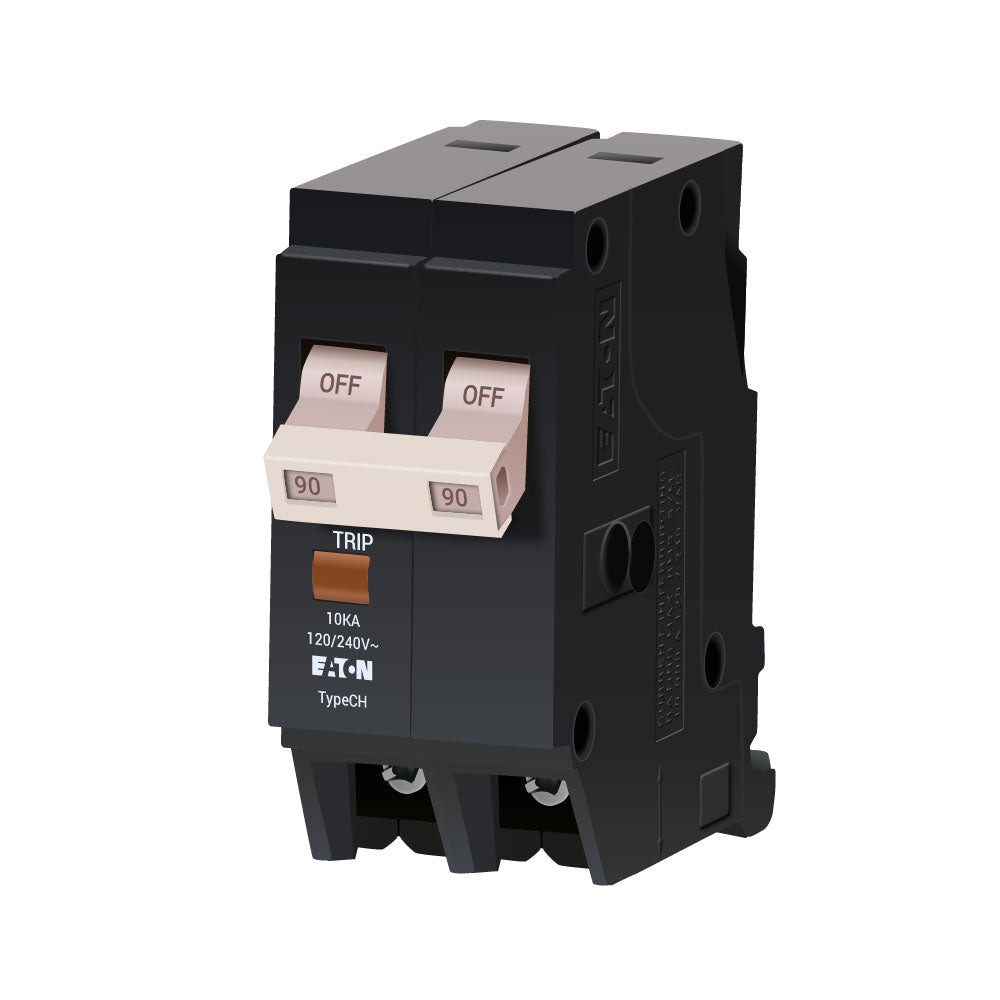

CH290 is a 90 Amp, 120/240 Volt, 2 Pole thermal magnetic circuit breaker from Cutler Hammer designed for reliable overcurrent protection.This Cutler Hammer CH290 circuit breaker features a plug-on mounting type compatible with Type CH load centers. It has a 10 kA interrupting rating at 240V, common breaker trip, and supports wire sizes from #10 to 1/0 AWG copper or aluminum. Certified to UL 489 standards, it provides dependable circuit protection with thermal magnetic trip functionality.
- Amperage: 90 A
- Voltage: 120/240 V
- Poles: 2
- Mounting Type: Plug-On
- Interrupt Rating: 10 kAIC at 240 V
- Series/Frame: CH
- Trip Unit: Thermal Magnetic, Common Trip
- Wire Gauge: #10 to 1/0 AWG Cu/Al
- Certifications: UL 489, CSA
- Dimensions: 3.25 in length, 1.5 in width, 3.375 in height
- For Use With: Type CH Load Centers
Specifications
- Part Number: CH290
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CH Series
- Type : CH
- Voltage : 240
- Amperage : 90
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 782113101910
- GTIN : 00786210064376
- Country of Origin : Dominican Republic
- Dimensions : 3.25 in x 3.375 in x 1.5 in (Length/Depth x Height x Width)
- Weight : 0.57 lb
- Wire Size : AWG 10 to AWG 1/0, Cu/Al
