- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
CH280ST

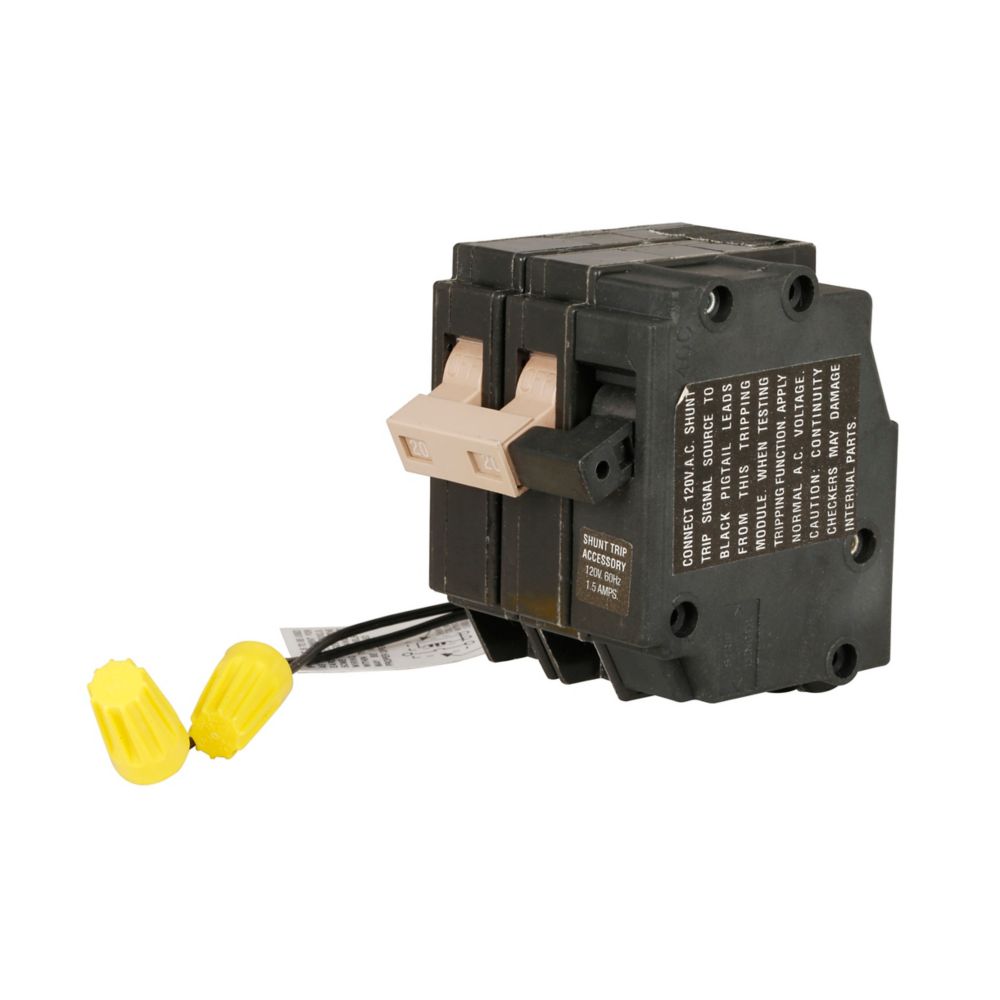

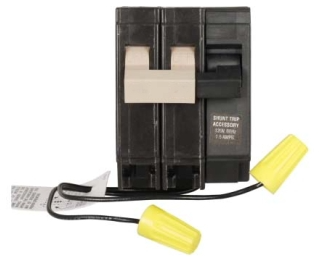

CH280ST is a Cutler Hammer 2-pole thermal magnetic circuit breaker rated for 80 amps and 120/240 volts with a shunt trip feature.This Eaton CH series circuit breaker is designed for Type CH loadcenters with a 3/4-inch frame, providing reliable protection with a 10 kA interrupt rating. It features a common breaker trip, plug-in mounting, and supports wire sizes from #10 to 1/0 AWG copper or aluminum. Certified to UL 489 standards, it includes long time and instantaneous trip functions for enhanced safety.
- Key Specifications
- Amperage: 80 A
- Voltage Rating: 120/240 V AC
- Number of Poles: 2
- Frame Type: CH 3/4-Inch
- Interrupt Rating: 10 kAIC
- Trip Type: Thermal Magnetic, Common Trip
- Mounting Type: Plug-In
- Shunt Trip: Included (120 V)
- Wire Size: #10-1/0 AWG Cu/Al
- Certifications: UL 489
- Part Number: CH280ST
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CH Series
- Type : CH
- Voltage : 240
- Amperage : 80
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Frame Size : CH
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- UPC : 782113364261
- GTIN : 00782113364261
- Country of Origin : Dominican Republic
- Dimensions : 4.8 in x 3.5 in x 3.5 in (Length/Depth x Height x Width)
- Weight : 1
- Certification : UL 489
- Wire Size : 10 AWG to 1/0 AWG, Cu/Al
