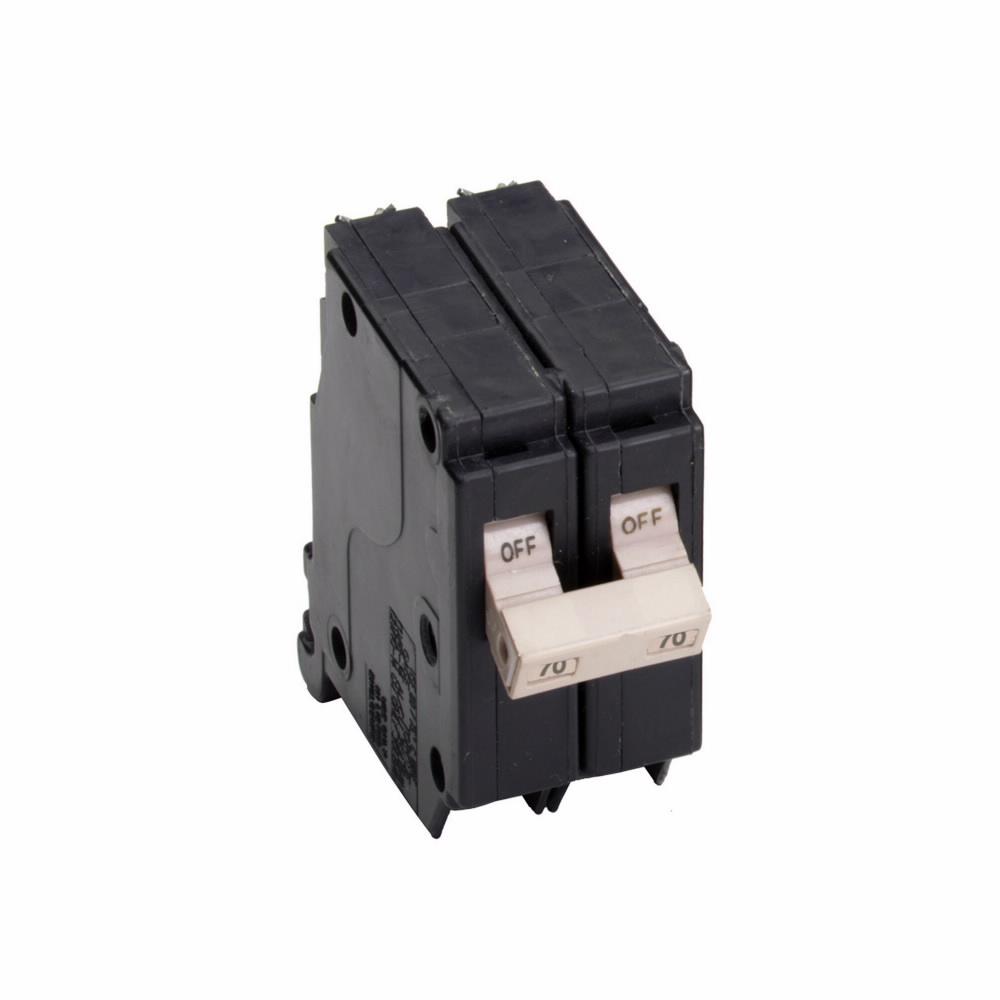

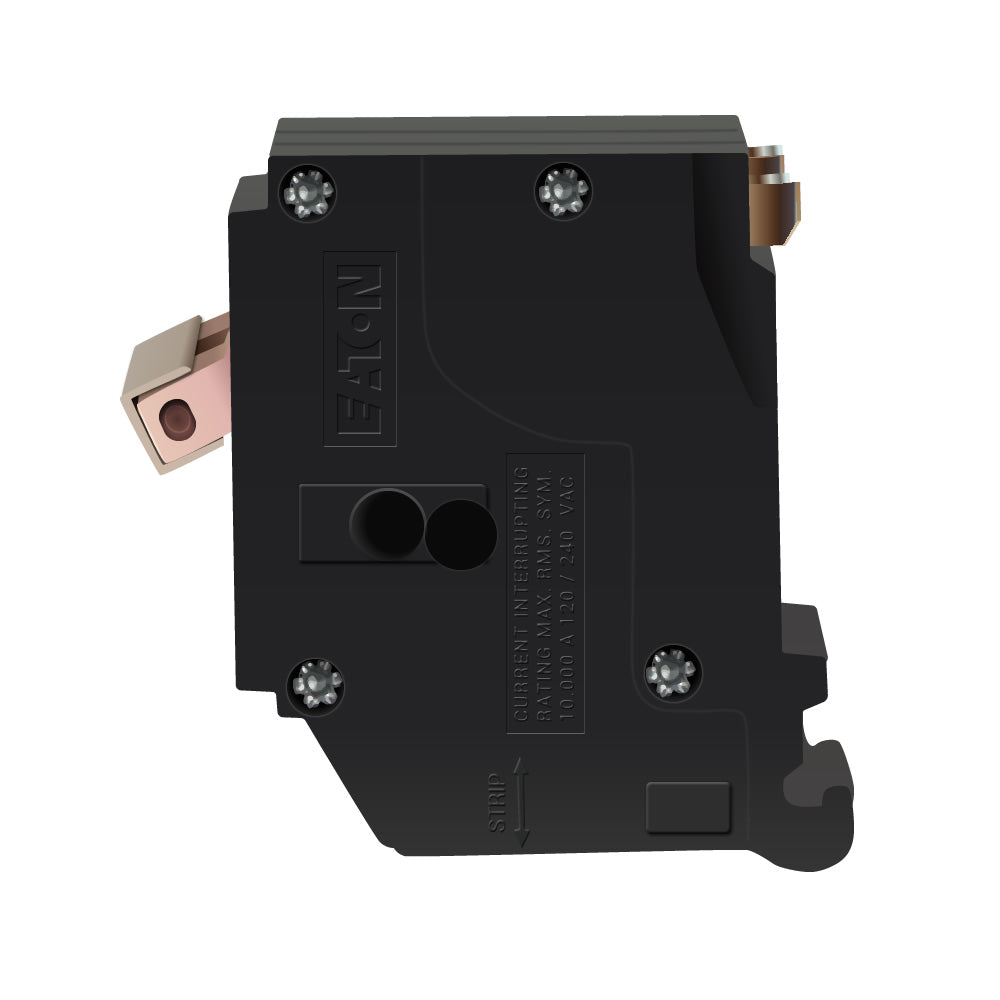

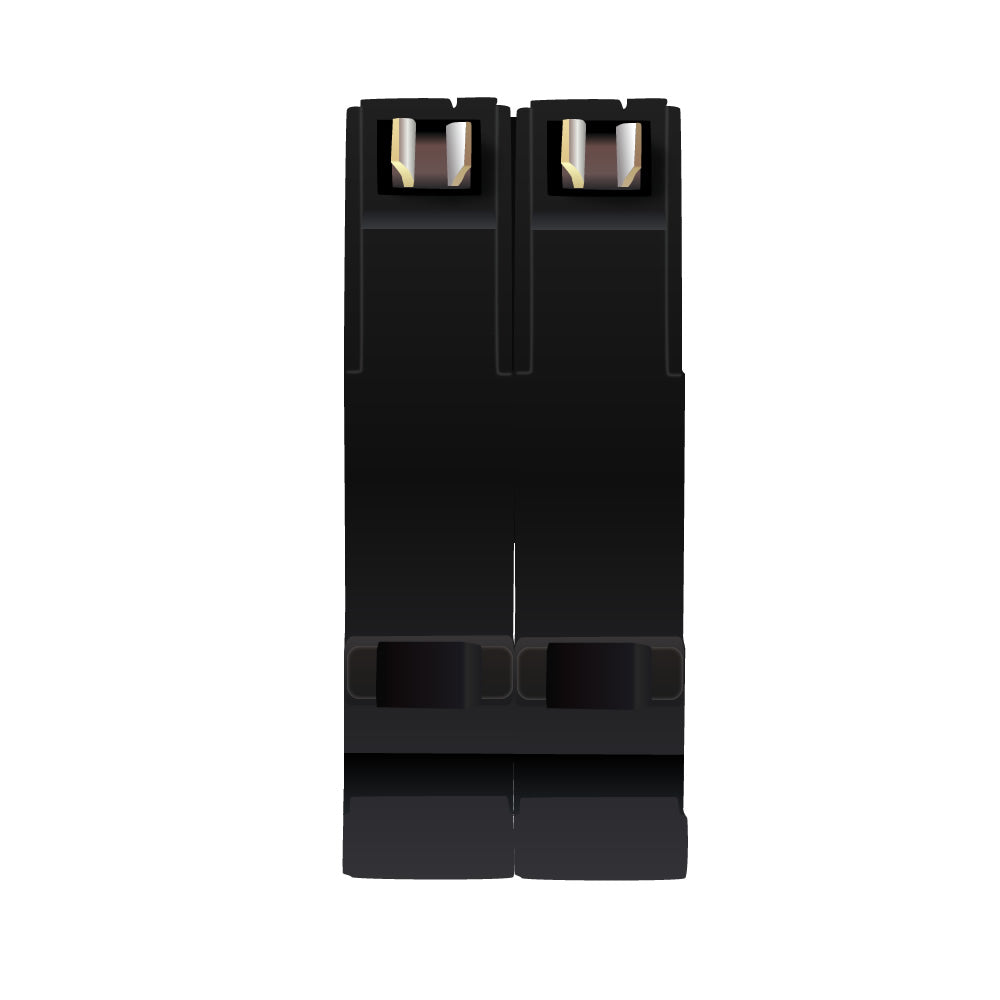

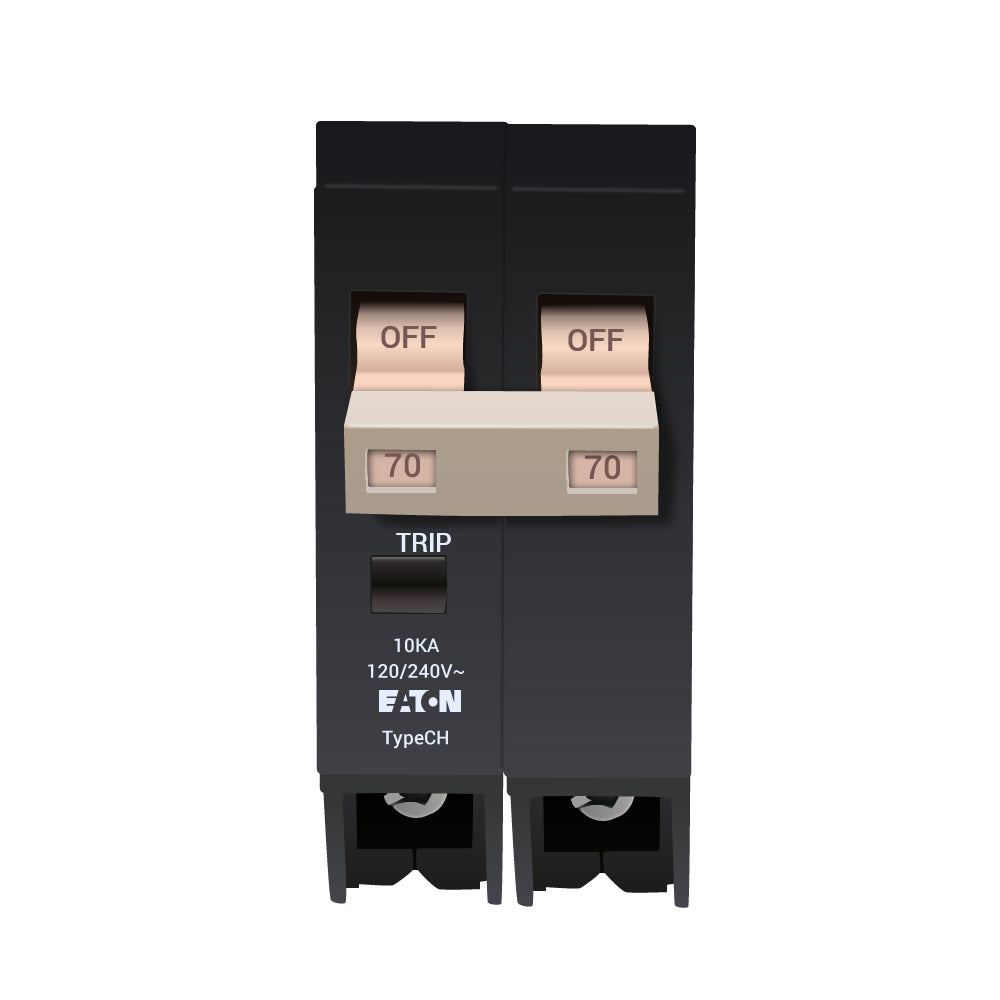

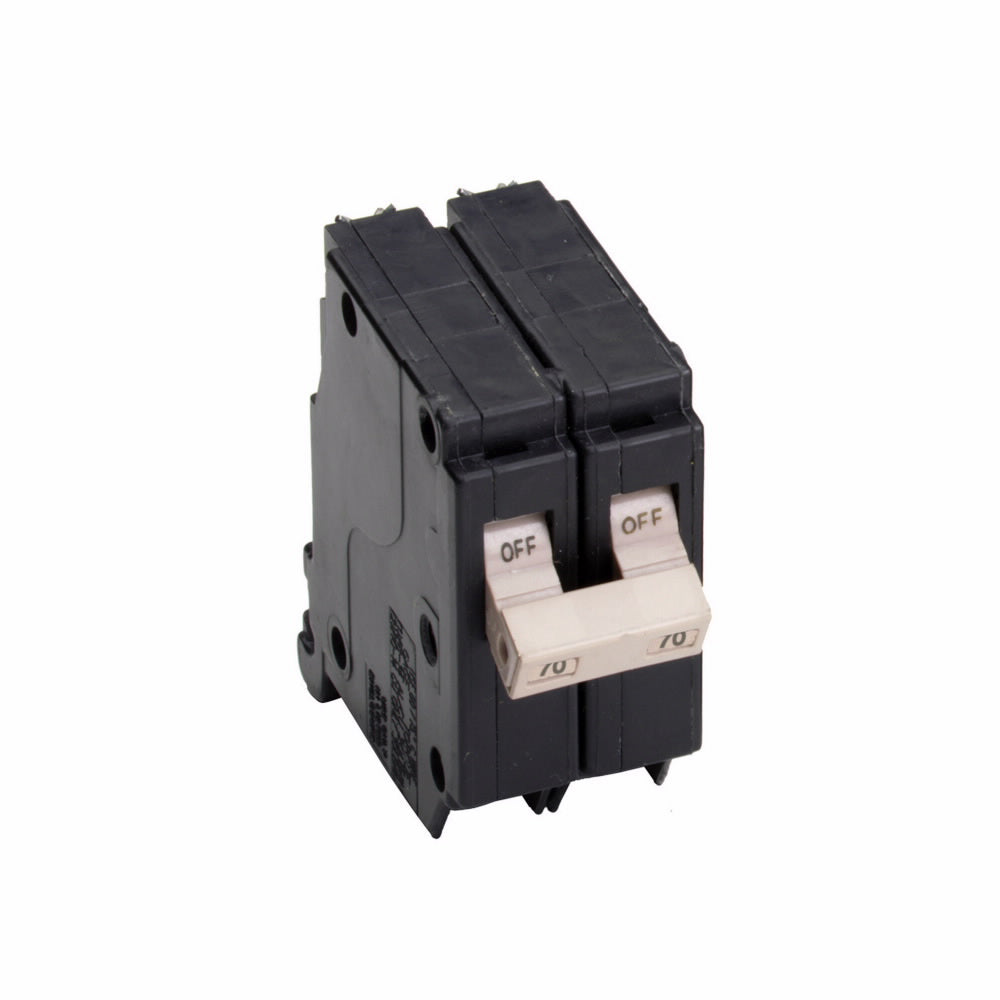

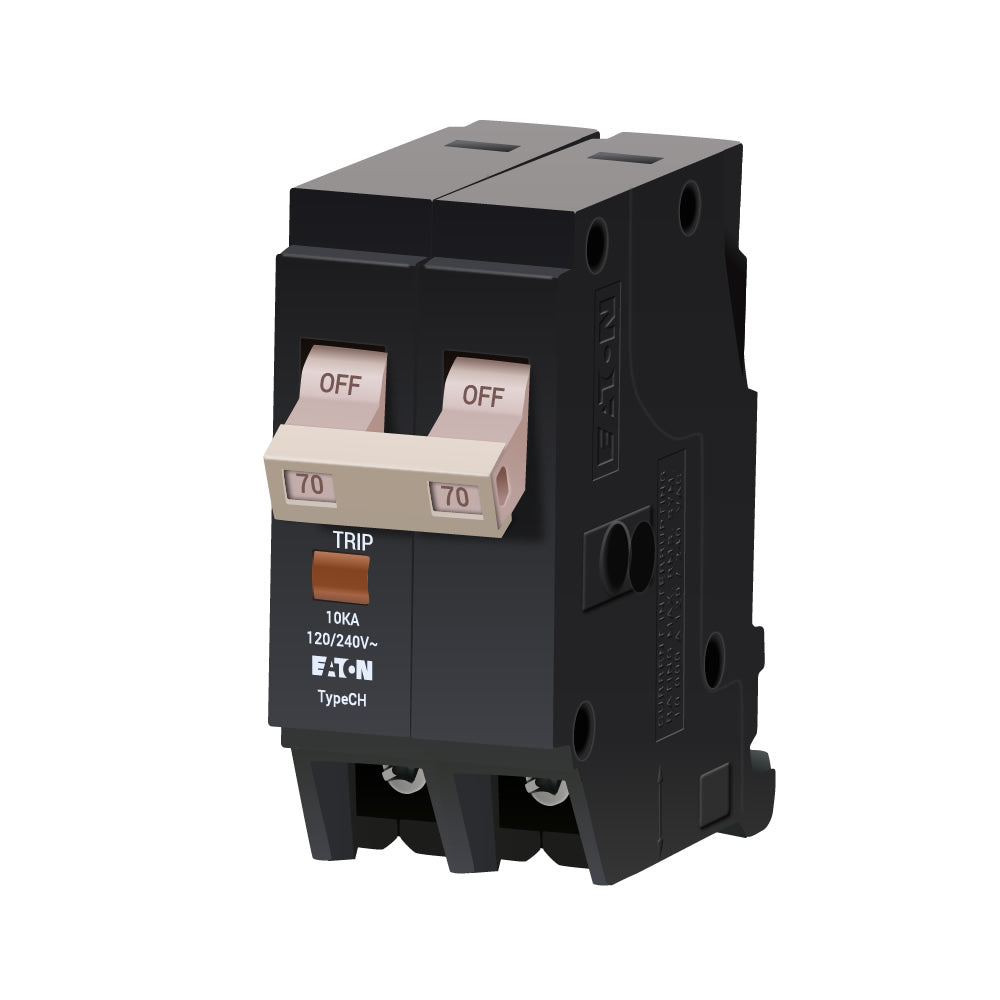

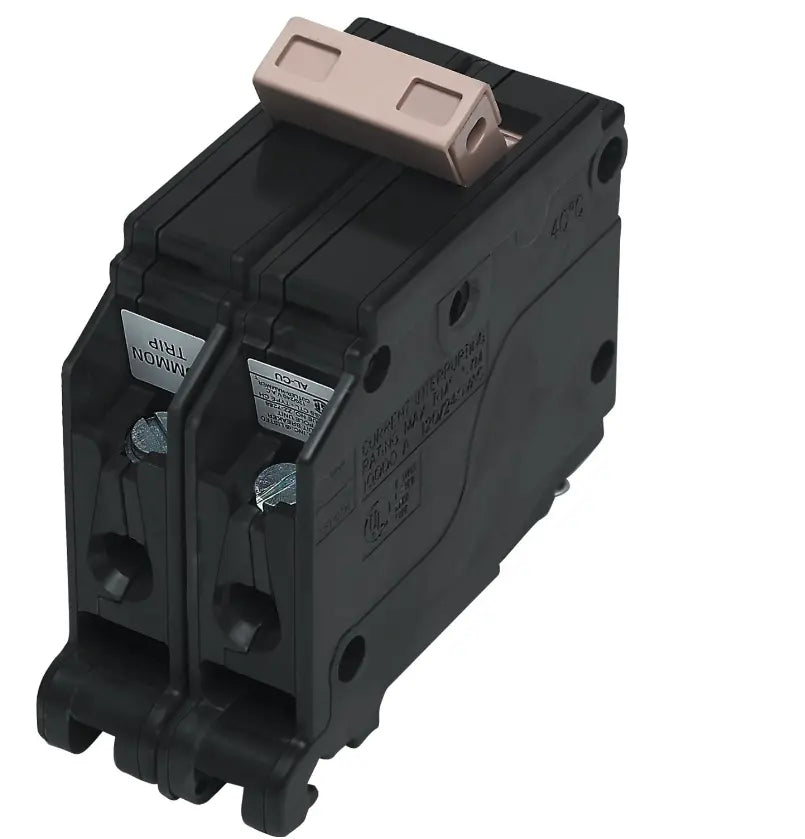

CH270 - Cutler Hammer 70 Amp 2 Pole 120/240V Type CH Plug-On Circuit Breaker, 10 kAIC, Thermal Magnetic Trip, UL 489, CSA

CH270

CH270 is a Cutler Hammer 2-pole, 70 amp, 120/240V circuit breaker designed for reliable circuit protection in residential and light commercial applications.

This Type CH, 3/4-inch standard molded case circuit breaker features a thermal magnetic trip unit for both overload and short-circuit protection, a plug-on mounting style for easy installation, and is compatible with Type CH load centers. It offers a 10 kAIC interrupting rating, common trip mechanism, and supports copper or aluminum wire sizes from #14 to #2 AWG. The CH270 is UL 489 listed and CSA certified, ensuring compliance with North American safety standards.

Key Specifications
• Amperage: 70A
• Voltage: 120/240V AC
• Poles: 2
• Mounting Type: Plug-On
• Interrupt Rating: 10 kAIC at 120/240V
• Series/Frame: Type CH
• Trip Unit: Thermal Magnetic, Common Trip
• Certifications: UL 489, CSA
• Wire Size: #14 to #2 AWG Cu/Al
• Temperature Rating: 40°C
• Dimensions: 1.5" L x 3.2" W x 2.6" H
• Weight: 0.65 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CH270
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CH
• Voltage : 240
• Amperage : 70
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2 AWG (Cu/Al)
• Breaker Type : CH
• Protection : Thermal Magnetic

Product Data

• UPC : 782113101897
• GTIN : 00782113101897
• Country of Origin : Dominican Republic
• Dimensions : 1.5 in x 2.6 in x 3.2 in (Length/Depth x Height x Width)
• Weight : 0.65
• Panel Type : Type CH Loadcenters
• Standards : UL 489
• Certification : UL 489
• Wire Size : AWG 14 to AWG 2, Cu/Al
