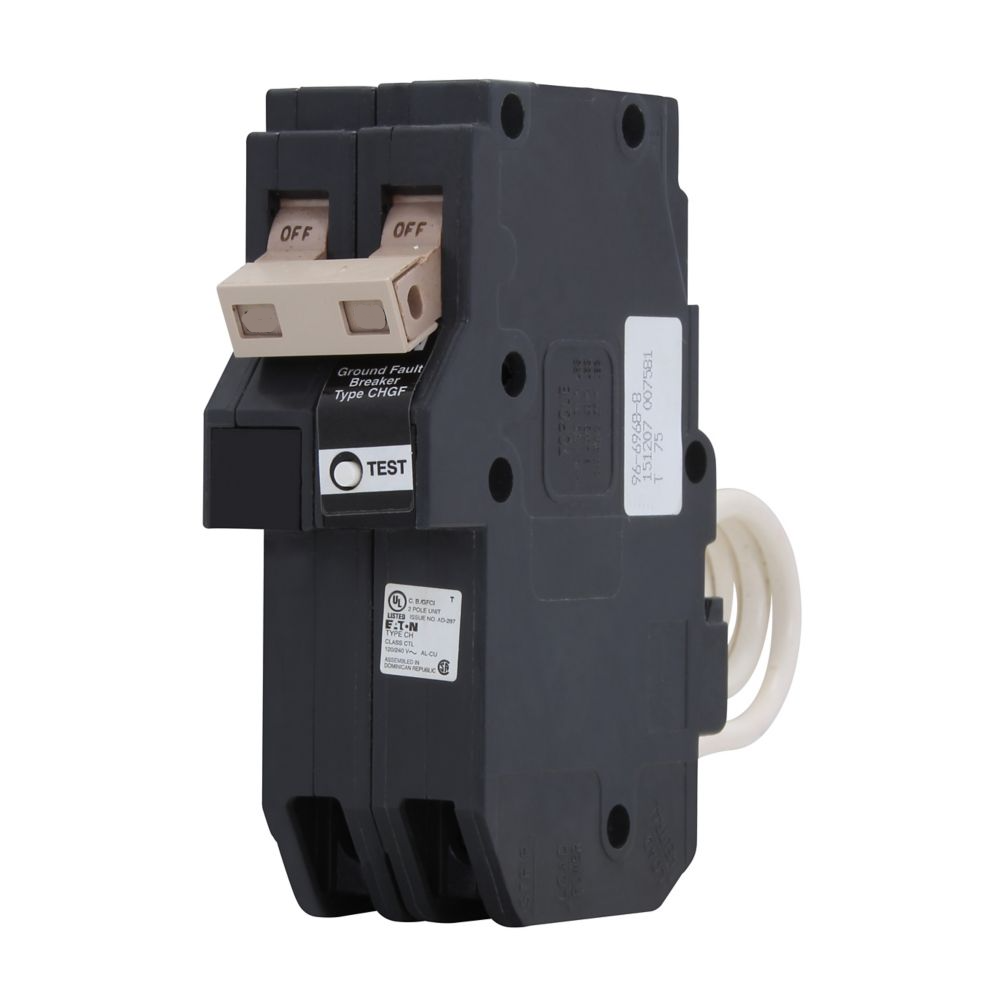

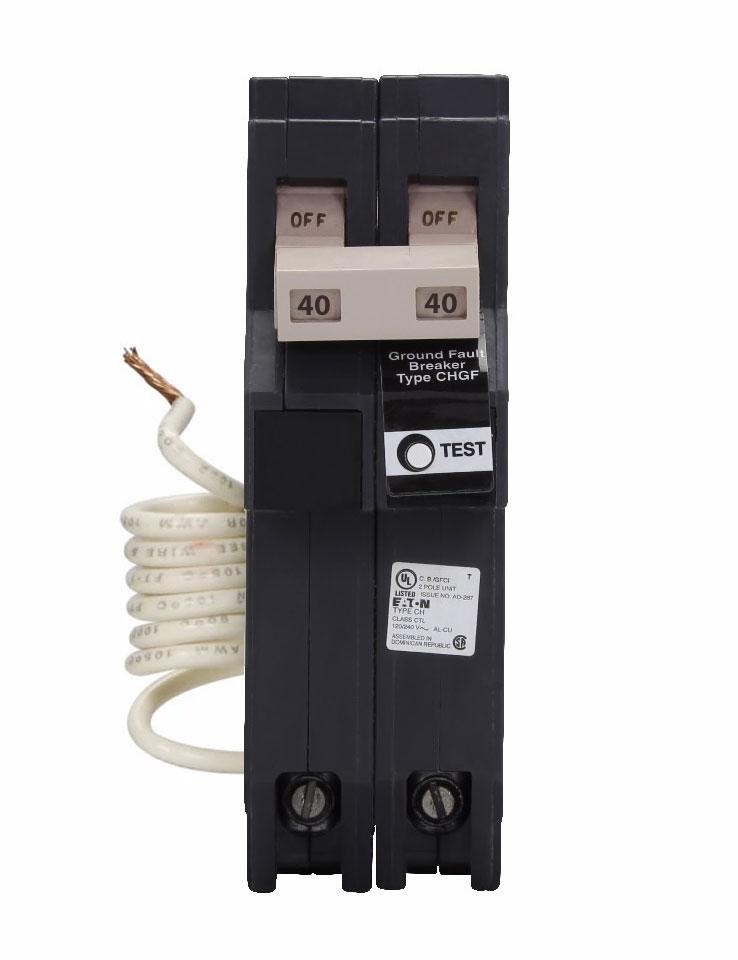

CH240GFT - Eaton 40 Amp 2 Pole 120/240V Ground Fault Circuit Breaker CH Frame

CH240GFT

CH240GFT is a 40 Amp, 2 Pole Ground Fault Circuit Breaker from Eaton designed for 120/240V applications with a CH frame.CH240GFT features a thermal magnetic trip unit with long time and instantaneous trip functions, plug-on connection type, and a 10kA interrupting rating at 240V. It is UL listed and suitable for residential and light commercial use, providing reliable ground fault protection with self-test capability.

Key Specifications
• Amperage: 40 Amp
• Voltage: 120/240 VAC
• Poles: 2
• Frame Type: CH
• Interrupt Rating: 10kAIC @ 240V
• Trip Unit: Thermal Magnetic (Long Time and Instantaneous)
• Connection Type: Plug-on
• Ground Fault Self Test: Yes
• Wire Gauge Range: #14 to 4 AWG
• Certifications: UL Listed
• Mounting Type: Plug-in
• NEMA Rating: 3R

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CH240GFT
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CH
• Voltage : 240
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786676025720
• GTIN : 00786676025720
• Country of Origin : Dominican Republic
• Dimensions : 4.5 in x 2 in x 2.75 in (Length/Depth x Height x Width)
• Weight : 0.7
• Certification : UL 489
• Wire Size : #14 to 4 AWG
