2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
CH230

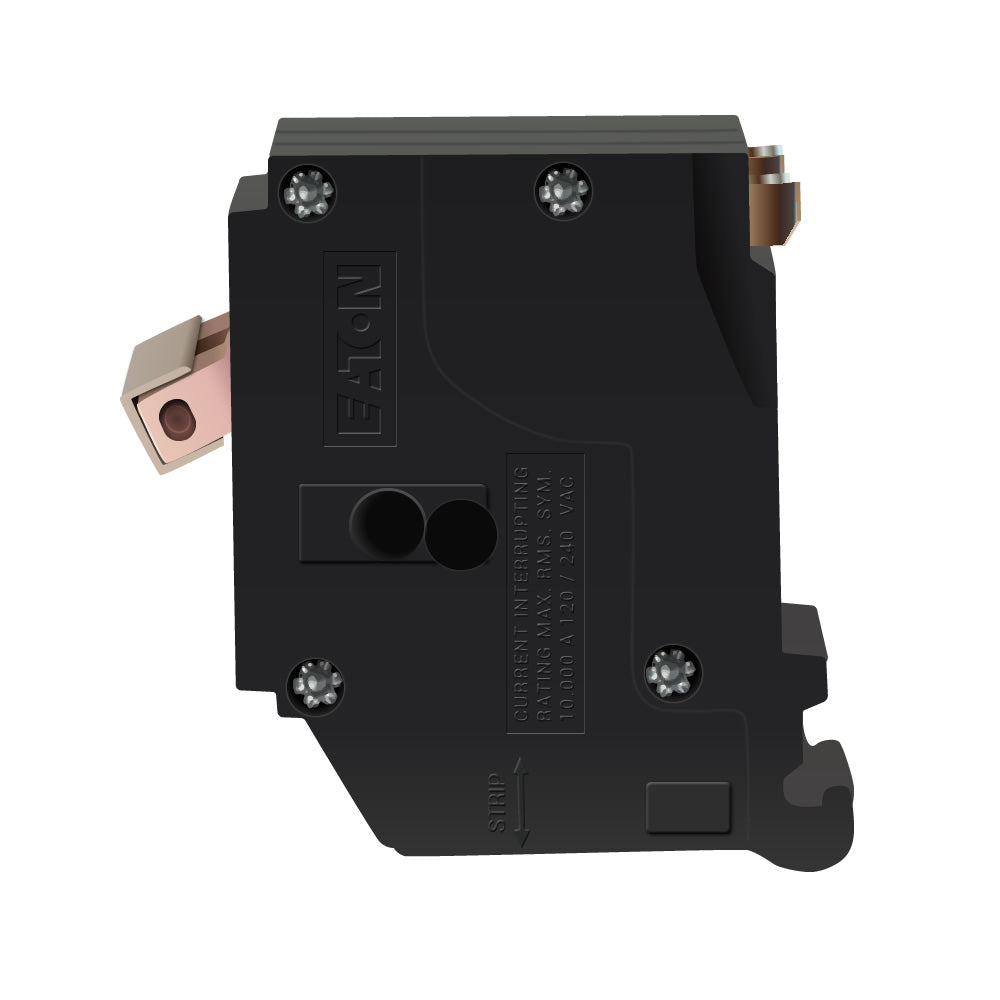

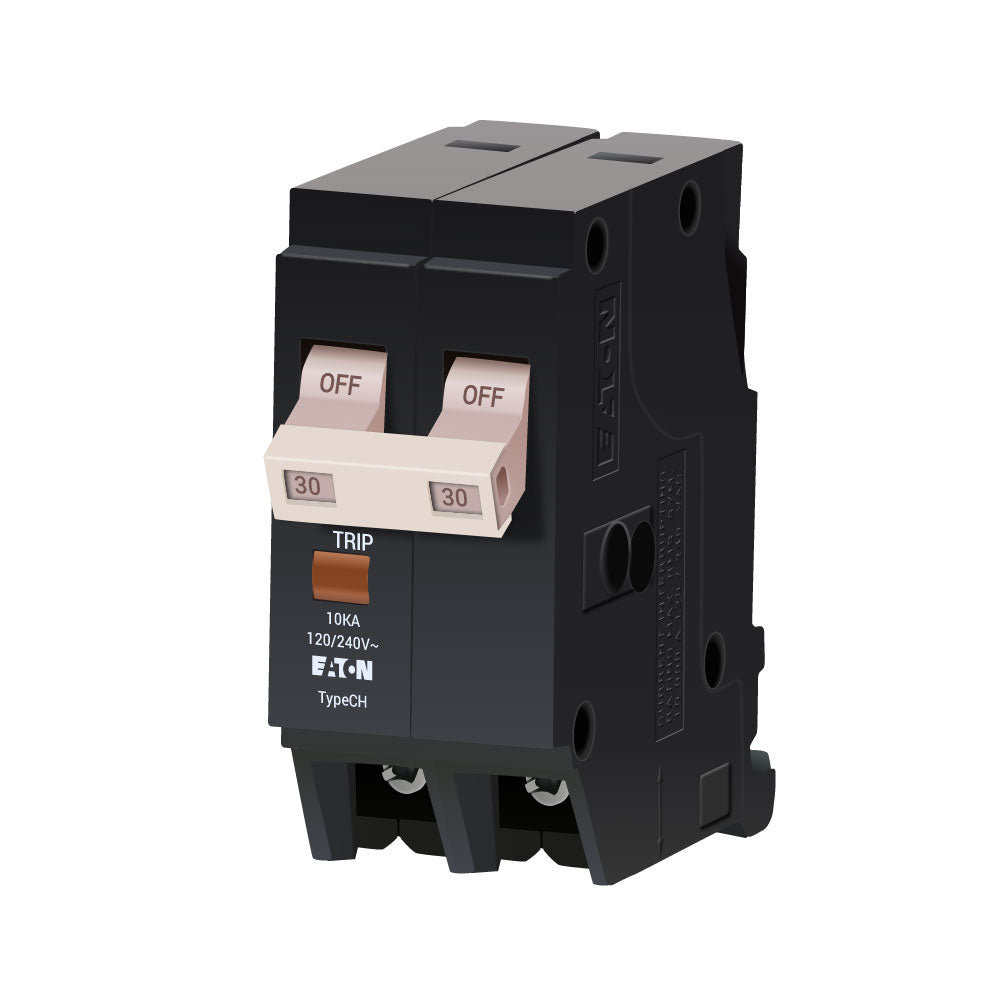

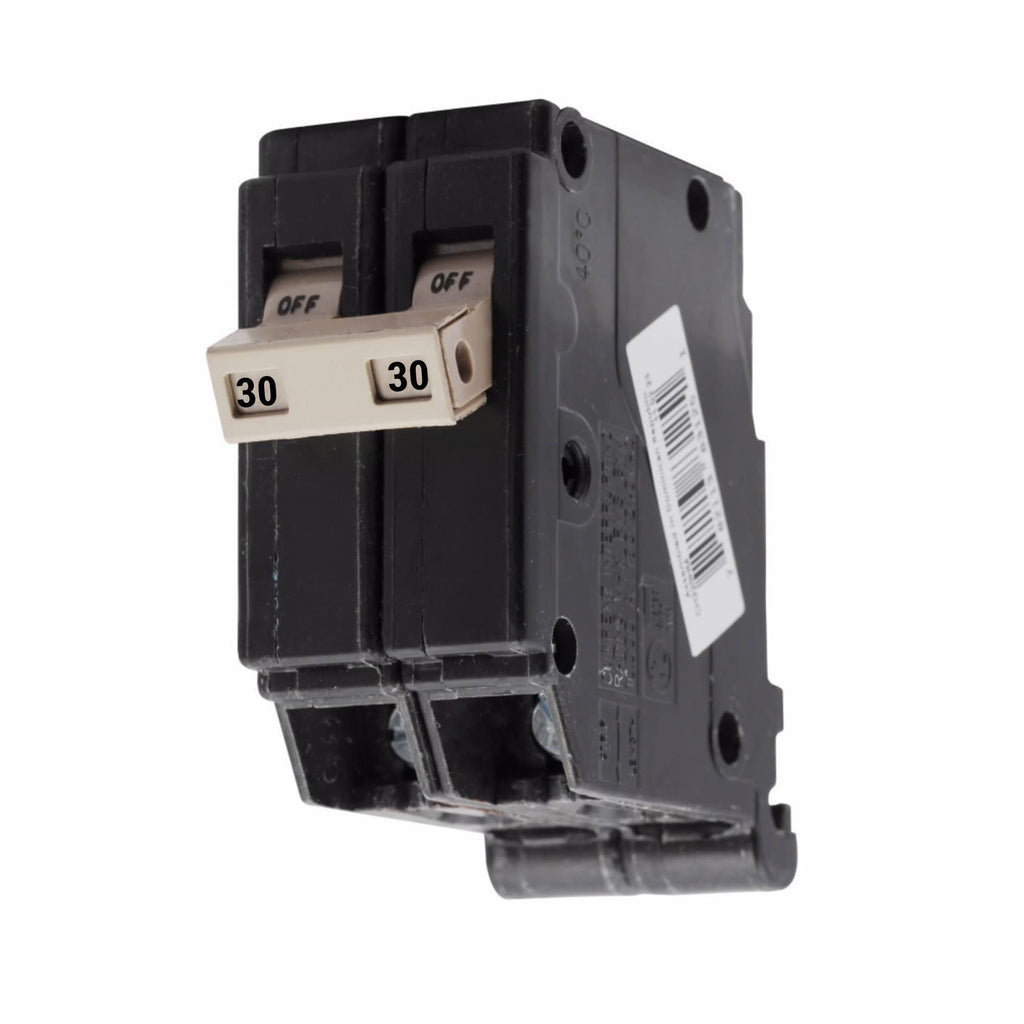

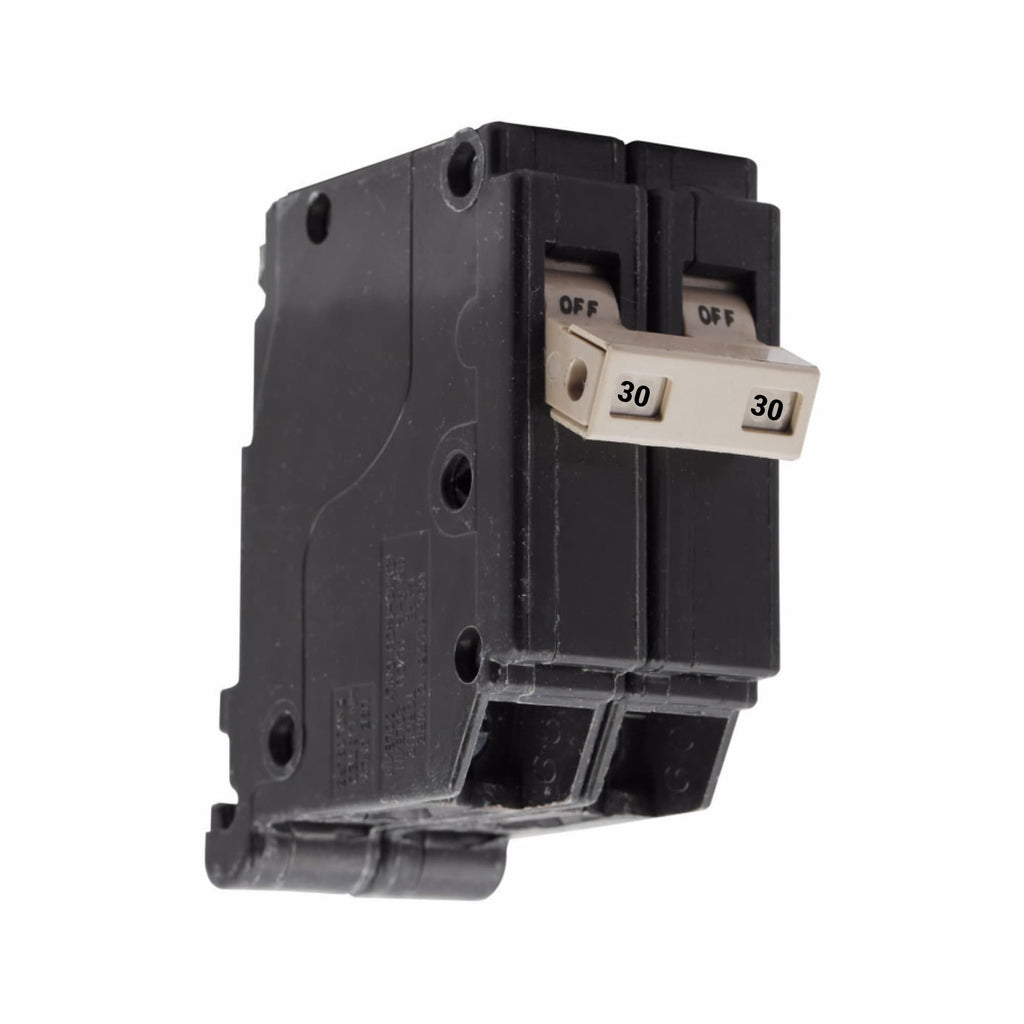

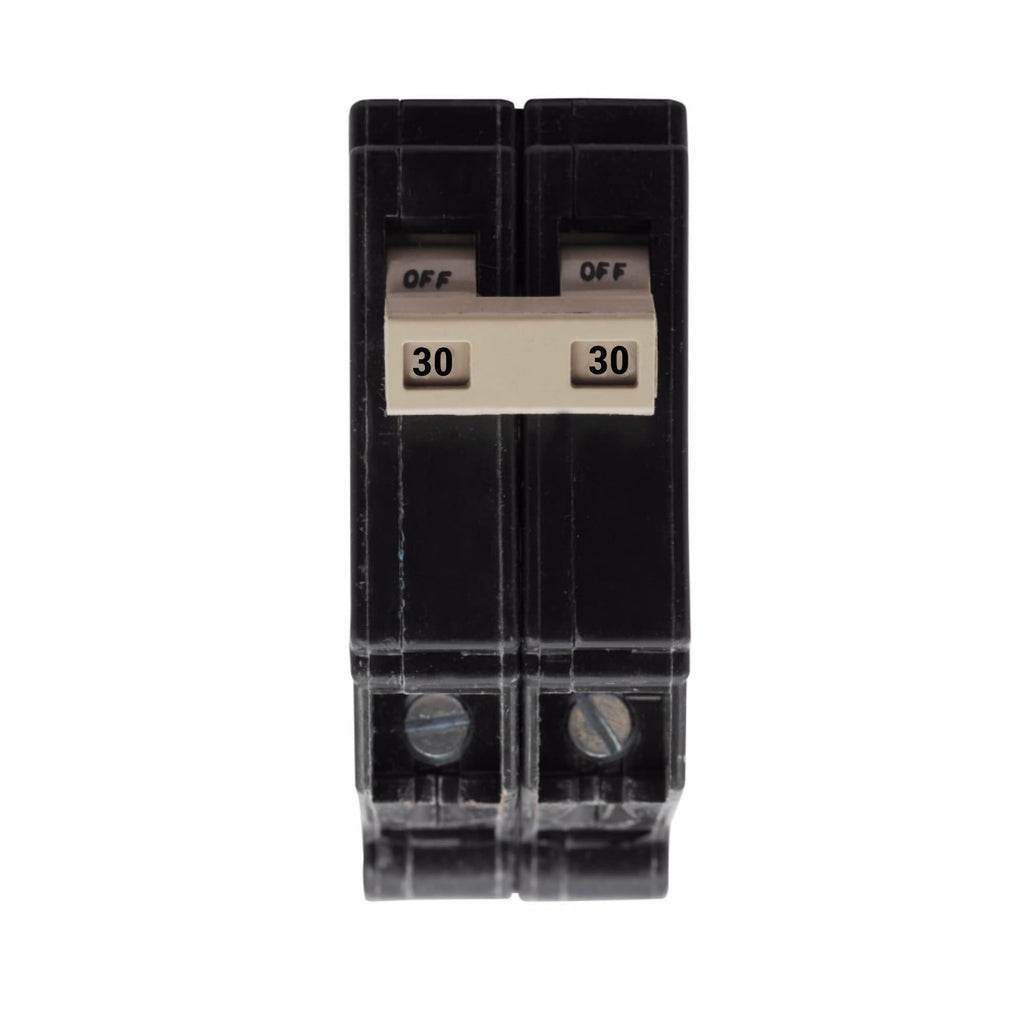

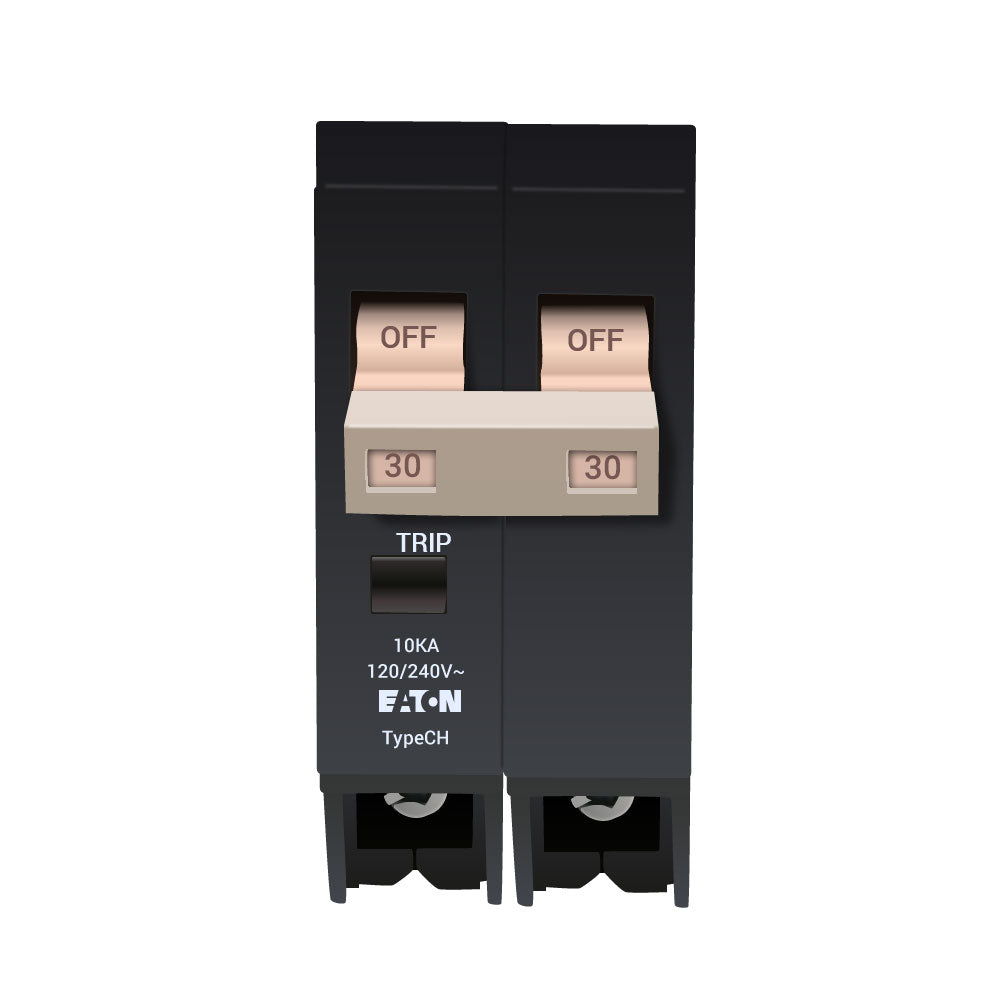

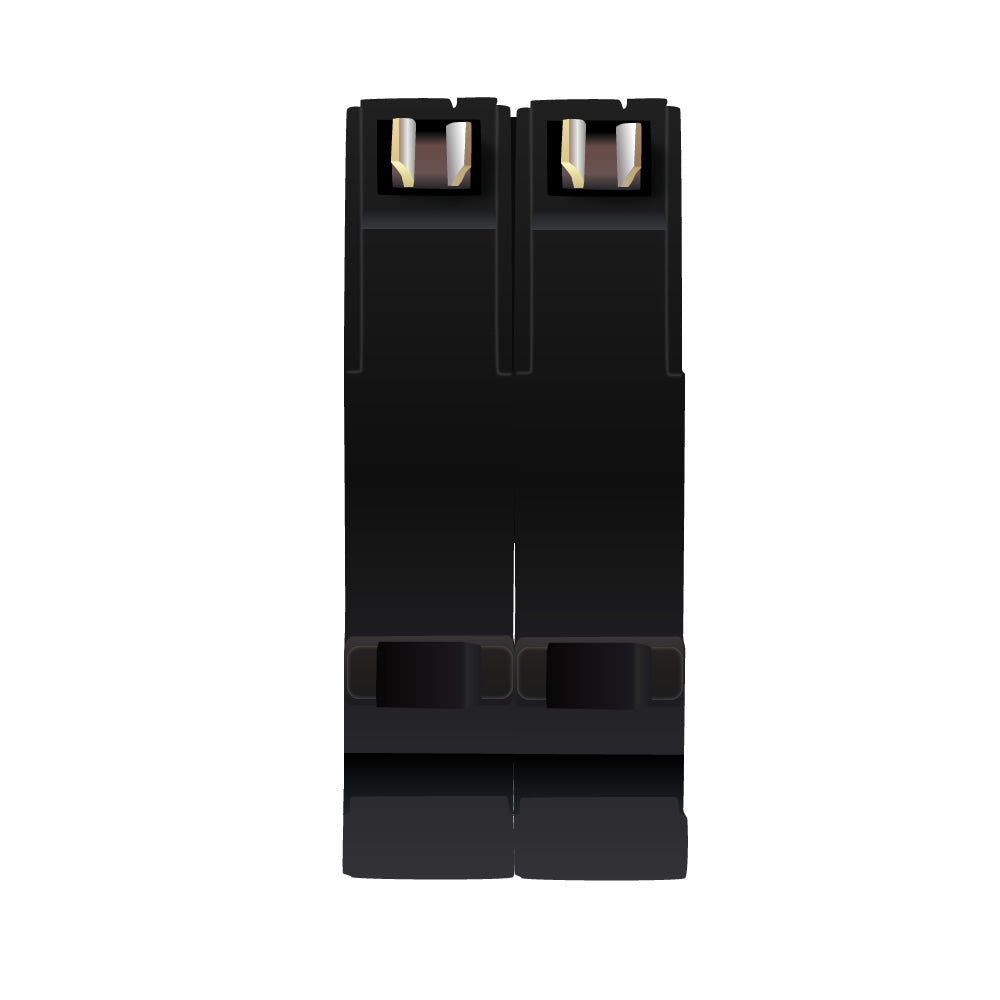

CH230 is a 2 pole, 30 amp, 240 volt plug-in circuit breaker from Cutler Hammer's Type CH series designed for reliable circuit protection.This thermal magnetic molded case circuit breaker features long-time and instantaneous trip functions, a 10,000 AIC interrupt rating at 240V, and is UL listed, CSA certified, and HACR rated. It mounts via plug-in connection and is suitable for use in CH loadcenters.
- Key Specifications
- Manufacturer: Cutler Hammer
- Part Number: CH230
- Amperage: 30 Amps
- Voltage Rating: 120/240 VAC
- Poles: 2
- Mounting Type: Plug-In
- Interrupting Rating: 10 kAIC at 240V
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
- Series/Frame: Type CH
- Certifications: UL Listed, CSA Certified, HACR Rated
- Connection Type: Plug-In
- Part Number: CH230
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CH Series
- Type : CH
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
- UPC : 782113101804
- GTIN : 00782113101804
- Country of Origin : Dominican Republic
- Weight : 0.56
- Certification : UL 489
