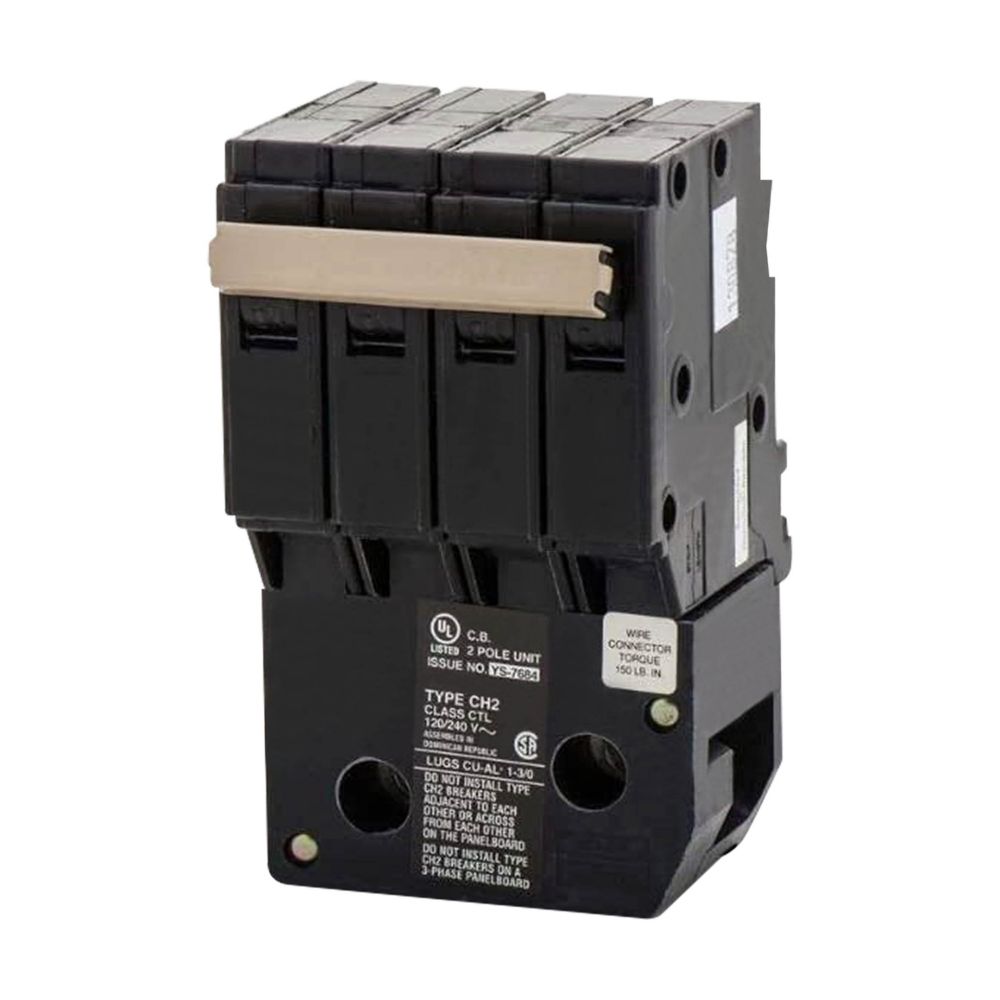

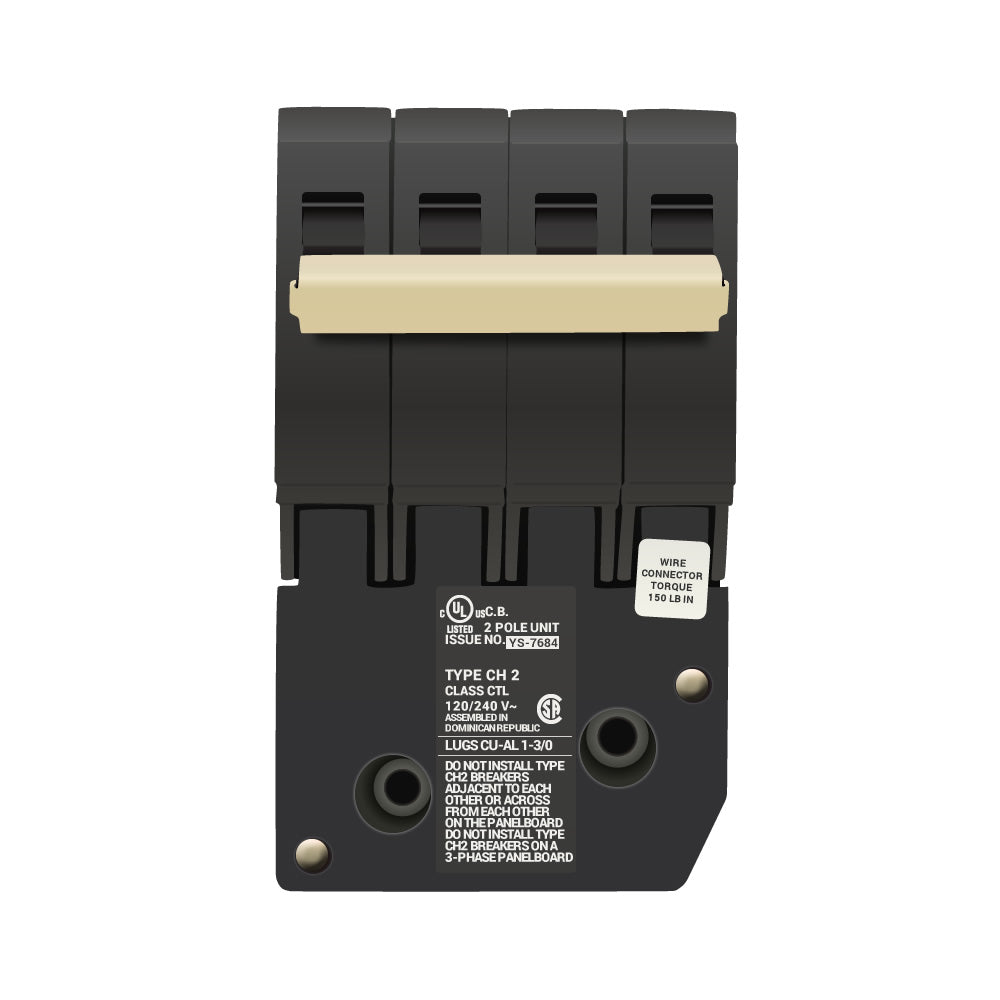

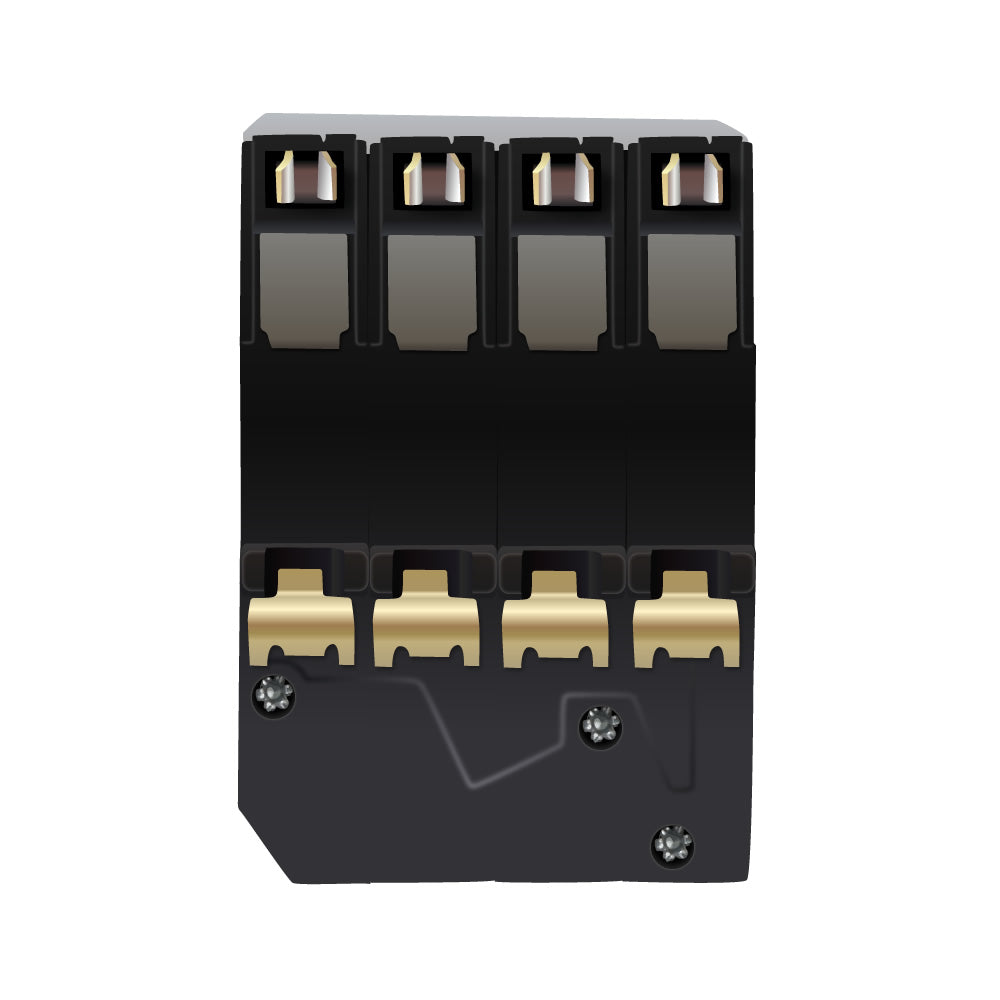

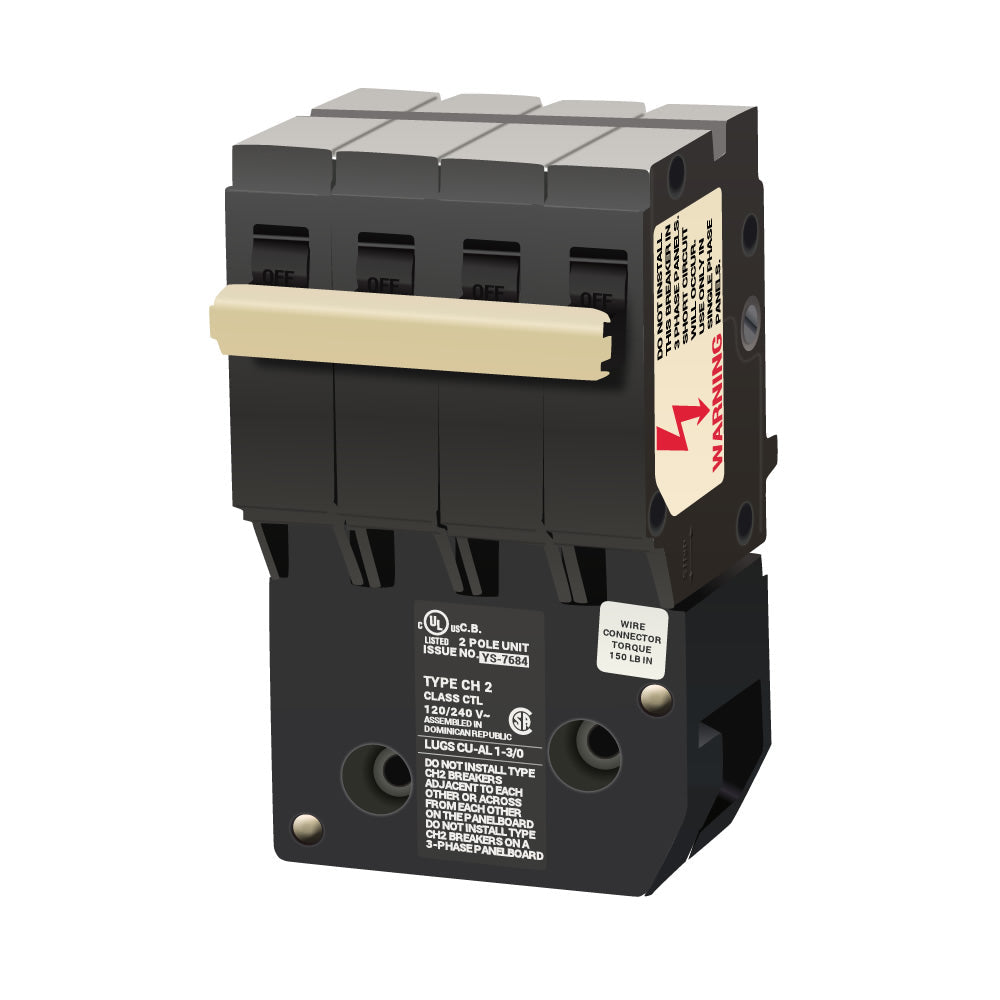

CH2150 - Cutler Hammer 150 Amp 120/240V 2 Pole Circuit Breaker Plug-On Mount Thermal Magnetic

CH2150

CH2150 is a Cutler Hammer 2 Pole circuit breaker rated for 150 Amps and 120/240 Volt AC service with a thermal magnetic trip unit.

This Eaton Cutler Hammer CH2150 circuit breaker features a plug-on mounting type for easy installation in Type CH loadcenters. It provides a 10 kA interrupting rating at 240V, common trip function, and supports #3/0 AWG copper or aluminum wire. The breaker is UL 489 certified and designed for single-phase applications with a 3/4 inch frame size.

Key Specifications
• Amperage: 150 A
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Mounting Type: Plug-On
• Interrupt Rating: 10 kAIC at 240V
• Trip Unit: Thermal Magnetic, Common Trip
• Series/Frame: CH
• Wire Size: #3/0 AWG Cu/Al
• Phase: Single Phase
• Certifications: UL 489
• Dimensions: Approx. 2.5 in L x 1.5 in W x 3 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CH2150
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Voltage : 240
• Amperage : 150
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 782113298795
• GTIN : 00782113298795
• Dimensions : 4.5 in x 3 in x 3 in (Length/Depth x Height x Width)
• Weight : 1 lb
• Wire Size : 3/0 AWG (Aluminum/Copper)
