Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description

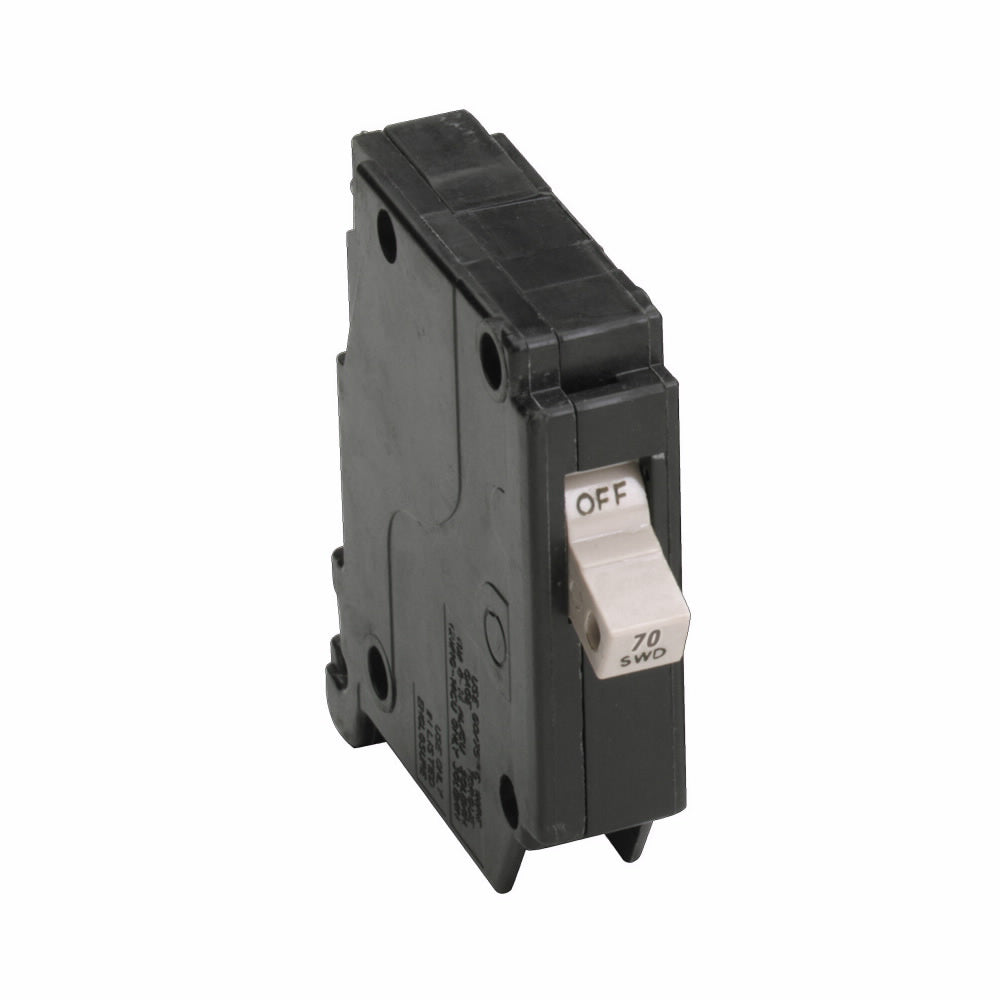

CH170
CH170 is a single-pole thermal magnetic circuit breaker designed for Type CH loadcenters in residential and light commercial applications. This 70-amp breaker provides reliable overcurrent protection with a 10 kAIC interrupt rating and accommodates wire sizes from #10 to 1/0 AWG copper or aluminum. The 3/4-inch standard frame design features a metal foot with 1/2 notch compatibility for easy installation in compatible panels.
- Amperage Rating: 70 Amp
- Voltage Rating: 120/240 VAC
- Number of Poles: Single Pole
- Interrupt Rating: 10 kAIC
- Frame Size: 3/4-Inch Standard
- Trip Unit: Thermal Magnetic Instantaneous/Long Time
- Wire Size: #10-1/0 AWG Cu/Al
- Mounting: Metal Foot with 1/2 Notch
- UL Rating: UL 489
- Loadcenter Type: Type CH
Specifications
- Part Number: CH170
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CH Series
- Type : CH
- Voltage : 120
- Amperage : 70
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 782113871158
- GTIN : 00782113871158
- Country of Origin : Dominican Republic
- Dimensions : 3.25 in x 3.375 in x 0.75 in (Length/Depth x Height x Width)
- Weight : 0.28
- Certification : UL 489
