Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
CH130

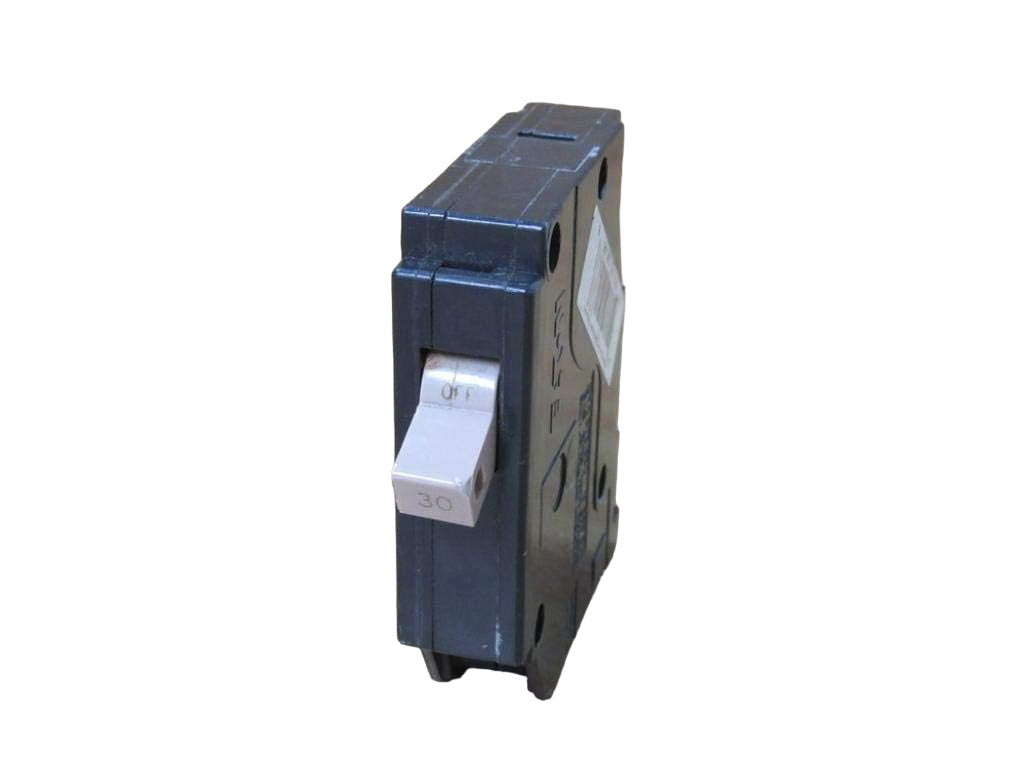

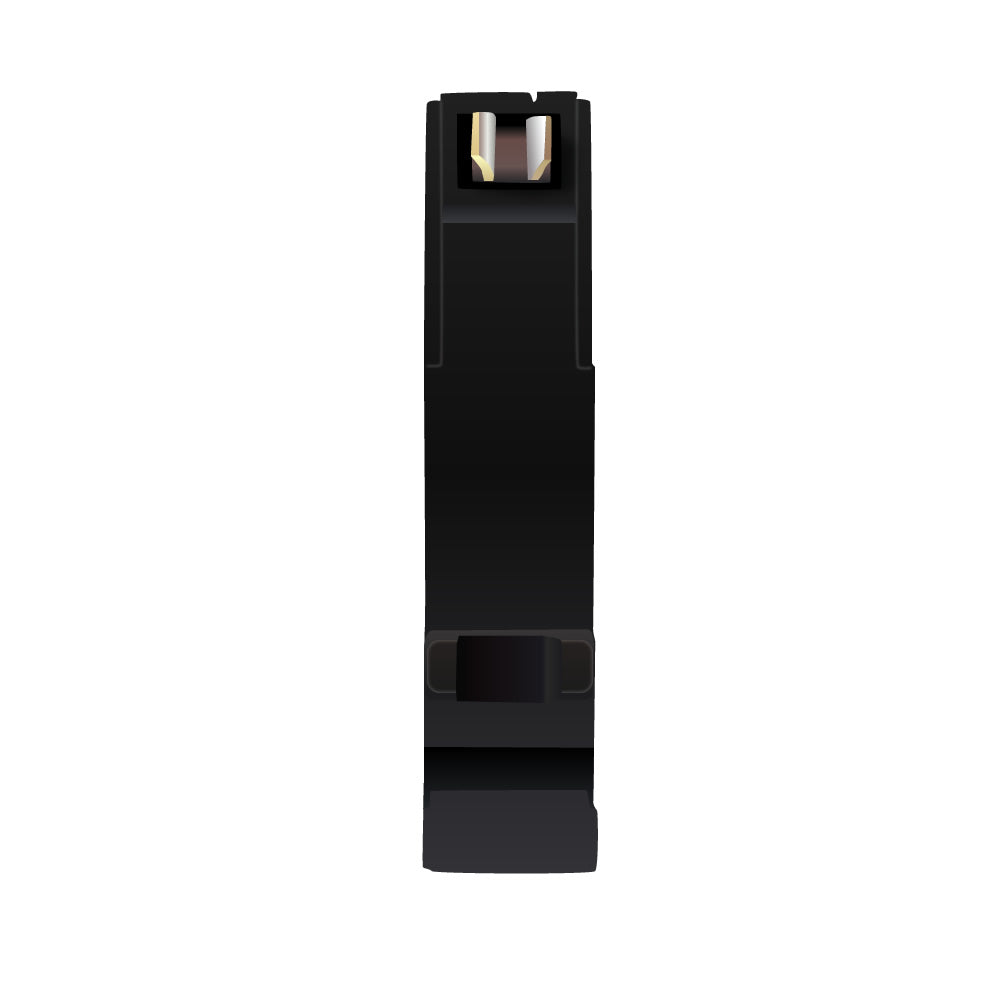

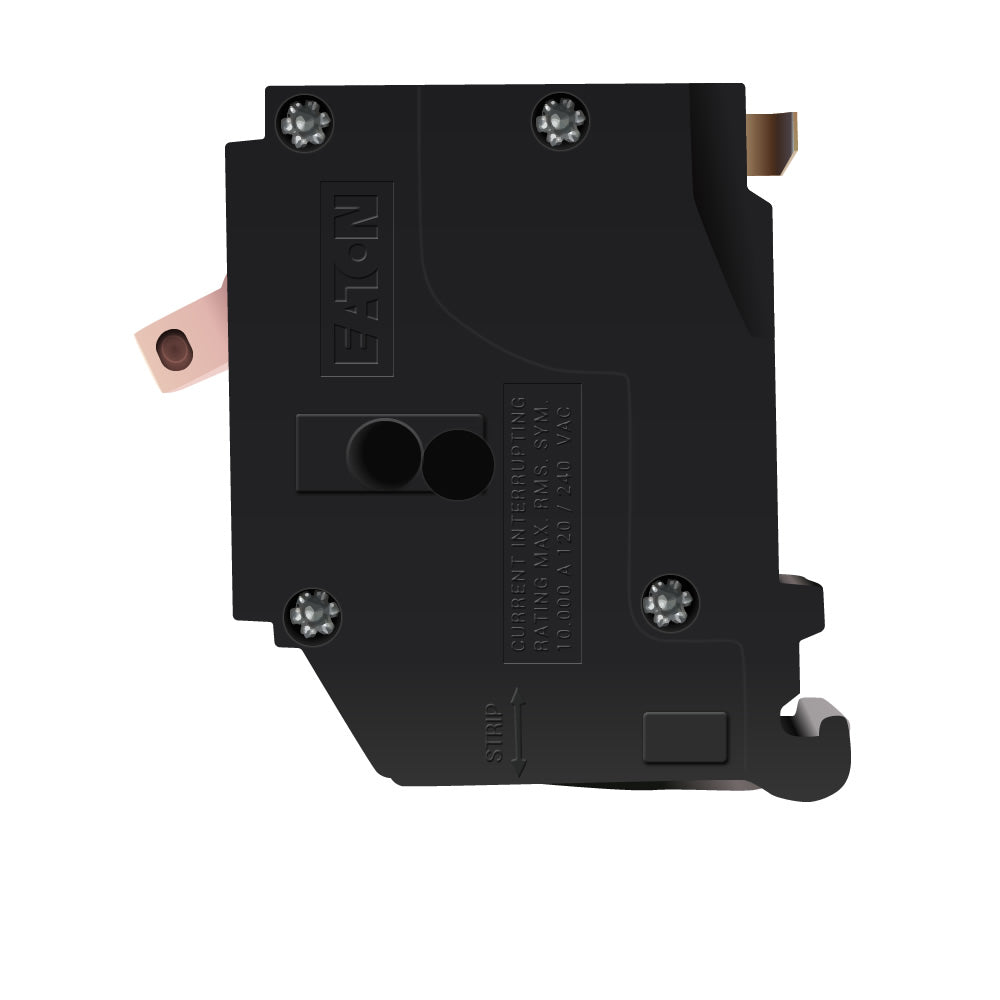

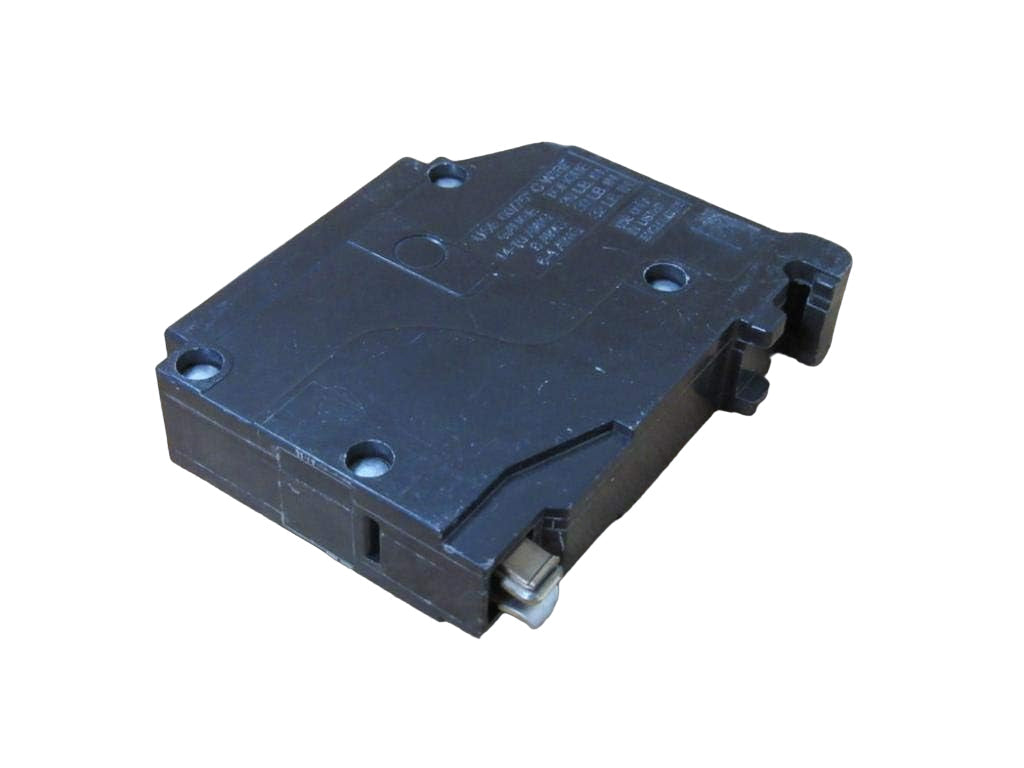

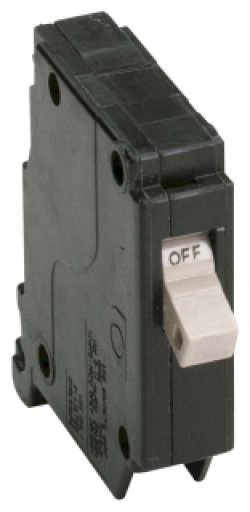

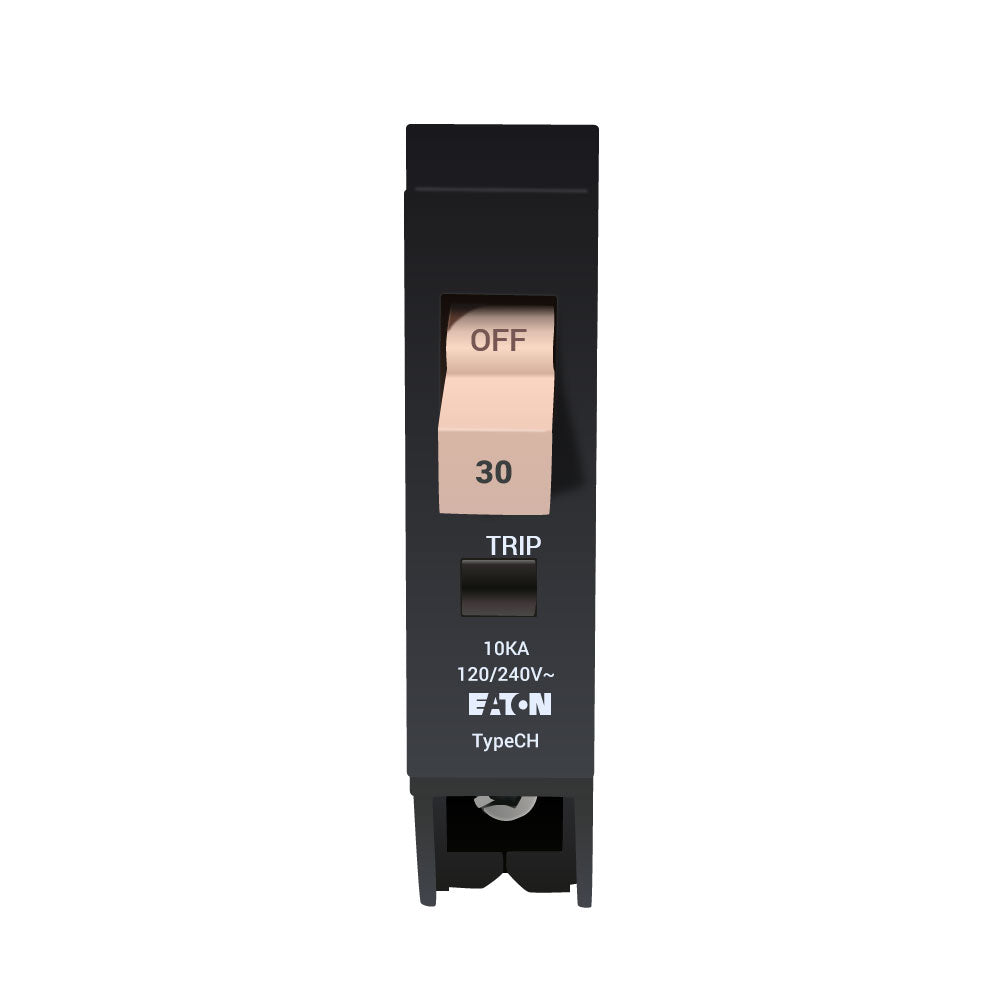

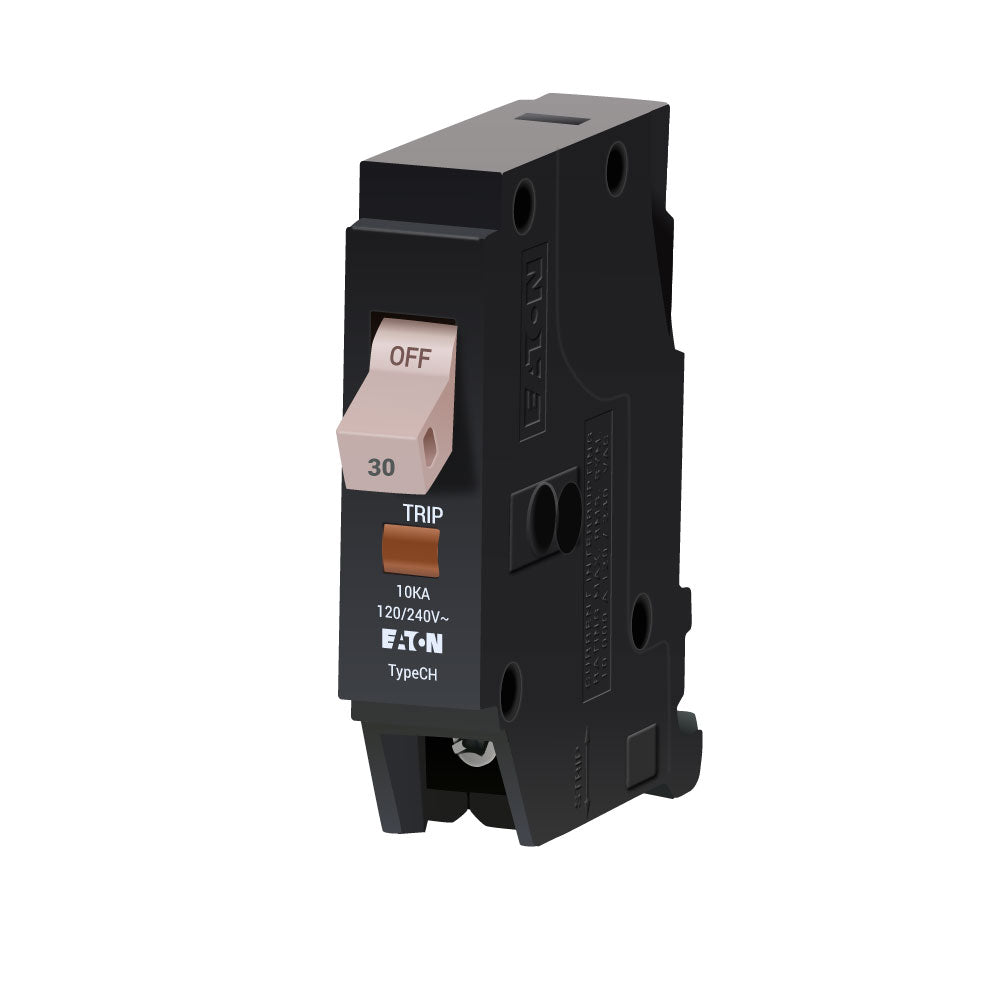

CH130 is a Cutler Hammer 1 pole, 30 amp circuit breaker designed for 120 Volt applications with plug-on mounting.This thermal magnetic circuit breaker from the CH Series offers reliable circuit protection with a 10kA interrupting rating at 120VAC. It features UL and CSA approvals, a plug-in connection type, and long-time and instantaneous trip functions.
- Amperage: 30 Amp
- Voltage: 120 VAC
- Poles: 1
- Mounting Type: Plug-On
- Interrupting Rating: 10kA at 120VAC
- Series/Frame: CH Series
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
- Certifications: UL, CSA
- Connection Type: Plug-In
- Phase: Single Phase
Specifications
- Part Number: CH130
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CH Series
- Type : CH
- Voltage : 120
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 782113101668
- GTIN : 00782113101668
- Weight : 0.28
- Wire Size : (1) 14-8 AWG (2) 14-10 AWG (Aluminum/Copper)
