CH125 - Cutler Hammer 25 Amp 1 Pole 120/240V Thermal Magnetic Circuit Breaker Plug-On

CH125

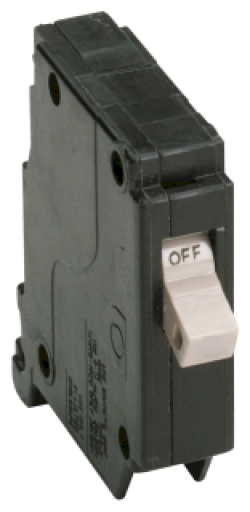

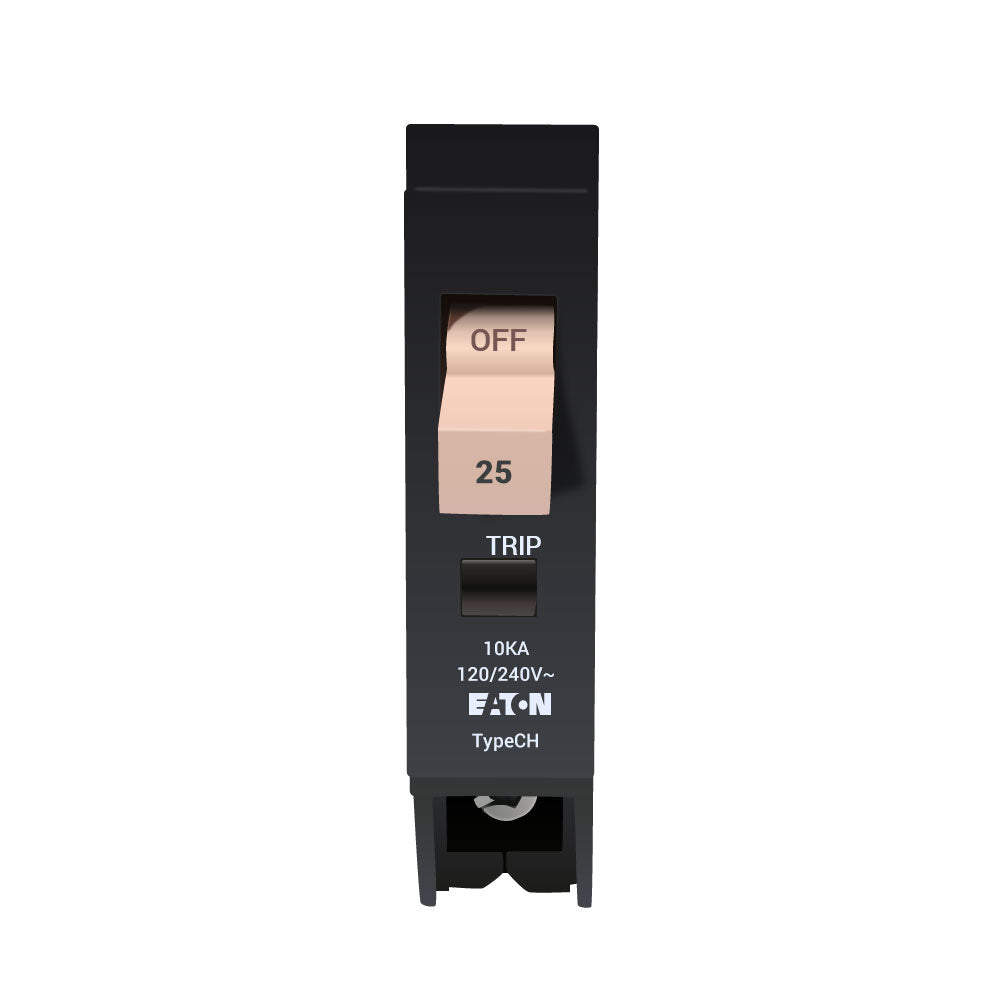

CH125 is a Cutler Hammer 25 Amp 1 Pole thermal magnetic circuit breaker designed for residential and light commercial use.This circuit breaker features a 25 Ampere current rating, 1 pole, and a voltage rating of 120/240 VAC. It uses a plug-on mounting type for easy installation in compatible panels. The breaker has a 10,000 A interrupting rating at 120/240V and is UL 489 certified. It provides thermal magnetic protection with fixed trip characteristics, suitable for older panels requiring reliable circuit protection.

Key Specifications
• Amperage: 25 A
• Voltage: 120/240 VAC
• Poles: 1
• Mounting Type: Plug-On
• Interrupting Rating: 10,000 AIC at 120/240V
• Trip Unit: Thermal Magnetic, Fixed Trip
• Series/Frame: CH
• Certifications: UL 489
• Connection Type: Plug-In
• Temperature Rating: 40 °C
• Breaker Feature: Standard Interrupting Capacity

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CH125
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CH
• Voltage : 120
• Amperage : 25
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783126092653
• GTIN : 00804766211034
• Country of Origin : Dominican Republic
• Weight : 0.3
• Certification : UL Listed CSA Certified
• Wire Size : (1) 14-8 AWG (2) 14-10 AWG (Aluminum/Copper)
