- Manufacturer:Appleton
- Sub-Category:Cable gland / cord grip
Description
CG1850

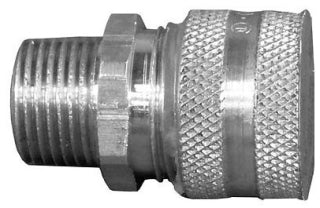

CG1850 is a 1/2 inch liquidtight straight cord connector by Appleton designed for flexible neoprene, hypalon, and PVC jacketed power and control cables.This aluminum strain relief connector features a brown color-coded label and is suitable for cable diameters ranging from 3/16 to 5/16 inch. It provides secure strain relief and liquidtight termination for power and control cords in hazardous locations. The connector includes a neoprene sealing grommet that grips the cable jacket to protect internal wiring and reduce tension. It meets UL 514B and CSA C22.2 standards and is UL listed for Class I, Division 2; Class II, Division 1 and 2; and Class III hazardous locations.
- Key Specifications
- Type: Straight liquidtight cord connector
- Trade Size: 1/2 inch
- Cable Opening Range: 3/16 to 5/16 inch
- Material: Aluminum
- Color: Brown label
- Connection Type: Threaded hub
- Diameter: Approximately 0.94 inch
- Standards: UL 514B, CSA C22.2 No. 18.3
- Hazardous Location Ratings: Class I Div 2, Class II Div 1 & 2, Class III
- Application: Flexible neoprene, hypalon, PVC jacketed power/control cables
Additional Information
Sealing and strain relief for cables
Specifications
- Part Number: CG1850
- Manufacturer : Appleton
- Brand : Appleton
- Category : Conduit & Fittings
- Item Subcategory : Cable gland / cord grip
- Family : CG Series
Product Data
- UPC : 781381191104
- GTIN : 00781381191104
- Dimensions : 0.94 in Dia
- Weight : 0.08 lb
