Product Info
- Manufacturer:Appleton
- Sub-Category:Cable gland / cord grip
Description
CG100100

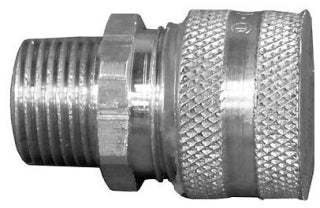

CG100100 is an aluminum liquidtight strain relief cord and cable connector designed for use in wet or dry locations, providing a secure and sealed termination for flexible power or control cords. This connector features a straight aluminum body, copper-free aluminum cap, neoprene grommet, and steel/teflon washer for reliable strain relief and environmental protection. Suitable for cable diameters ranging from 1.000 to 1.125 inches, it is color-coded blue for easy identification and is rated for use in Class I, Division 2; Class II, Division 1 and 2; Class III; and NEMA 3R enclosures.
- Part Number: CG100100
- Manufacturer: Appleton
- Material: Aluminum
- Connector Type: Liquidtight Strain Relief
- Cable Range: 1.000 - 1.125 in
- Color Code: Blue
- Mounting Type: Straight
- Compliance: NEMA 3R, Class I Div 2, Class II Div 1 & 2, Class III
- Application: Wet or dry locations
- Sealing: Neoprene grommet, steel/teflon washer
- Body: Copper-free aluminum cap
- Use: Flexible neoprene, hypalon, PVC jacketed cords
Additional Information
Sealing and strain relief for cables
Specifications
- Part Number: CG100100
- Manufacturer : Appleton
- Brand : Appleton
- Category : Conduit & Fittings
- Item Subcategory : Cable gland / cord grip
- Family : CG Series
Product Data
- UPC : 781381192002
- Dimensions : 1-3/4 in Dia
- Weight : 0.39 lb
