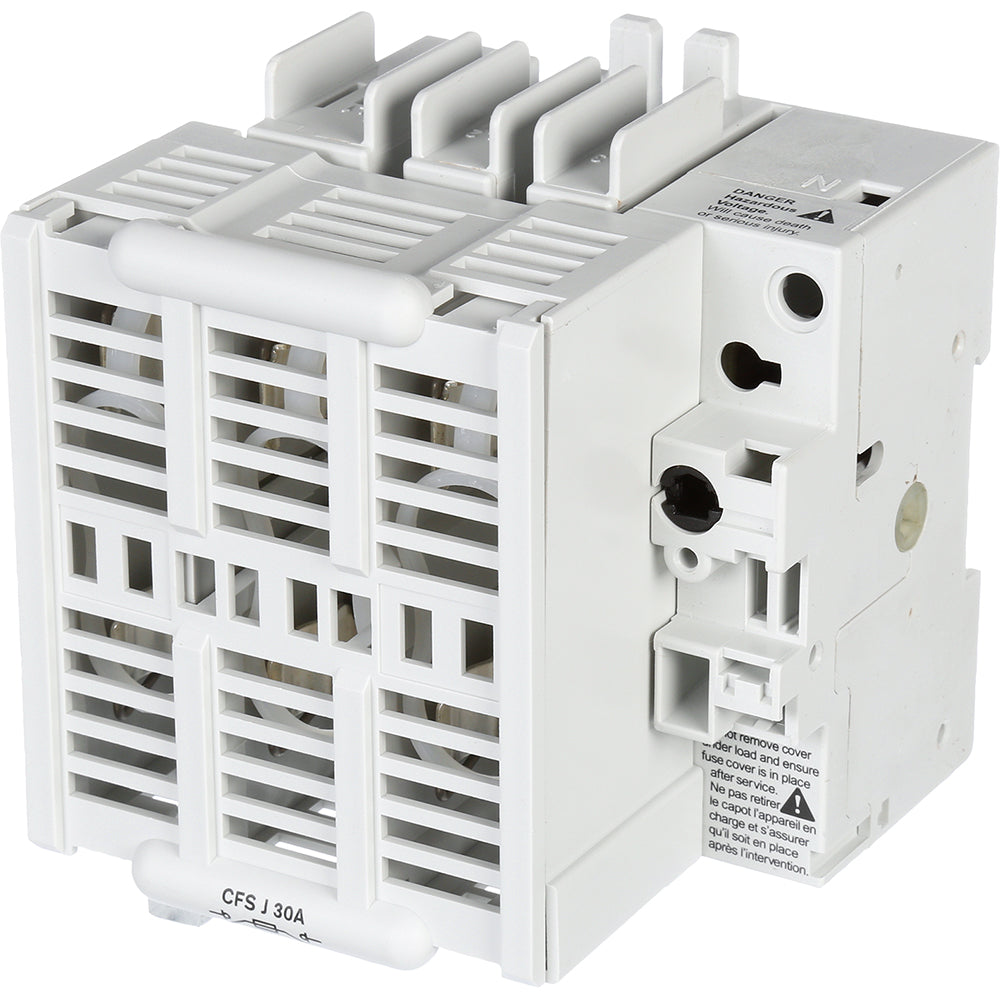

CFS361J5 - Siemens 30A 600VAC 3-Pole Fusible Disconnect Switch with Rotary Handle

CFS361J5

This switch features a 30 amp current rating and is rated for 600 volts AC and 250 volts DC operation. It includes a rotary actuator handle for easy operation and is panel mountable. The switch supports 3 poles and is UL listed and CSA certified, meeting industry safety standards. It is suitable for motor loads up to 20 horsepower at 600 VAC and has a short circuit interrupt rating of 50 kA. The CFS361J5 accepts up to two auxiliary contacts and is designed for durability with an operating temperature range from -20°F to 120°F ambient.

Key Specifications
• Manufacturer: Siemens
• Part Number: CFS361J5
• Current Rating: 30 Amps
• Voltage Rating: 600 VAC, 250 VDC
• Poles: 3
• Mounting Type: Panel Mount
• Interrupt Rating: 50 kA
• Type: Fusible Disconnect Switch
• Operating Handle: Rotary
• Horsepower Rating: 20 HP at 600 VAC
• Auxiliary Contacts: Accepts up to 2
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CFS361J5
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Family : CFS Series
• Type : CFS
• Voltage : 6
• Amperage : 3
• Phase : 3
• Poles : 3
• AIC rating : 5kA@6V
• Fuse Class : J
• Configuration : Single



Product Data

• UPC : 783643445383
• GTIN : 00783643445383
• Country of Origin : France
• Dimensions : 5.906 x 5.118 x 4.724 inch
• Weight : 1.455
