2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description

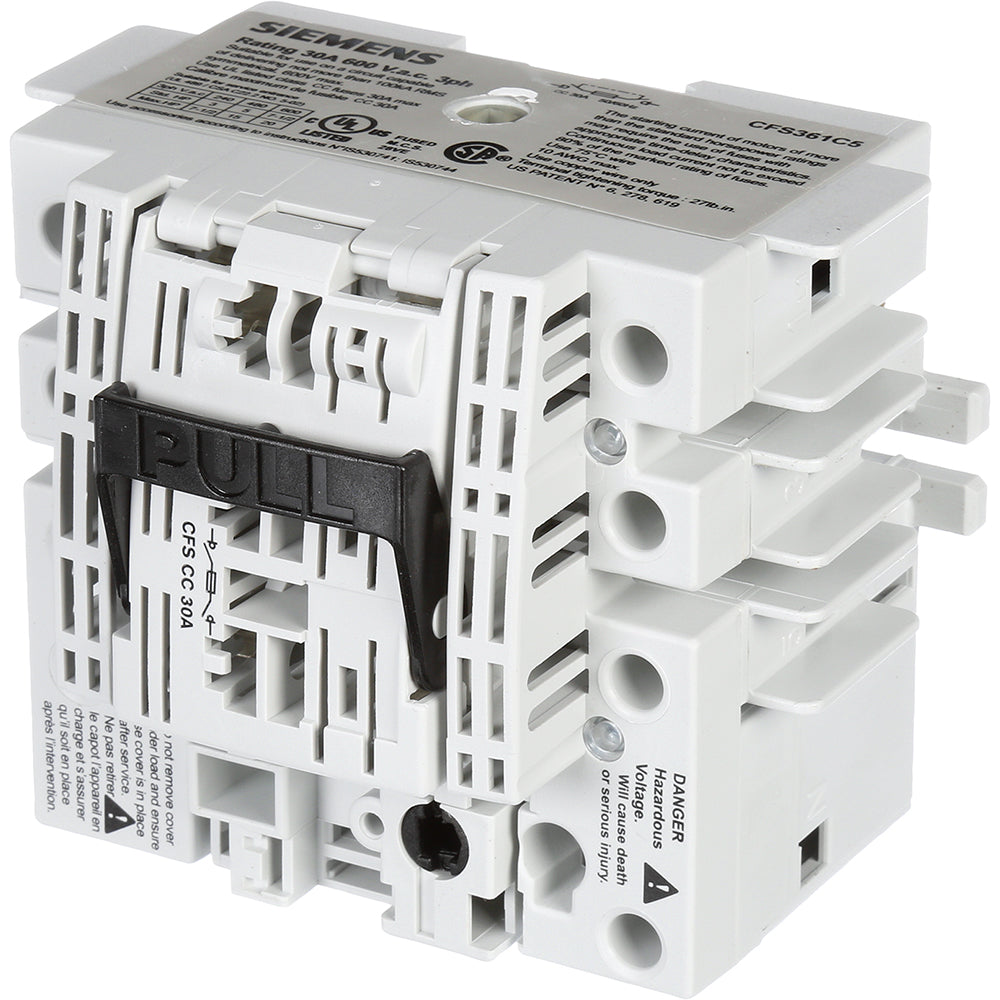

CFS361C5
CFS361C5 is a Siemens 30 amp, 600 volt, 3-pole fusible disconnect switch designed for reliable circuit protection in low voltage applications.This compact fusible switch features a rotary actuator with single throw action, suitable for panel mounting. It supports Class CC fuses and offers a short circuit interrupt rating of 50kA. Rated for 20 horsepower at 240 VAC and 3-phase operation, it operates within a temperature range of -20 to 120 degrees Fahrenheit. The switch includes line and load lug terminals and meets UL, CSA, and CE certifications.
- Amperage Rating: 30 A
- Voltage Rating: 600 V AC, 250 V DC
- Number of Poles: 3
- Interrupt Rating: 50 kA
- Horsepower Rating: 20 hp at 240 VAC
- Actuator Type: Rotary
- Mounting Type: Panel Mount
- Fuse Class: Class CC
- Operating Temperature: -20 to 120 °F
- Certifications: UL Listed, CSA Certified, CE Certified
- Series: CFS Compact Fusible Switch
Specifications
- Part Number: CFS361C5
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Family : CFS Series
- Type : CFS
- Voltage : 6
- Amperage : 3
- Phase : 3
- Poles : 3
- AIC rating : 5kA@6V
- Fuse Class : CC
- Configuration : Single
Product Data
- UPC : 783643445376
- GTIN : 00783643445376
- Country of Origin : France
- Dimensions : 5.906 x 5.906 x 4.724 inch
- Weight : 1.235
