Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Tap Box
Description
CFH2512GETBMB

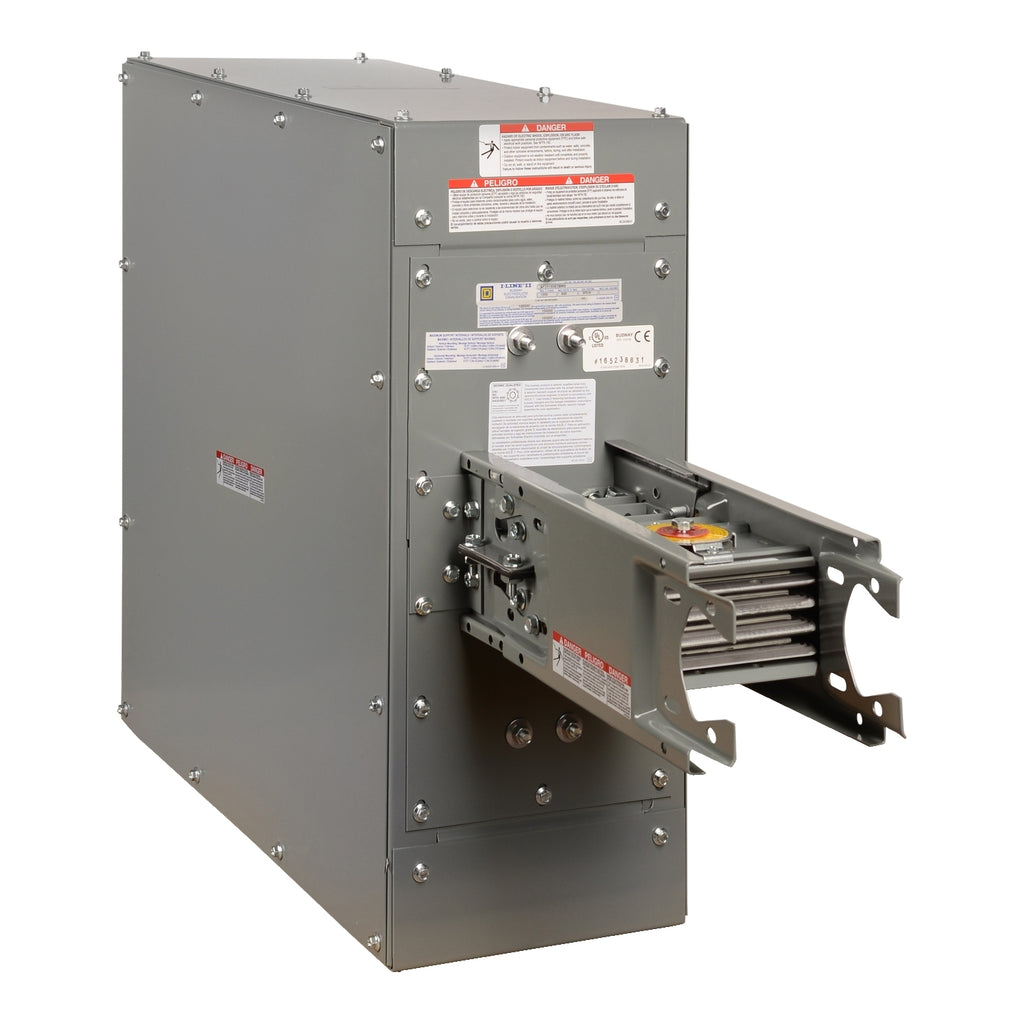

CFH2512GETBMB is a Square D I-Line busway end tap box designed for high-current power distribution applications. This copper conductor model provides reliable connection and distribution of electrical power in industrial and commercial settings. CFH2512GETBMB features a robust construction with copper busbars rated for 1200 amperes at 600 volts AC/DC, 50/60 Hz. The unit is engineered for the I-Line busway system and includes high SC bracing for enhanced structural integrity and performance in demanding environments.
- Rated Operational Voltage: 600V AC/DC, 50/60 Hz
- Amperage Rating: 1200A
- Configuration: 4-Wire
- Conductor Material: Copper
- Busbar Type: Copper conductors
- Length: 29.14 inches (740.16 mm)
- Height: 28 inches (711.2 mm)
- Width: 11 inches (279.4 mm)
- Series: I-Line Busway
- Mounting: End tap box configuration
- Bracing: High SC bracing
Specifications
- Part Number: CFH2512GETBMB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Tap Box
- Family : I-Line II
- Type : CFH
- Voltage : 600
- Amperage : 1200
- Wire : 4
Product Data
- UPC : 785901163169
- Country of Origin : United States
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 171.09
- Certification : UL 857-CSA C22.2 NO 27:1994-IEC 61439-6
