Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CFD63B225

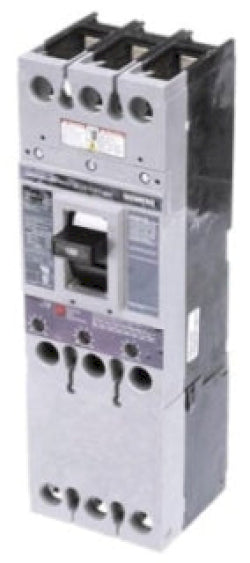

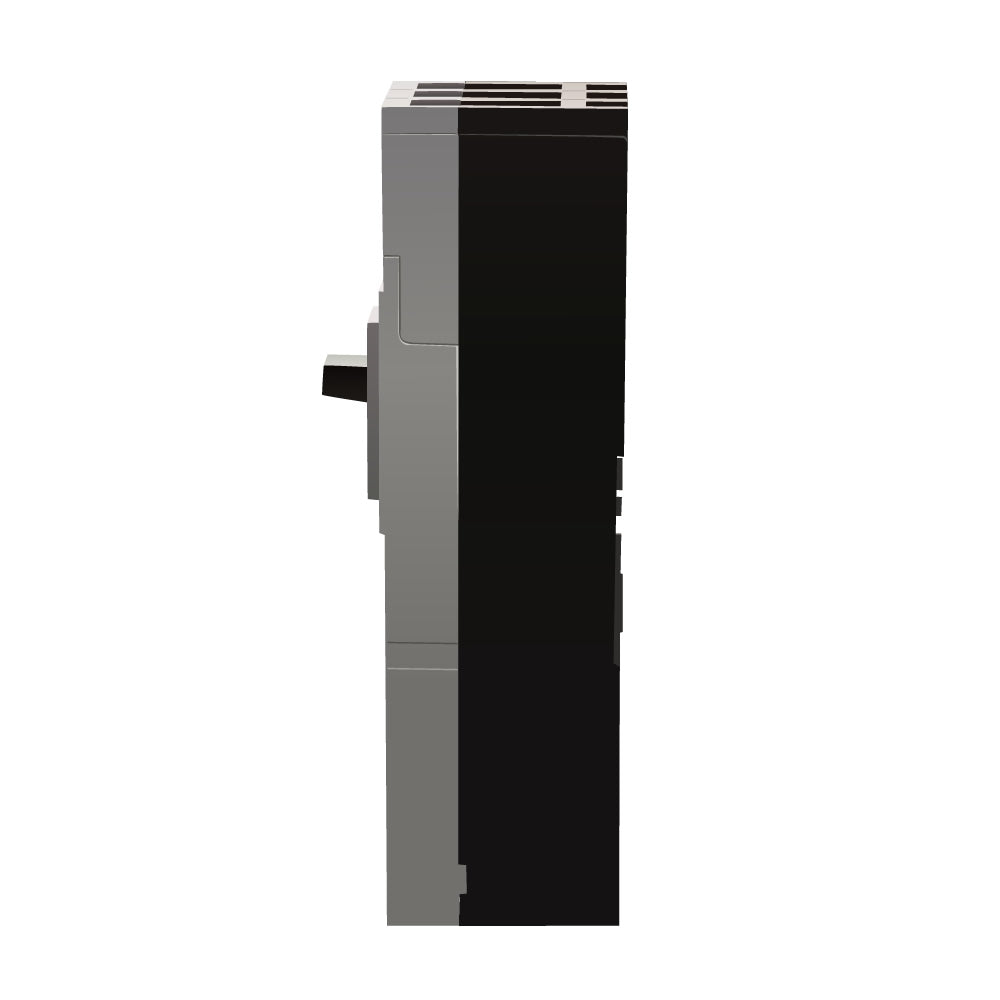

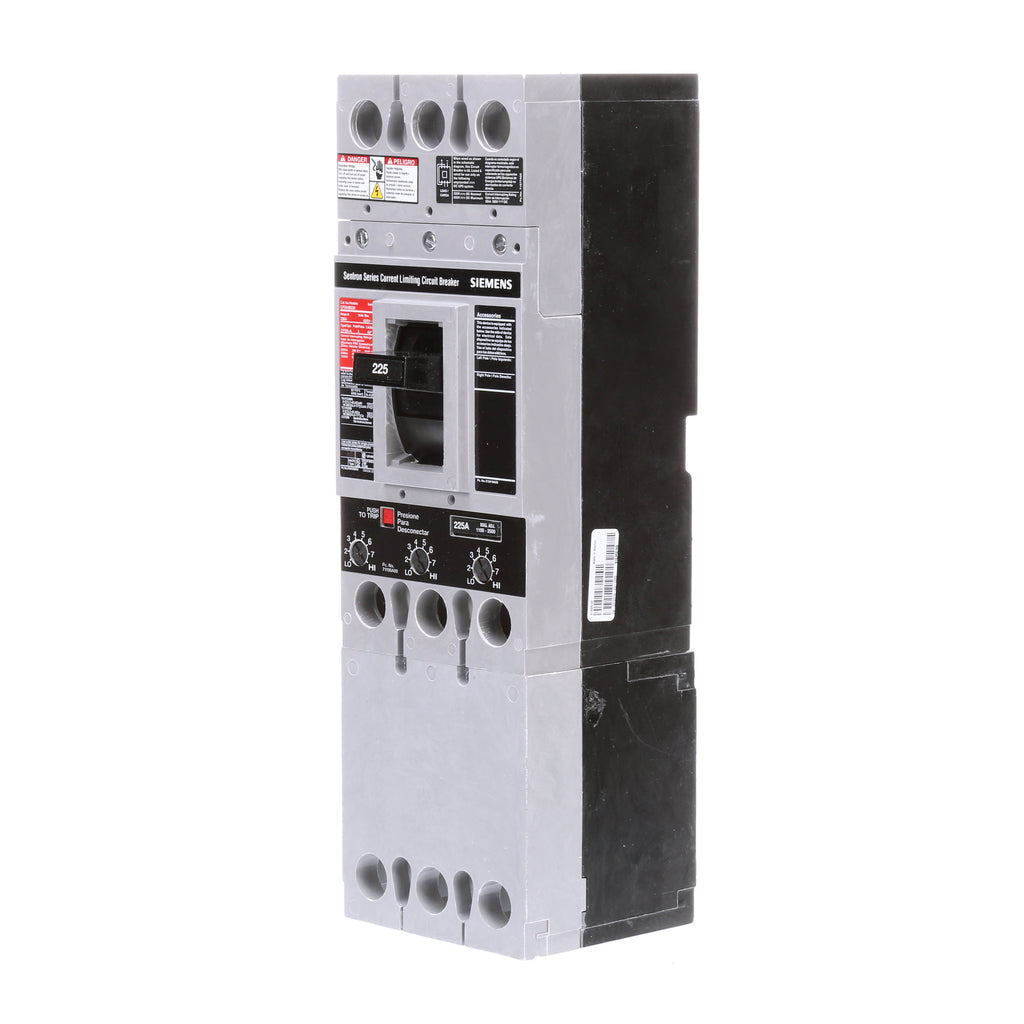

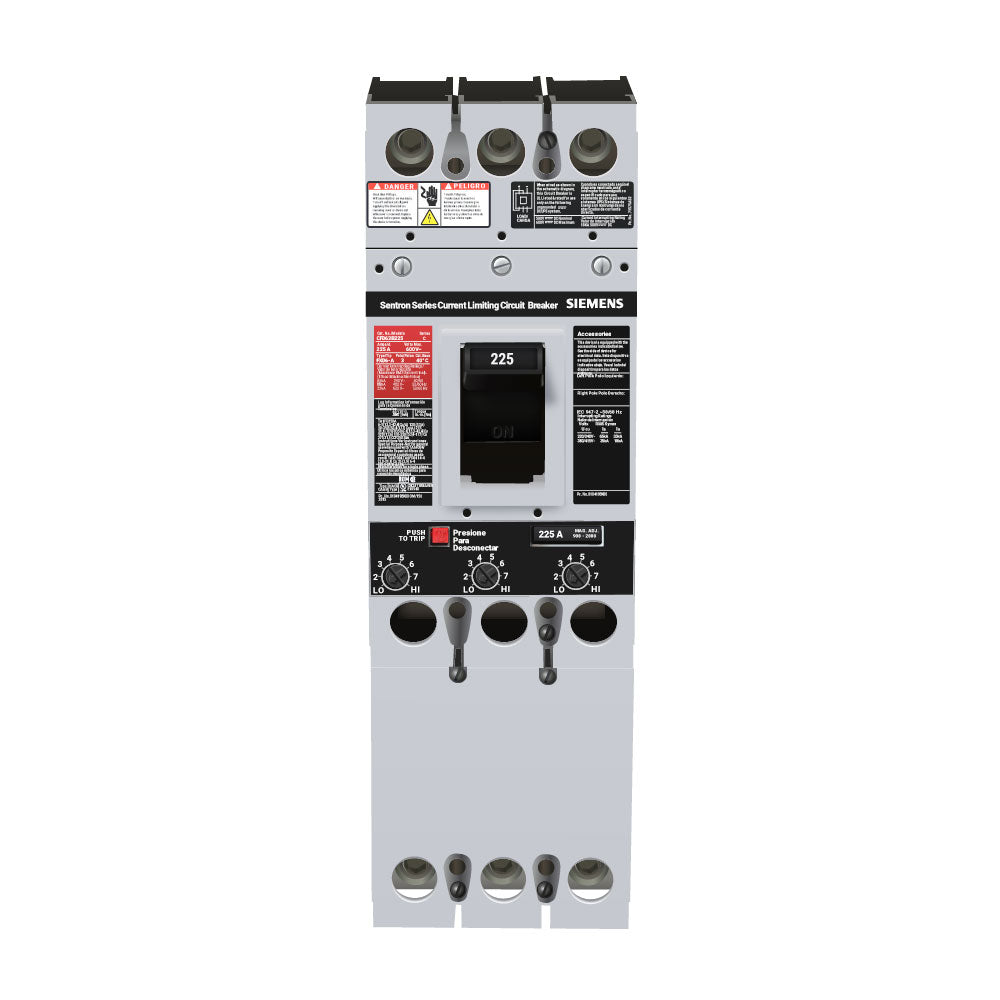

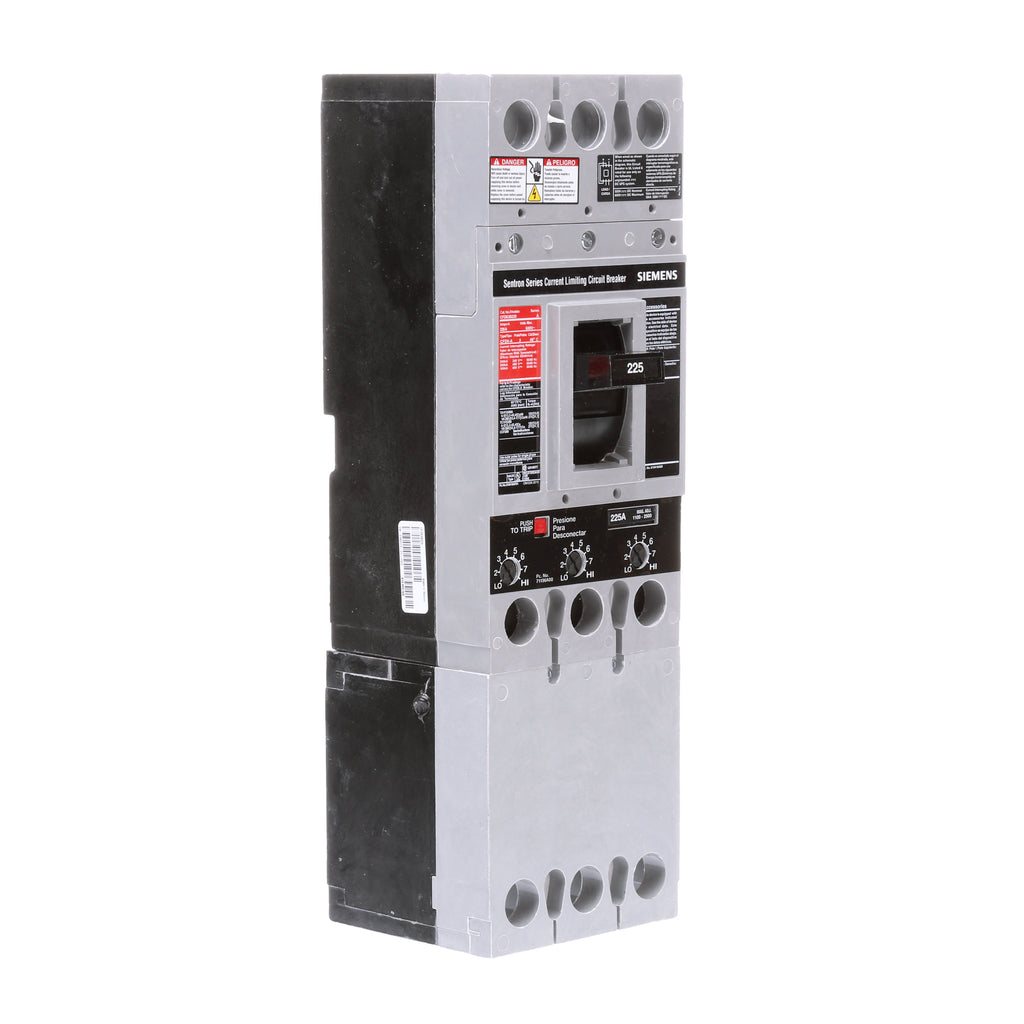

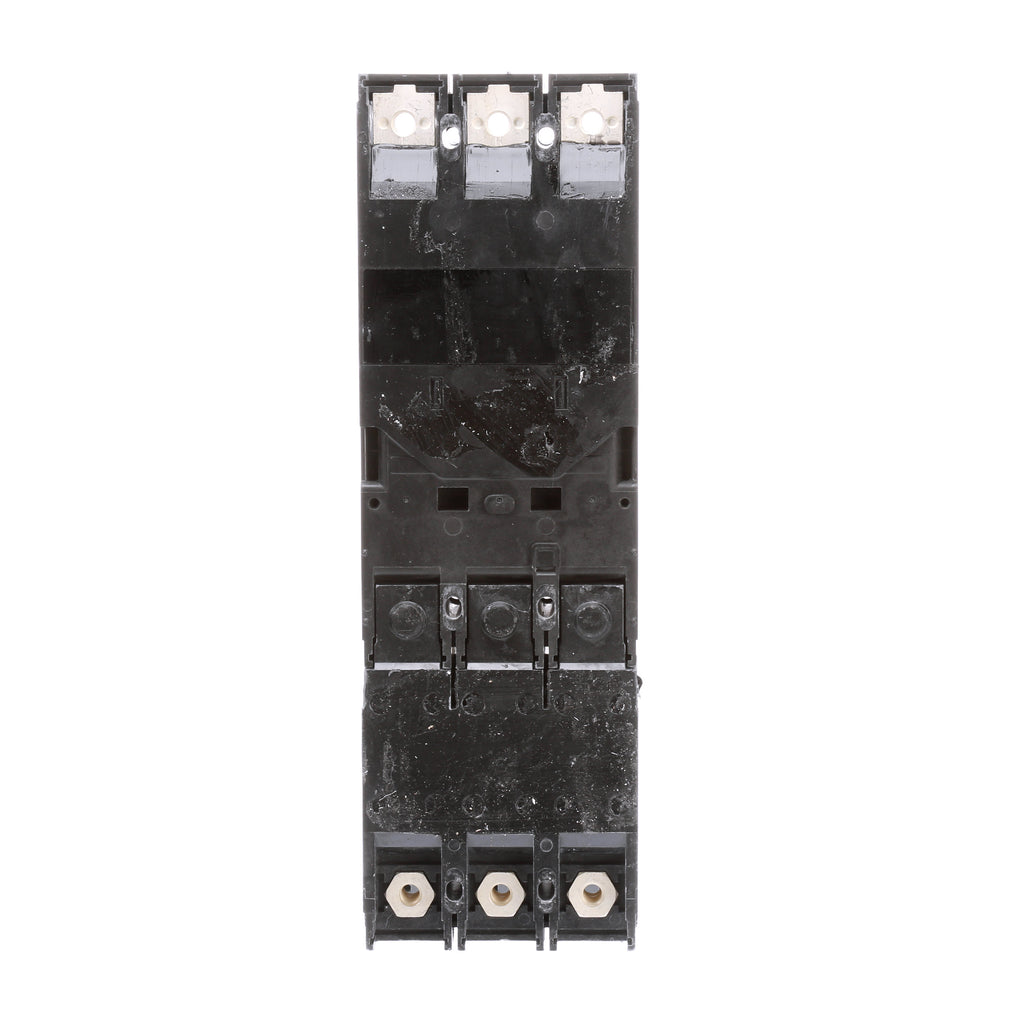

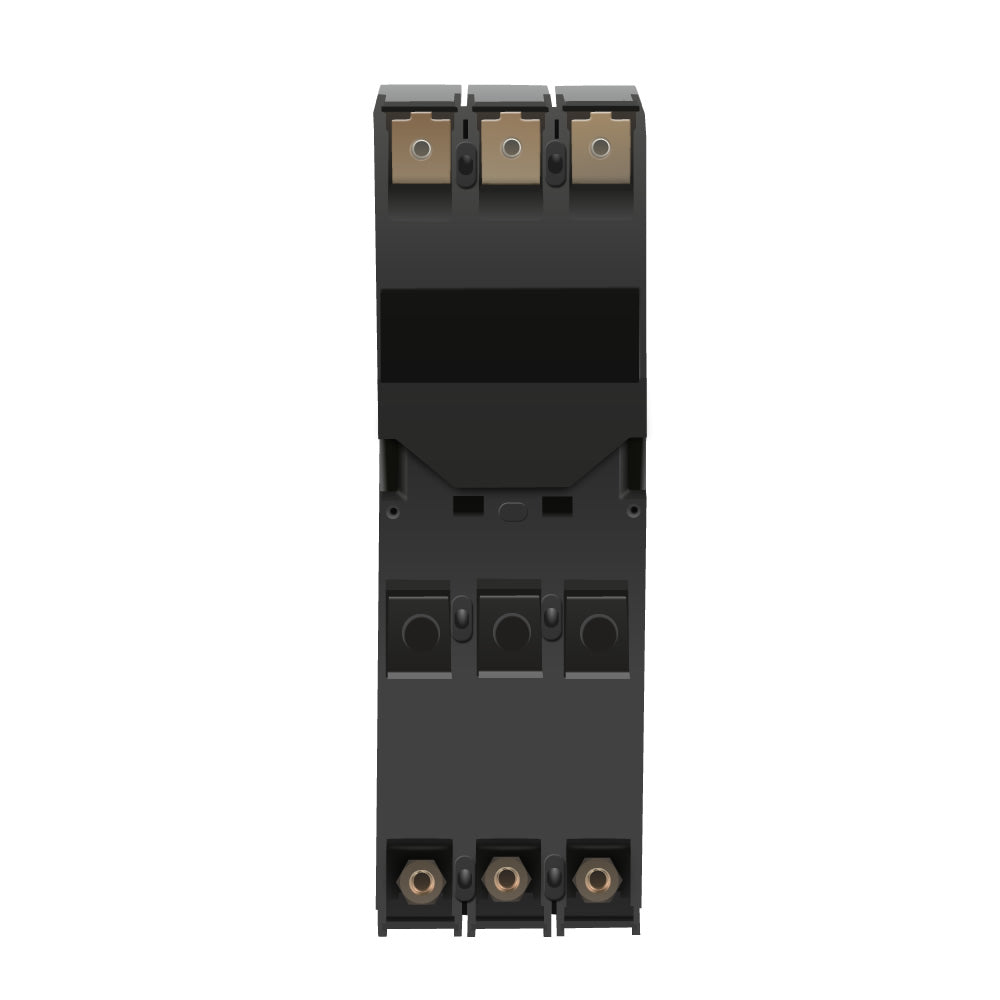

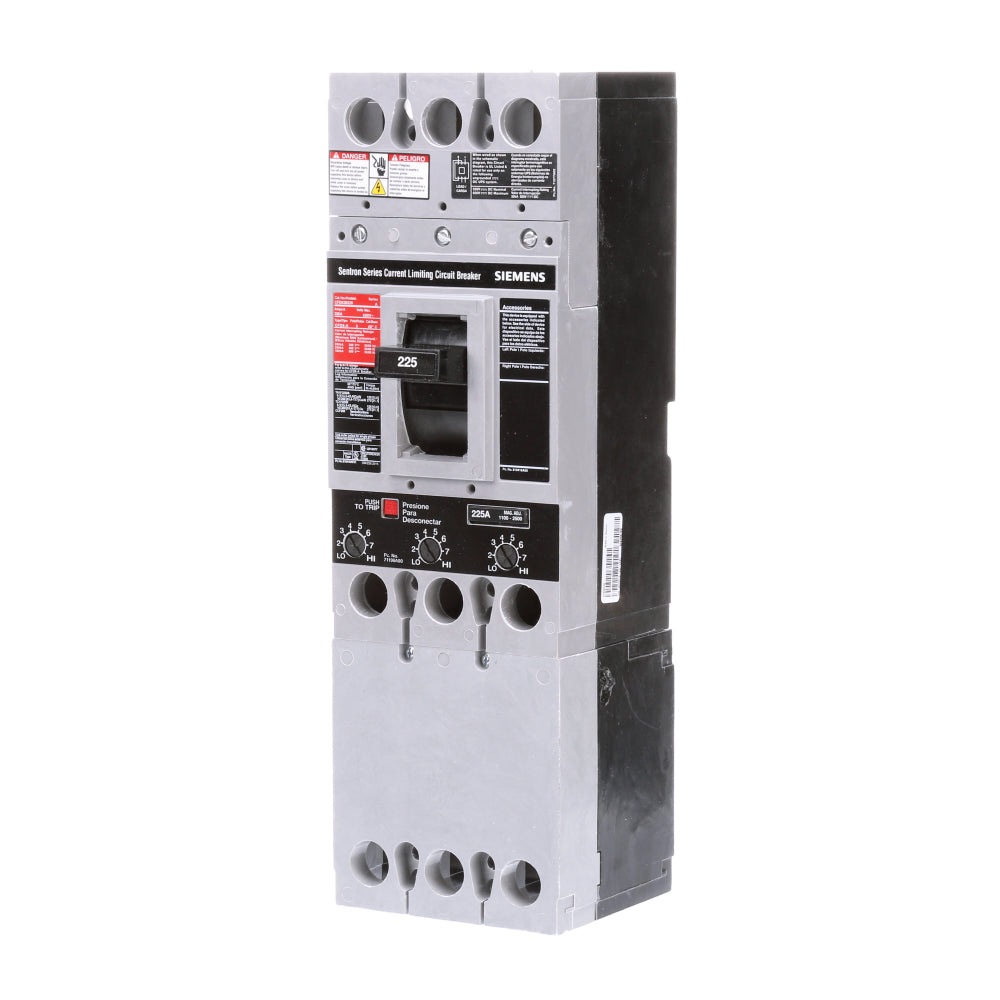

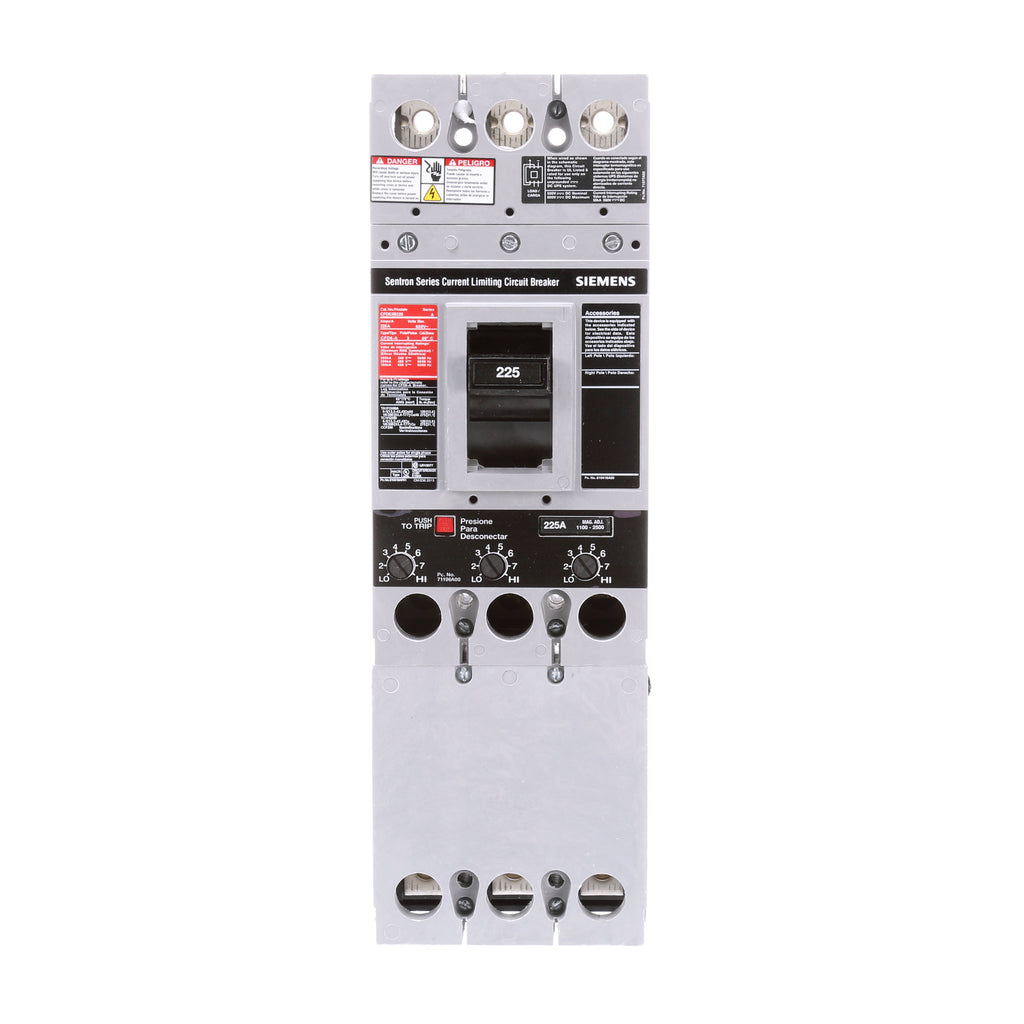

CFD63B225 is a Siemens 3-pole molded case circuit breaker with a 225 Amp rating and 600 Volt AC capacity designed for industrial power distribution.This Siemens CFD63B225 circuit breaker features a thermal magnetic trip unit, FD frame, and a high interrupting rating of 100kA at 600VAC. It supports bolt-on mounting with line and load side lug terminals and is suitable for 3-phase applications. The breaker is UL and IEC certified, designed for reliable protection in demanding electrical systems.
- Key Specifications
- Amperage: 225 Amps
- Voltage Rating: 600 VAC, 500 VDC
- Poles: 3
- Frame Type: FD Frame (CFD Series)
- Interrupt Rating: 100kA at 600 VAC
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-On
- Line & Load Side Lug Terminals
- Series: Sentron CFD
- Certifications: UL Listed, IEC Compliant
- Part Number: CFD63B225
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : CFD
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : FD Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- UPC : 783643212206
- GTIN : 00783643212206
- Country of Origin : Mexico
- Weight : 15.146
- Wire Size : 6 AWG-350KCM (CU), 4 AWG-350KCM (AL)
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
