Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CFD63B150

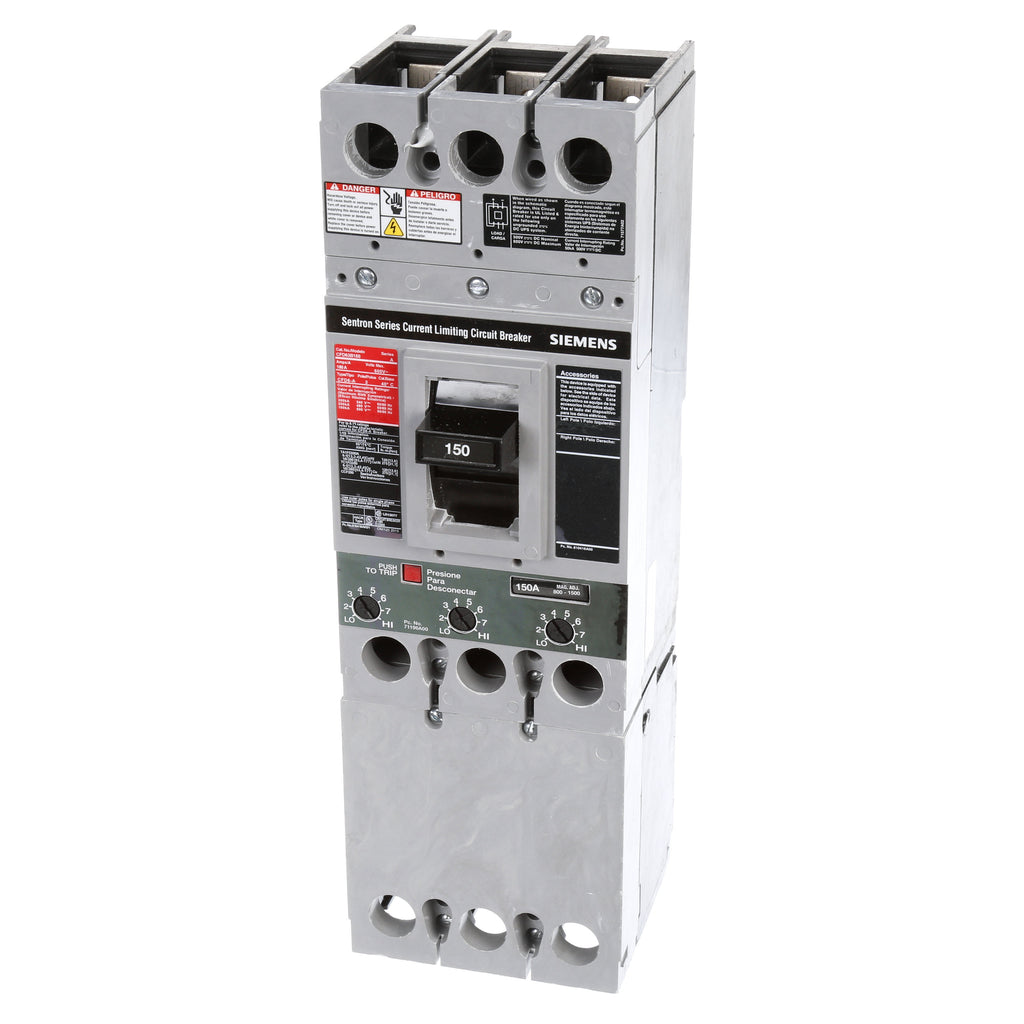

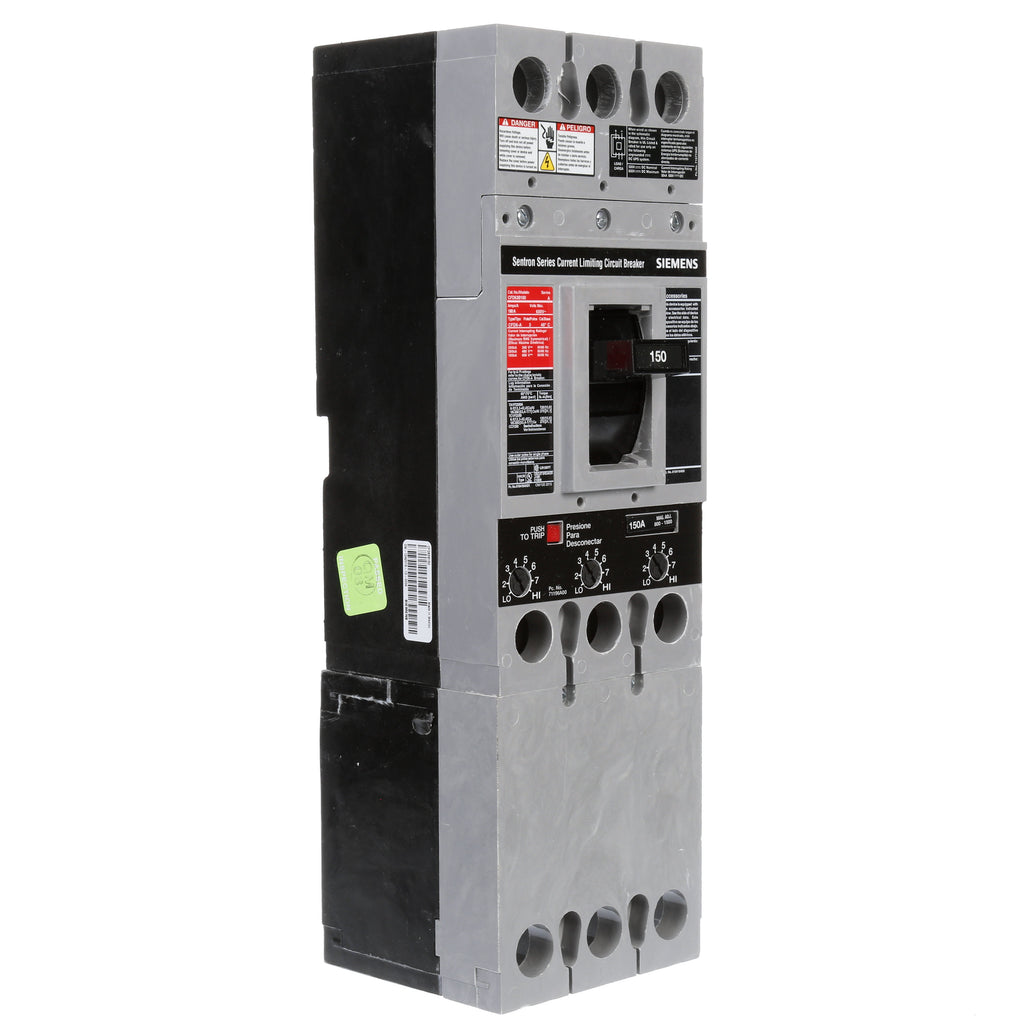

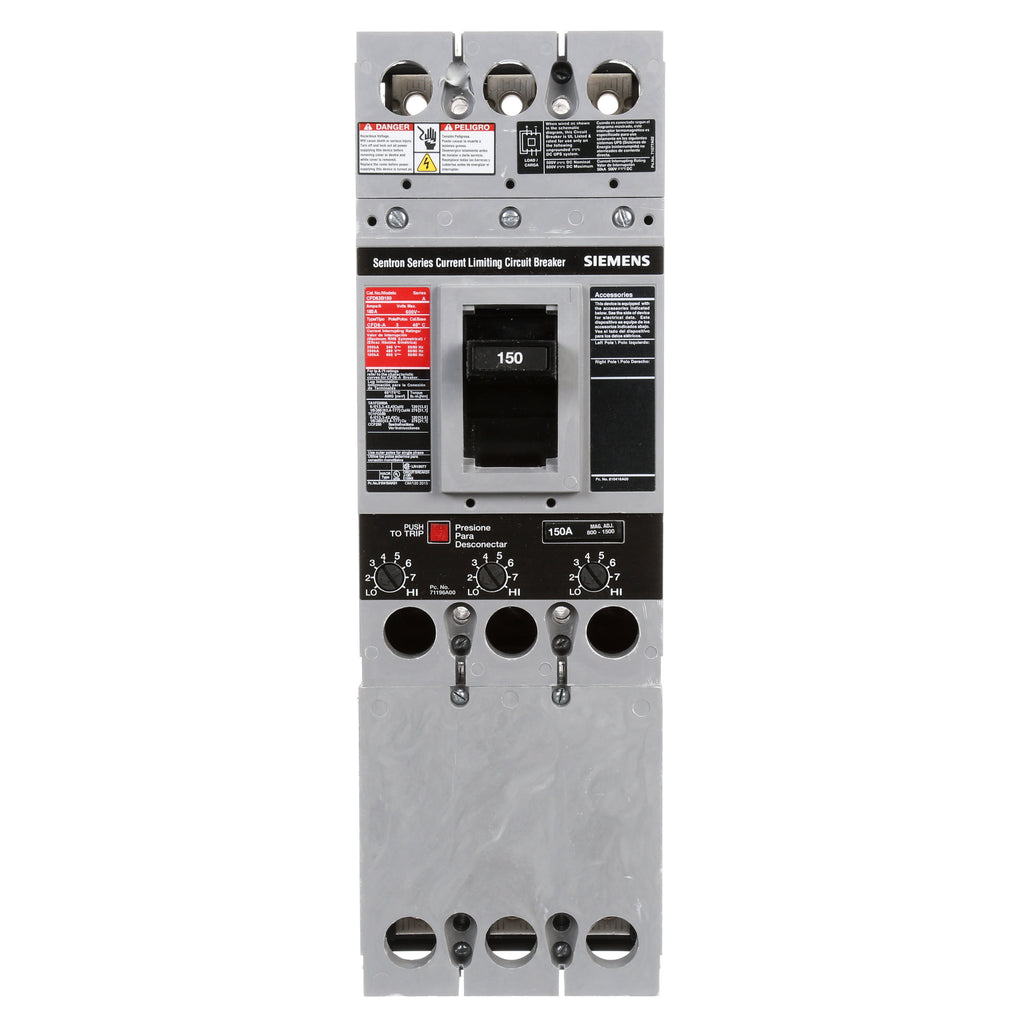

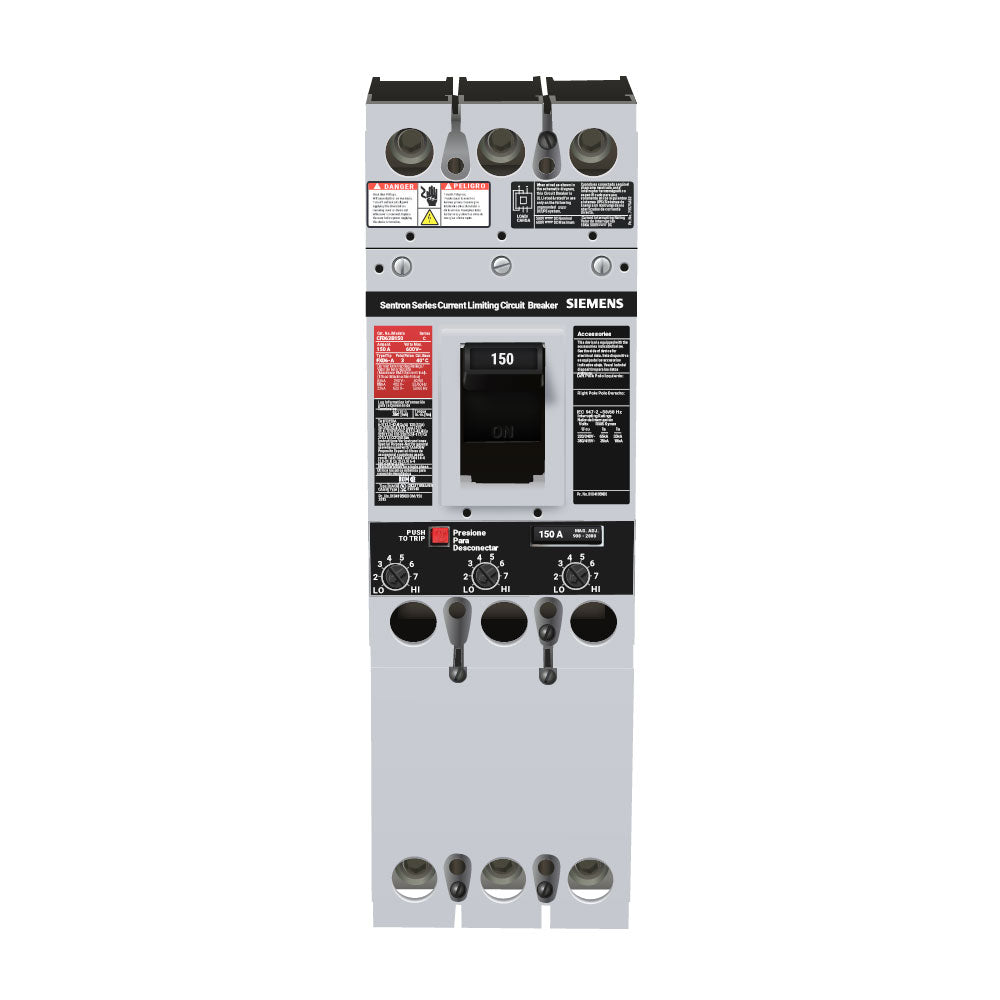

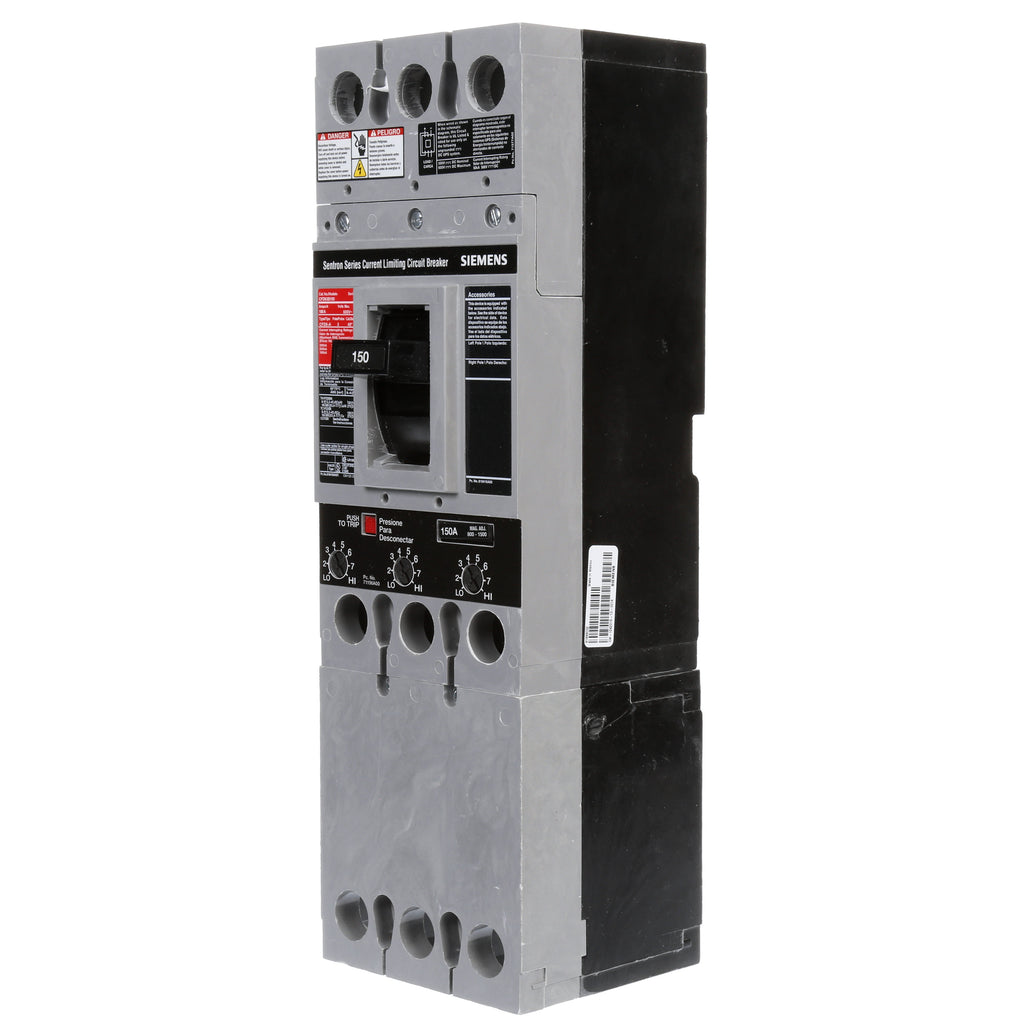

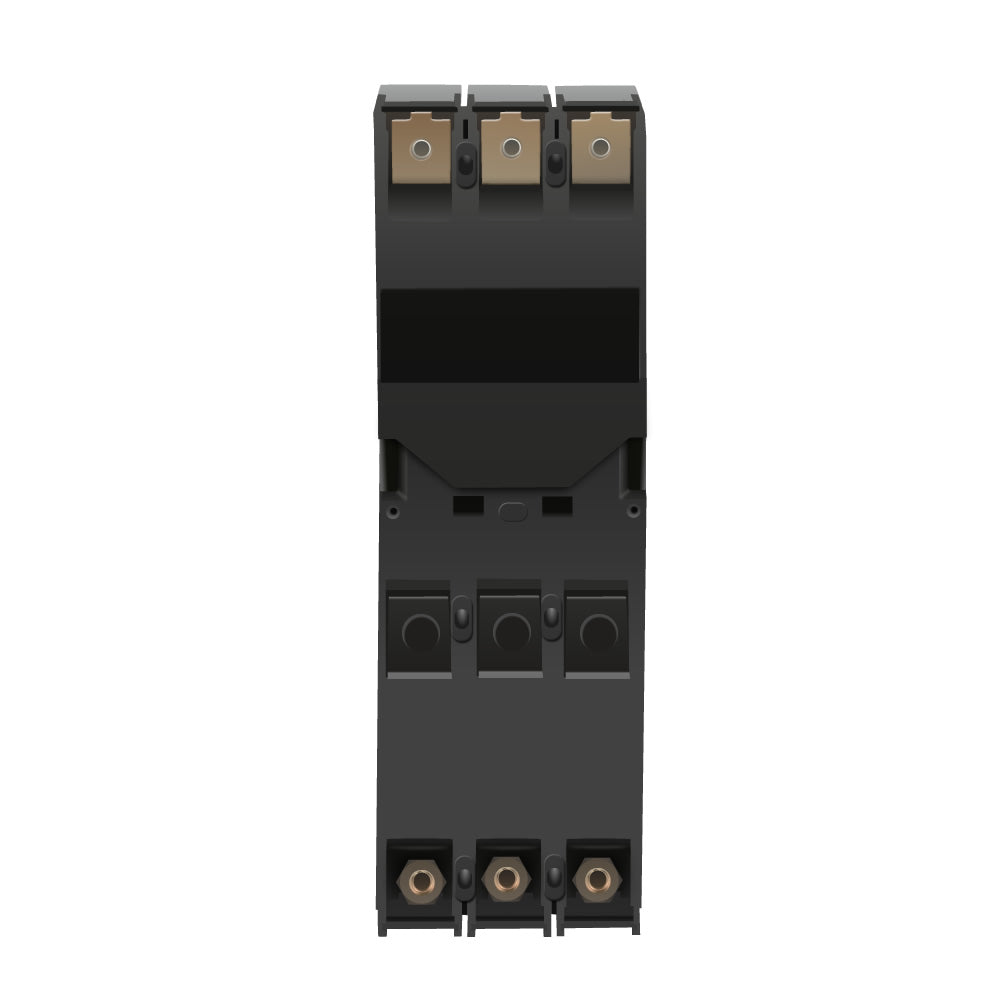

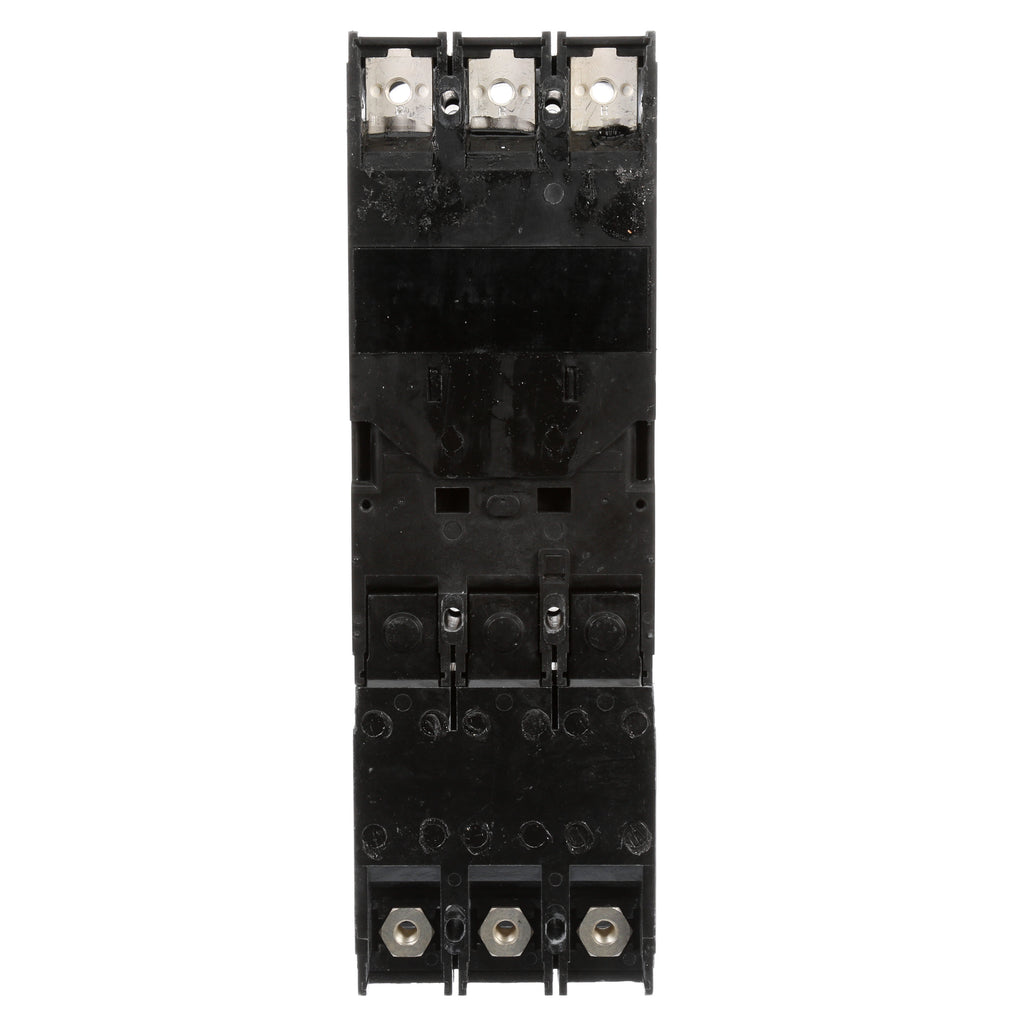

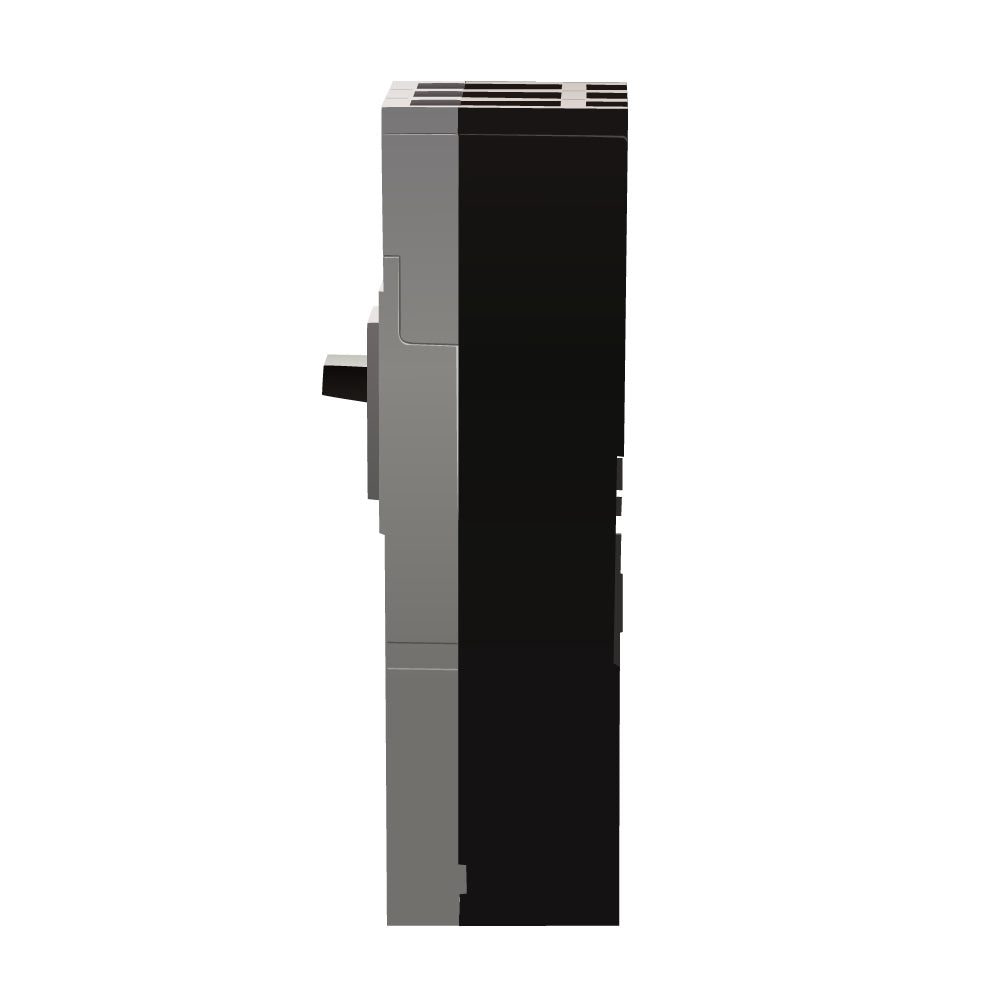

CFD63B150 is a Siemens Sentron molded case circuit breaker designed for low voltage applications with a 150 amp rating and 3 poles.This Siemens CFD63B150 circuit breaker features a 600 VAC/500 VDC voltage rating, FD frame, and a thermal magnetic trip unit with a trip range of 800 to 1500 amps. It offers a 100 kA interrupt rating at 600V and 200 kA at 480V, providing high current limiting capability. The breaker is fuseless, bolt-on mounted, and rated for 40 degrees Celsius ambient temperature. It is UL listed and HACR rated for reliable industrial use.
- Key Specifications
- Amperage: 150 A
- Voltage: 600 VAC / 500 VDC
- Poles: 3
- Frame: FD
- Interrupt Rating: 100 kA at 600V, 200 kA at 480V
- Trip Type: Thermal Magnetic
- Trip Range: 800 to 1500 A
- Mounting Type: Bolt-on
- Frequency: 50/60 Hz
- Temperature Rating: 40°C
- Certifications: UL Listed, HACR Rated
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: CFD63B150
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : CFD
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : FD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643212176
- GTIN : 00783643212176
- Country of Origin : Mexico
- Weight : 14.846
