Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CFD63B125

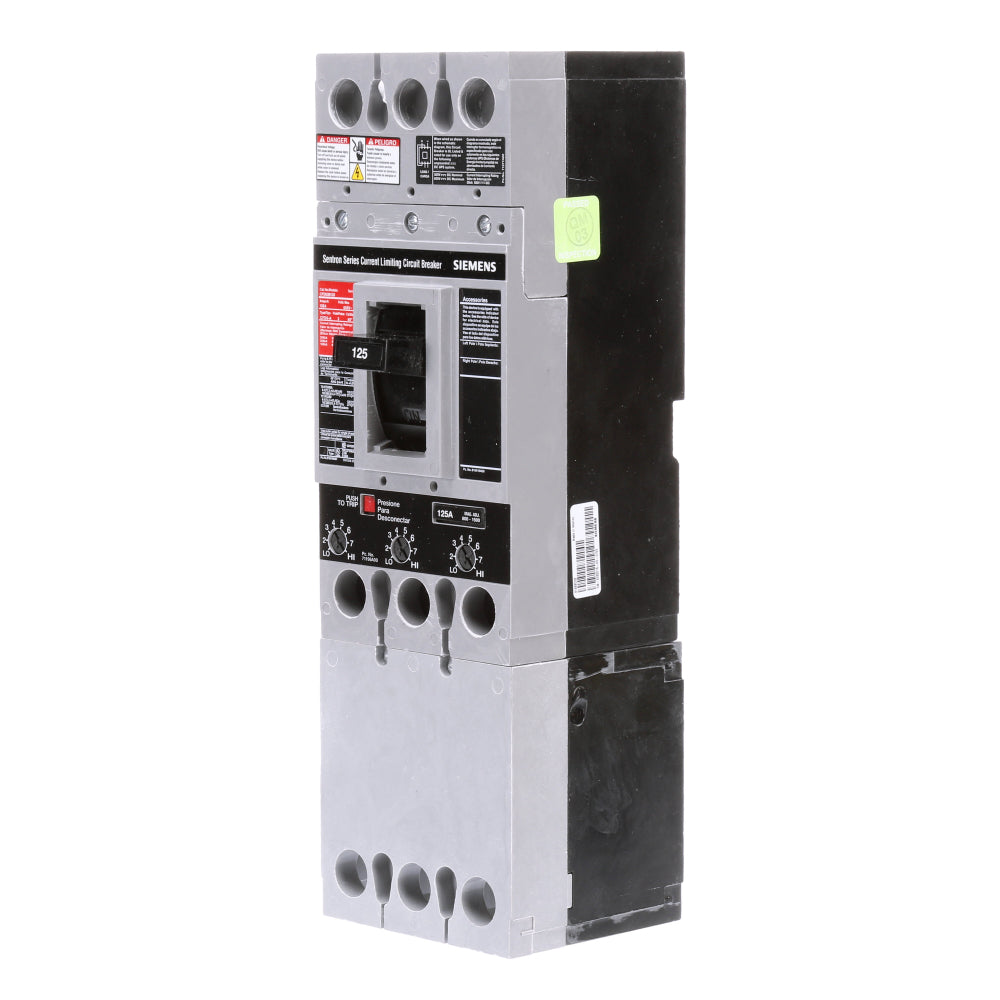

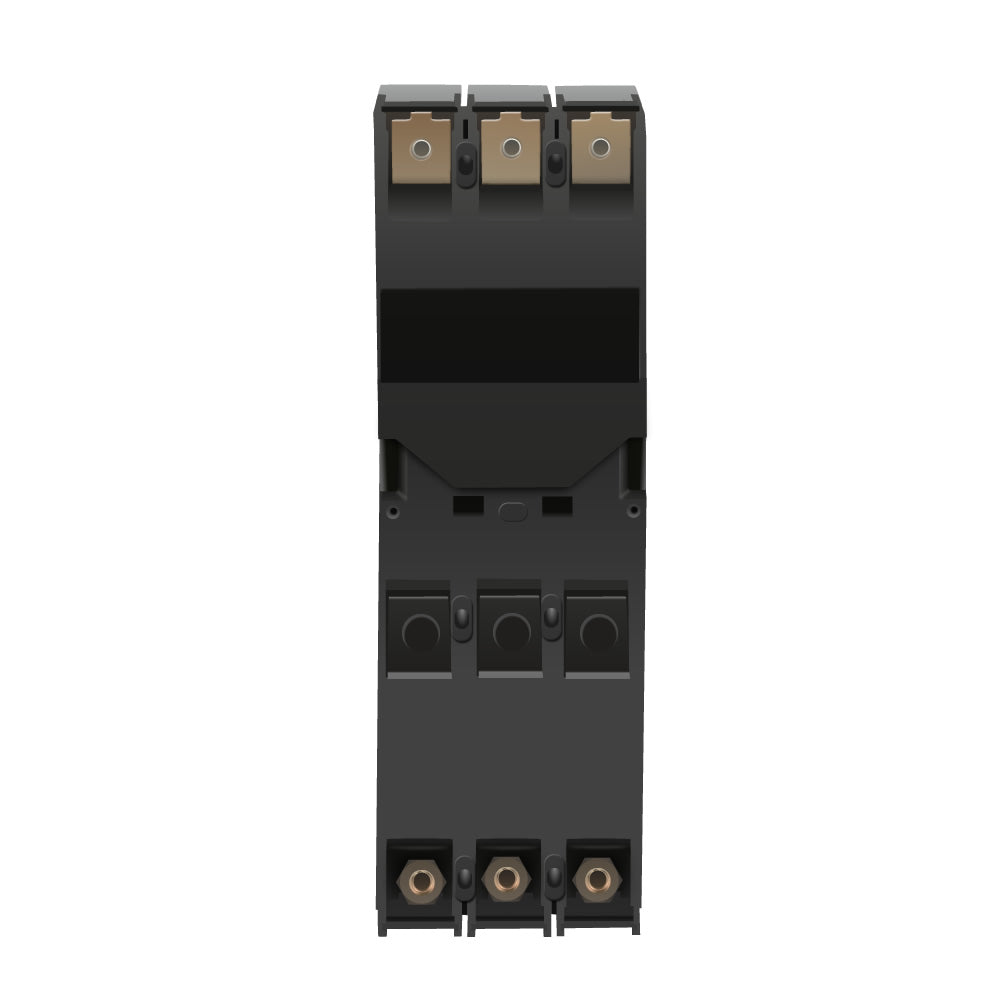

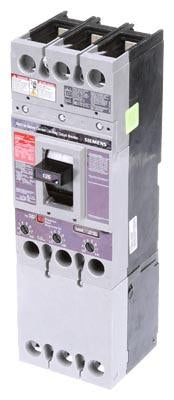

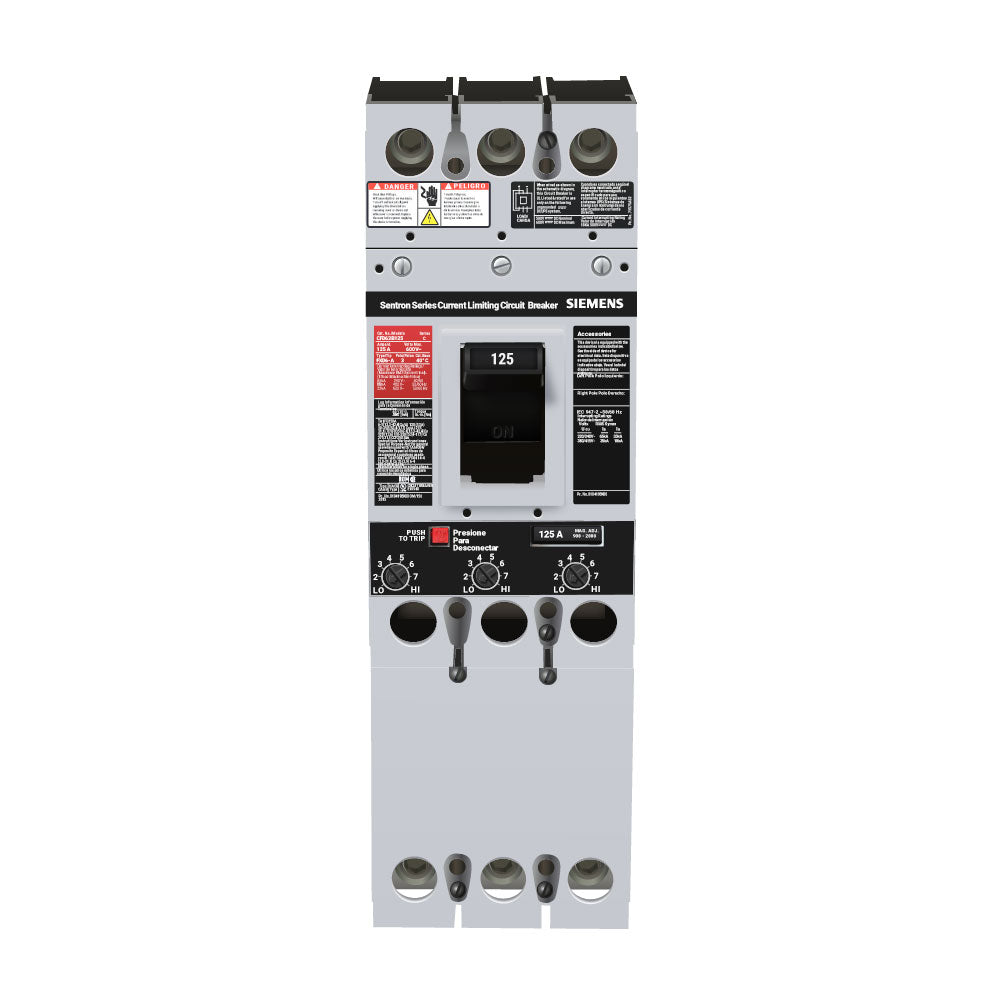

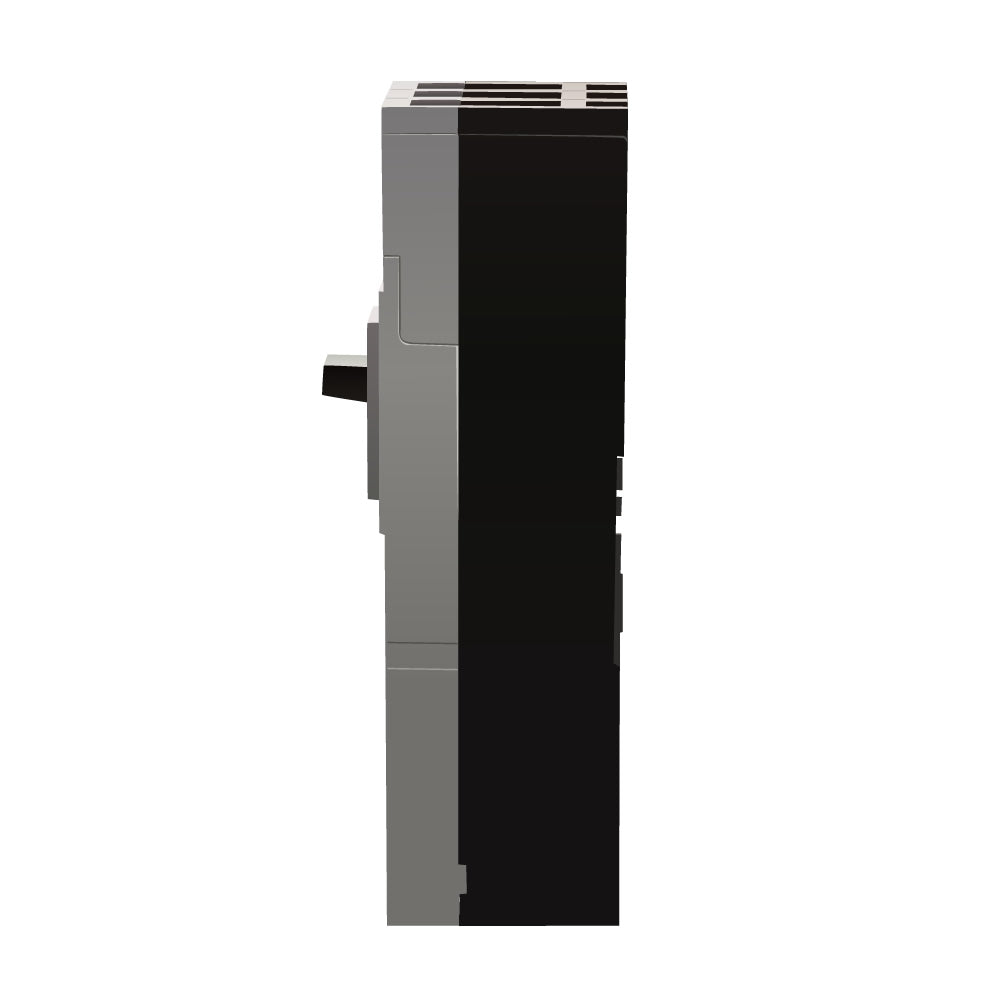

CFD63B125 is a Siemens 3-pole molded case circuit breaker with a 125 ampere rating and 600 volt AC capacity, designed for reliable circuit protection.This Siemens Sentron series CFD type breaker features a thermal-magnetic trip unit, bolt-on mounting, and a high interrupt rating of 200kA at 480V AC. It is suitable for low voltage applications requiring robust and precise overload and short circuit protection.
- Amperage: 125A
- Voltage Rating: 600VAC, 500VDC
- Poles: 3
- Mounting Type: Bolt-on
- Interrupt Rating: 200,000 A at 480V AC
- Trip Unit: Thermal Magnetic
- Series/Frame: Sentron CFD
- Operating Temperature: Standard 40°C
- Current Limiting: Yes
- Certifications: UL Listed, CSA Certified
Additional Information
Lugs are not included
Specifications
- Part Number: CFD63B125
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : CFD
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : FD Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643212169
- GTIN : 00783643212169
- Country of Origin : Mexico
- Weight : 13.6
- Wire Size : 6 AWG-350KCM (CU), 4 AWG-350KCM (AL)
