Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CFD63B100

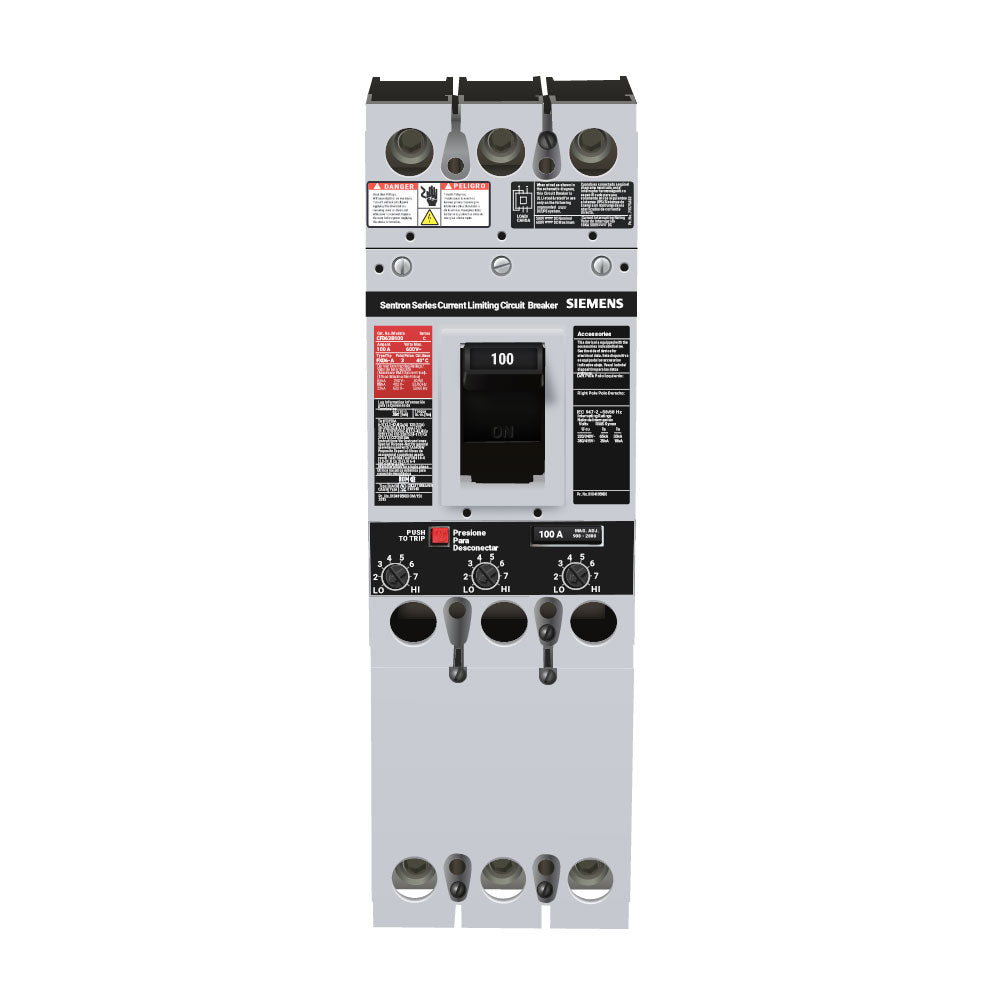

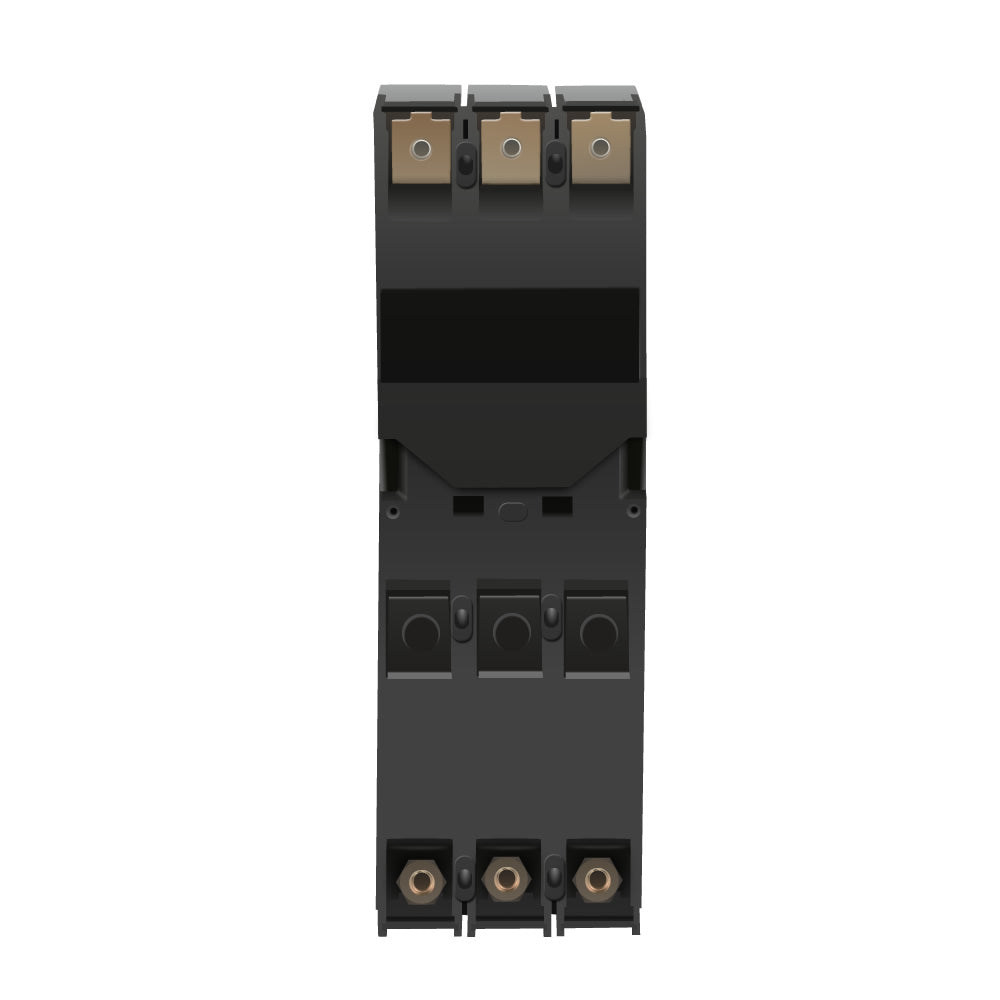

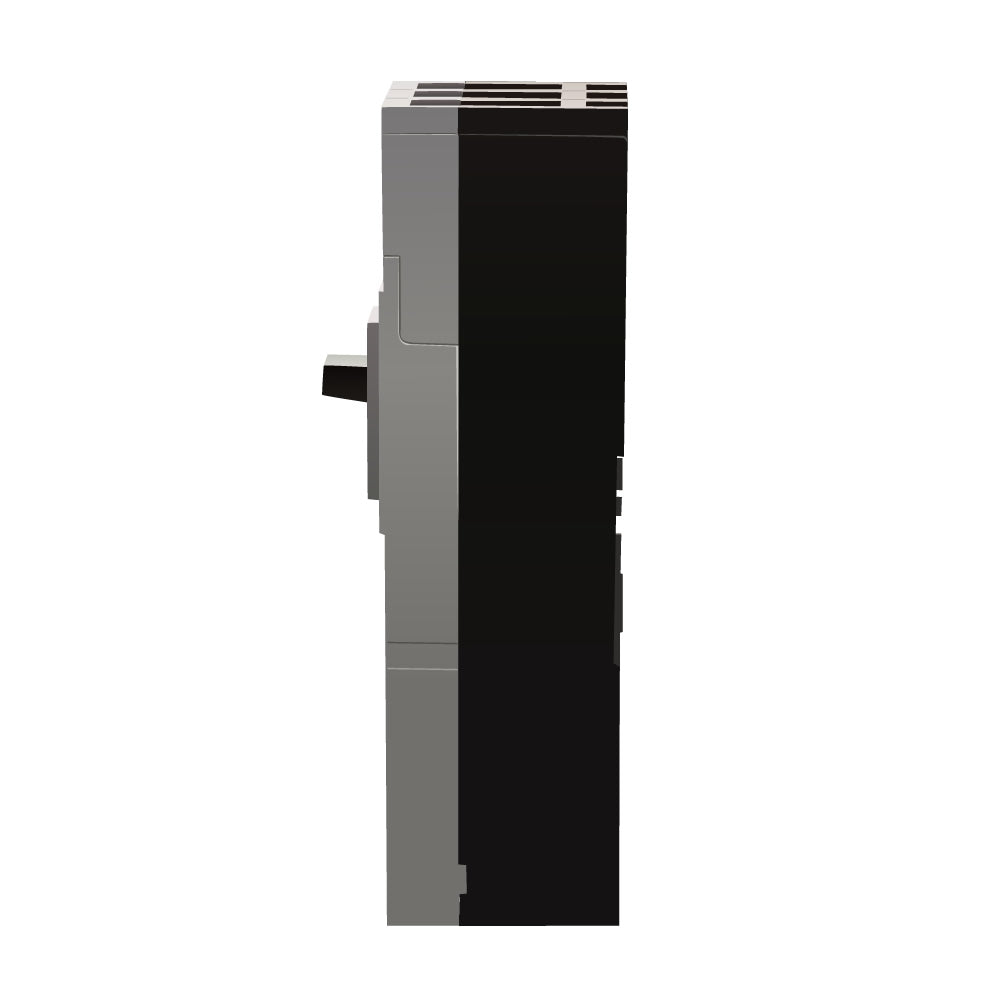

CFD63B100 is a Siemens 100 amp, 600 volt, 3-pole molded case circuit breaker designed for reliable circuit protection.This Siemens CFD frame breaker features a bolt-on mounting type with thermal magnetic trip unit providing long time and instantaneous trip functions. It has a very high interrupting rating of 100kA at 600V AC and 200kA at 480V AC, meeting UL 489 and IEC 60947-2 standards. The breaker includes line and load side lug terminals and is suitable for three-phase applications.
- Key Specifications
- Amperage: 100A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 100kA at 600V, 200kA at 480V
- Frame Type: CFD
- Trip Unit: Thermal Magnetic with long time and instantaneous functions
- Certifications: UL 489, IEC 60947-2
- Line and Load Side Lug Terminals
- Phase: 3
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: CFD63B100
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : CFD
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : FD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643212145
- GTIN : 00783643212145
- Country of Origin : Mexico
- Weight : 13.6
- Wire Size : 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL)
