Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CFD63B070

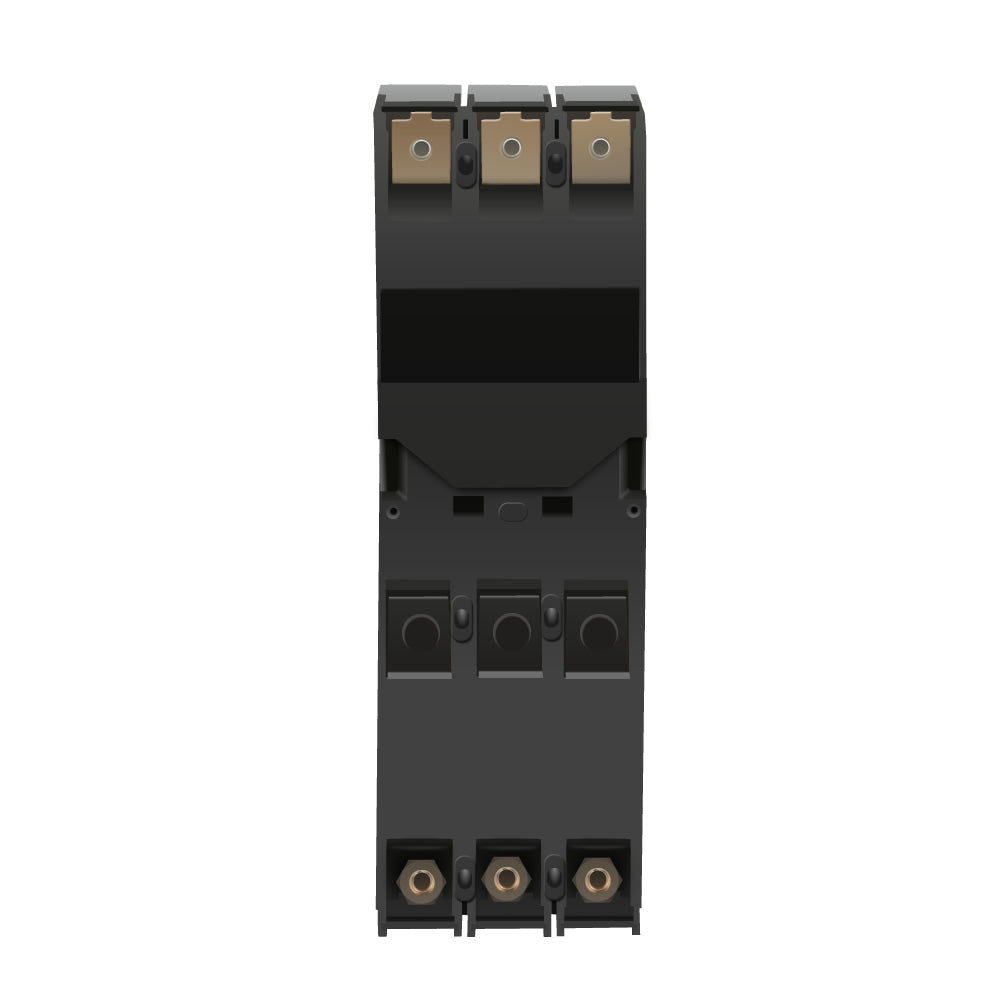

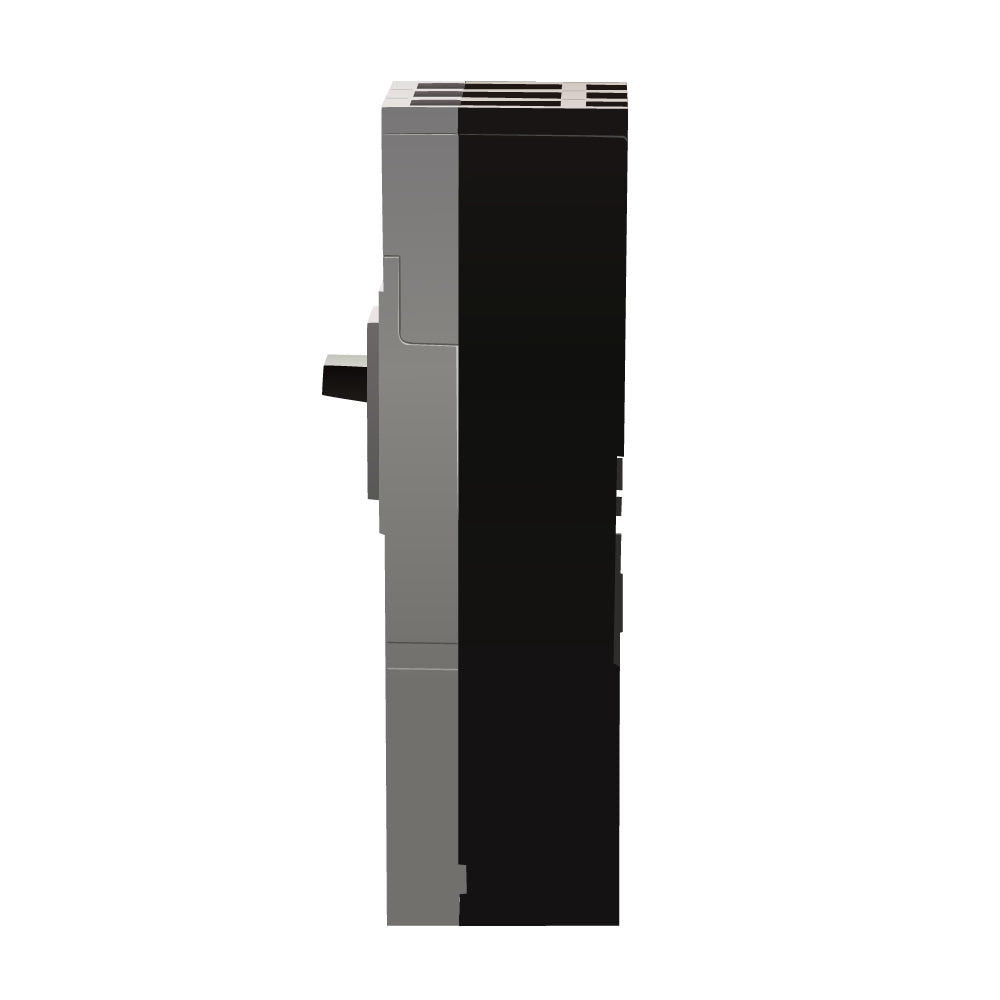

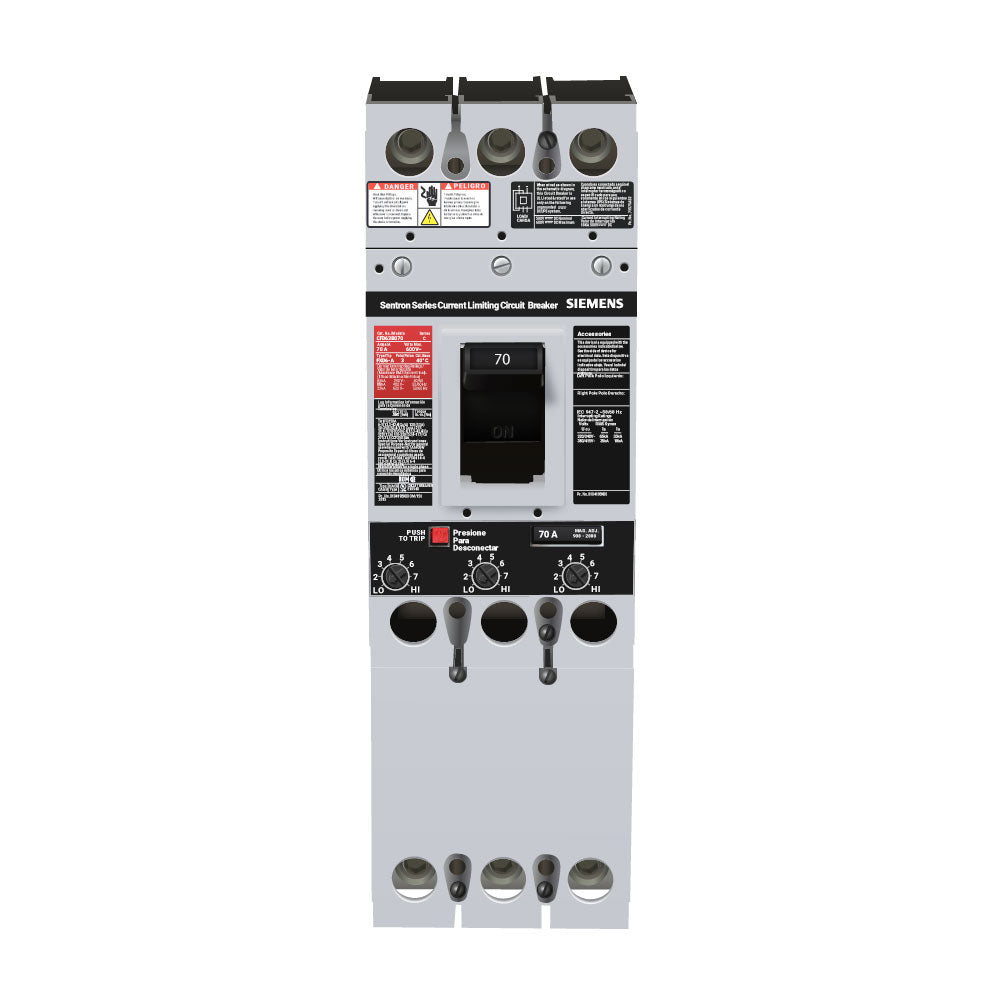

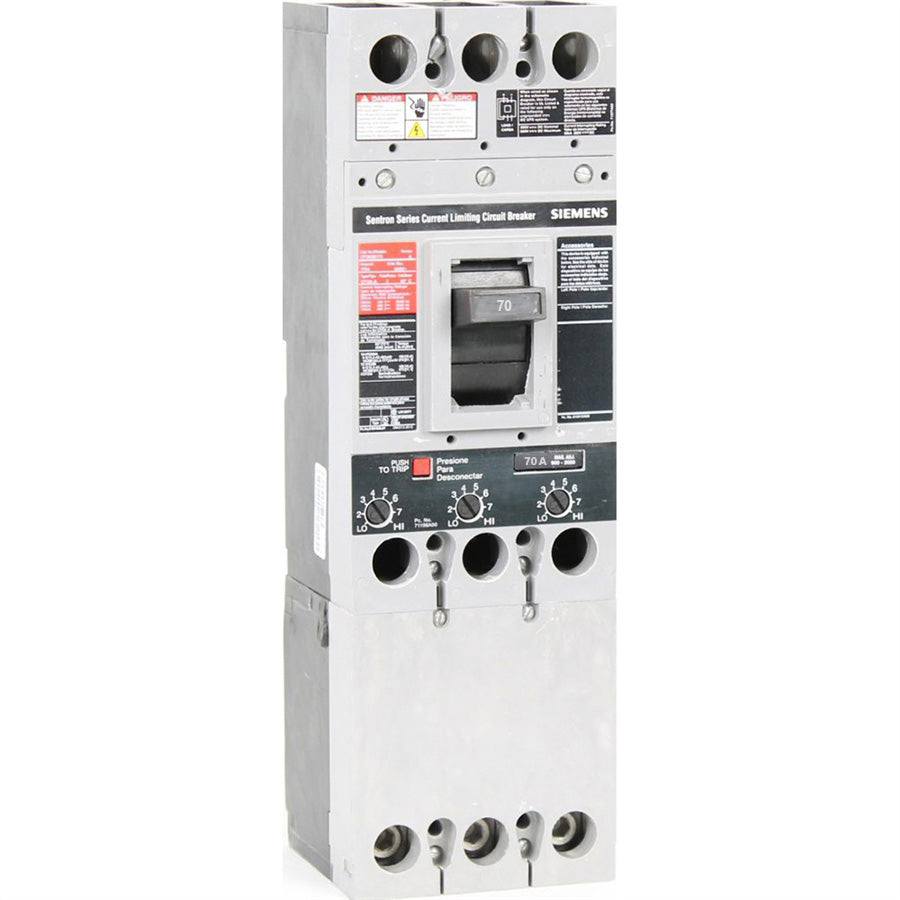

CFD63B070 is a Siemens 3-pole molded case circuit breaker rated for 70 amps and 600 volts, designed for industrial power distribution.This Siemens CFD63B070 circuit breaker features a 3-pole configuration with a 70 amp trip rating and a 600 volt AC voltage rating. It is part of the FD frame series with a current limiting breaking capacity of 200kA at 480V and 100kA at 600V. The breaker uses a bolt-on mounting type and meets UL 489 and IEC 60947-2 standards for safety and performance.
- Key Specifications
- Amperage: 70A trip rating
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 200kA at 480V, 100kA at 600V
- Series/Frame: FD Frame
- Trip Unit: Thermal Magnetic
- Certifications: UL 489, IEC 60947-2
- Part Number: CFD63B070
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : CFD
- Voltage : 600
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : FD Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- UPC : 783643212114
- GTIN : 00783643212114
- Country of Origin : Mexico
- Weight : 13.6
- Certification : Ul Listed
- Wire Size : AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, Al
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
