Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CED63B100L

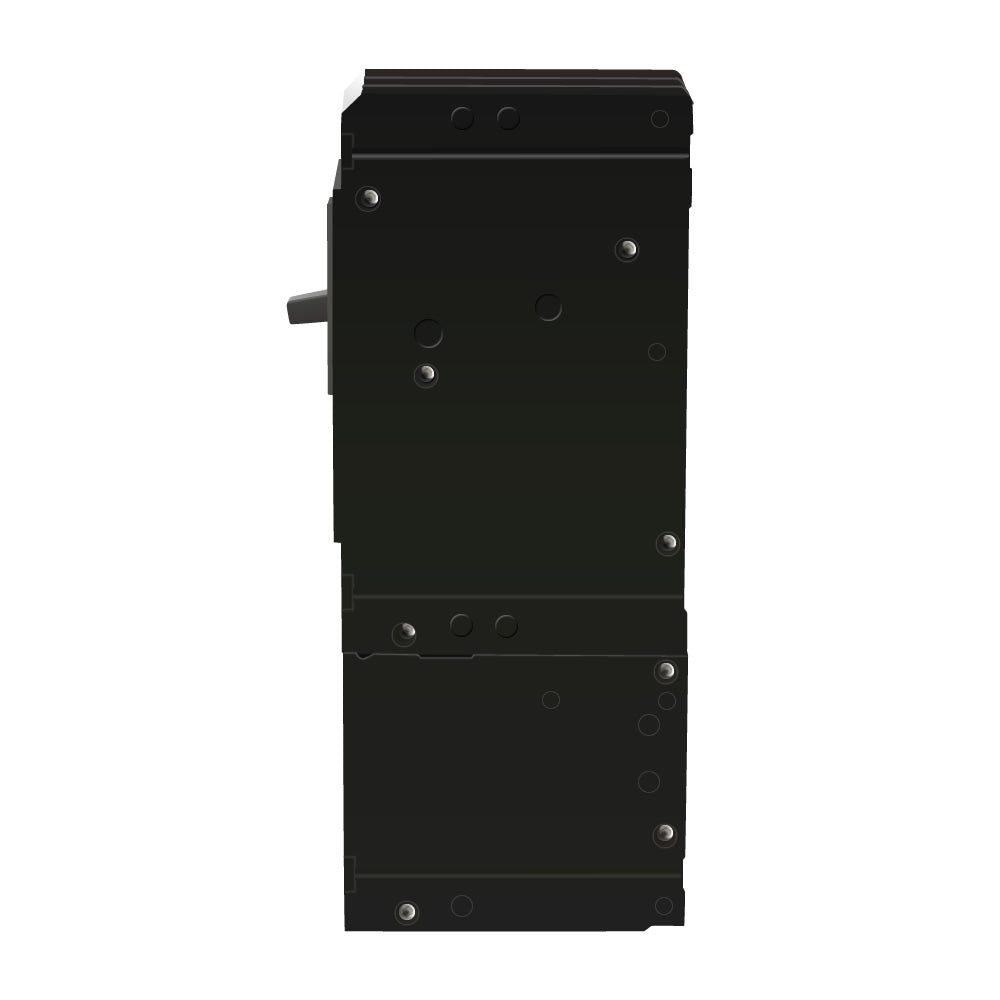

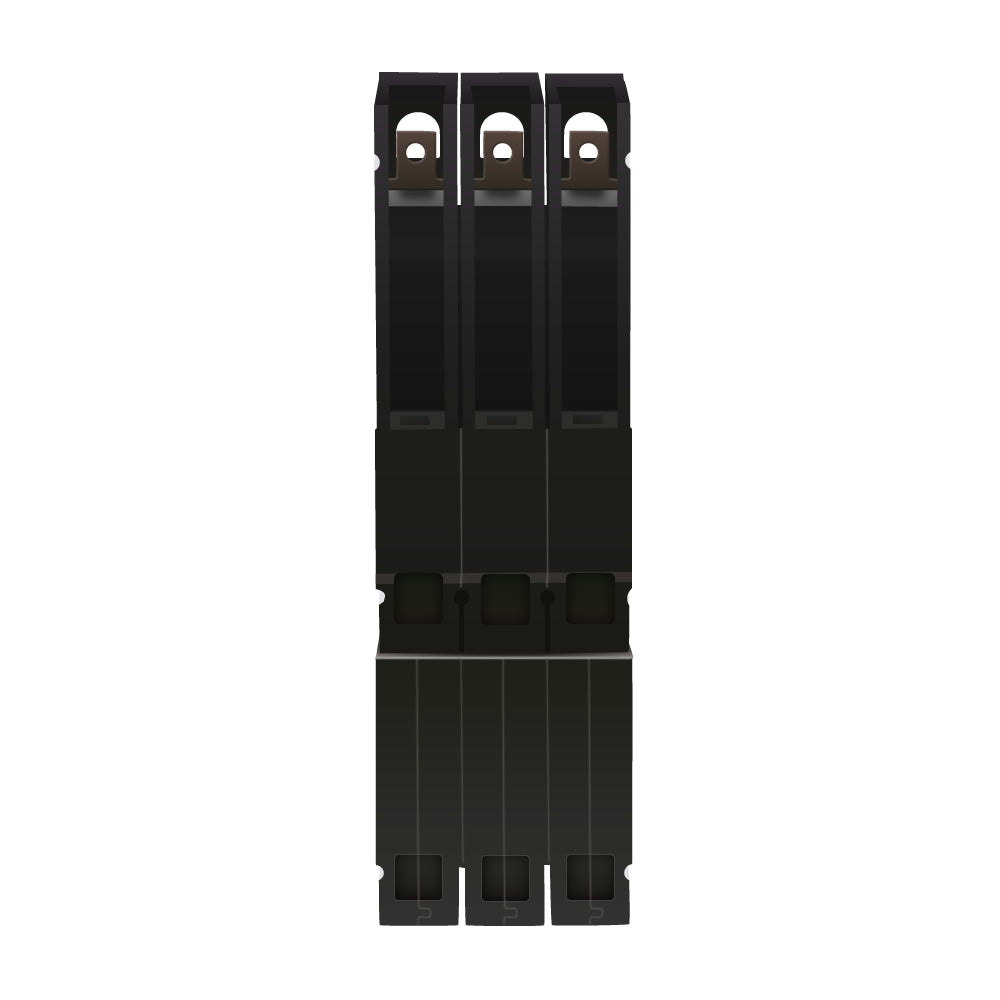

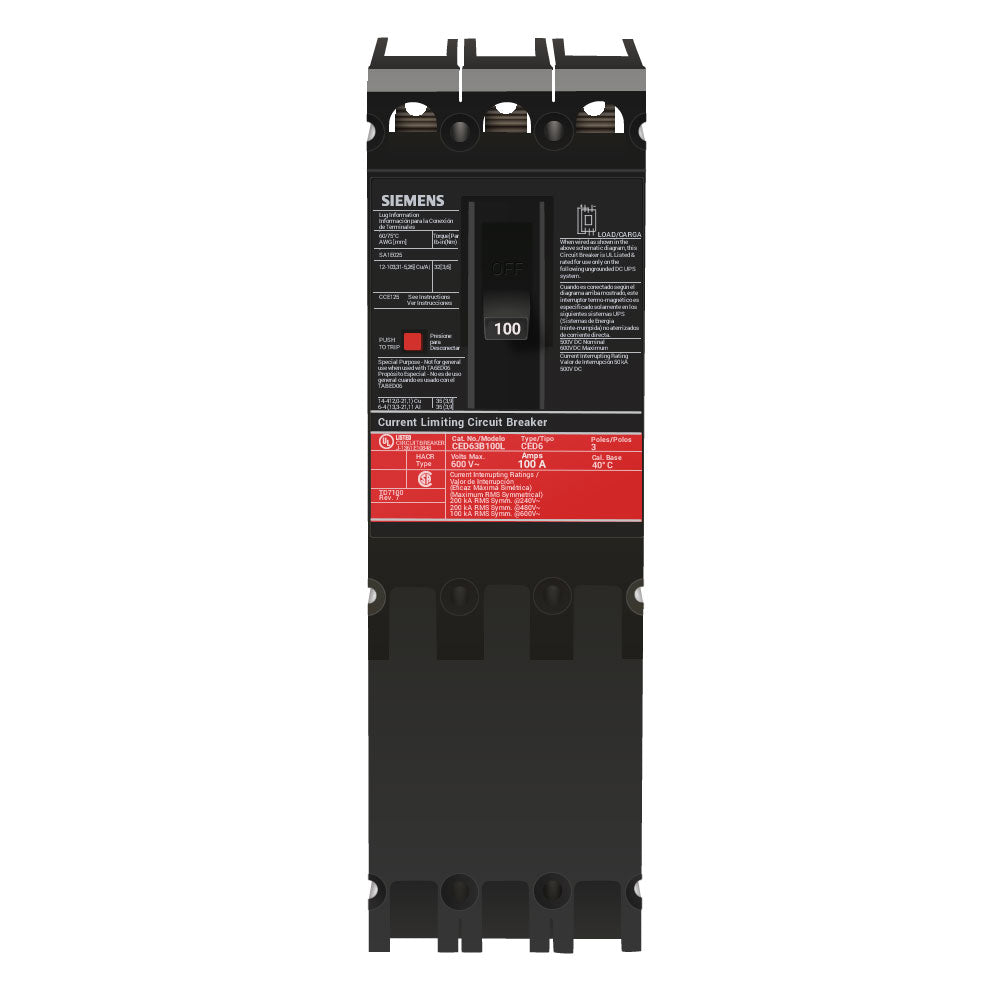

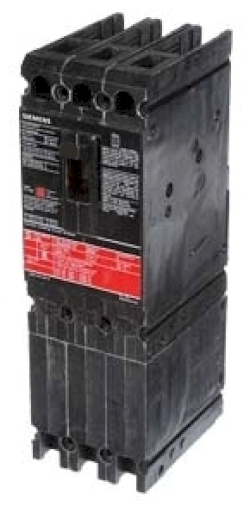

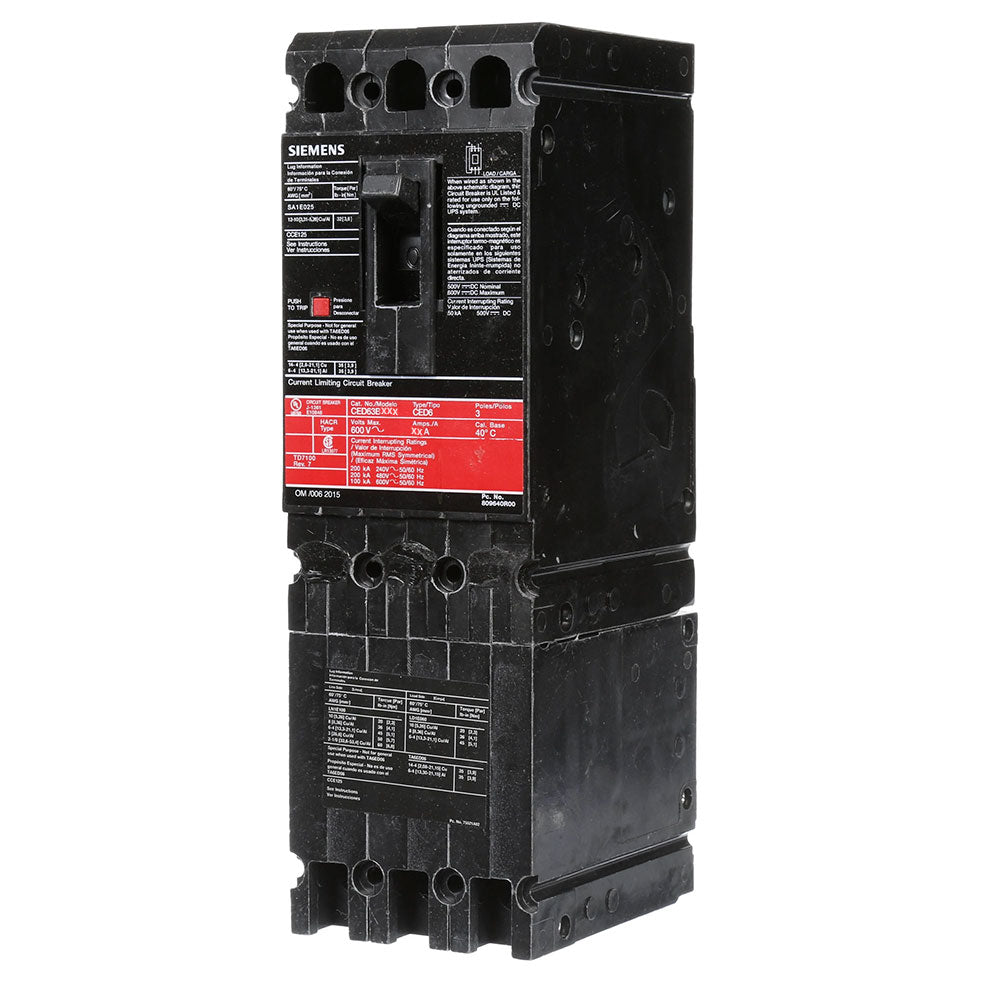

CED63B100L is a Siemens molded case circuit breaker designed for reliable protection in electrical distribution systems.This 3-pole breaker features a 100 ampere rating and is rated for use at 600 volts AC. It belongs to the Siemens CED frame series and utilizes a thermal magnetic trip unit for circuit protection. The breaker offers a high interrupting rating of 200 kiloamperes at 480 volts and 100 kiloamperes at 600 volts, suitable for demanding industrial and commercial applications. It supports feed-thru connection and is rated for operation at 40 degrees Celsius.
- Key Specifications
- Amperage: 100 Amps
- Voltage: 600 Volts AC
- Poles: 3
- Frame Type: CED
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 200 kA at 480V, 100 kA at 600V
- Connection Type: Feed-Thru
- Operating Temperature: 40°C
- Part Number: CED63B100L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : CED
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Frame Size : ED Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- UPC : 783643236769
- GTIN : 00783643236769
- Country of Origin : Mexico
- Weight : 5.512
- Certification : Ul Listed
- Wire Size : AWG 10 to AWG 1/0, Cu/Al
