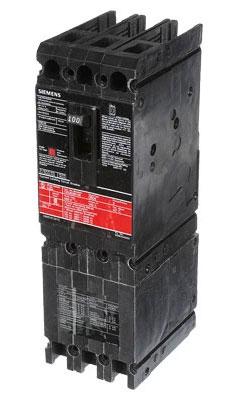

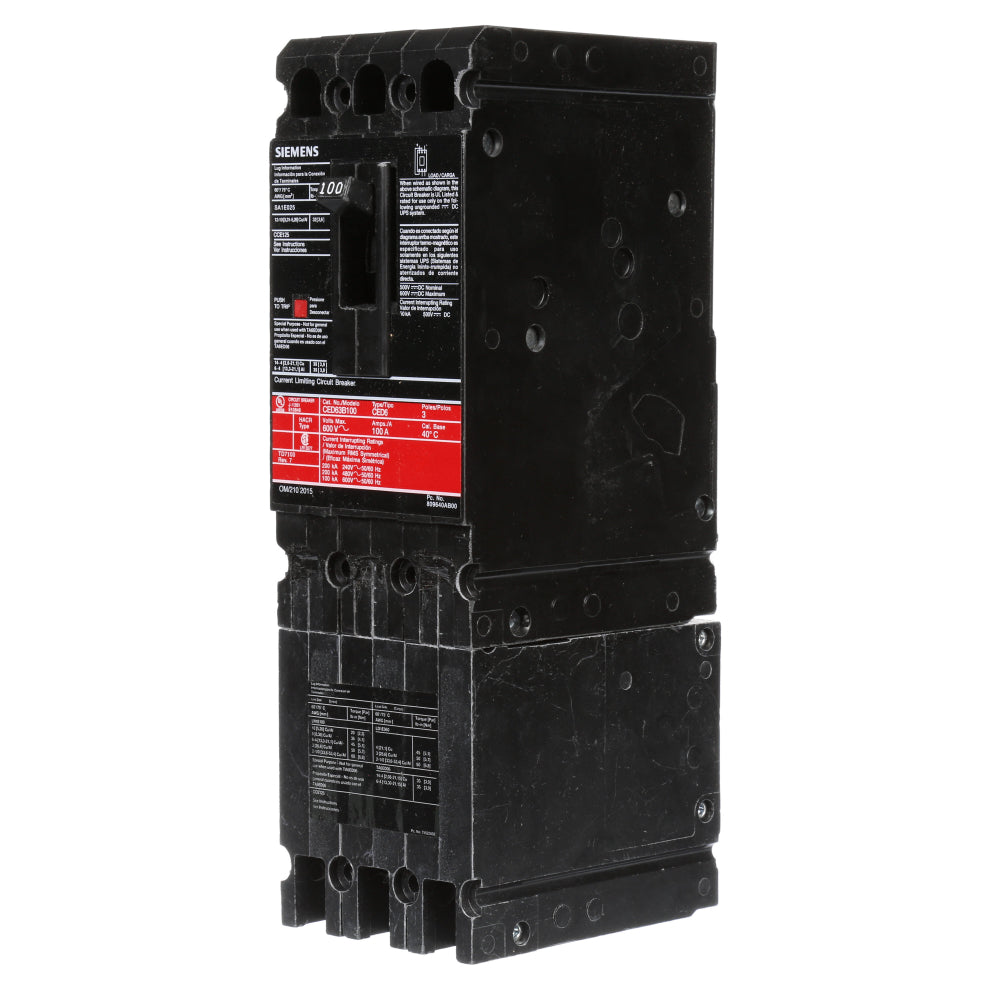

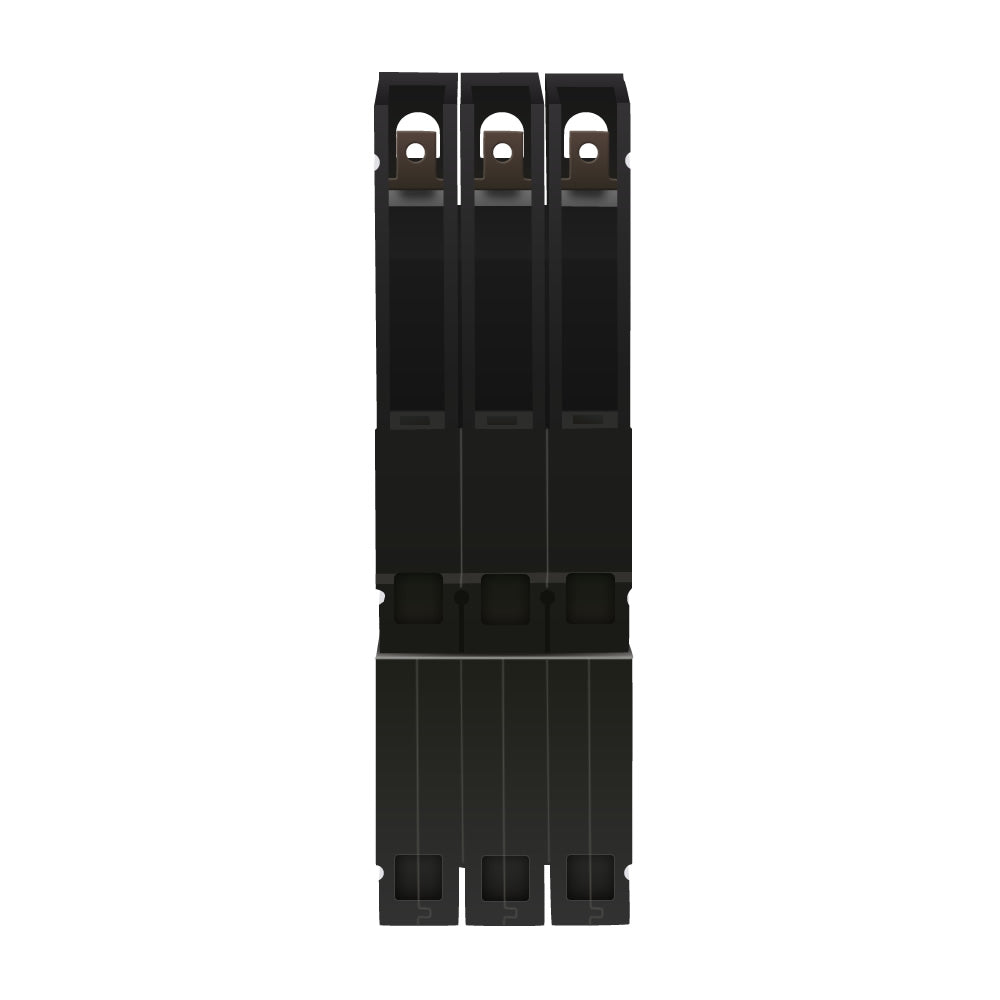

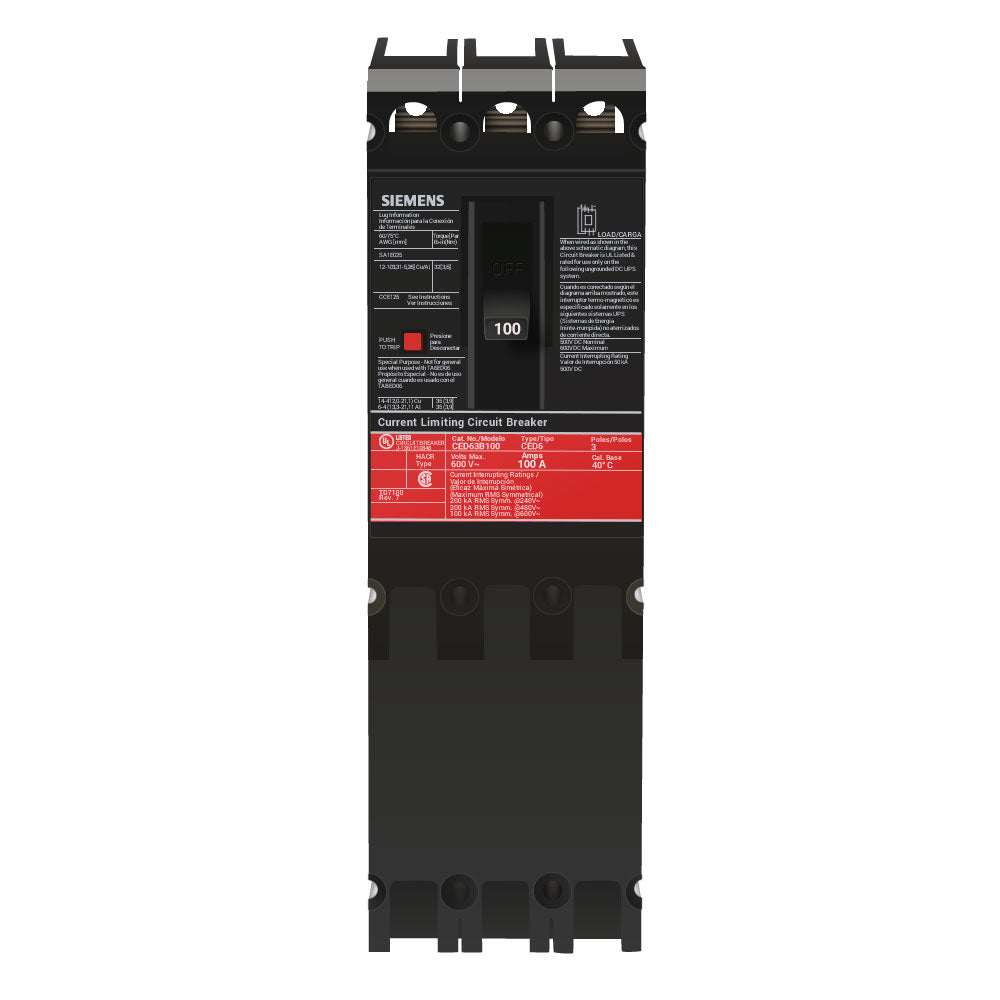

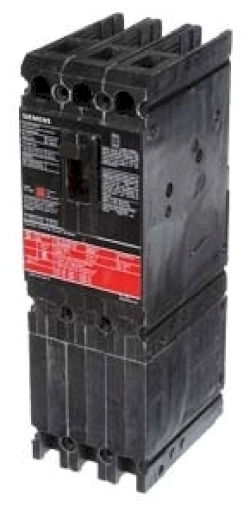

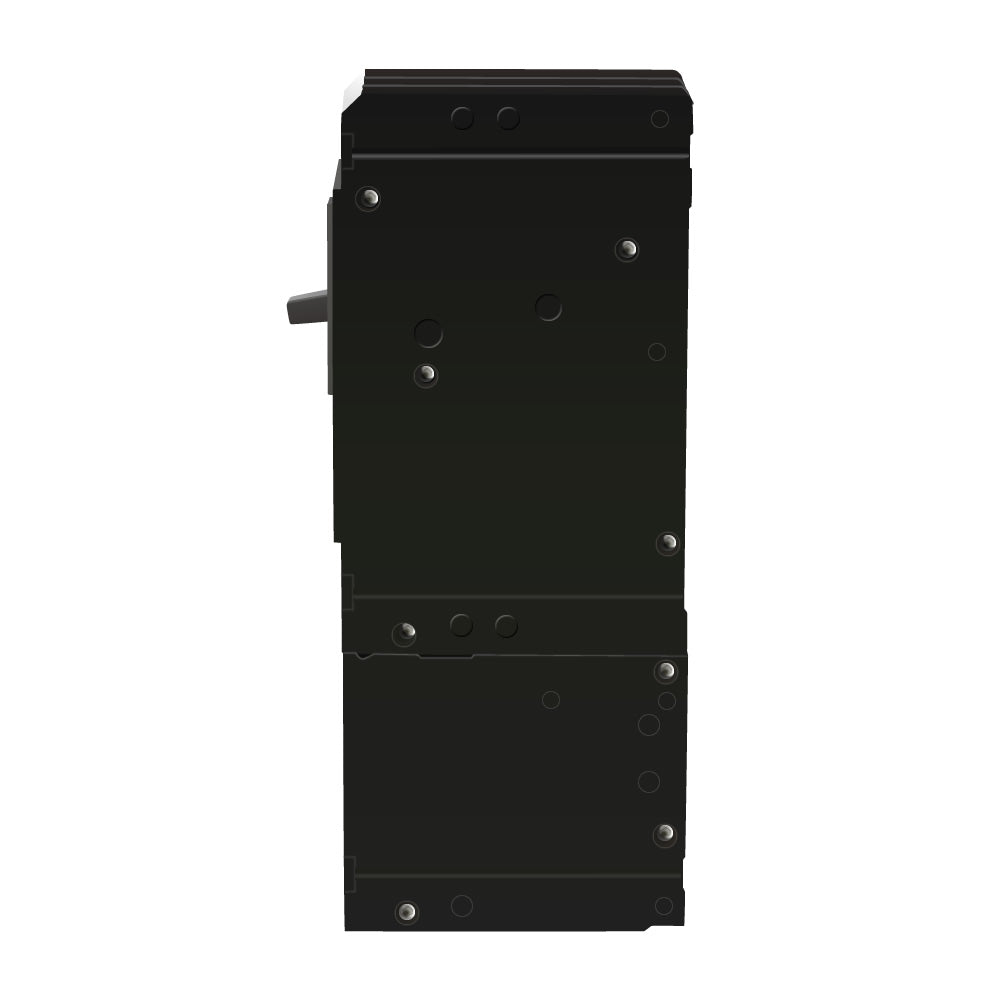

CED63B100 - Siemens 3 Pole 100A 600VAC 500VDC Molded Case Circuit Breaker, Sentron Series, CED Frame, Bolt-On, 100kAIC at 600V, Thermal Magnetic Trip, UL IEC CSA CE NOM HACR

Save $7,759.37
SKU: CED63B100-New
Condition: New
Price:
$914.63 $8,674.00
Stock:
6 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

CED63B100 - SIemens Bolt-On 100 Amp 3 Pole Circuit Breaker - Essential Electric Supply
CED63B100 - SIemens Bolt-On 100 Amp 3 Pole Circuit Breaker - Essential Electric Supply
CED63B100 - Siemens 3 Pole 100A 600VAC 500VDC Molded Case Circuit Breaker, Sentron Series, CED Frame, Bolt-On, 100kAIC at 600V, Thermal Magnetic Trip, UL IEC CSA CE NOM HACR - Essential Electric Supply
CED63B100 - Siemens 3 Pole 100A 600VAC 500VDC Molded Case Circuit Breaker, Sentron Series, CED Frame, Bolt-On, 100kAIC at 600V, Thermal Magnetic Trip, UL IEC CSA CE NOM HACR - Essential Electric Supply
CED63B100 - Siemens 3 Pole 100A 600VAC 500VDC Molded Case Circuit Breaker, Sentron Series, CED Frame, Bolt-On, 100kAIC at 600V, Thermal Magnetic Trip, UL IEC CSA CE NOM HACR - Essential Electric Supply
CED63B100 - Siemens 3 Pole 100A 600VAC 500VDC Molded Case Circuit Breaker, Sentron Series, CED Frame, Bolt-On, 100kAIC at 600V, Thermal Magnetic Trip, UL IEC CSA CE NOM HACR - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
CED63B100 - SIemens Bolt-On 100 Amp 3 Pole Circuit Breaker - Essential Electric Supply
CED63B100 - SIemens Bolt-On 100 Amp 3 Pole Circuit Breaker - Essential Electric Supply
CED63B100 - Siemens 3 Pole 100A 600VAC 500VDC Molded Case Circuit Breaker, Sentron Series, CED Frame, Bolt-On, 100kAIC at 600V, Thermal Magnetic Trip, UL IEC CSA CE NOM HACR - Essential Electric Supply
CED63B100 - Siemens 3 Pole 100A 600VAC 500VDC Molded Case Circuit Breaker, Sentron Series, CED Frame, Bolt-On, 100kAIC at 600V, Thermal Magnetic Trip, UL IEC CSA CE NOM HACR - Essential Electric Supply
CED63B100 - Siemens 3 Pole 100A 600VAC 500VDC Molded Case Circuit Breaker, Sentron Series, CED Frame, Bolt-On, 100kAIC at 600V, Thermal Magnetic Trip, UL IEC CSA CE NOM HACR - Essential Electric Supply
CED63B100 - Siemens 3 Pole 100A 600VAC 500VDC Molded Case Circuit Breaker, Sentron Series, CED Frame, Bolt-On, 100kAIC at 600V, Thermal Magnetic Trip, UL IEC CSA CE NOM HACR - Essential Electric Supply

Description

CED63B100


CED63B100 is a Siemens 3 pole molded case circuit breaker designed for robust power distribution applications.

This circuit breaker features a 100A current rating, 600VAC/500VDC voltage rating, and is part of the Sentron Series with a CED frame. It offers bolt-on mounting, a thermal magnetic trip unit with long time and instantaneous protection, and supports wire sizes from 10 to 1/0 AWG for both copper and aluminum. The CED63B100 is rated for 100kAIC at 600V and 200kAIC at 480V, ensuring high interrupting capacity for demanding electrical systems. It is certified to UL, IEC, CSA, CE, NOM, and HACR standards, and is rated for operation at 40°C.

    Key Specifications
  • Manufacturer: Siemens
  • Part Number: CED63B100
  • Amperage: 100A
  • Voltage: 600VAC, 500VDC
  • Poles: 3
  • Mounting Type: Bolt-On
  • Interrupt Rating: 100kAIC at 600V, 200kAIC at 480V
  • Series/Frame: Sentron Series, CED Frame
  • Trip Unit: Thermal Magnetic (Long Time & Instantaneous)
  • Wire Range: 10 to 1/0 AWG CU/AL
  • Certifications: UL, IEC, CSA, CE, NOM, HACR
  • Temperature Rating: 40°C
  • Connection: Line and Load Side Lug

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: CED63B100
  • Manufacturer : Siemens
  • Brand : Siemens
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Sentron Series
  • Type : CED
  • Voltage : 600
  • Amperage : 100
  • Phase : 3
  • Poles : 3
  • AIC rating : 200kA@480V
  • Connection : Bolt-On
  • Functions : Long Time and Instantaneous Trip
  • Frame Size : ED Frame
  • Temp Rating : -13–158 °F (-25–70 °C)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 078364321075
  • GTIN : 00783643210752
  • Country of Origin : Mexico
  • Weight : 1.049
  • Wire Size : 10 to 1/0 AWG CU/AL
