Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CED63B080L

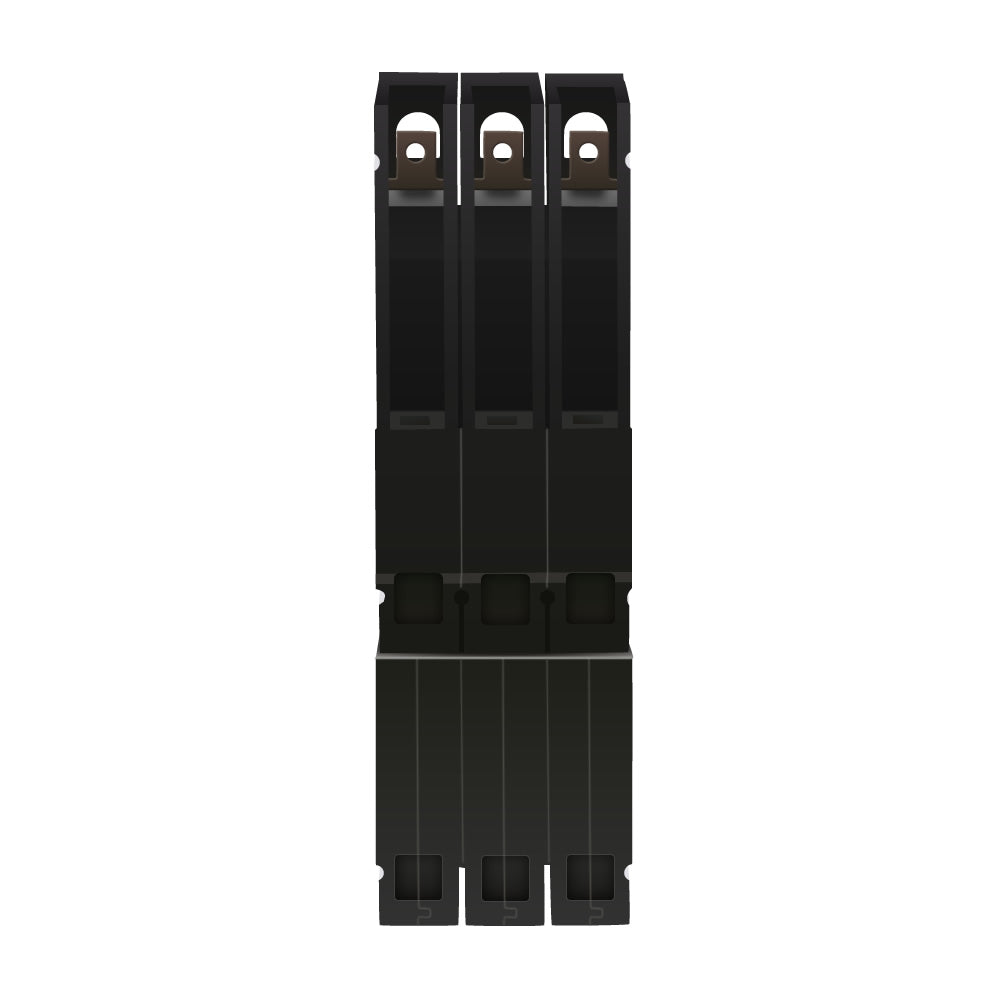

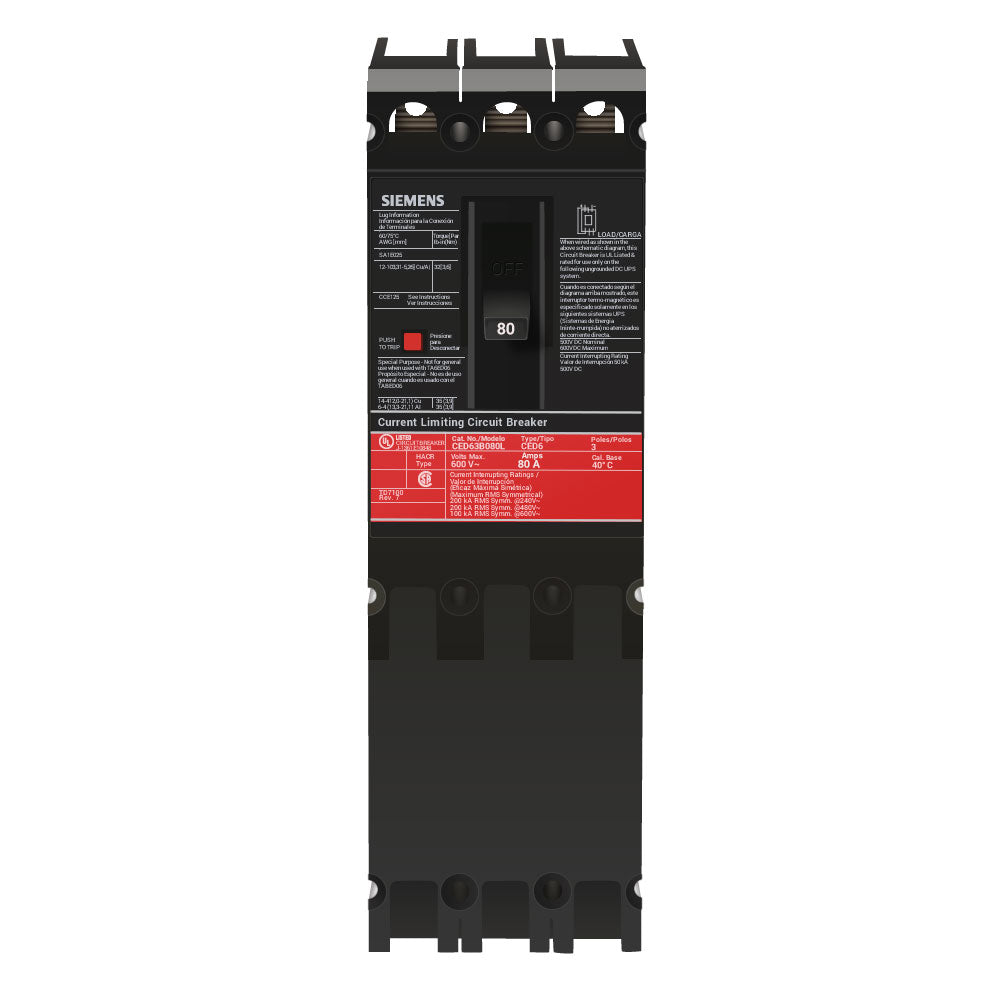

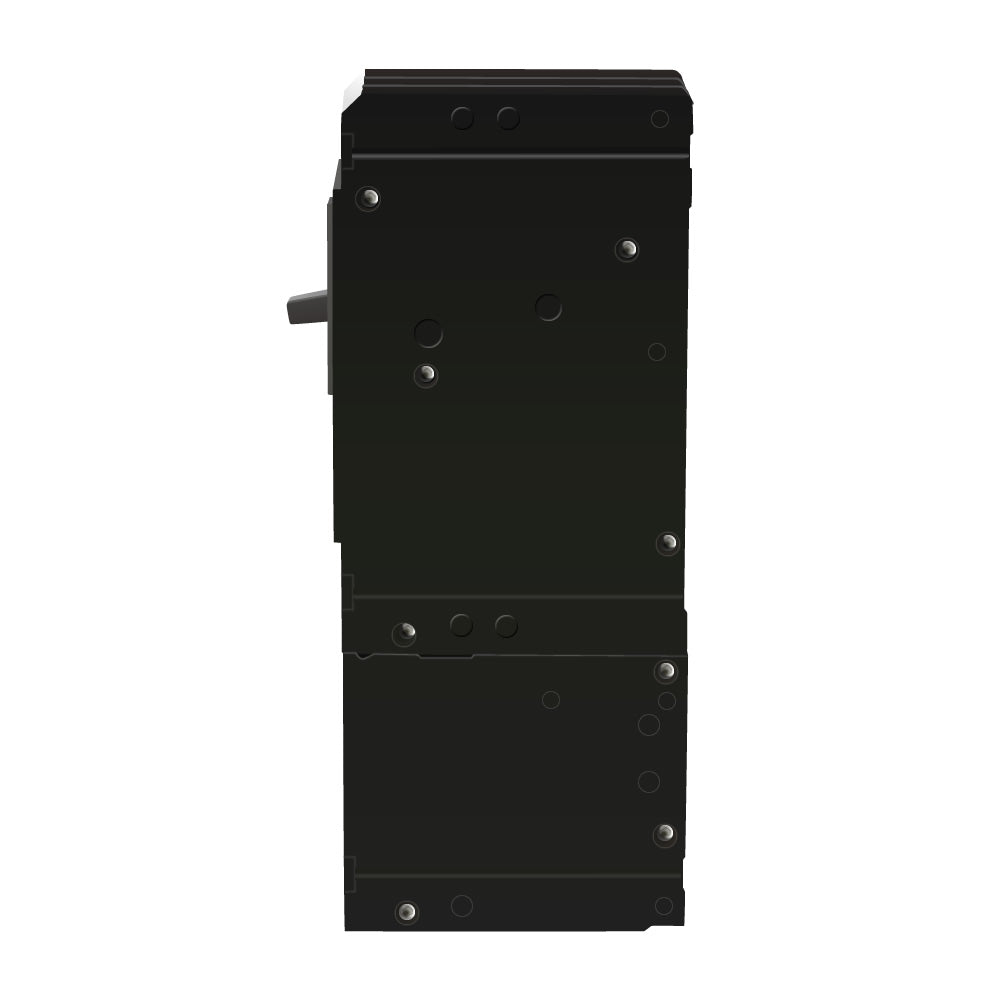

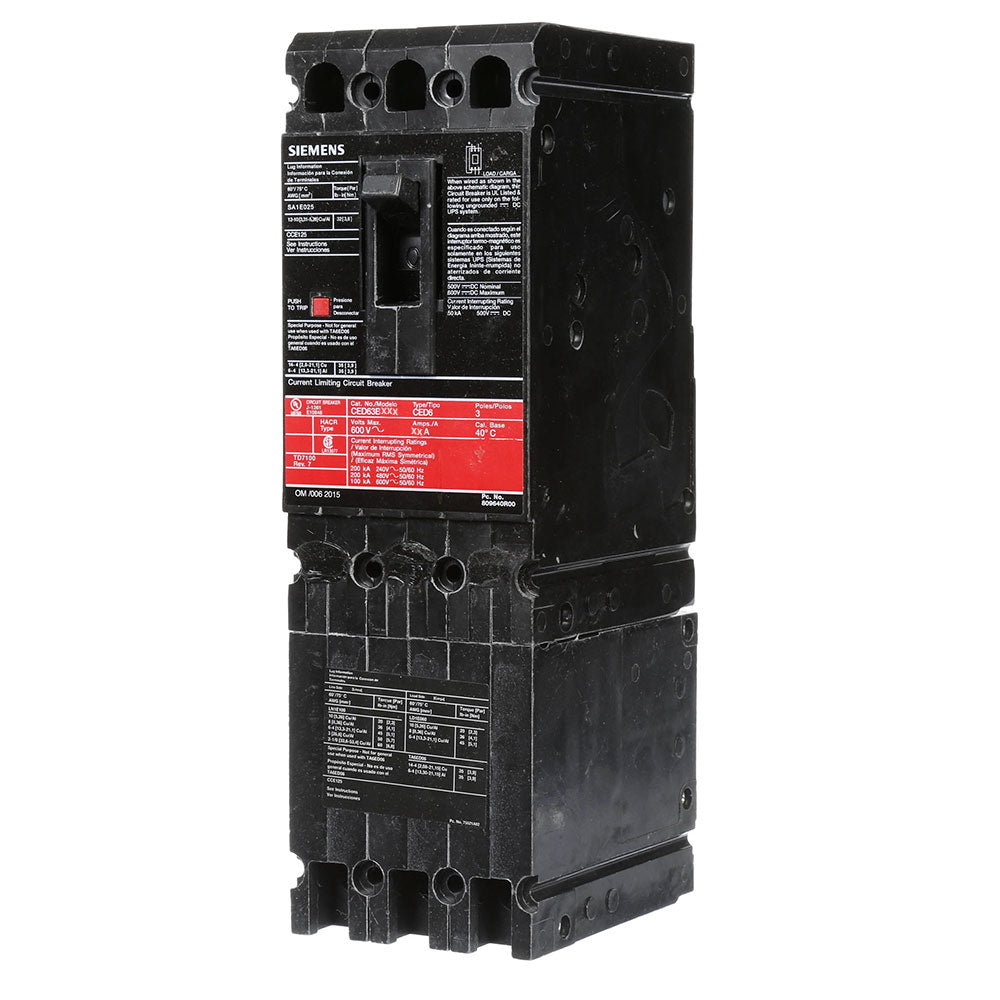

CED63B080L is a Siemens 80 amp, 600 volt, 3-pole molded case circuit breaker from the Sentron Series designed for reliable circuit protection.This Siemens CED type circuit breaker features a thermal magnetic trip unit and is rated for 100kA interrupt capacity at 600V and 200kA at 480V. It is a fuseless, current limiting breaker with load lug connections suitable for wire sizes 10 to 1/0 AWG copper or aluminum. The breaker is designed for use in low voltage power distribution systems and provides robust protection with a non-interchangeable trip unit.
- Key Specifications
- Amperage: 80A
- Voltage Rating: 600V
- Poles: 3
- Interrupt Rating: 100kA at 600V, 200kA at 480V
- Series/Frame: Sentron Series, CED Type
- Trip Unit: Thermal Magnetic
- Mounting Type: Load Lug Connection
- Wire Range: 10 – 1/0 AWG (Cu/Al)
- Fuseless Current Limiting Breaker
- Part Number: CED63B080L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : CED
- Voltage : 600
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Frame Size : ED Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- UPC : 783643236745
- GTIN : 00783643236745
- Country of Origin : Mexico
- Weight : 5.512
- Certification : Ul Listed
- Wire Size : AWG 10 to AWG 1/0, Cu/Al
