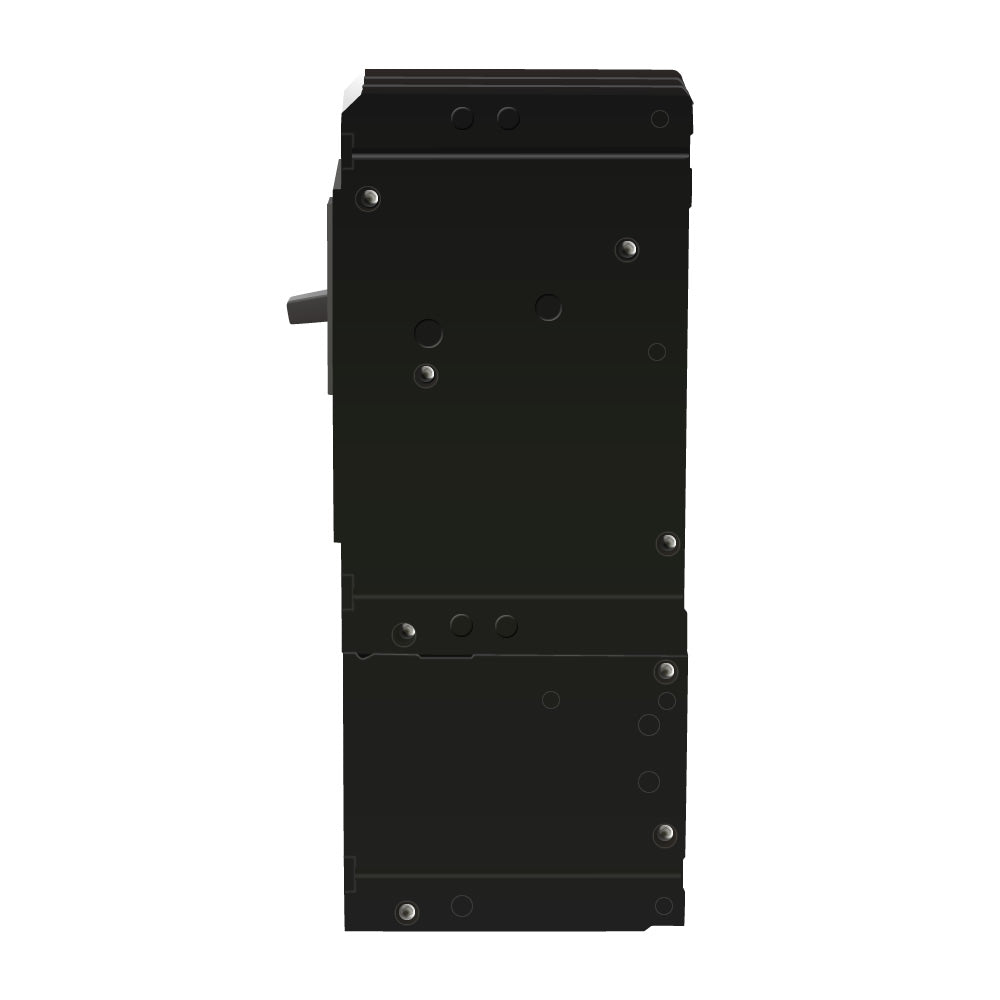

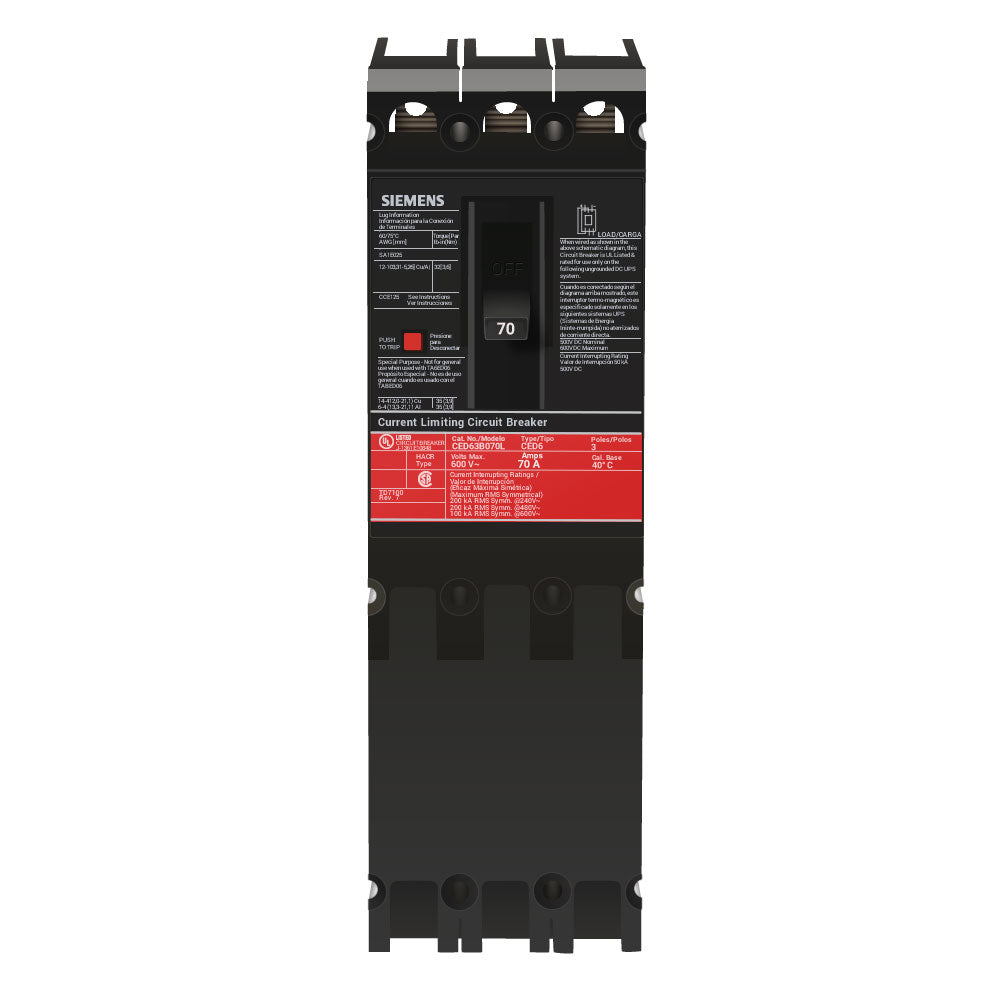

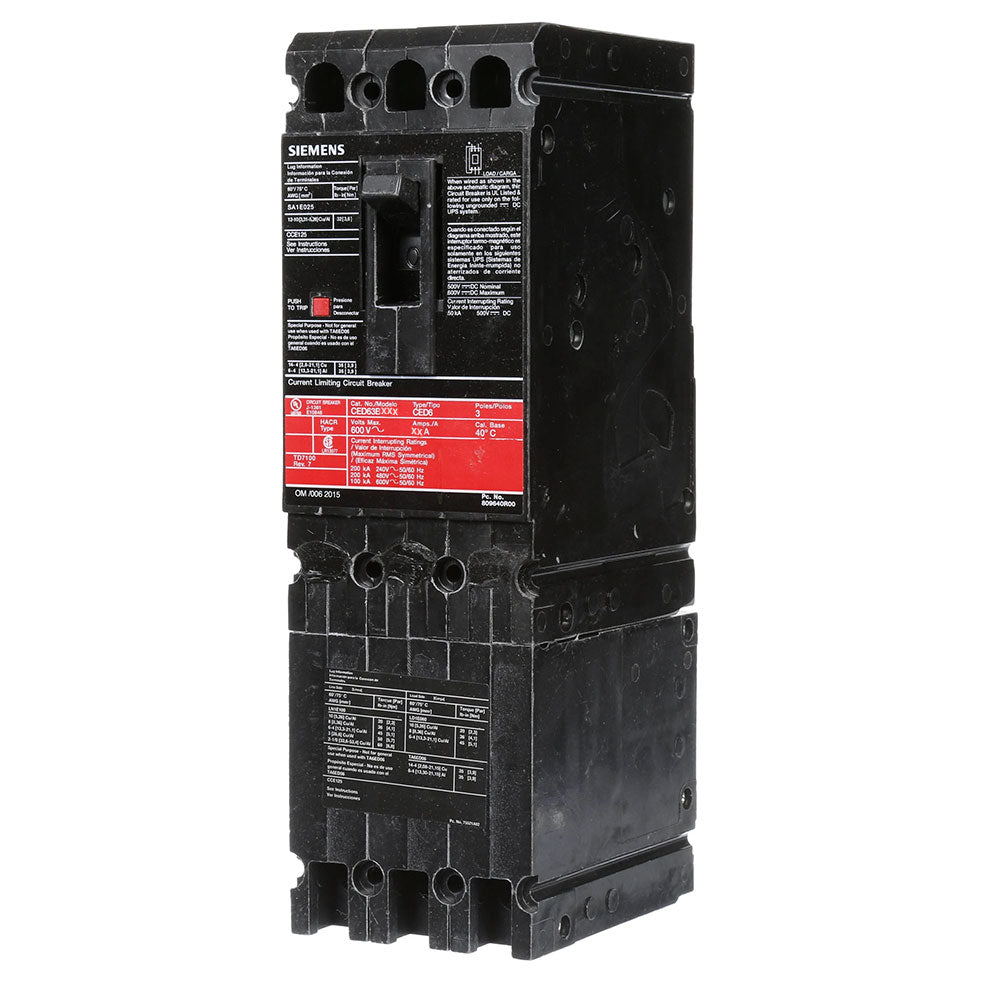

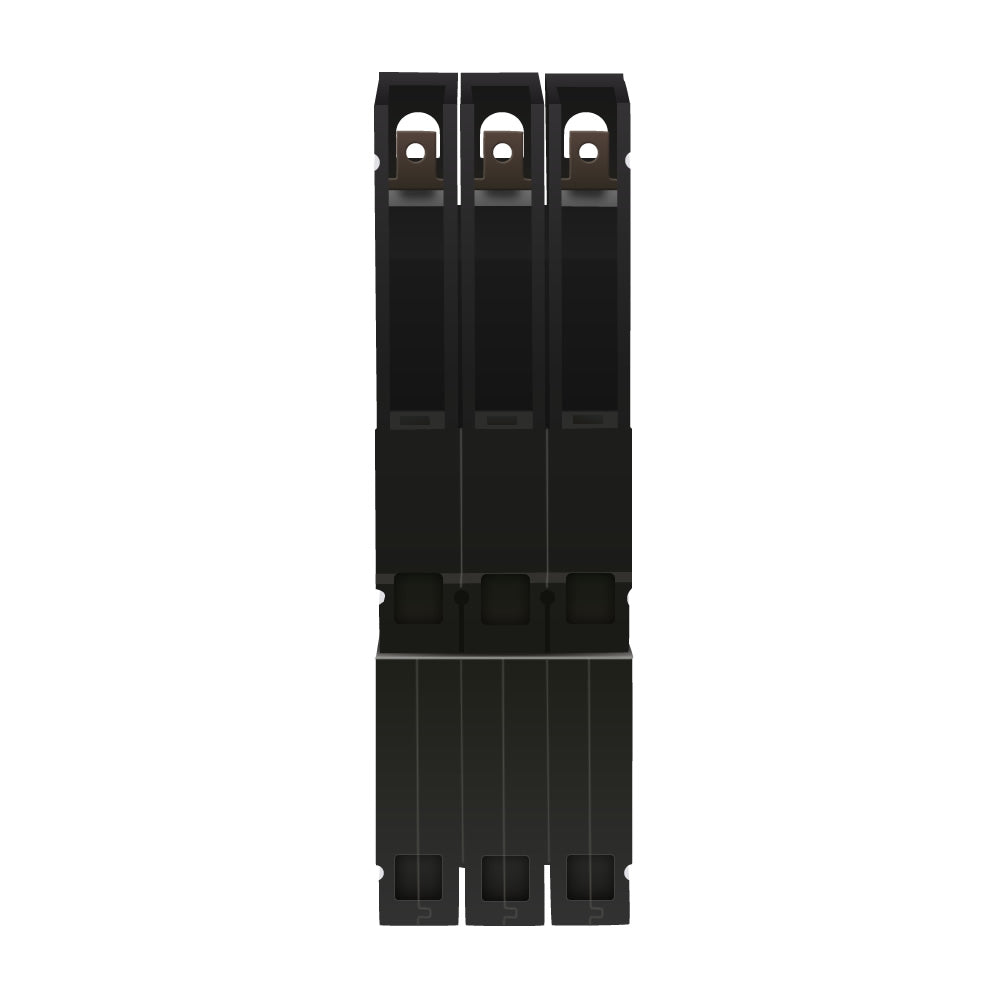

CED63B070L - Siemens 70A 600V 3 Pole Molded Case Circuit Breaker ED Frame Thermal Magnetic Trip

CED63B070L

CED63B070L is a Siemens 3 pole molded case circuit breaker rated for 70 amps and 600 volts AC, designed for reliable circuit protection.

This Siemens CED63B070L breaker features an ED frame with a thermal magnetic trip unit, suitable for 3-phase applications. It supports line/load lug connections and accommodates wire sizes from 10 to 1/0 AWG aluminum or copper. The breaker has a 100 kA interrupt rating at 600 VAC and operates at 50/60 Hz frequency. It is UL 489 and IEC 60947-2 certified, HACR rated, and designed for use up to 40 degrees Celsius ambient temperature.

Key Specifications
• Amperage Rating: 70 A
• Voltage Rating: 600 V AC / 500 V DC
• Number of Poles: 3
• Frame: ED
• Interrupt Rating: 100 kA
• Trip Type: Thermal Magnetic
• Frequency: 50/60 Hz
• Connection Type: Line/Load Lug
• Wire Size Range: 10 to 1/0 AWG Al/Cu
• Certifications: UL 489, IEC 60947-2, HACR Rated
• Temperature Rating: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CED63B070L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : CED
• Voltage : 600
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : ED Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643236738
• GTIN : 00783643236738
• Country of Origin : Mexico
• Weight : 5.512
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
