CED63B040L - Siemens 40A 3-Pole 600V Thermal Magnetic Molded Case Circuit Breaker

CED63B040L

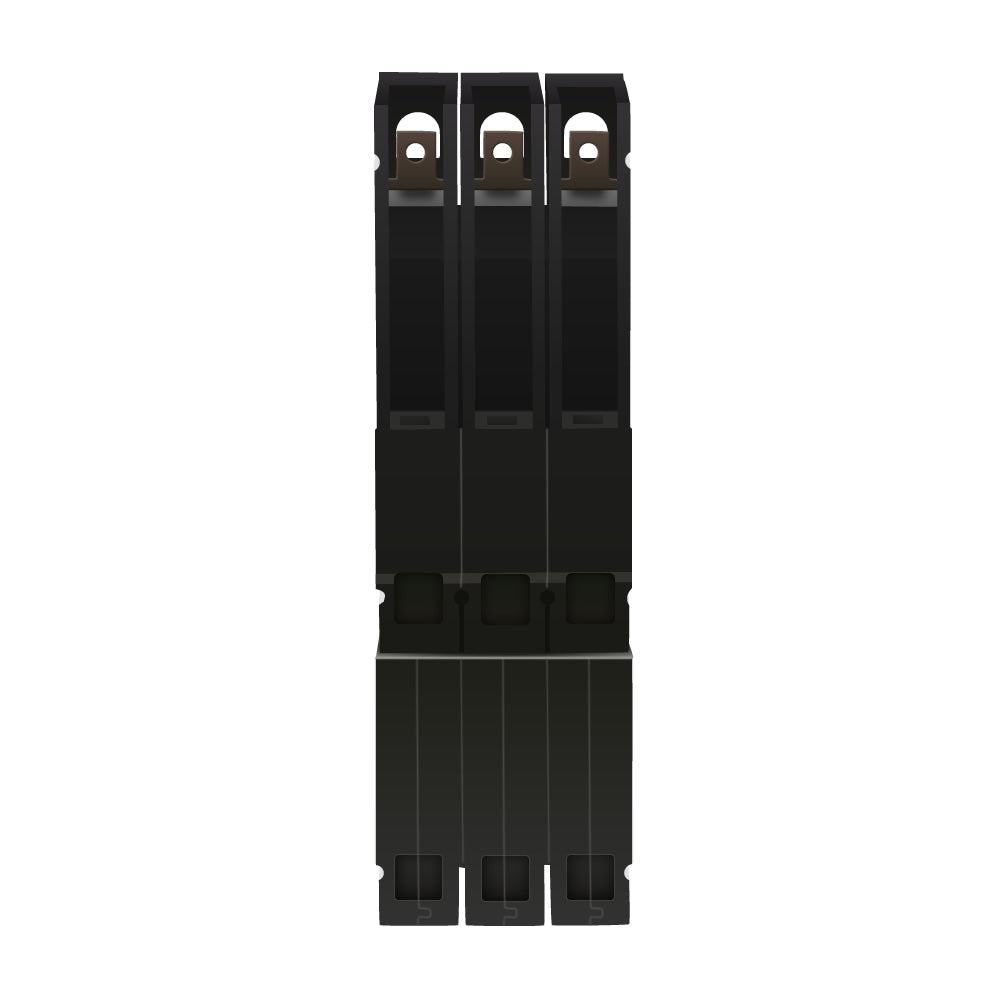

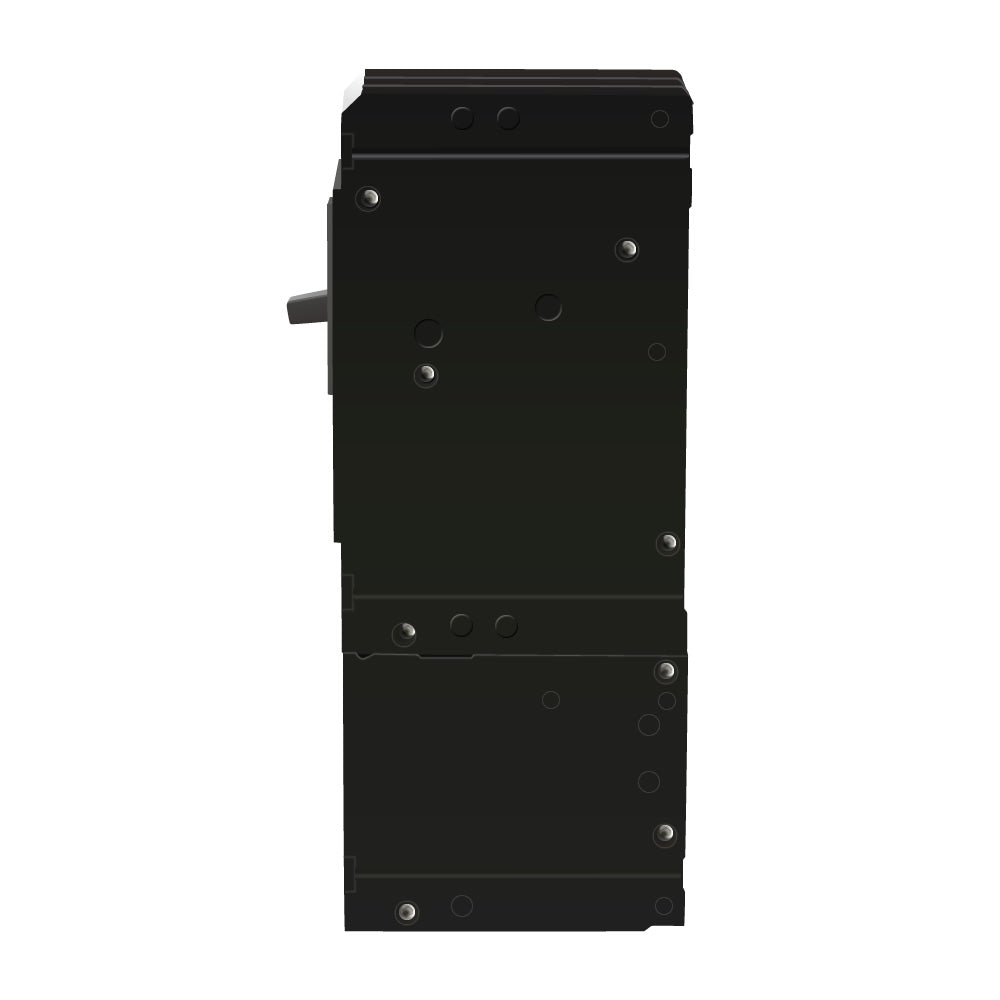

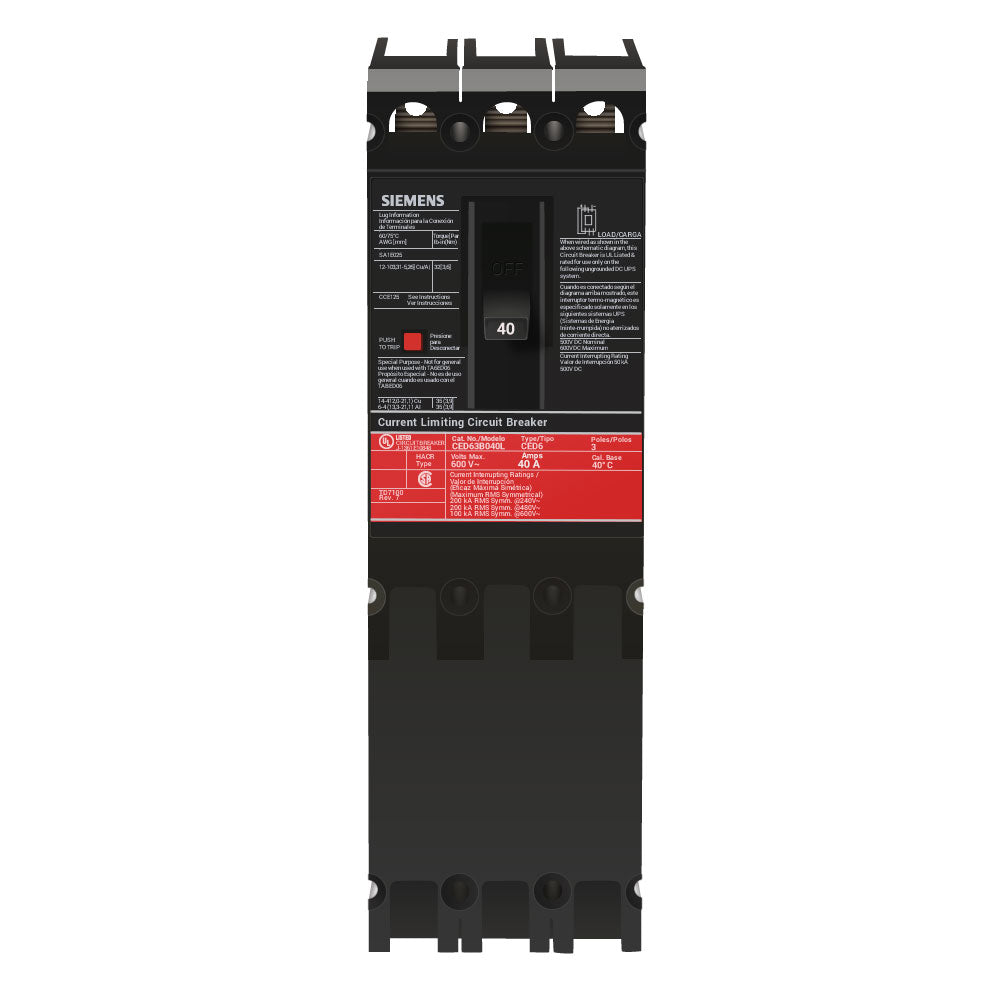

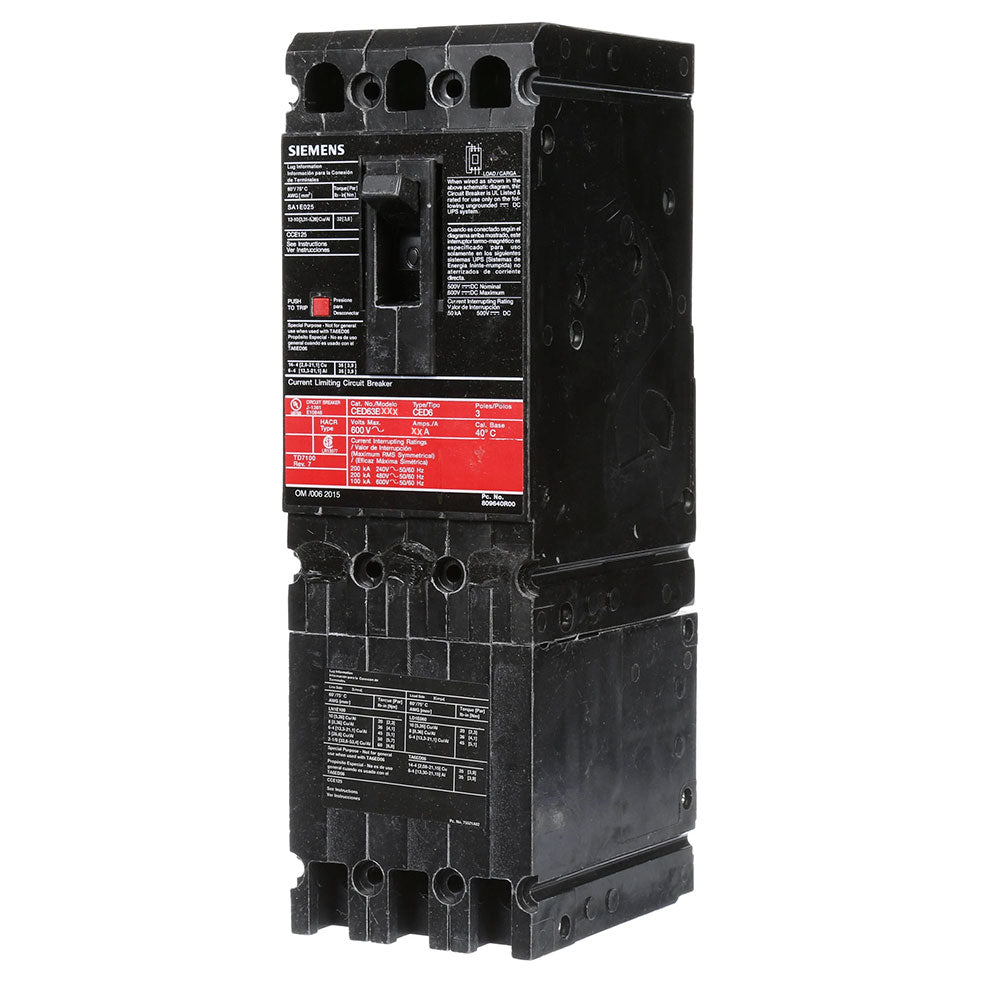

CED63B040L is a Siemens 3-pole, 40 amp, 600 volt thermal magnetic molded case circuit breaker designed for reliable circuit protection.

This Siemens Sentron Series breaker features a thermal magnetic trip unit with long-time and instantaneous protection. It has a current limiting breaking capacity with an interrupt rating of 200kA at 480V and 100kA at 600V. The breaker is rated for 40 degrees Celsius operation and supports feed-thru lug connections. It meets UL 489 and IEC 60947-2 standards, ensuring compliance and safety in industrial and commercial applications.

• Manufacturer: Siemens
• Part Number: CED63B040L
• Series: Sentron
• Poles: 3
• Amperage: 40A
• Voltage Rating: 600V
• Interrupt Rating: 200kA at 480V, 100kA at 600V
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Mounting Type: Feed-Thru
• Operating Temperature: 40°C
• Certifications: UL 489, IEC 60947-2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CED63B040L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : CED
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : ED Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643236707
• GTIN : 00783643236707
• Country of Origin : Mexico
• Dimensions : 4.724 x 9.843 x 2.756 inch
• Weight : 5.512
• Certification : Ce Marked
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
