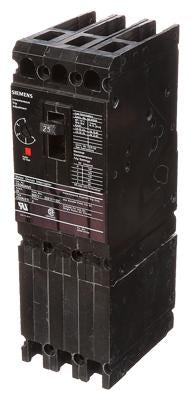

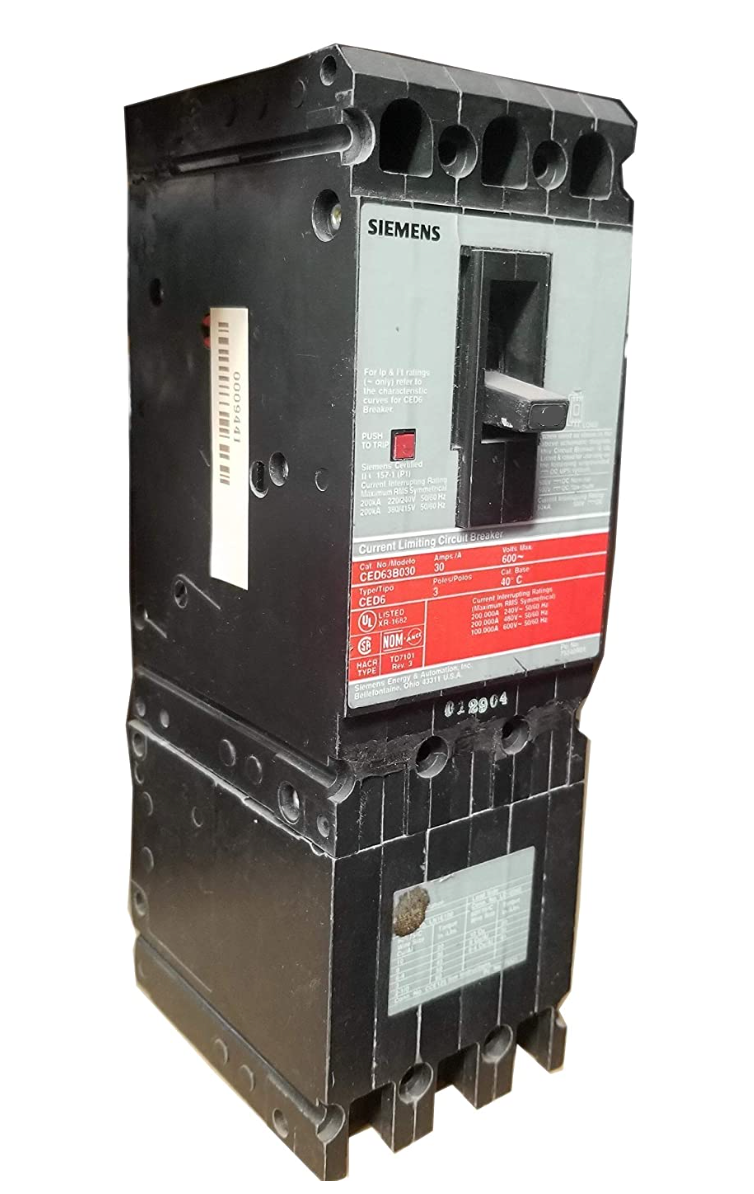

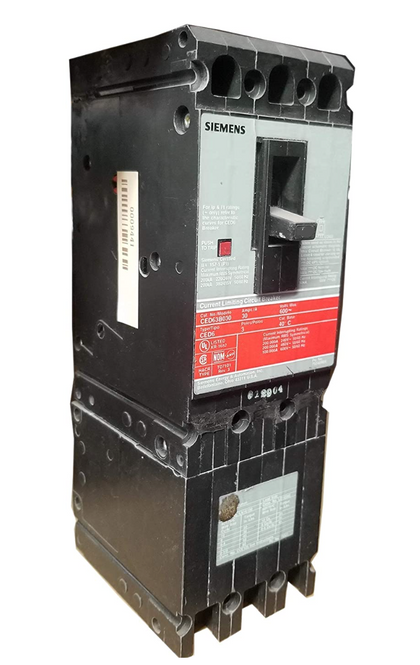

CED63A050 - Siemens 50A 600V 3 Pole CED Series Molded Case Circuit Breaker, Bolt-On, 200kAIC@480V, Magnetic Trip

CED63A050

CED63A050 is a Siemens 50 amp, 600 volt, 3 pole molded case circuit breaker designed for robust circuit protection in industrial and commercial applications.

This CED series breaker features bolt-on mounting for secure installation, a magnetic trip unit for instantaneous protection, and an impressive interrupting rating of 200,000 amps at 480V AC (100,000 amps at 600V AC). It is engineered for high fault current interruption and reliable performance in demanding environments.

Key Specifications
• Amperage: 50A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 200,000A @ 480V AC, 100,000A @ 600V AC
• Series/Frame: CED
• Trip Unit: Magnetic (Instantaneous Only)
• Dimensions: 3" W x 9.58" H x 4.56" D
• Weight: 6 lbs
• Wire Size Compatibility: #10 AWG to 1/0 AWG (Lug Kit LN1E100)
• Certifications: Not specified in available data

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: CED63A050
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : CED
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : Bolt-On
• Functions : I - Instantaneous
• Frame Size : ED Frame
• Protection : Magnetic Only

Product Data

• UPC : 783643210967
• GTIN : 00783643210967
• Country of Origin : Mexico
• Weight : 5.679
• Wire Size : 10 - 1/0AWG (CU/AL)
