Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description
CE15KN3BB

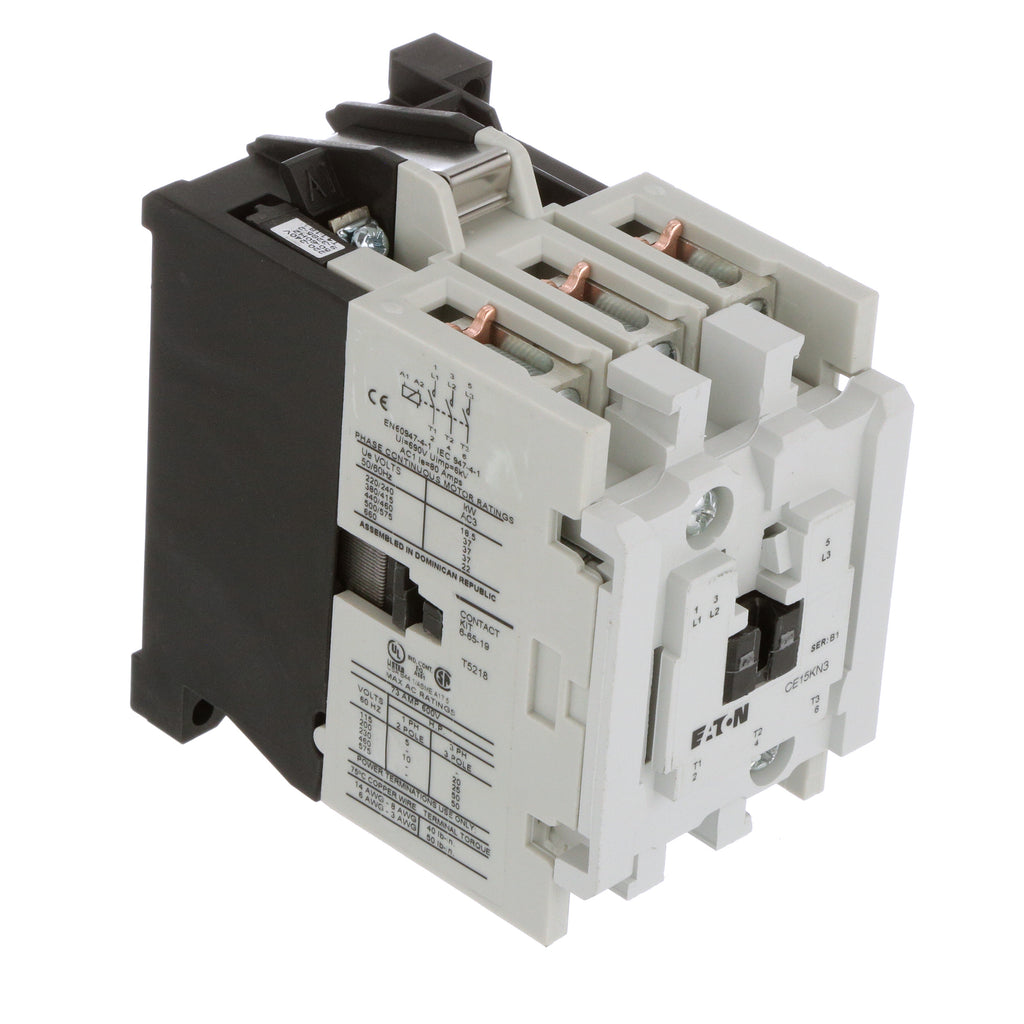

CE15KN3BB is a Cutler Hammer 3 pole motor contactor rated for 73 amps and designed for 600V applications with a 220-240VAC coil.This contactor features a non-reversing operation with a steel mounting plate and no overload relay. It supports up to 10 horsepower at 220-240VAC and operates at 50-60 Hz frequency. The device is part of the Freedom series with Frame K size, UL listed, CSA certified, and IEC rated for reliable motor control.
- Amperage rating: 73A
- Voltage rating: 600V
- Coil voltage: 220-240VAC, 50-60 Hz
- Number of poles: 3 (three-pole)
- Frame size: K
- Horsepower rating: 10 HP max
- Mounting type: Steel mounting plate
- Operation: Non-reversing
- Overload relay: None included
- Certifications: UL Listed, CSA Certified, IEC Rated
- Series: Freedom
Additional Information
This IEC Non-Reversing Contactor includes a 220 VAC coil.
Specifications
- Part Number: CE15KN3BB
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 600
- Amperage : 73
- Phase : 3
- Poles : 3
- Configuration : Non-Reversing
- Coil Voltage Maximum : 240
- Coil Voltage Minimum : 220
- Frequency : 50 Hz
Product Data
- UPC : 782113973470
- GTIN : 78211397347
- Country of Origin : Dominican Republic
- Dimensions : 4.22 in x 4.27 in x 2.56 in (Length/Depth x Height x Width)
- Weight : 2.12
- Certification : UL Listed,CSA Certified,IEC Rated,ISO 9000,DIN VDE 0600
