Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description

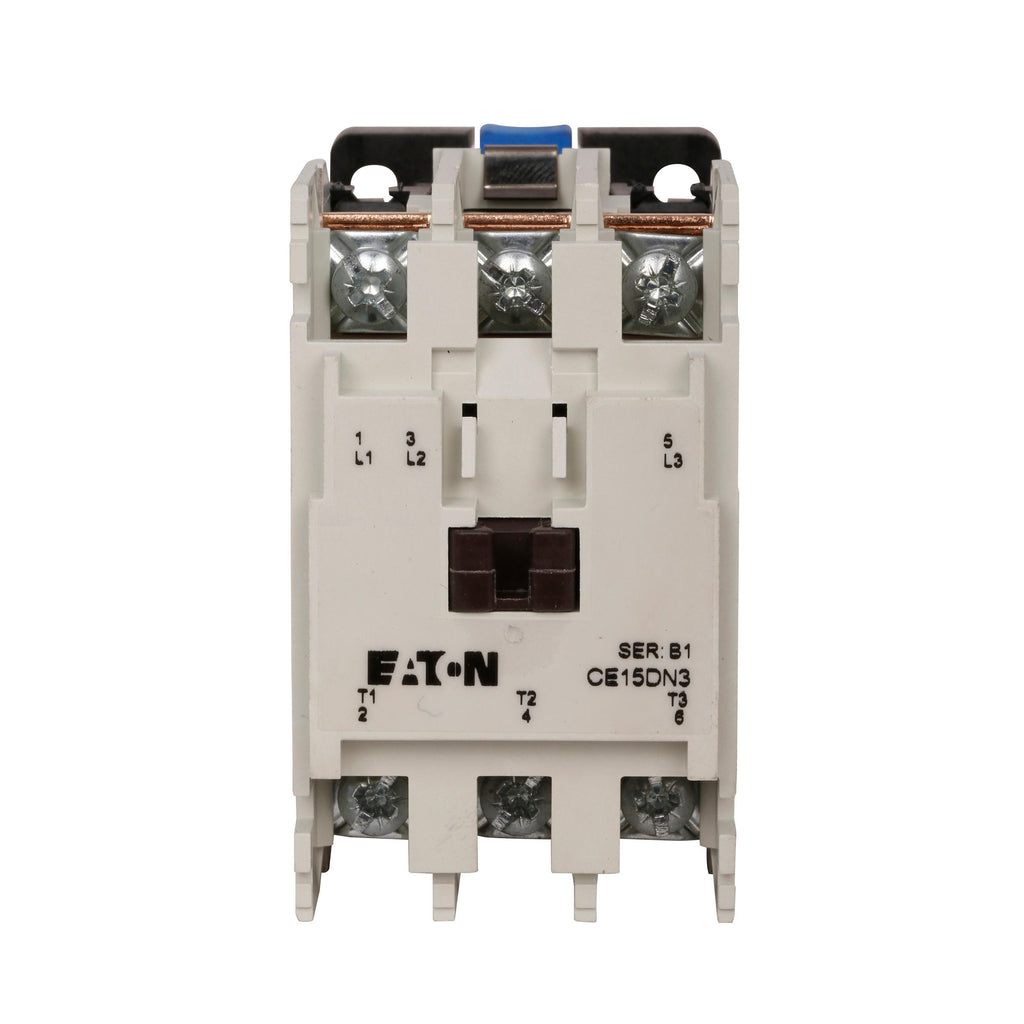

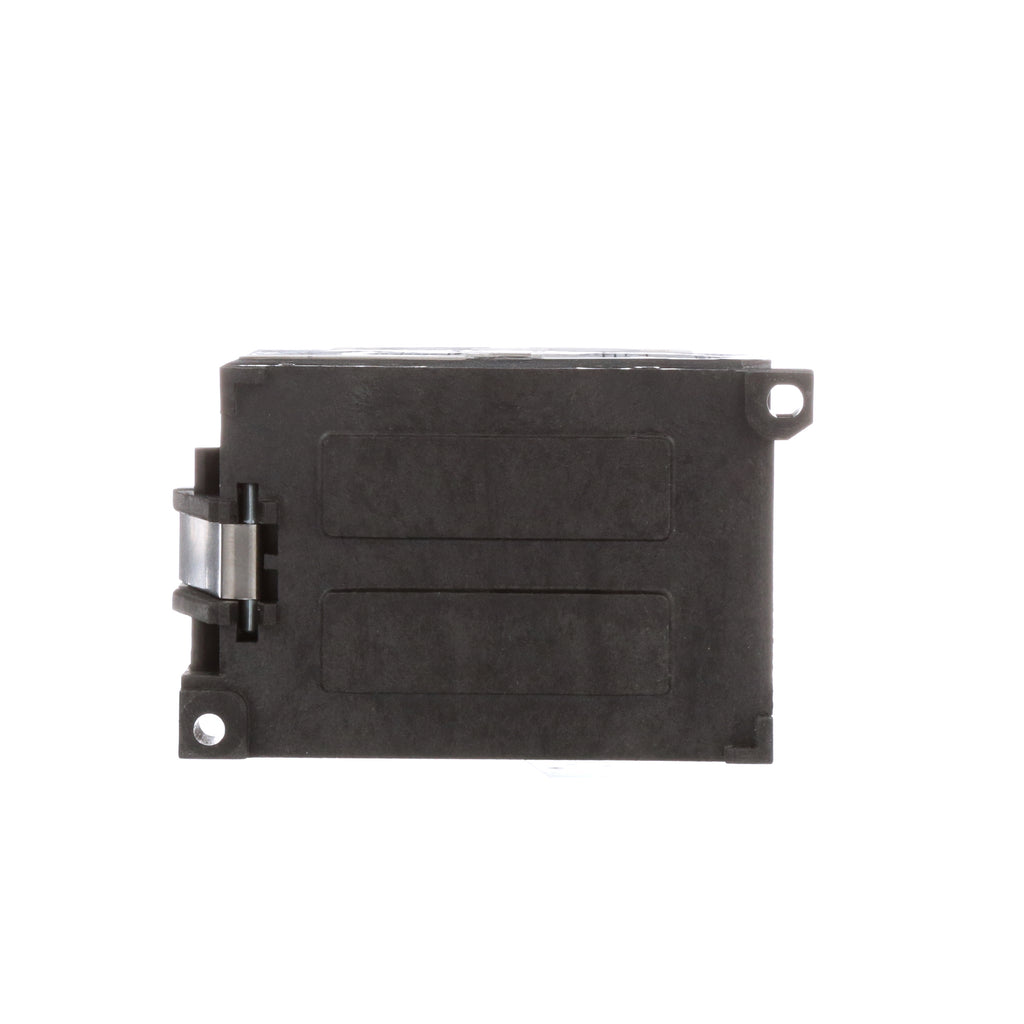

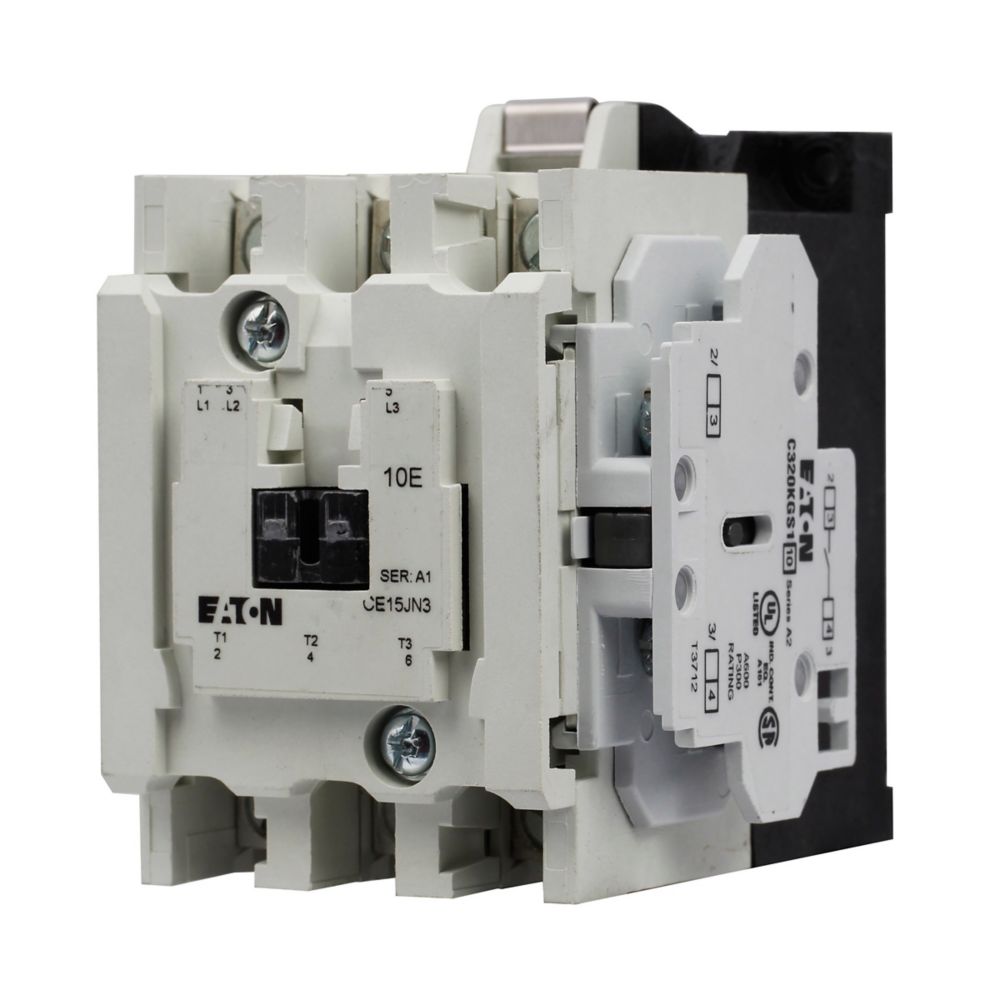

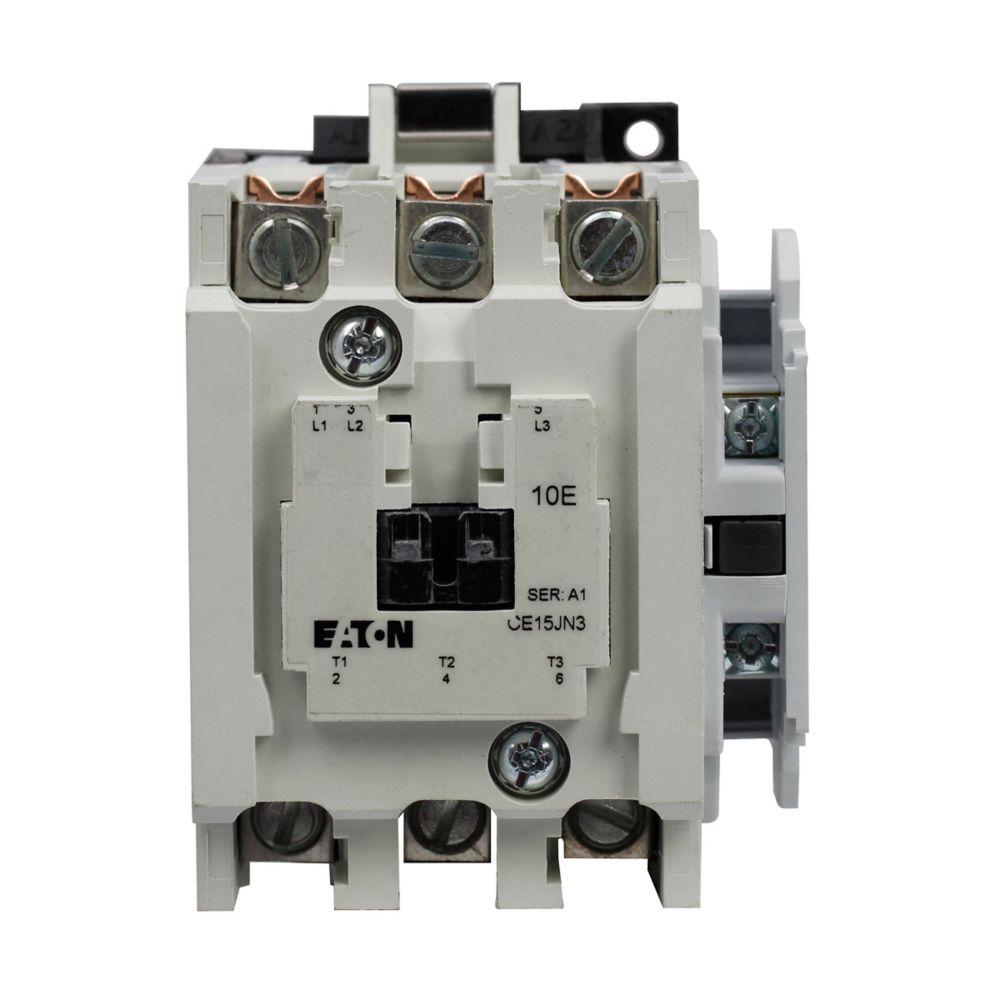

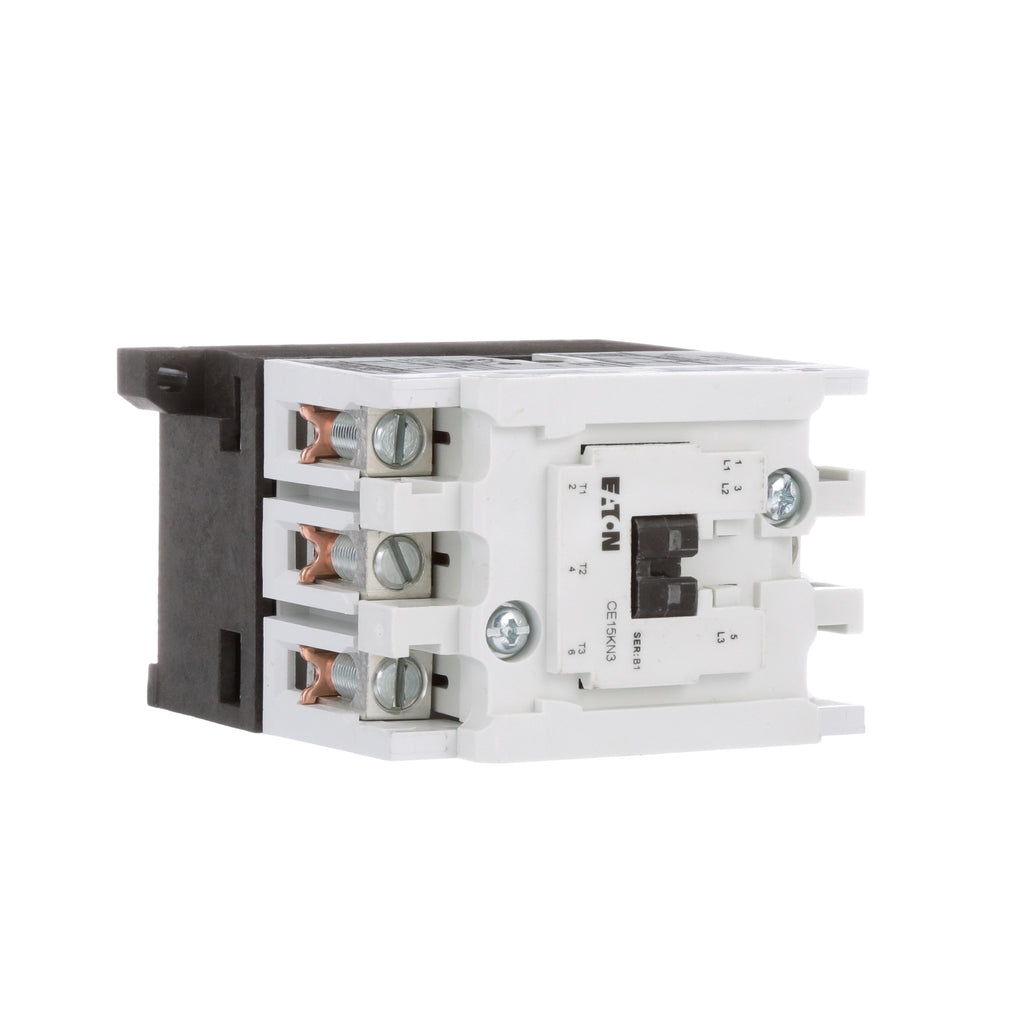

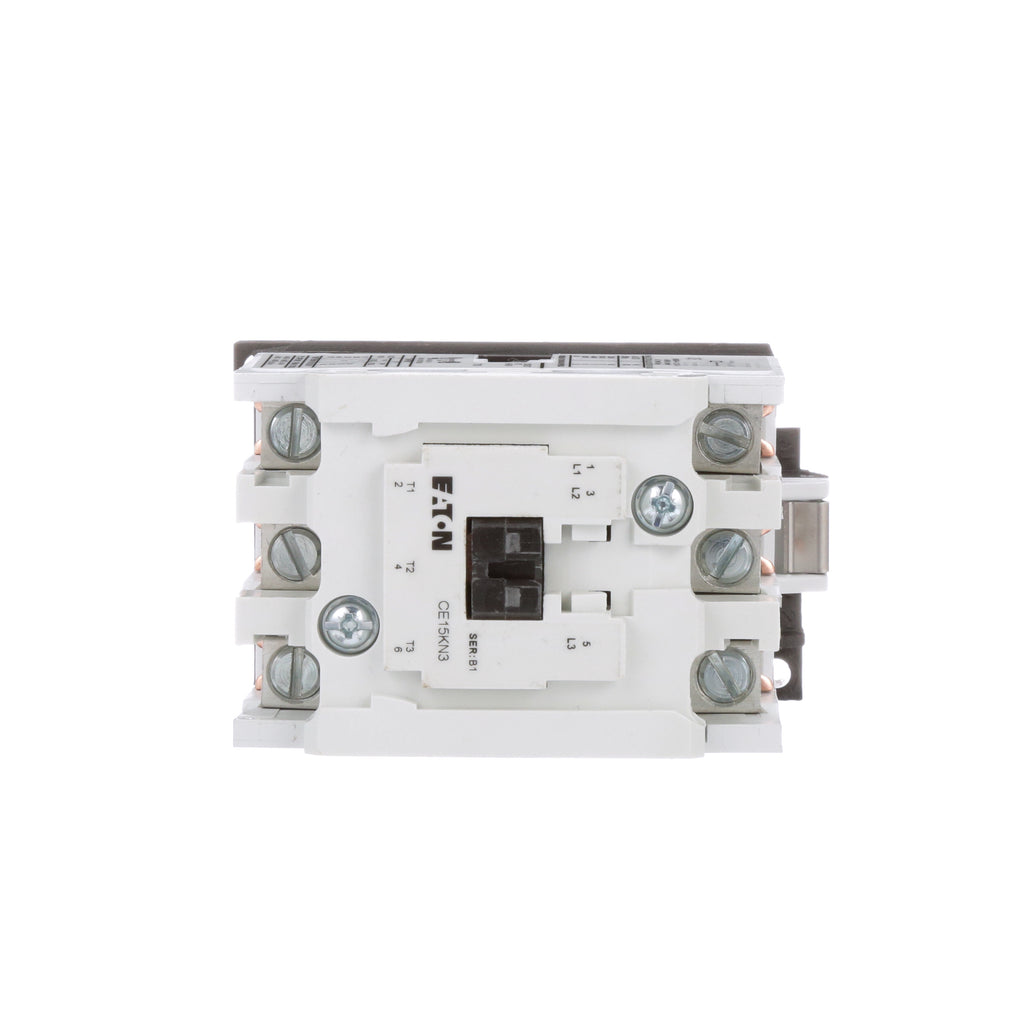

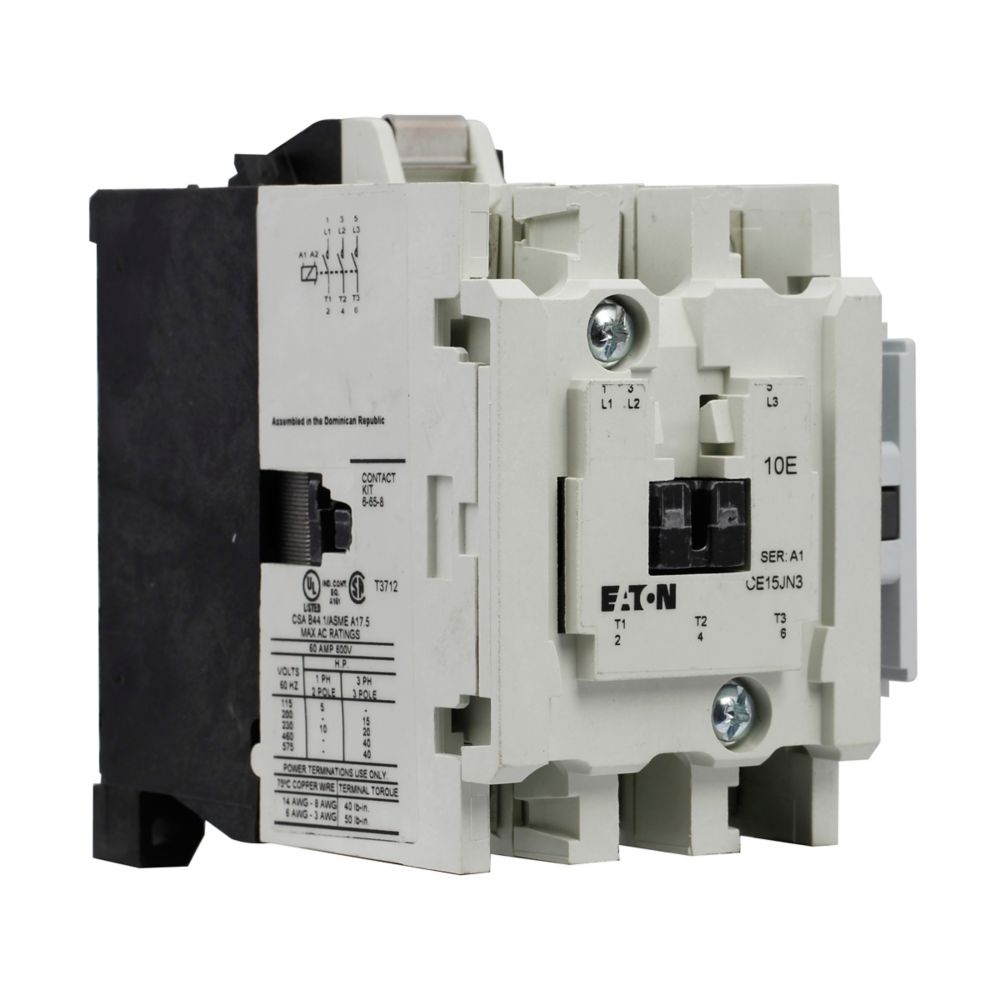

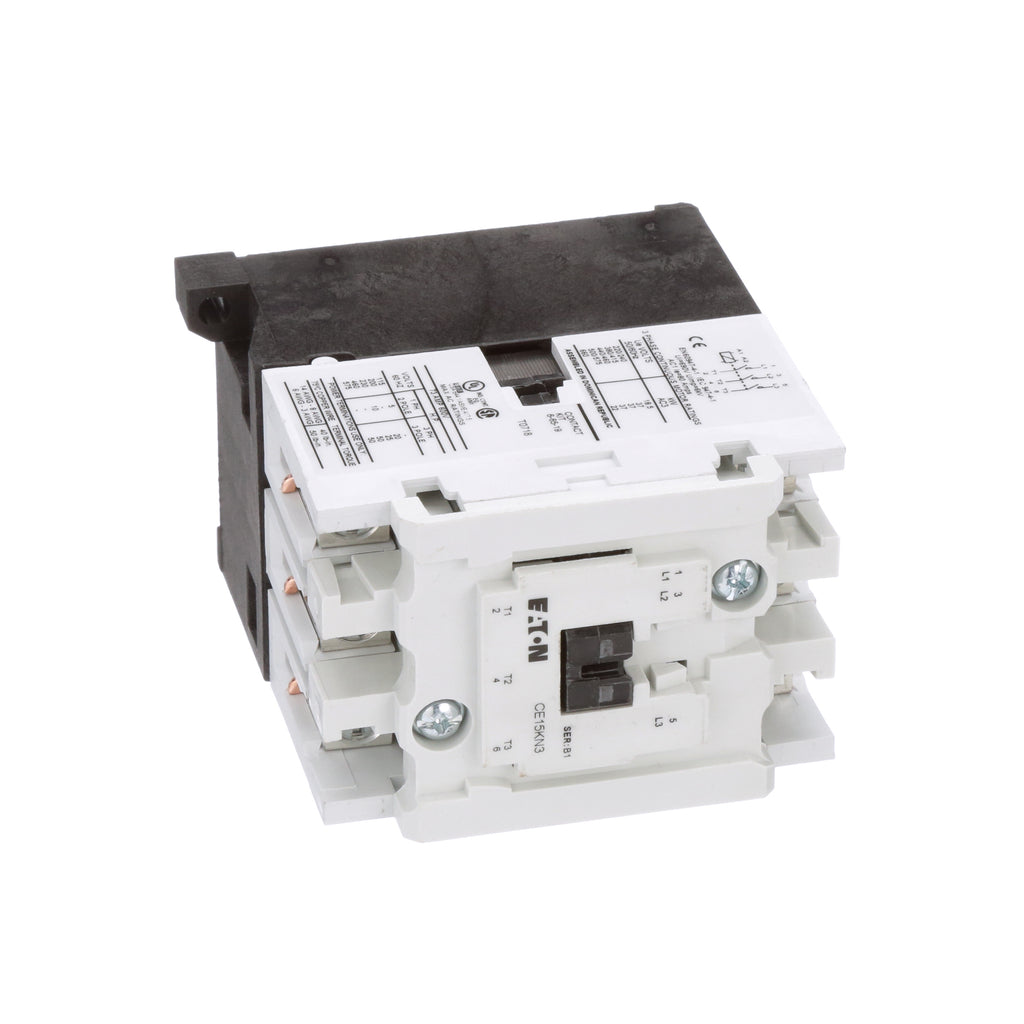

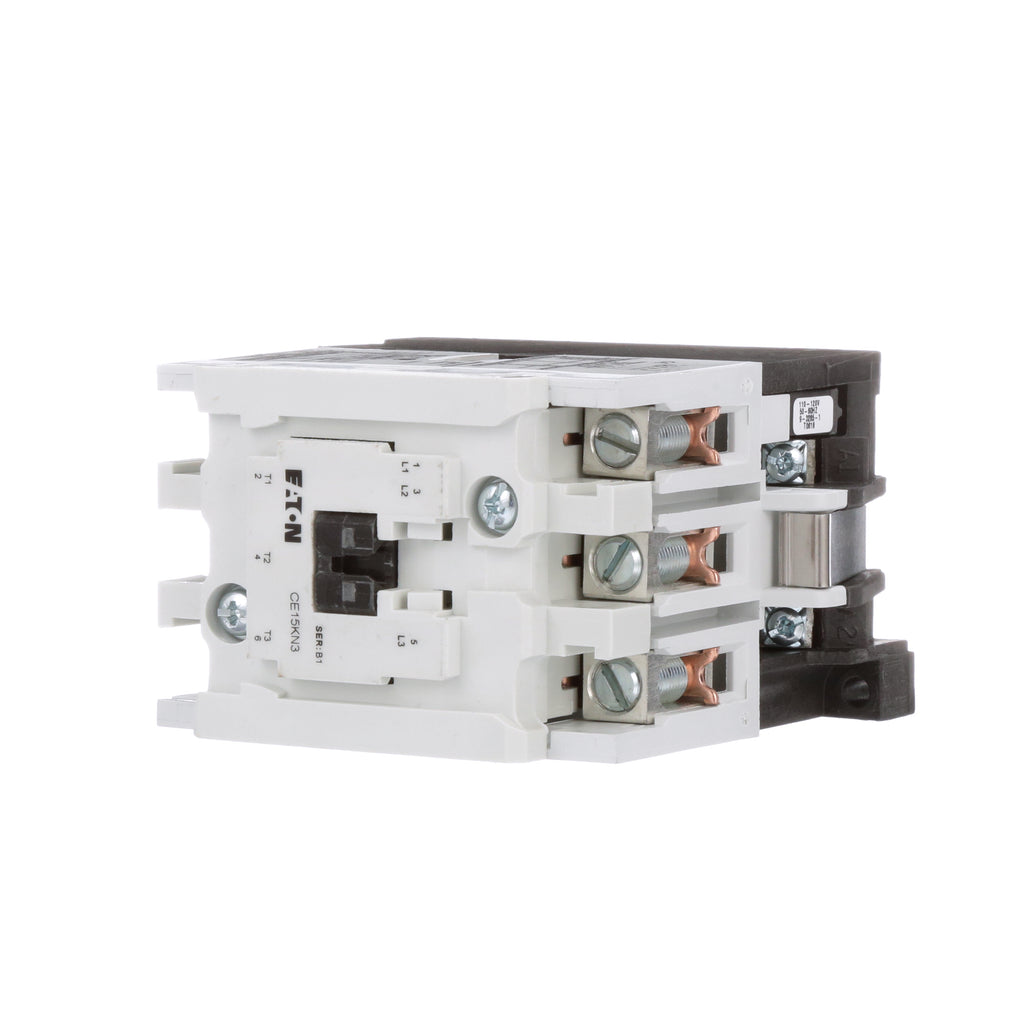

CE15KN3AB
CE15KN3AB is a Cutler Hammer IEC contactor designed for motor control applications with a 73 amp rating and 600V voltage capacity.CE15KN3AB features a 3-pole, non-reversing design with a Frame K size and a coil voltage of 110-120 VAC at 50-60 Hz. It supports up to 5 HP motors and is built for durability with a steel mounting plate. This contactor is UL and CSA certified for safety and reliability.
- Amperage: 73A
- Voltage: 600 VAC
- Coil Voltage: 110-120 VAC, 50-60 Hz
- Poles: 3 (3NO)
- Frame Size: K
- Type: Non-reversing IEC contactor
- Mounting: Steel mounting plate
- Horsepower Rating: Up to 5 HP @ 460V
- Interrupt Rating: Suitable for general motor control
- Certifications: UL, CSA
- Auxiliary Contacts: None
- Termination: Box lug
Additional Information
This IEC Non-Reversing Contactor includes a 110 VAC coil.
Specifications
- Part Number: CE15KN3AB
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 600
- Amperage : 73
- Phase : 3
- Poles : 3
- Temp Rating : -13–158 °F (-25–70 °C)
- Configuration : Non-Reversing
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
- Frequency : 50 Hz
Product Data
- UPC : 782113973463
- GTIN : 00782114000000
- Country of Origin : Dominican Republic
- Dimensions : 4.22 in x 4.27 in x 2.56 in (Length/Depth x Height x Width)
- Weight : 2.12
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : UL Listed,CSA Certified,IEC Rated,ISO 9000,DIN VDE 0600
