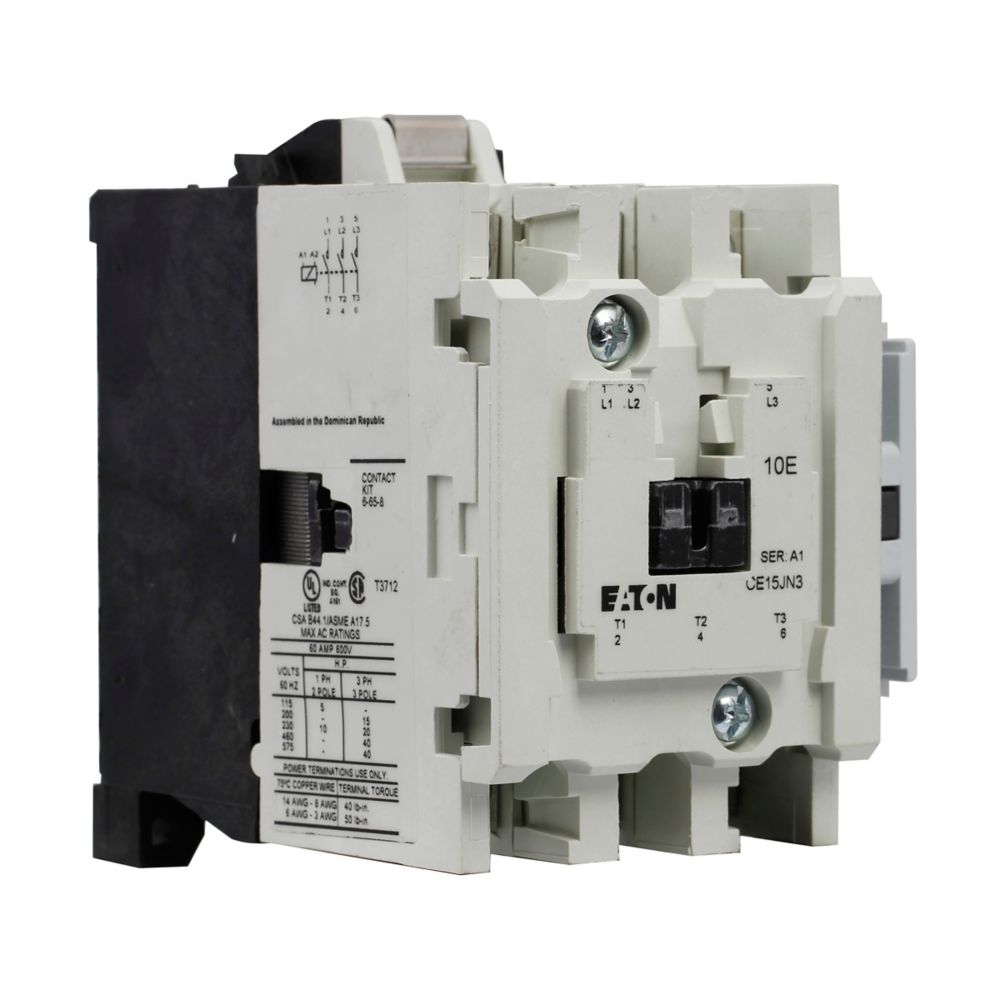

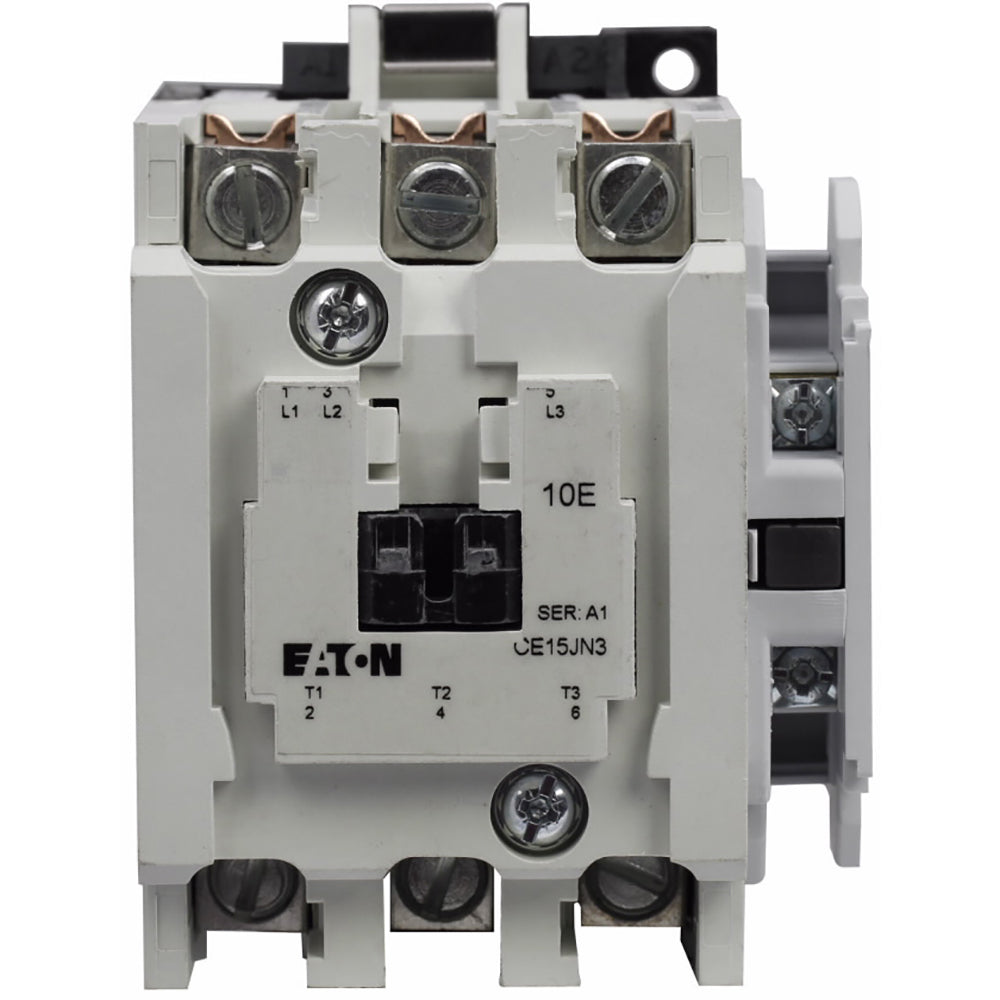

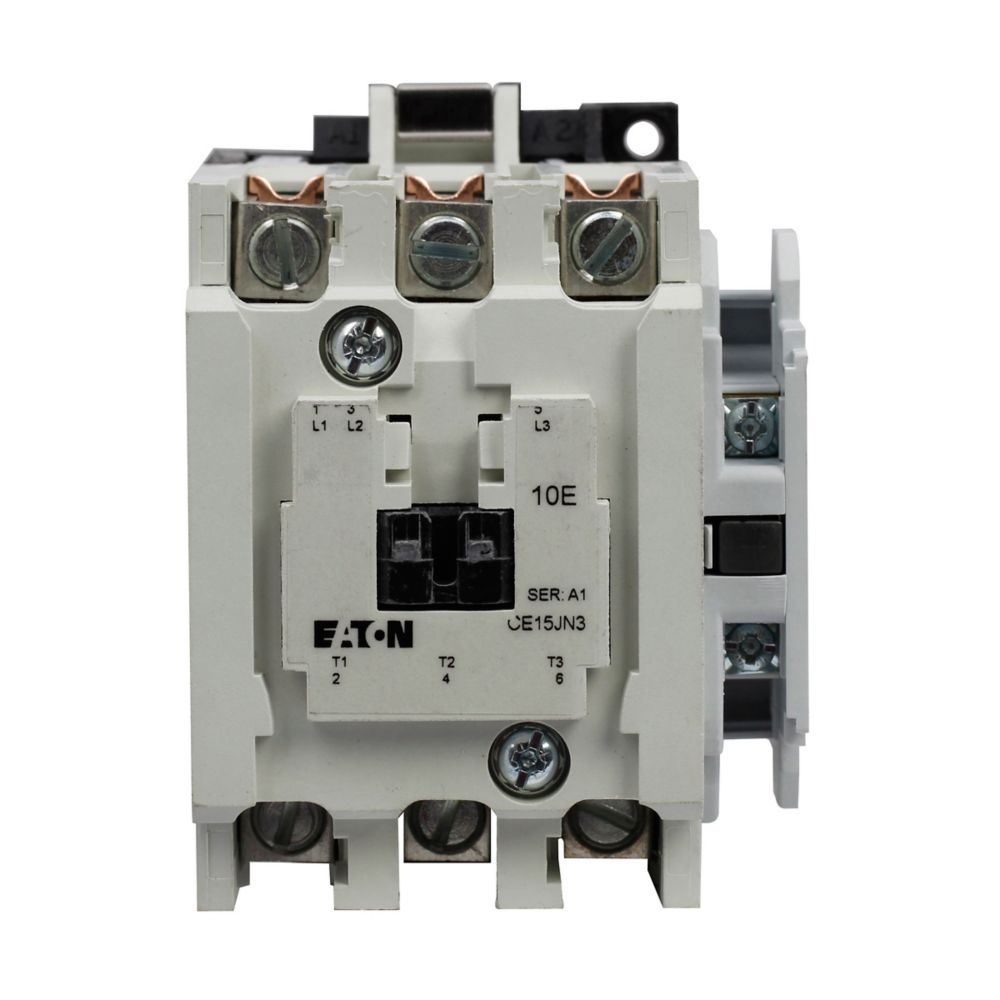

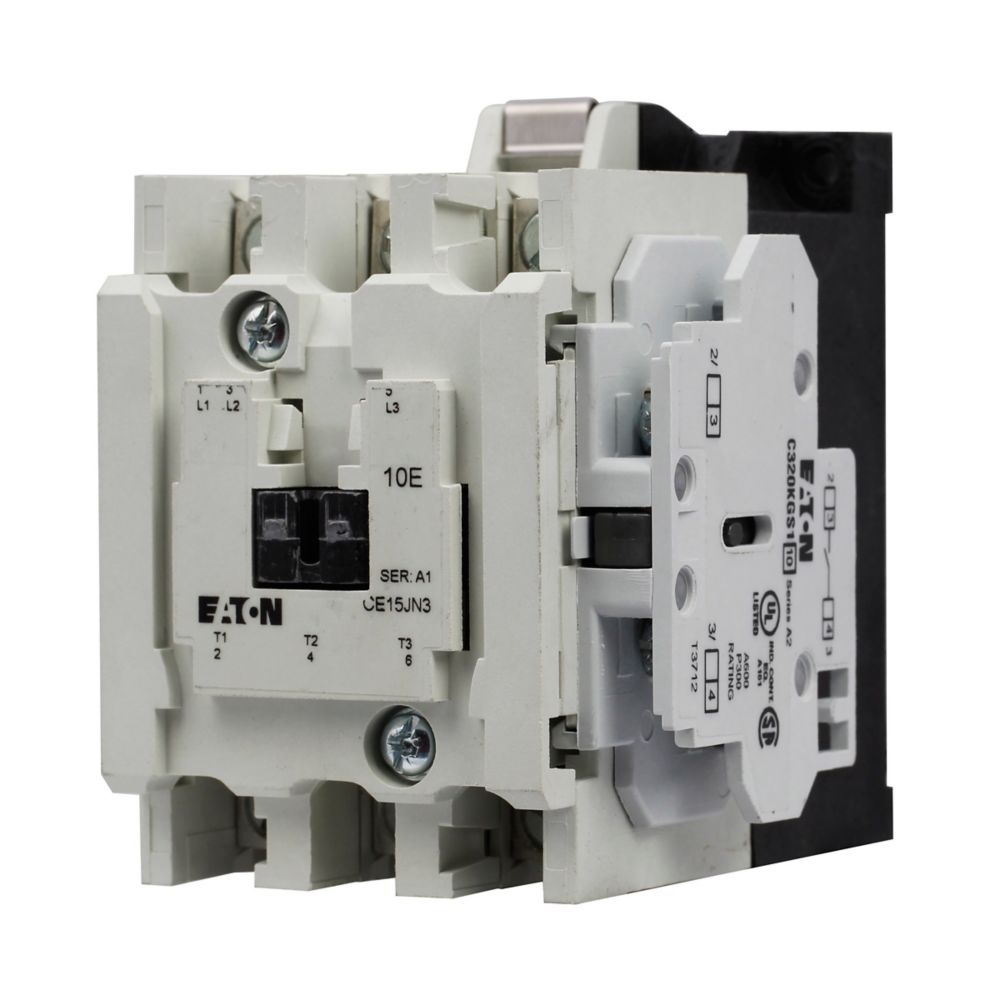

CE15JN3AB - Cutler Hammer 60A 110-120VAC 3-Pole Freedom Series IEC Contactor Frame J

CE15JN3AB

CE15JN3AB is a Cutler Hammer Freedom Series IEC contactor designed for motor control applications with a 60 amp continuous rating.This three-pole contactor features a coil voltage of 110-120 VAC at 50-60 Hz, Frame J size, and a steel mounting plate for surface installation. It supports up to 5 horsepower and operates non-reversing without an overload relay. The product is CSA certified, IEC rated, UL listed, and compliant with DIN VDE 0600 and ISO 9000 standards.

• Amperage Rating: 60A
• Coil Voltage: 110-120 VAC, 50-60 Hz
• Number of Poles: Three-pole
• Frame Size: J
• Mounting Type: Steel mounting plate (surface mount)
• Horsepower Rating: 5 hp max
• Operation: Non-reversing
• Series: Freedom
• Relay: No overload relay
• Certifications: CSA Certified, IEC Rated, UL Listed
• Compliance: DIN VDE 0600, ISO 9000

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 110 VAC coil.

Specifications

• Part Number: CE15JN3AB
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Freedom Series
• Type : CE15JN
• Voltage : 12
• Amperage : 60
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Configuration : Non-Reversing
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Frequency : 50 Hz

Product Data

• UPC : 078211397344
• GTIN : 00782113973449
• Country of Origin : Dominican Republic
• Dimensions : 4.22 in x 4.27 in x 2.56 in (Length/Depth x Height x Width)
• Weight : 2.12 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA Certified,IEC Rated,UL Listed,DIN VDE 0600,ISO 9000
