- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description
CE15BN4AB

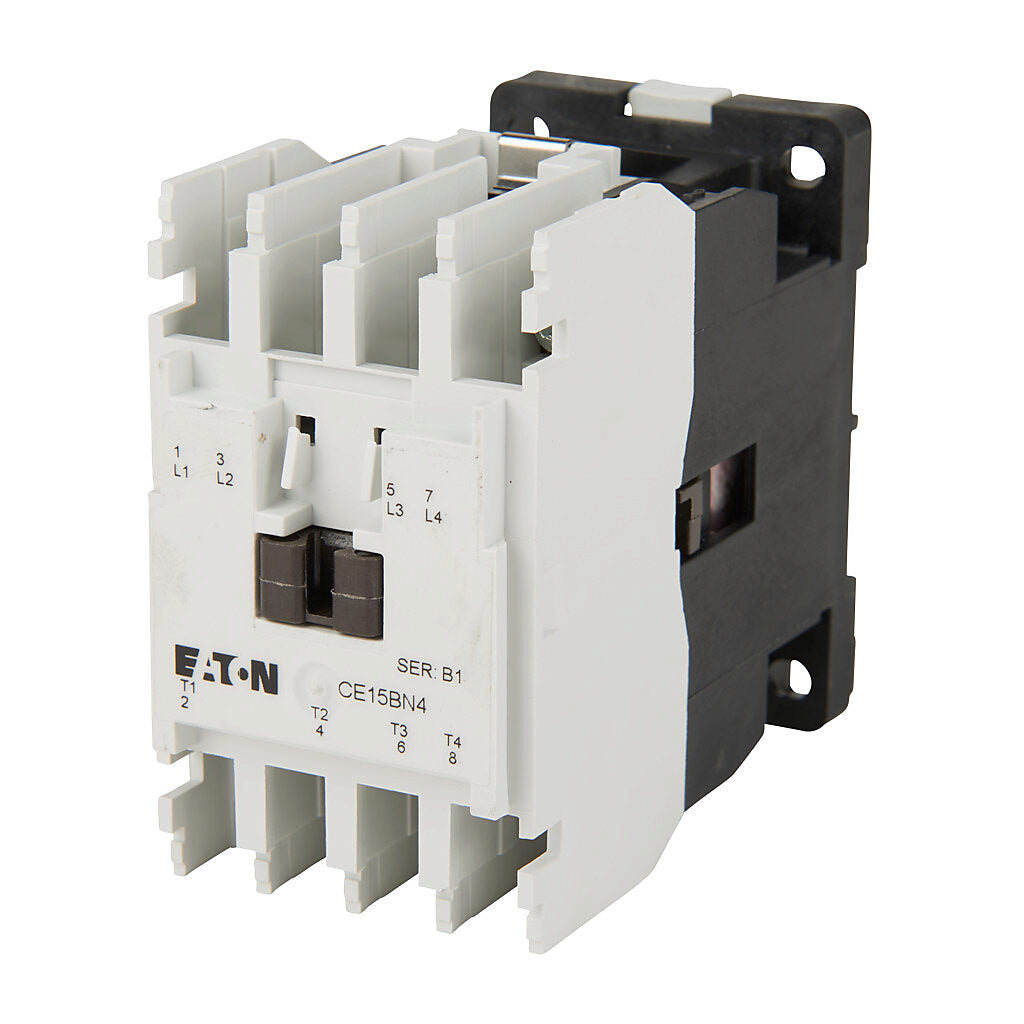

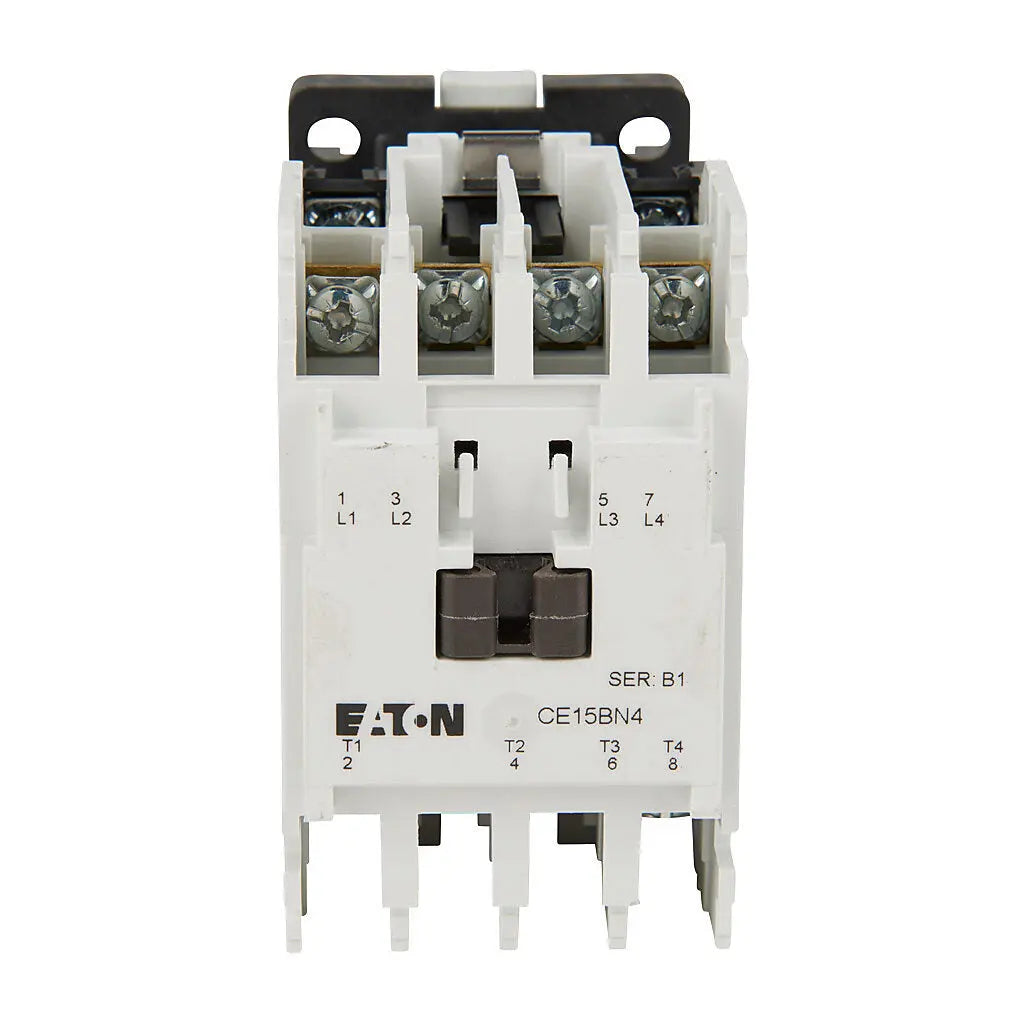

CE15BN4AB is a Cutler Hammer IEC contactor designed for motor control applications with a 10 amp rating and 110/120V coil voltage.
This contactor features a 4-pole configuration, B-frame size (45 mm), and operates at 50-60 Hz frequency. It is non-reversing with no overload relay included and mounts on a steel mounting plate. The unit is CSA certified, UL listed, and compliant with DIN VDE 0600 and ISO 9000 standards, suitable for controlling motors up to 0.5 hp.
- Key Specifications
- Amperage Rating: 10A
- Coil Voltage: 110/120 Vac, 50-60 Hz
- Number of Poles: 4 (Four-pole)
- Frame Size: B-Frame (45 mm)
- Frequency Rating: 50-60 Hz
- Mounting Type: Steel mounting plate
- Operation: Non-reversing
- Horsepower Rating: 0.5 hp max
- Series: Freedom
- Certifications: CSA Certified, UL Listed, IEC Rated
- Overload Relay: None included
- Part Number: CE15BN4AB
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 600
- Amperage : 10
- Phase : 3
- Poles : 4
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
- UPC : 782113778310
- GTIN : 00782116300709
- Country of Origin : Dominican Republic
- Dimensions : 3.25 in x 2.96 in x 1.8 in (Length/Depth x Height x Width)
- Weight : 0.9
- Certification : UL Listed,IEC Rated,CSA Certified,DIN VDE 0600,ISO 9000
