Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description
CE15ANS3BB

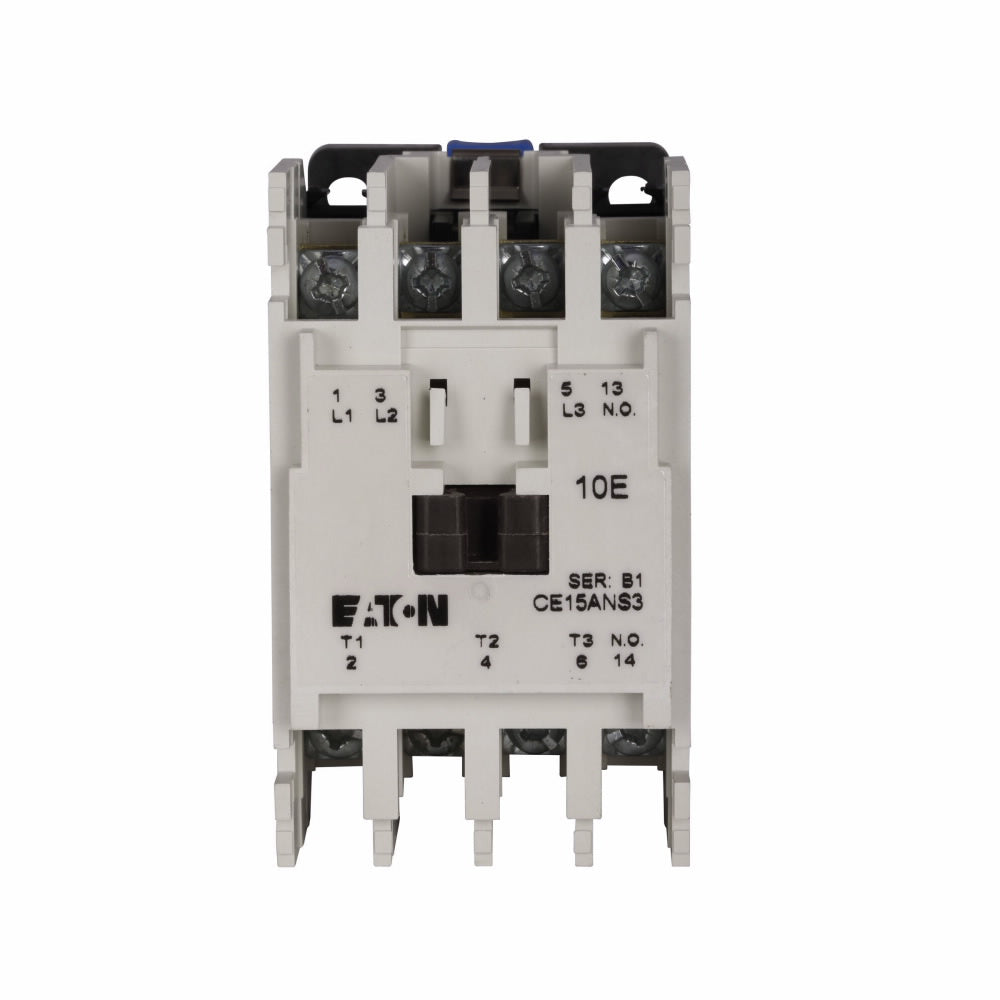

CE15ANS3BB is a Cutler Hammer Freedom Series IEC contactor designed for industrial motor control applications. This non-reversing contactor features a 3-pole configuration and is rated for 7A continuous current with a 220-240VAC coil voltage at 50-60Hz. It is built to IEC standards and is suitable for use in a variety of motor control circuits. The CE15ANS3BB contactor is constructed with a 45mm frame and is designed for DIN rail mounting, making it easy to install in control panels. It includes one normally open (1NO) side-mounted auxiliary contact for additional control circuit flexibility. This contactor is ideal for applications requiring reliable switching of three-phase motors and other inductive loads.
- Part Number: CE15ANS3BB
- Manufacturer: Cutler Hammer
- Series: Freedom Series
- Frame: IEC A, 45mm
- Amperage: 7A (UL Continuous), 20A (IEC Thermal)
- Voltage: 220-240VAC, 50-60Hz
- Poles: 3
- Mounting: DIN Rail
- Auxiliary Contact: 1NO, Side Mounted
- Type: Non-Reversing
- Standard: IEC 947-4-1
- Approvals: UL, CSA
Specifications
- Part Number: CE15ANS3BB
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 600
- Amperage : 7
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 240
- Coil Voltage Minimum : 220
Product Data
- UPC : 782113777726
- GTIN : 00782114000000
- Country of Origin : Dominican Republic
- Dimensions : 3.25 in x 2.96 in x 1.8 in (Length/Depth x Height x Width)
- Weight : 0.9
- Certification : IEC Rated,CSA Certified,UL Listed,ISO 9000,DIN VDE 0600
