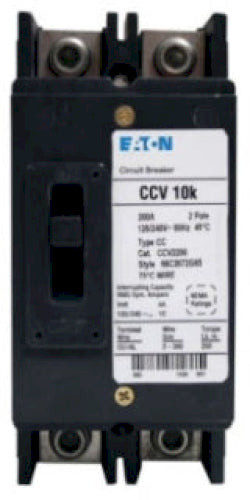

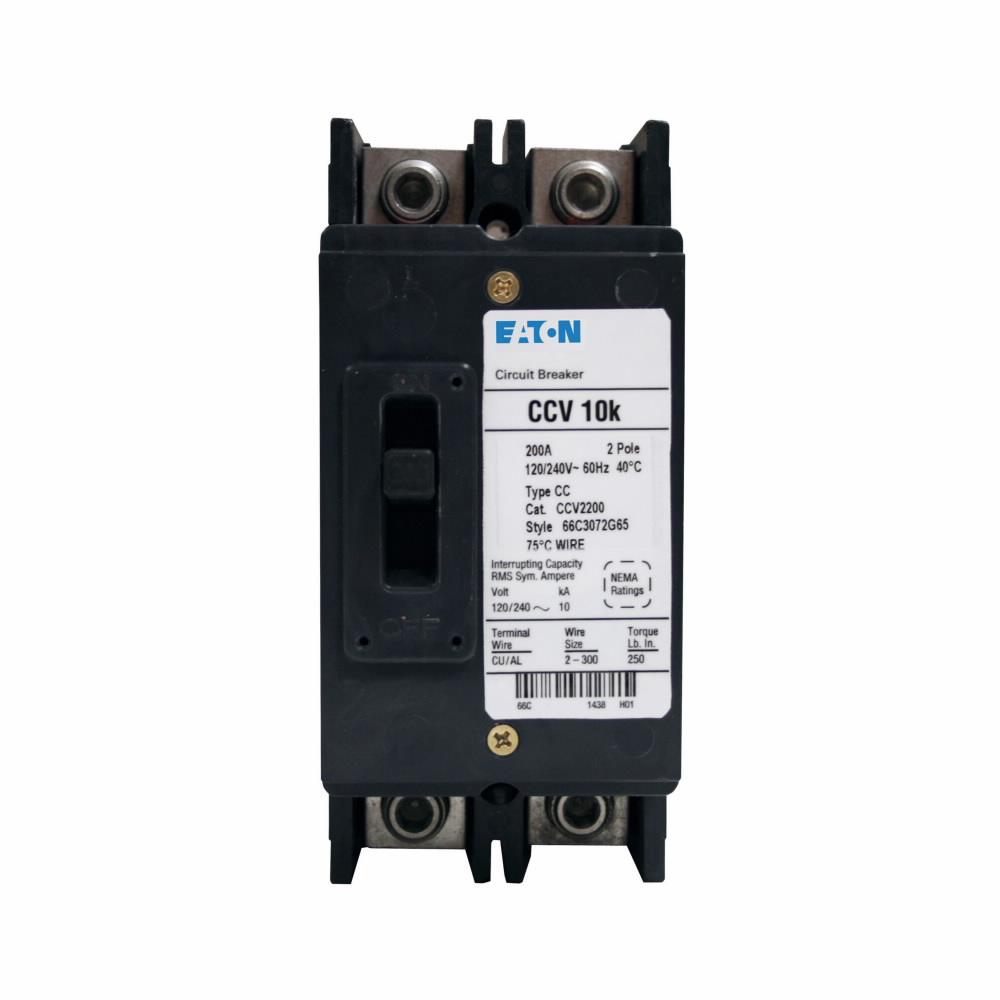

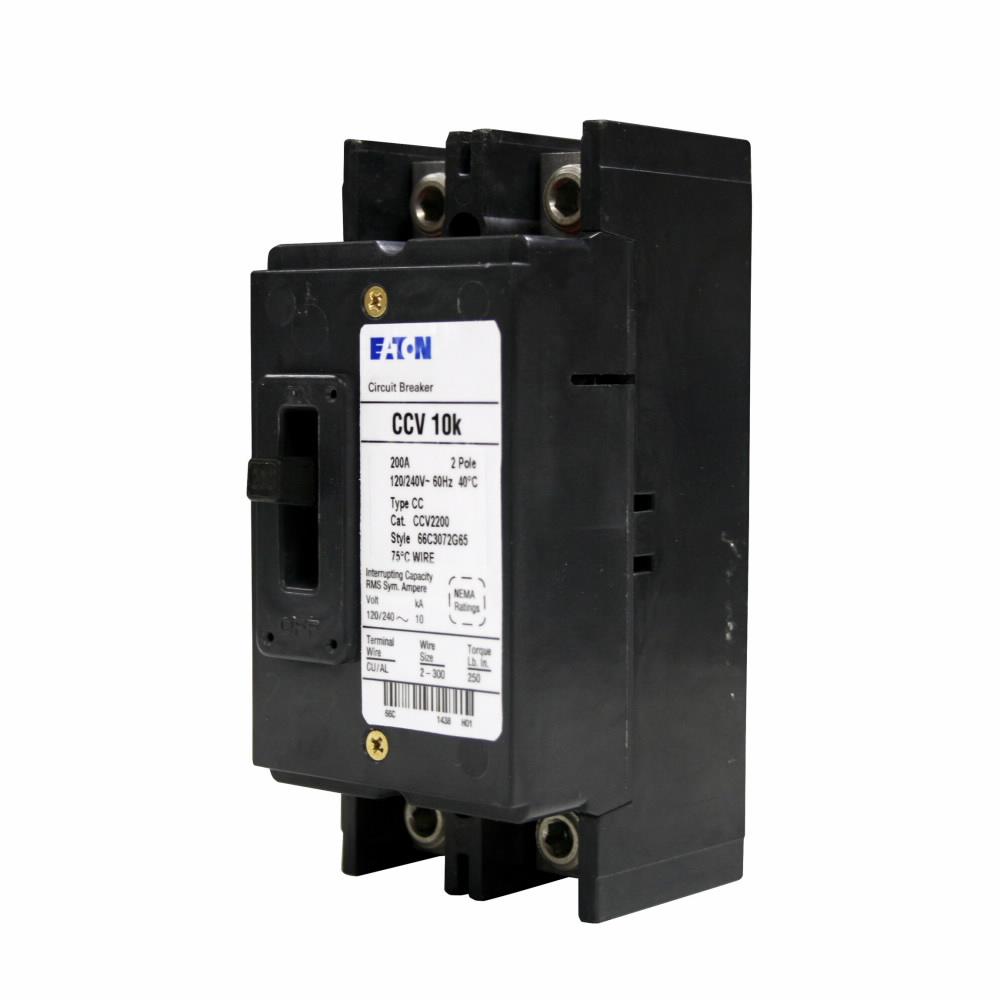

CCV2225 - Cutler Hammer 225 Amp 2 Pole 120/240V Circuit Breaker CCV Frame

CCV2225

CCV2225 is a Cutler Hammer 2-pole circuit breaker rated for 225 amps and 120/240 volts, designed for tenant main applications.This Eaton Cutler Hammer CCV series breaker features thermal magnetic protection with long-time and instantaneous trip units, a 10kA interrupt rating at 240V, and is UL 489 listed. It supports #2/0 to 300 kcmil copper/aluminum wiring and mounts in panel enclosures as a feed-thru tenant main breaker.

Key Specifications
• Amperage: 225 Amp
• Voltage: 120/240 VAC
• Poles: 2
• Interrupt Rating: 10 kA @ 240V
• Frame Type: CCV
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Mounting Type: Panel Feed-Thru
• Wire Size: #2/0 to 300 kcmil Cu/Al
• UL Listing: UL 489
• Weight: Approx. 2.5 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CCV2225
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Tenant Main
• Type : CCV
• Voltage : 240
• Amperage : 225
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 786685368641
• GTIN : 00786685368641
• Country of Origin : Dominican Republic
• Dimensions : 8 in x 5.5 in x 4.5 in (Length/Depth x Height x Width)
• Weight : 2.5
• Certification : UL 489
• Wire Size : 2/0 AWG to 300KCmil, Al/Cu
