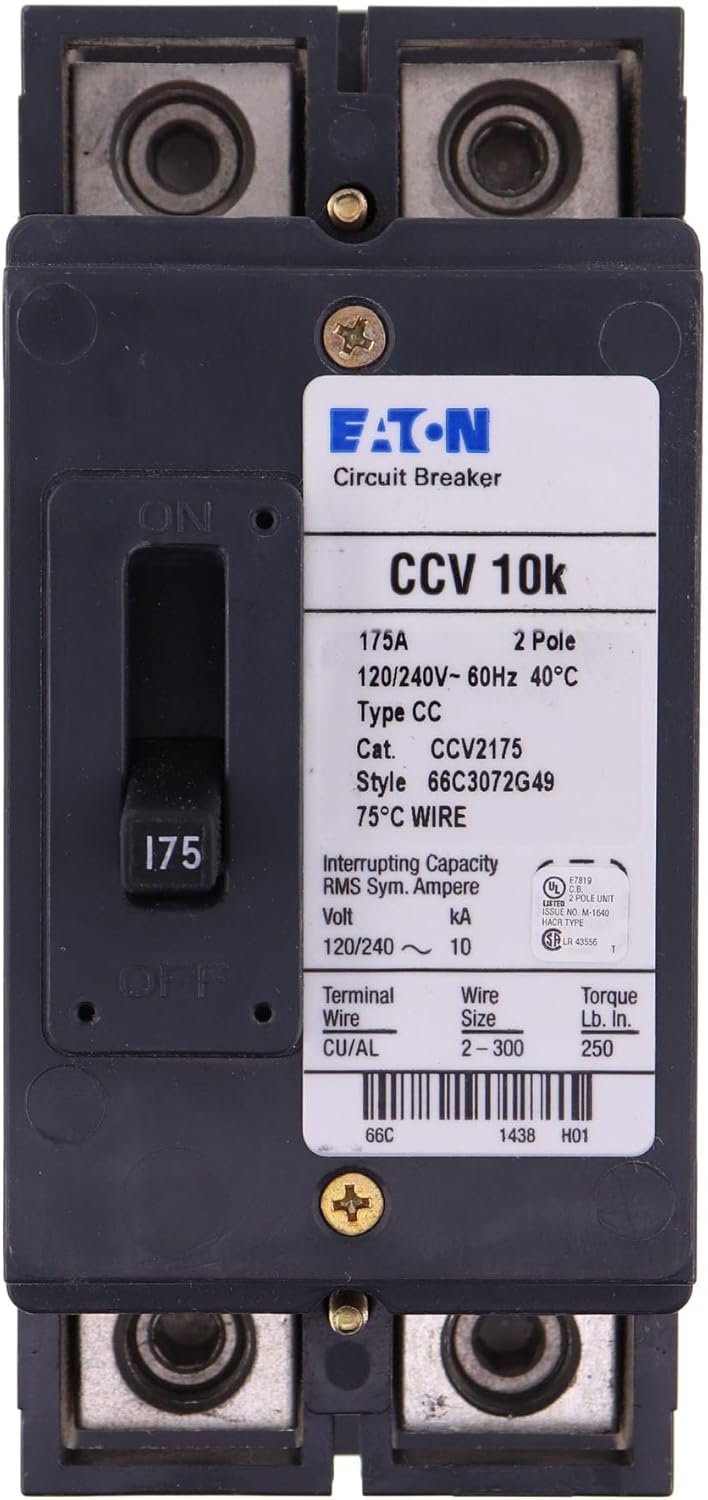

CCV2175 - Cutler Hammer 175 Amp 2 Pole 120/240VAC CCV Series Molded Case Circuit Breaker, 10kAIC, Thermal Magnetic Trip, Feed-Thru Mounting, UL Listed

CCV2175

CCV2175 is a Cutler Hammer 2-pole molded case circuit breaker designed for reliable protection in residential and light commercial applications.

This thermal magnetic circuit breaker features a 175 Amp current rating, 120/240VAC voltage rating, and a 10kAIC interrupting capacity. It is part of the CCV series, offers feed-thru mounting with line and load side lugs, and includes both long-time and instantaneous trip functions for enhanced safety. The CCV2175 is UL listed and is commonly used as a tenant main breaker.

Key Specifications

• Part Number: CCV2175
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 175 Amp
• Voltage: 120/240VAC
• Poles: 2
• Mounting Type: Feed-Thru
• Interrupt Rating: 10kAIC at 240V
• Series/Frame: CCV
• Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
• Certifications: UL Listed
• Connection: Line and Load Side Lugs
• Application: Tenant Main, Residential, Light Commercial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CCV2175
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Tenant Main
• Type : CCV
• Voltage : 240
• Amperage : 175
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 786685368511
• GTIN : 00786685368511
• Country of Origin : Dominican Republic
• Dimensions : 8 in x 5.5 in x 4.5 in (Length/Depth x Height x Width)
• Weight : 2.5
• Certification : UL 489
