Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Part And Accessory
Description
CCPB-3-60CF

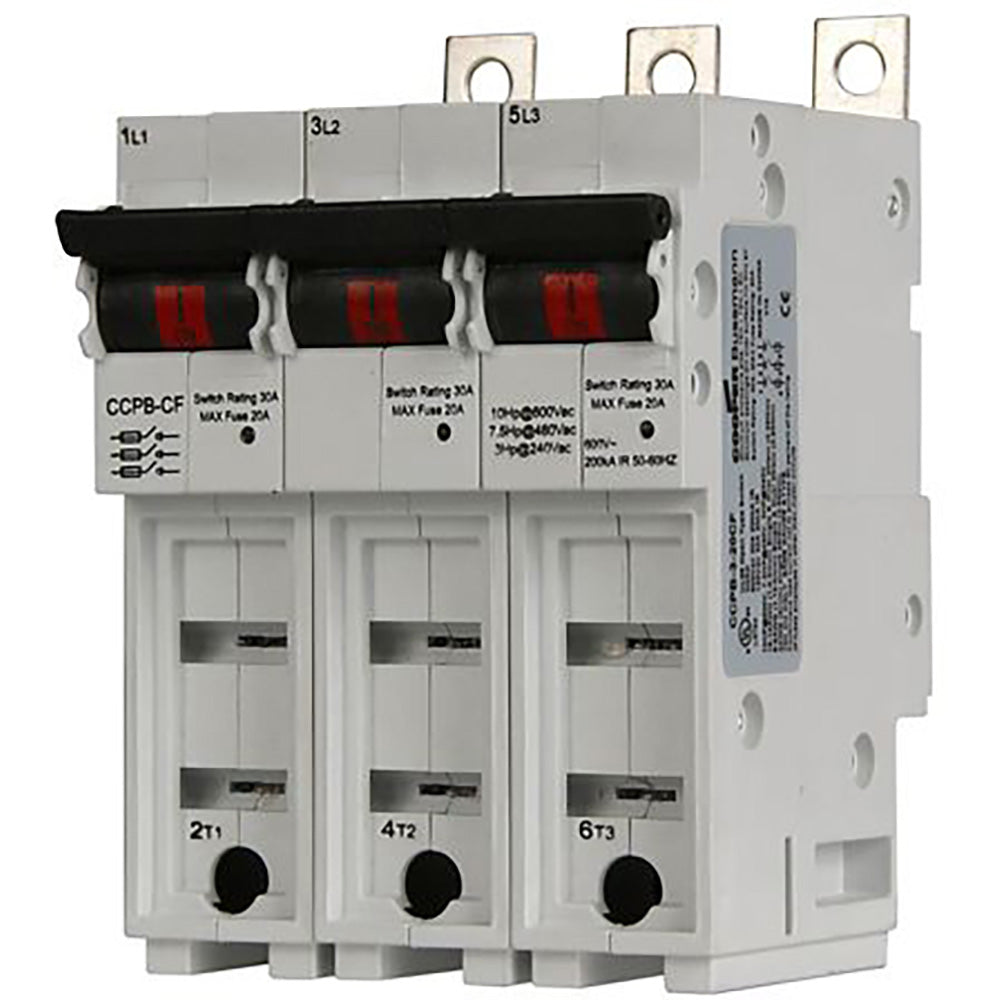

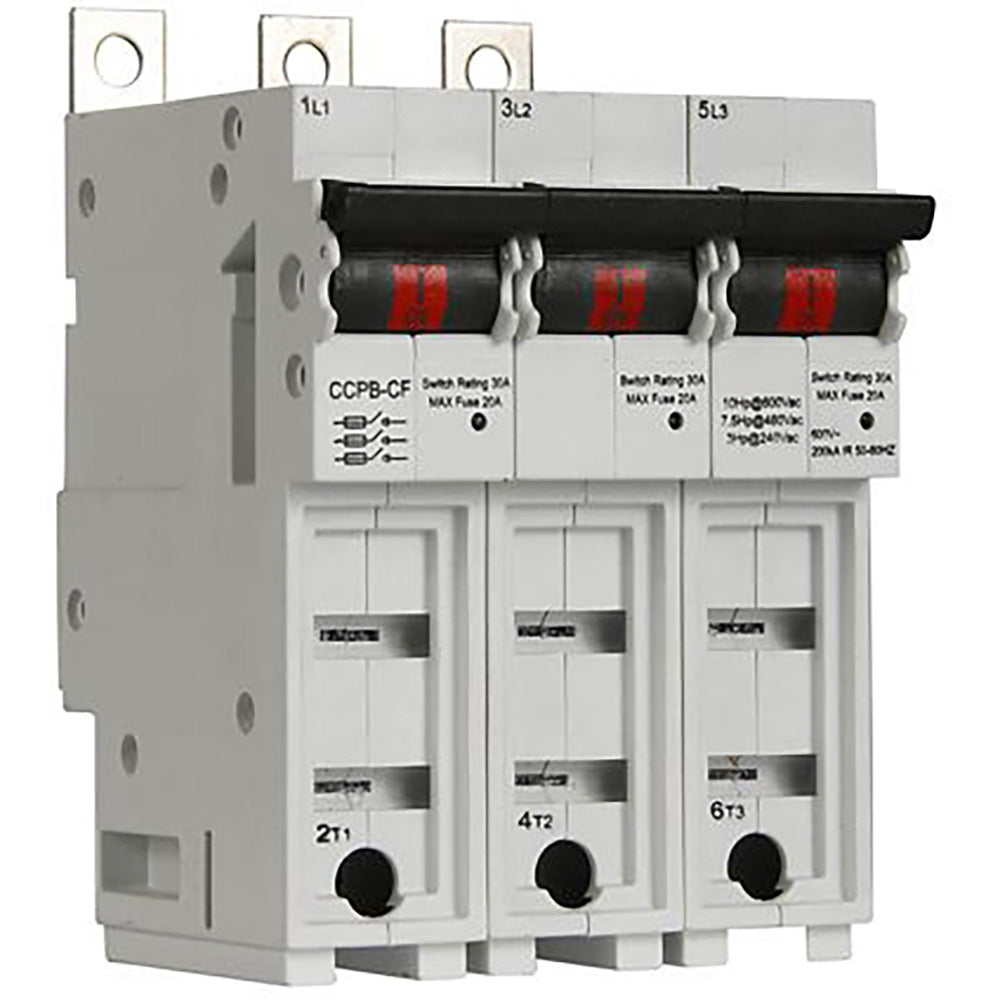

CCPB-3-60CF is a 3-pole, 60 amp, 600 VAC UL98 fusible disconnect from Eaton's Bussmann series designed for reliable circuit protection.This Eaton Bussmann CCPB-3-60CF fuse base features finger-safe construction, lock-on provision for safety, and a Class CF fuse rating with a 200 kA interrupt rating. It supports motor loads up to 20 HP at 480V and 10 HP at 600V. The device is suitable for use in industrial applications requiring a compact, UL98-compliant fusible disconnect with local open fuse indication and loadside fork terminals.
- Key Specifications
- Amperage: 60 Amps
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Fuse Class: CF
- Interrupt Rating: 200 kA
- Mounting Type: UL98 Fusible Disconnect Base
- Lock-On Provision: Yes
- Finger Safe: Yes
- Motor HP Ratings: 20 HP @ 480V, 10 HP @ 600V
- Operating Temperature: -20°C to 75°C
- Local Open Fuse Indication: Yes
- Certifications: UL Listed
- Part Number: CCPB-3-60CF
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Part And Accessory
- Section : UL98 fusible disconnect
- Family : CUBEFuse
- Type : CCPB
- UPC : 051712201575
- Dimensions : 0.11 in x 0.15 in x 0.12 in (Length/Depth x Height x Width)
- Weight : 0.83 lb
