Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Parts And Accessories
Description
CCPB-3-30CF

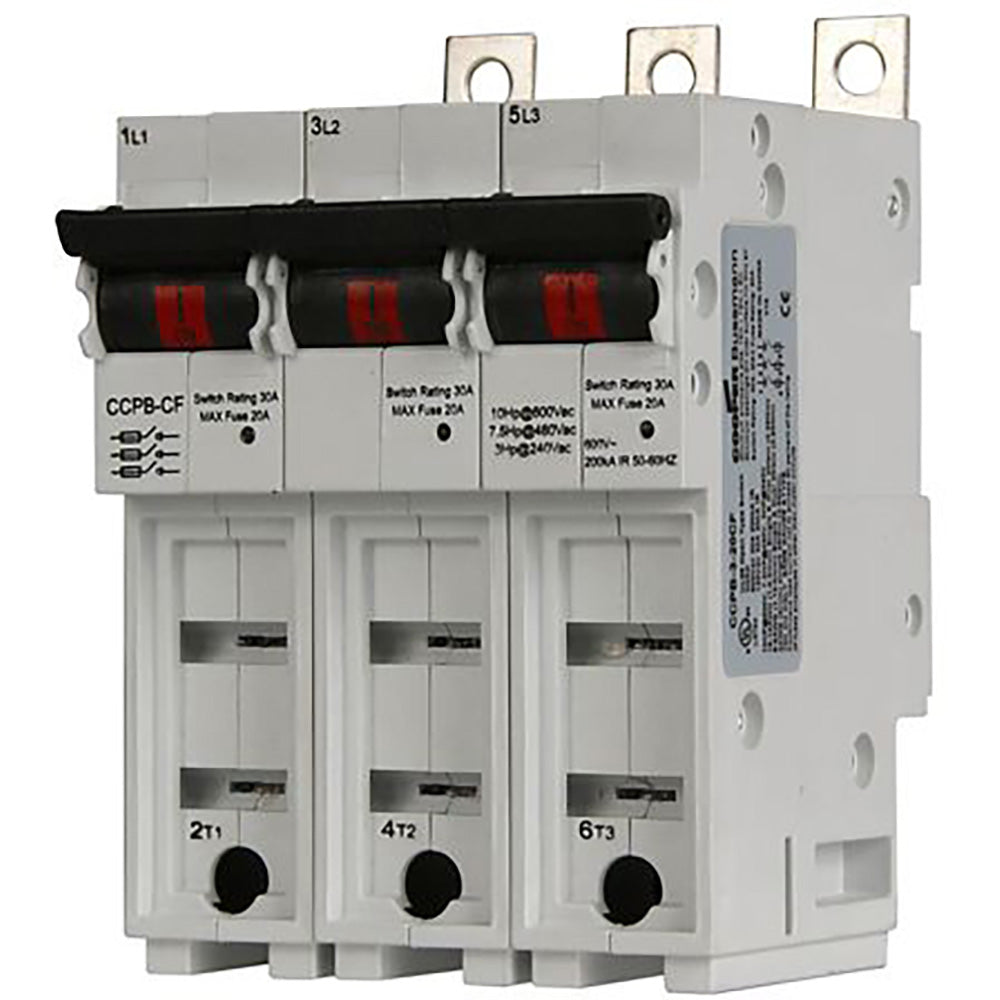

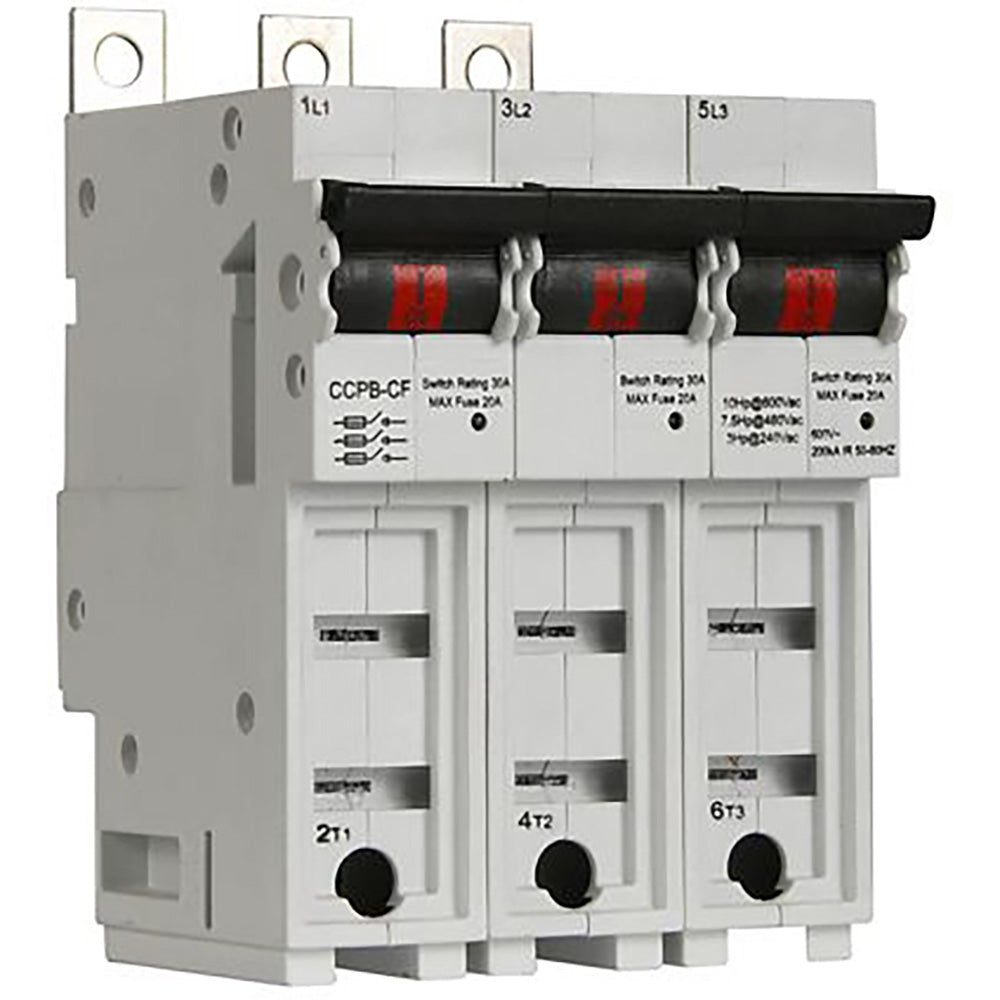

CCPB-3-30CF is a 3-pole, 30 amp, 600 volt AC compact circuit protector fuse base from Eaton's Bussmann series.
This fuse base features a bolt-on mount design with a 200 kilo-amp interrupt rating and is suitable for use with Class CF fuses. It includes lockout/tagout provisions, local open fuse indication light, and finger-safe construction compliant with UL98 standards. The unit supports motor horsepower ratings up to 15 HP at 480V and 10 HP at 600V, with a temperature rating from -20°C to 75°C. It is designed for use with copper conductors and includes loadside fork terminals for secure connections.
- Key Specifications
- Amperage: 30 Amp
- Voltage Rating: 600 Volt AC
- Number of Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 200 kA
- Series/Frame: Bussmann CCPB
- Fuse Class Compatibility: Class CF
- Lockout/Tagout Provision: Yes
- Local Open Fuse Indication: Light Illumination
- Operating Temperature Range: -20°C to 75°C
- UL98 Fusible Disconnect Compliant
- Finger-Safe Construction
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CCPB-3-30CF
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Parts And Accessories
- Section : Compact Circuit Protector (CCP)
- Family : CUBEFuse
- Type : CCPB
- Temp Rating : -13-158 ¡F (-25-70 ¡C)
Product Data
- UPC : 051712201544
- Dimensions : 0.11 in x 0.15 in x 0.12 in (Length/Depth x Height x Width)
- Weight : 0.67
- Temp Rating : -13-158 ¡F (-25-70 ¡C)
