Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Part And Accessory
Description
CCPB-1-60CF

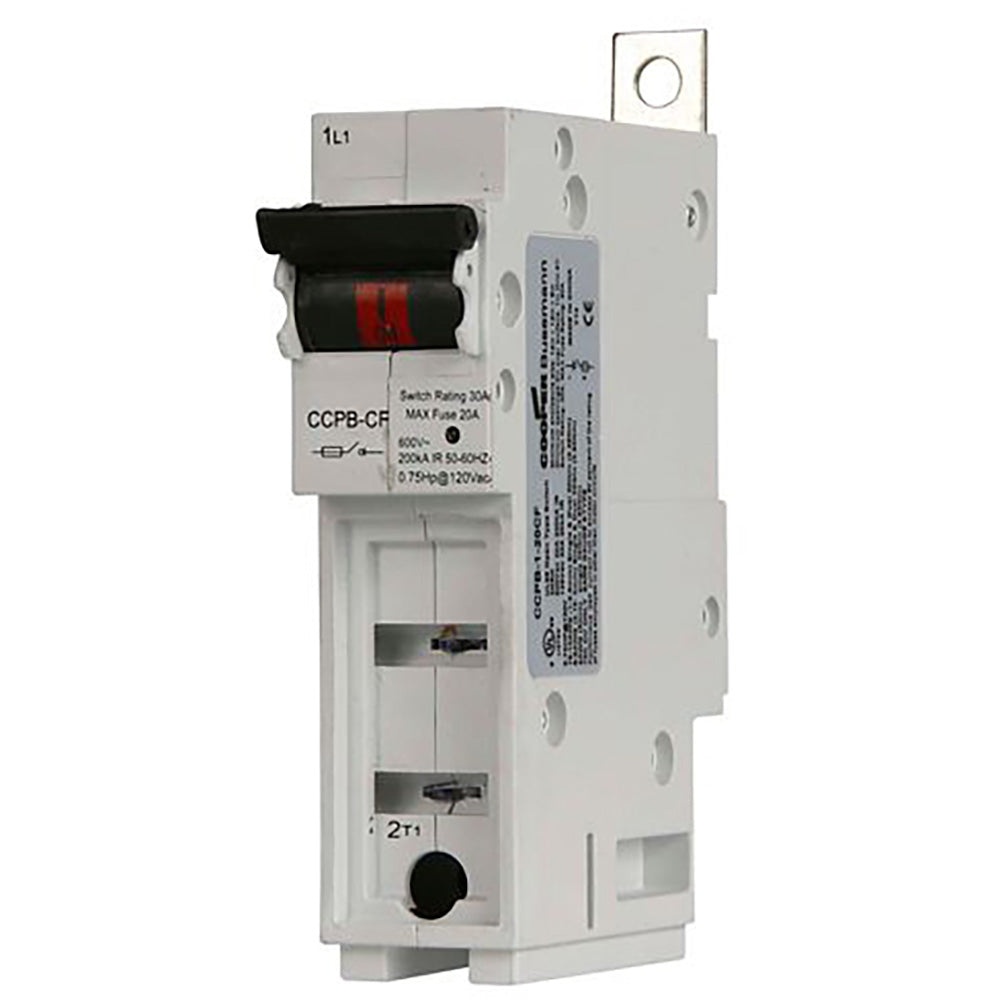

CCPB-1-60CF is an Eaton Bussmann series CUBEFuse Compact Circuit Protector designed as a single-pole fusible disconnect switch with finger-safe design and lock-on provision for reliable circuit protection and disconnection. This UL 98 listed device provides branch circuit disconnect functionality with a 200 kA short-circuit rating, making it suitable for industrial and commercial electrical applications requiring dependable fuse-based protection. The unit accepts Class CF CUBEfuses and features an open fuse indication lamp per pole to expedite troubleshooting and maintenance.
- Amperage Rating: 60 A maximum fuse
- Voltage Rating: 600 Vac, 125 Vdc
- Number of Poles: Single-pole
- Short-Circuit Rating: 200 kAIC
- Fuse Type: CUBEFuse Class CF
- Special Features: Finger Safe, Lock-On provision
- Certifications: UL 98 Listed, cULus Listed
- Horsepower Rated: 3.0 Hp at 120 V
- Dimensions: 3 in W x 3.9 in H x 2.7 in D
- Weight: 3.7 lb
Specifications
- Part Number: CCPB-1-60CF
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Part And Accessory
- Section : Compact Circuit Protector (CCP)
- Family : CUBEFuse
- Type : CCPB
Product Data
- UPC : 05171220155
- GTIN : 00051712201551
- Dimensions : 0.11 in x 0.15 in x 0.12 in (Length/Depth x Height x Width)
- Weight : 0.32
