Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Block
Description

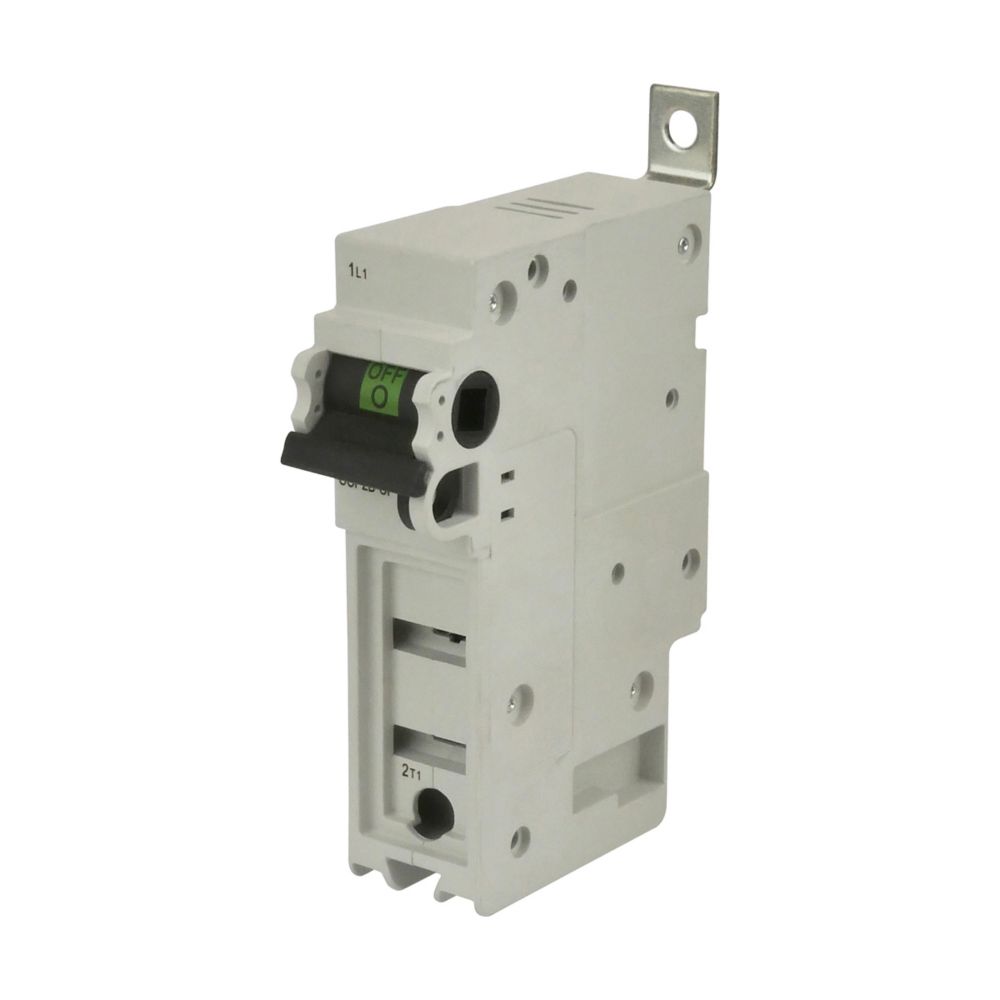

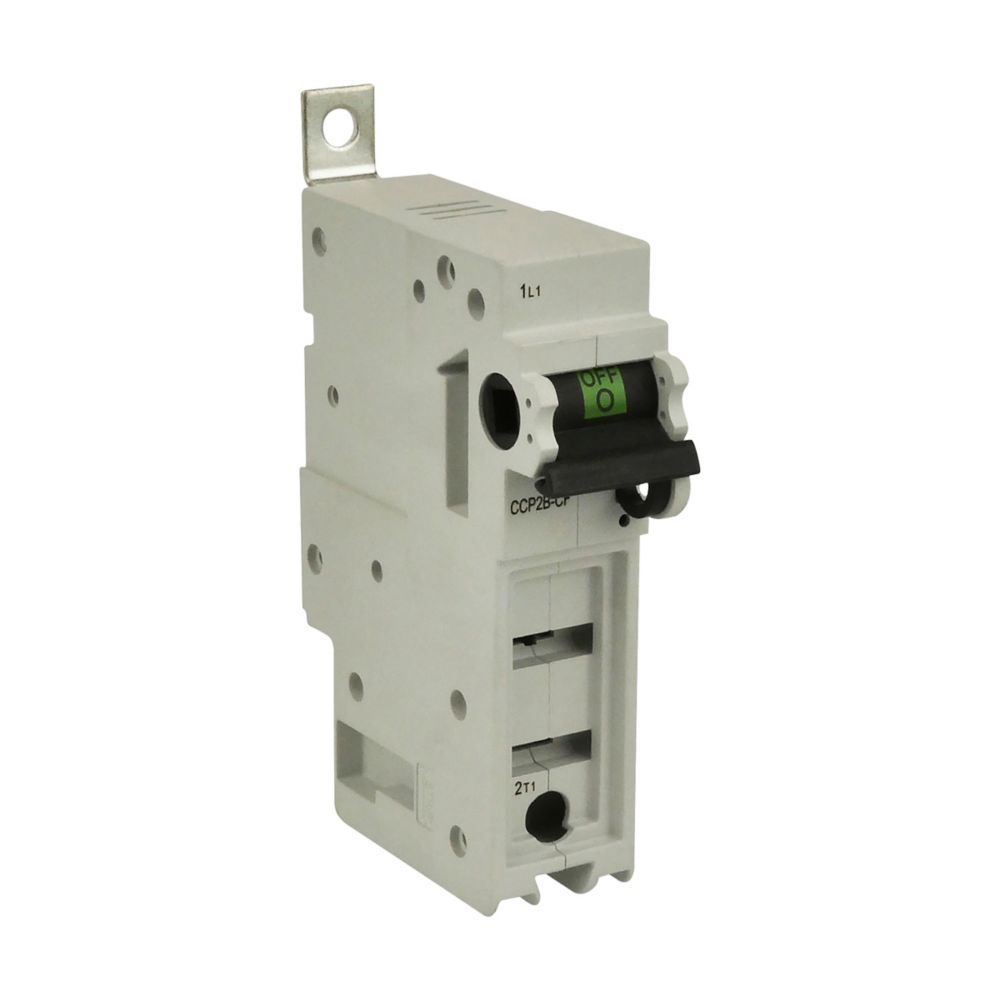

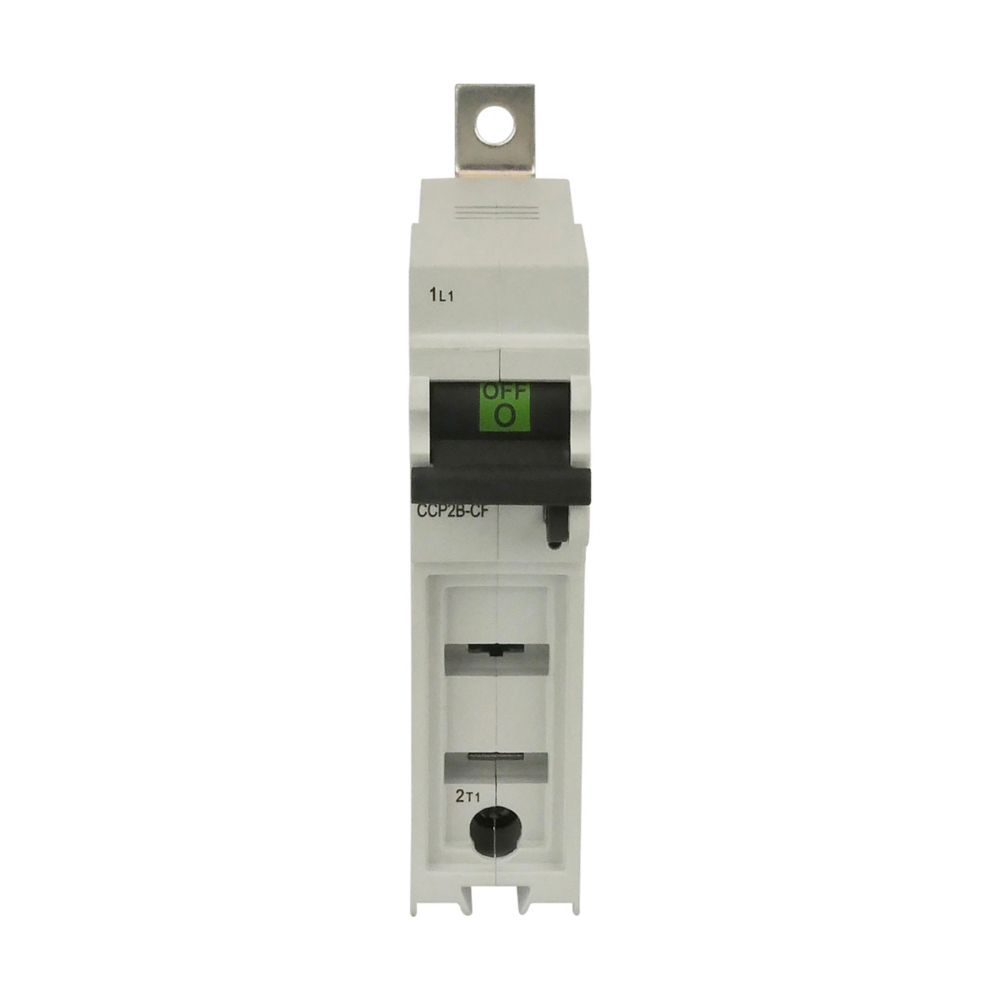

CCP2B-2-30CF
CCP2B-2-30CF is an Eaton Bussmann series CCPB UL98 fusible disconnect switch designed for reliable circuit protection and load isolation in industrial and commercial applications. This two-pole unit features finger-safe Class CF CUBEFuse technology with a lock-on provision, delivering a high 200 kA short-circuit current rating (SCCR) for enhanced safety and performance. The compact design accommodates fuse ratings from 1 to 100 amps, allowing precise load matching while the patented amp rating rejection feature helps prevent overfusing.
- Amperage Rating: 30 A
- Voltage Rating: 600 Vac, 125 Vdc
- Number of Poles: Two-pole
- Short-Circuit Rating: 200 kAIC
- Fuse Type: Class CF CUBEFuse
- Special Features: Finger Safe, Lock-On provision
- Certification: UL98
- Dimensions: 3 in W x 3.9 in H x 2.7 in D
- Weight: 3.7 lb
Specifications
- Part Number: CCP2B-2-30CF
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Fuse Block
- Voltage : 125 DC, 600 AC
Product Data
- UPC : 51712709408
- Country of Origin : China
- Dimensions : 2.7 in x 3.9 in x 3 in (Length/Depth x Height x Width)
- Weight : 3.7
- Certification : CCC Marked, CE, cULus to Canadian Standard 22.2 No. 4 Guide WHTY7 File E302370, RoHS Compliant, UL 98 Listed Guide WHTY File E302370
